OVERVIEW

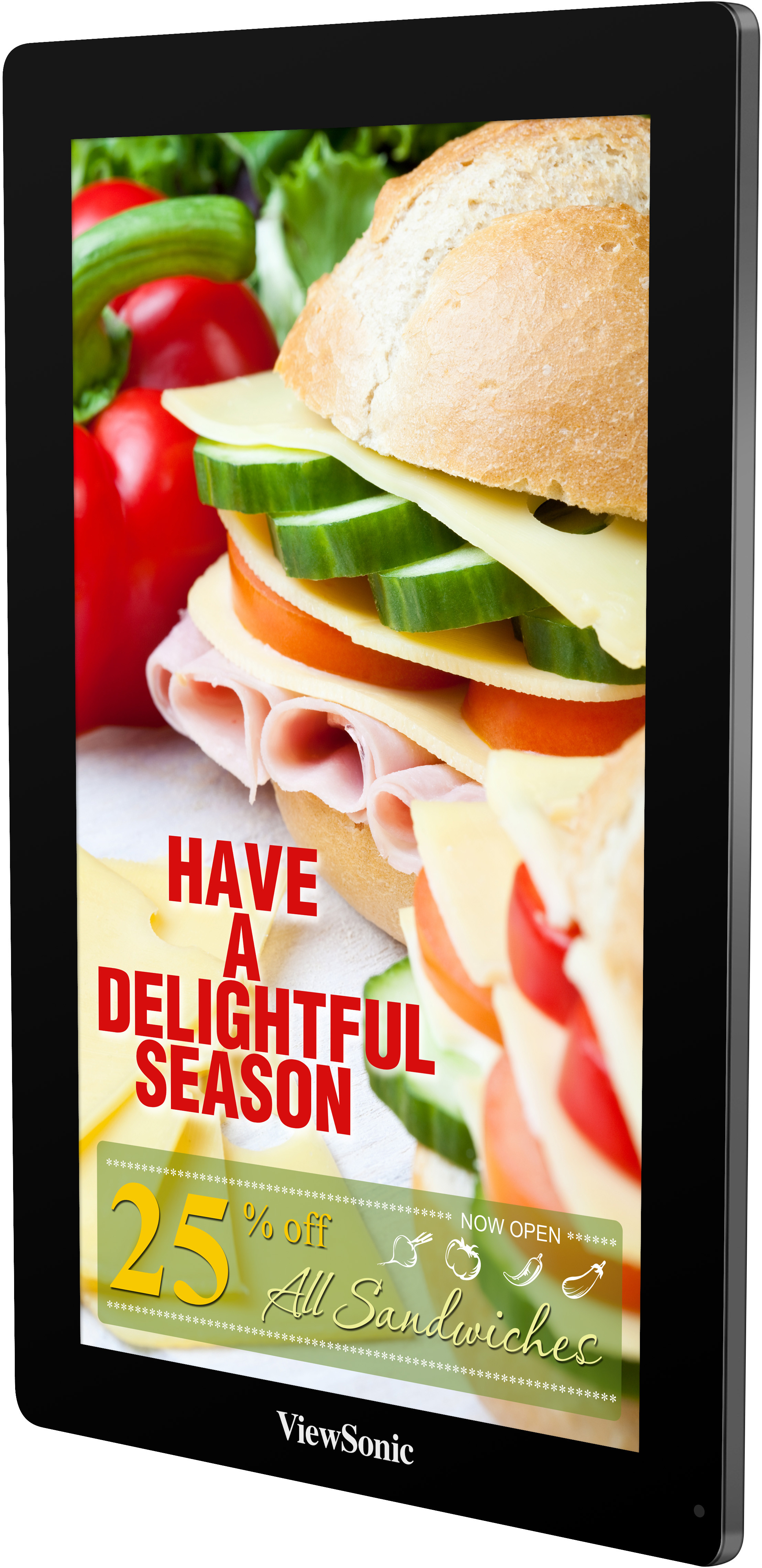

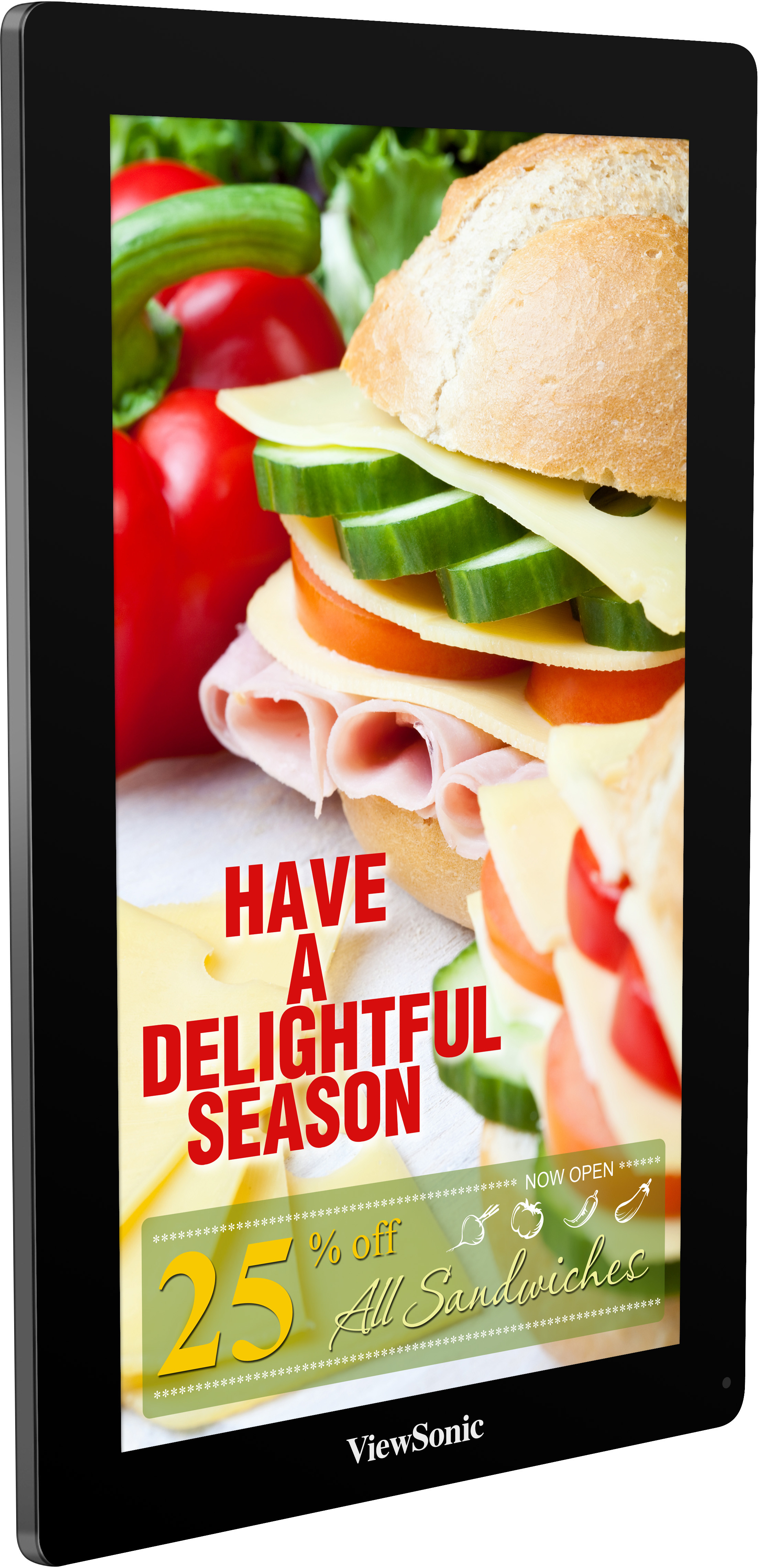

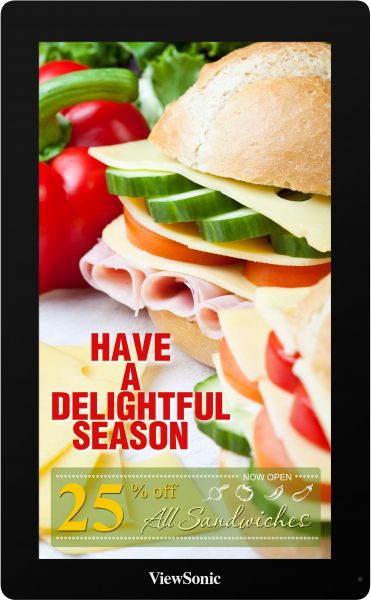

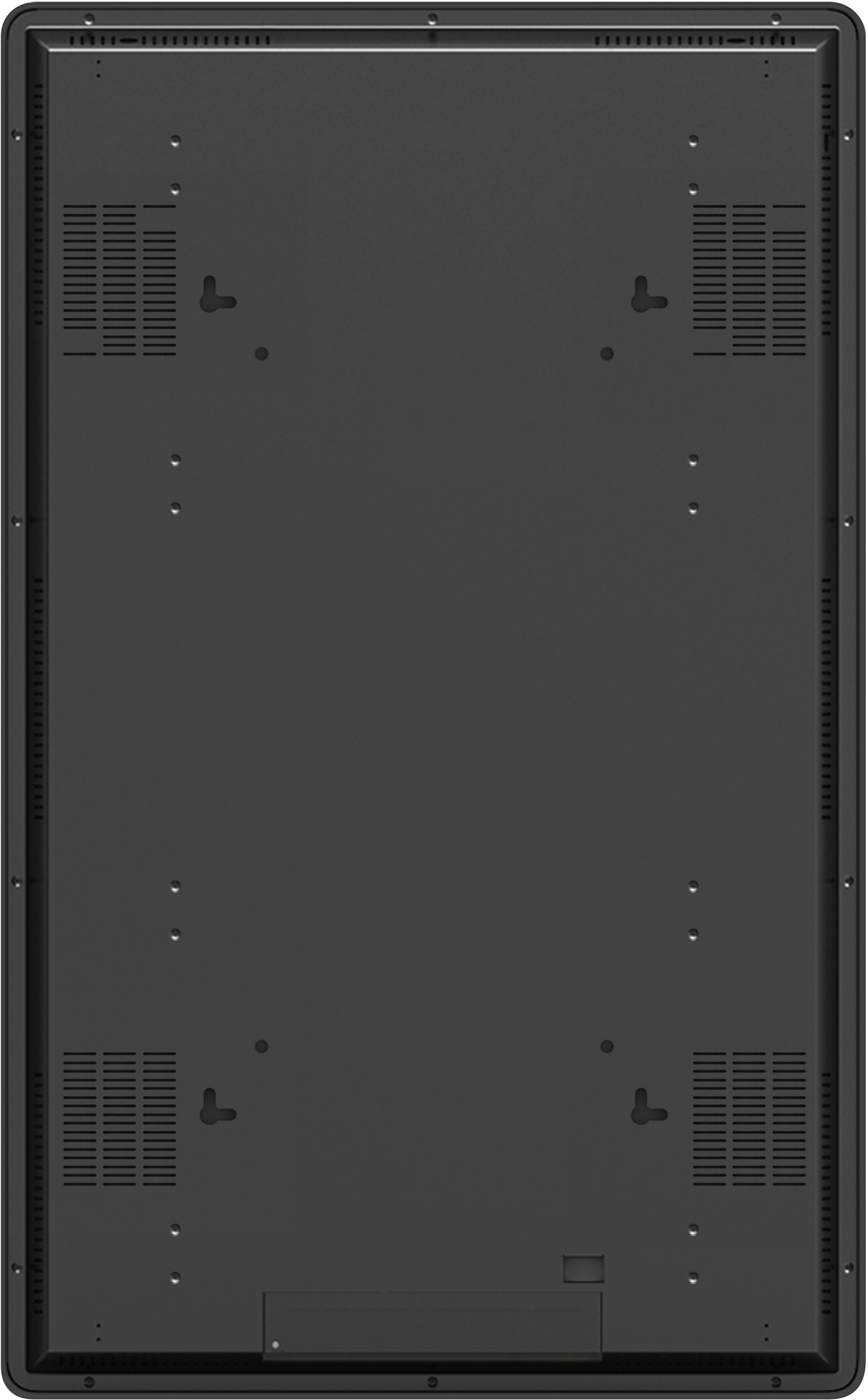

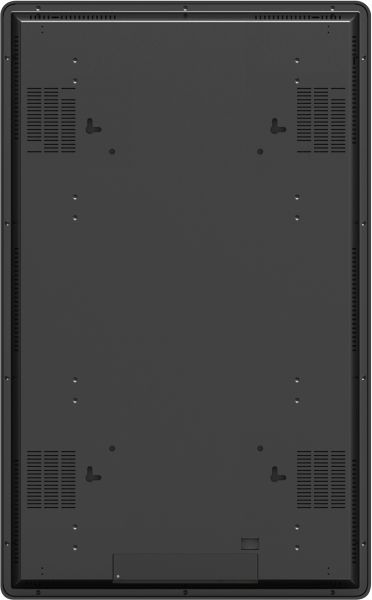

ViewSonic’s EP3203r is a 32” LED ePoster that delivers brilliant and crystal clear image quality from a large, sleek, and slim profile. The premium design and slim profile allows it to be the perfect wall mount for informational and promotional applications in any setting, while the USB ports offer quick access to a wide range of formats for convenient content management.1- 1366x768 LCD panel with LED backlight
2- Brightness up to 320 nits and contrast ratio up to 4,000:1 for Excellent Color Image
3- Embedded media player supports photos, music and videos in high definition
4- Great compatibility for versatile advertisement content
5- Tempered glass cover provides 1K level impact resistance for protecting panel and ID design
6- Easy to upload playlist via USB
7- HDMI and VGA port offers great flexibility in connection
8- Built-in 5W+5W speaker
9- Ultra Slim design
SPECIFICATIONS
- COLORSBlack
- LCDTür: 31.5" color TFT active matrix, wide LCD
Kontrast Oranı: 4,000:1
Görüntüleme Açıları: 89° (H) / 89° (V)
Parlaklık: Internal: 320 nits / External: 280 nits
Ekran Alanı: 697.68 (H) x 392.26 (V)
Optimum Çözünürlük: 1366 x 768
Görüntü Oranı: 16:9
Panel Yüzeyi: Anti-glare, hard coating (3H) - BOYUTLARFiziksel (mm): 809.6 x 499.6 x 40
Fiziksel (inç): 31.87 x 19.67 x 1.57
- KONEKTÖRLERHDMI (giriş): x1
Video Girişi: x1
USB: 2.0 x2
Analog: VGA (D-Sub) x1
LAN: RJ45 x1
Power: 2 pin plug - Güç Gerilim: AC 100 - 240V (Universal) , 50 - 60Hz
- SesHoparlörler: Amplifier:5W x2
- AğırlıkBrüt: 39.68 lb. (18kg)
Net: 33.01 lb. (15kg) - İŞLETİM KOŞULLARINem: 20% ~ 90% (non-condensation)
Isı: 32°F~122°F (0 ~ 50°C) - InputSupported Image H.264 TBD
Decoding Format
MPEG 1 TBD
MPEG 2 TBD
MPEG 4 - XVID TBD
JPEG TBD - ControlsSystem Settings : Language, Clock Display, Scrolling Text, USB Port, Return to Factory Settings
Playback Control : Storage, Priority, Playback Mode, Play Time
Date & Time : Year, Month, Day, Hour, Minute, Update Date & Time
On/Off Timer : Timer Mode, Daily, Sunday-Saturday
Local ID : ID, Save
Screen Mode : Vertical, Horizontal, Save and Reboot
File Management : Information, Format
Source : HDMI, VGA, Digital Signage
System Setting : OSD Language, Reset
Image : Brightness, Contract, Saturation, Color Temp
PC Settings : Auto Adjust, H Position, V Position, Phase, Clock
