ePoster
EP3203r
Key Features
Product Description

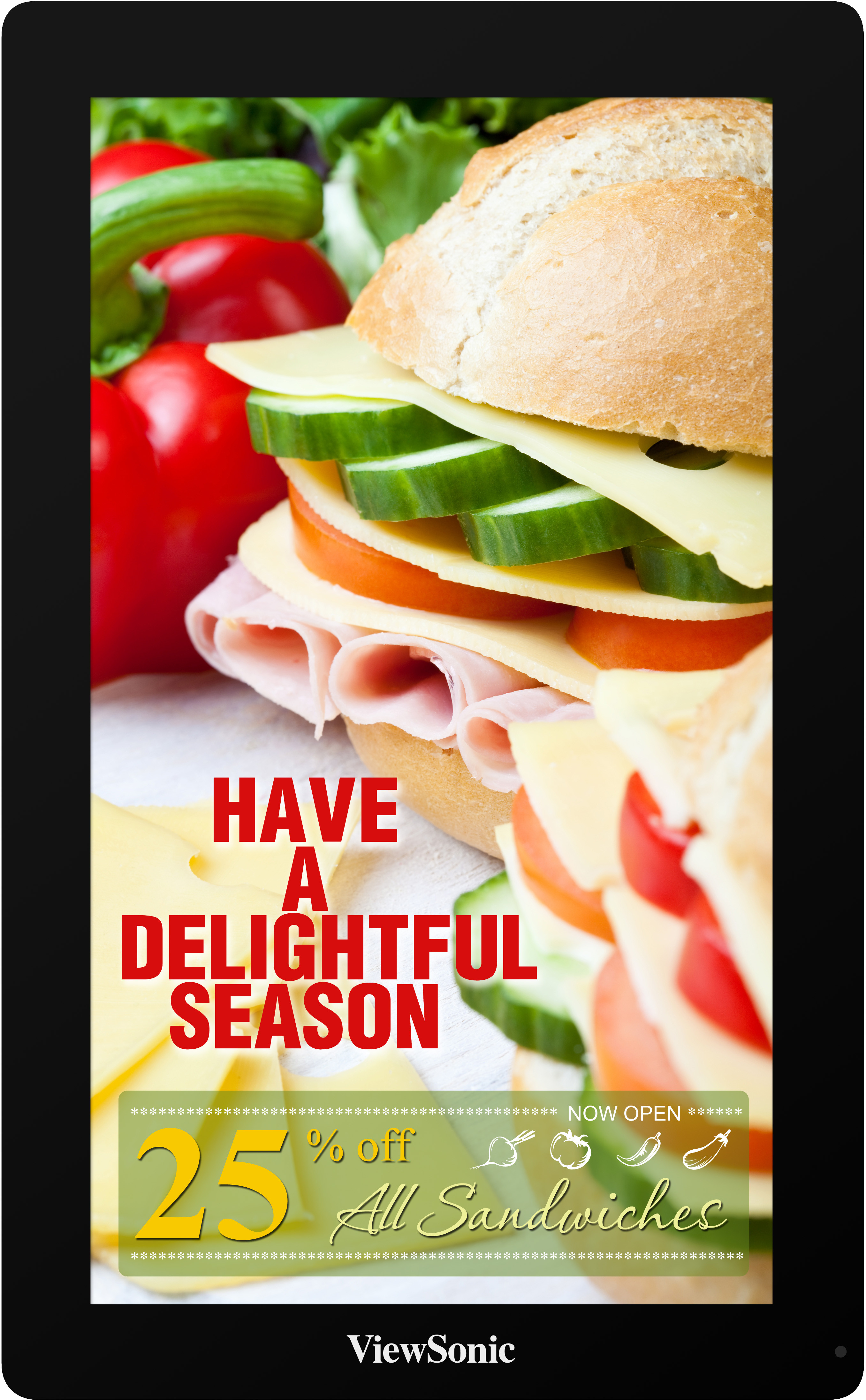

ViewSonic’s EP3203r is a 32” LED ePoster that delivers brilliant and crystal clear image quality from a large, sleek, and slim profile. The premium design and slim profile allows it to be the perfect wall mount for informational and promotional applications in any setting, while the USB ports offer quick access to a wide range of formats for convenient content management.
Visit Us
- www.viewsonic.com
-
COLORS
Black -
LCD
Tür: 31.5" color TFT active matrix, wide LCD Kontrast Oranı: 4,000:1 Görüntüleme Açıları: 89° (H) / 89° (V) Parlaklık: Internal: 320 nits / External: 280 nits Ekran Alanı: 697.68 (H) x 392.26 (V) Optimum Çözünürlük: 1366 x 768 Görüntü Oranı: 16:9 Panel Yüzeyi: Anti-glare, hard coating (3H) -
BOYUTLAR
Fiziksel (mm): 809.6 x 499.6 x 40 Fiziksel (inç): 31.87 x 19.67 x 1.57 -
KONEKTÖRLER
HDMI (giriş): x1 Video Girişi: x1 USB: 2.0 x2 Analog: VGA (D-Sub) x1 LAN: RJ45 x1 Power: 2 pin plug -
Güç
Gerilim: AC 100 - 240V (Universal) , 50 - 60Hz -
SES
Hoparlörler: Amplifier:5W x2 -
AğıRLıK
Brüt: 39.68 lb. (18kg) Net: 33.01 lb. (15kg) -
İŞLETİM KOŞULLARI
Nem: 20% ~ 90% (non-condensation) Isı: 32°F~122°F (0 ~ 50°C) -
INPUT
Supported Image H.264 TBD
Decoding Format
MPEG 1 TBD
MPEG 2 TBD
MPEG 4 - XVID TBD
JPEG TBD -
CONTROLS
System Settings : Language, Clock Display, Scrolling Text, USB Port, Return to Factory Settings
Playback Control : Storage, Priority, Playback Mode, Play Time
Date & Time : Year, Month, Day, Hour, Minute, Update Date & Time
On/Off Timer : Timer Mode, Daily, Sunday-Saturday
Local ID : ID, Save
Screen Mode : Vertical, Horizontal, Save and Reboot
File Management : Information, Format
Source : HDMI, VGA, Digital Signage
System Setting : OSD Language, Reset
Image : Brightness, Contract, Saturation, Color Temp
PC Settings : Auto Adjust, H Position, V Position, Phase, Clock
