ViewSonic Commercial Display Accessories VB-WMK-001

VB-WMK-001

46mm Thin Profile
Secure Locking screw
Patented Universal Design
Up to 125kg Load Capacity
Durable Powder Coated Finish

Sales Enquiry

GALLERY

OVERVIEW

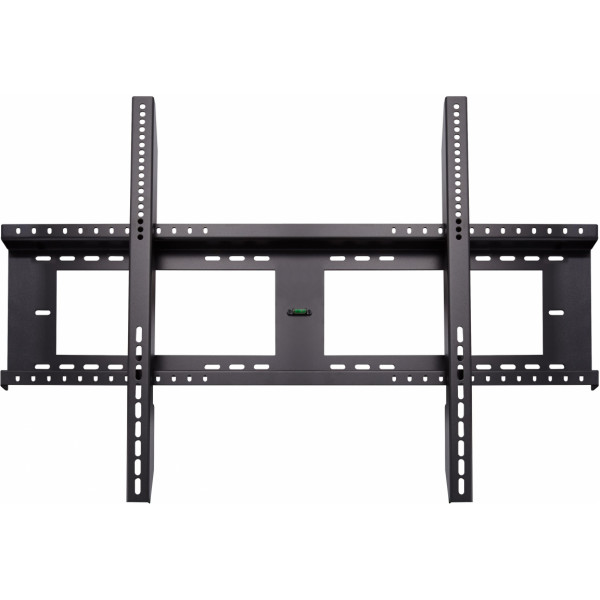

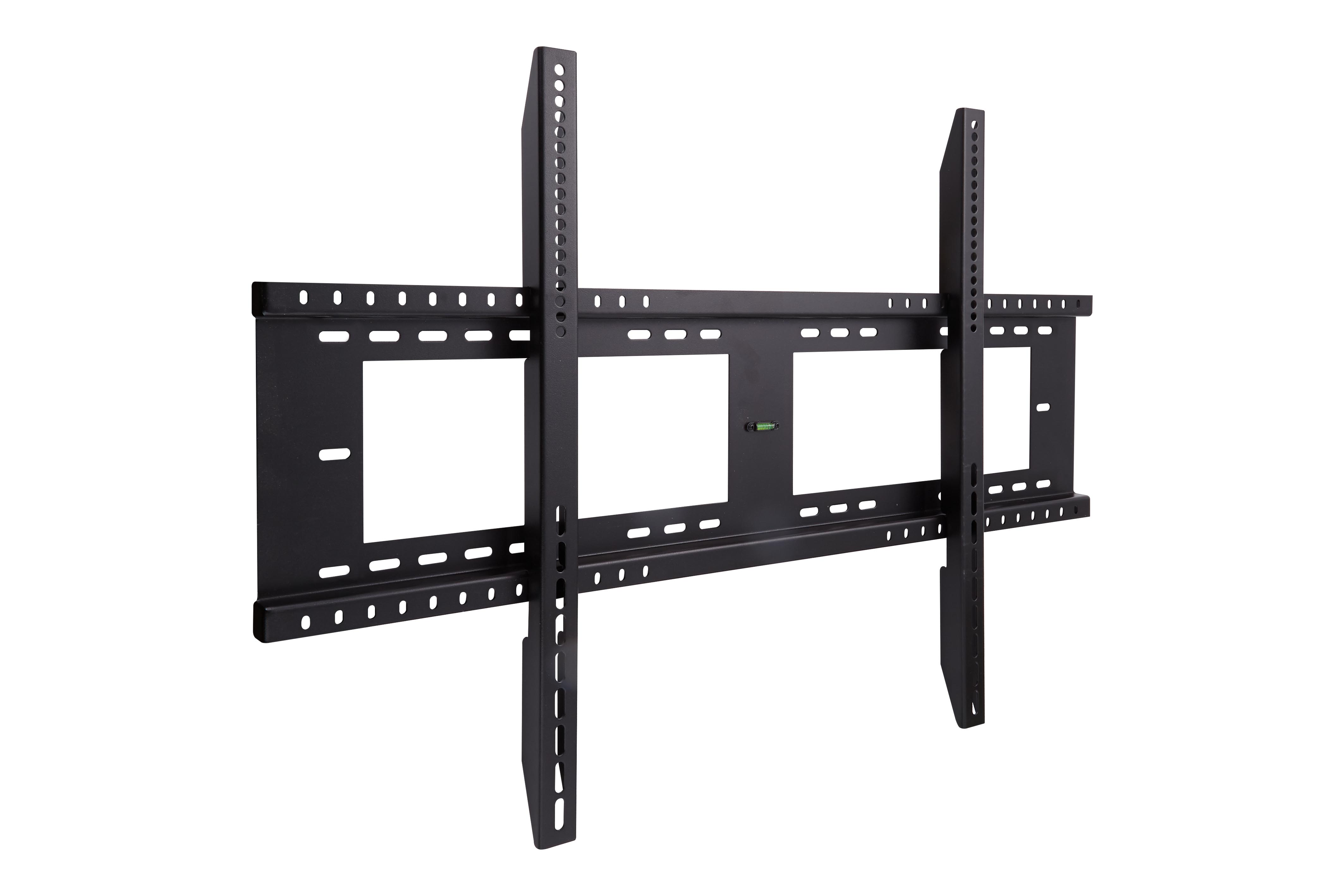

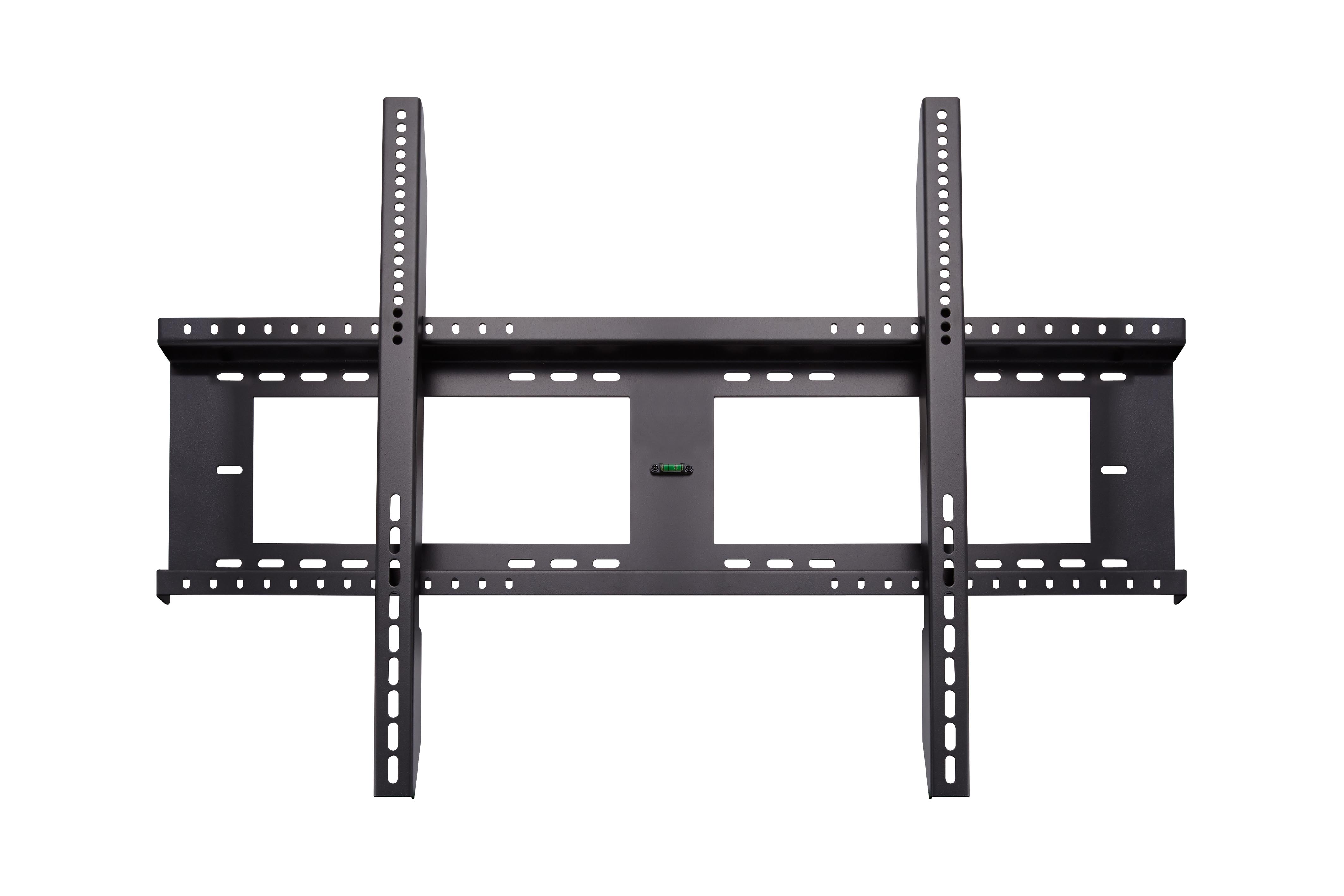

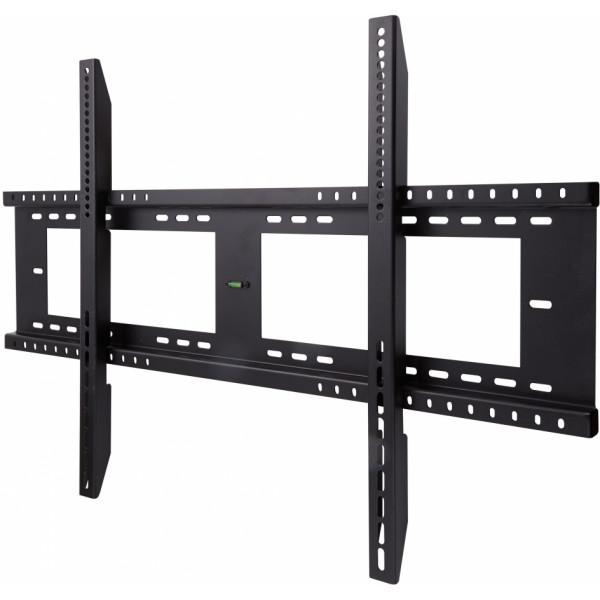

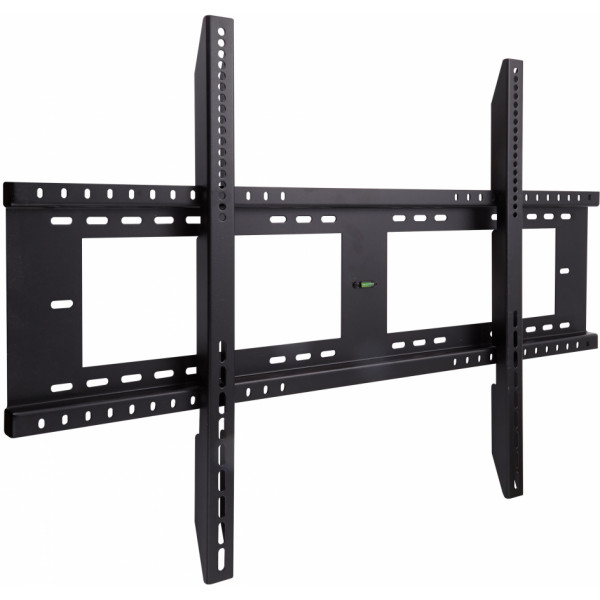

The VB-WMK-001 is designed to mount 55" to 84" flat panel displays

SPECIFICATIONS

ERGONOMICS
Wall mount: 900x600 max.
Material
Iron
Loading
125 kg max. / 275.6 lb max.

DIMENSIONS (W x H x D)
Physical (mm): 960x650x46 mm / 37.8x25.6x1.8 in
Packaging (mm): 1000x280 x55 mm / 39.37x11.02x2.17 in
WEIGHT
Net (kg): 5.2kg / 11.46lb
Gross (kg): 6.2kg / 13.67lb
INCLUDED ACCESSORIES
Plate x 1,
Installation Guide x 1,
Trestle x 2,
Screw x 24,
Washer x 10,
Plastic bolt x 10

COMPATIBLE WITH VB-WMK-001

55" 4K Presentation Display

65" 4K Presentation Display

75" 4K Presentation Display

86" 4K Presentation Display

98" 4K Presentation Display

ViewBoard 5550-5

ViewBoard® 55” 4K Interactive Display

ViewBoard IFP6535-1-1C

شاشة مقاس 65 بوصة حاصلة على شهادة EDLA ومزودة بمستشعر حركة موفر للطاقة

ViewBoard IFP6541-1-1C

EDLA-certified 65” display with motion sensor and 8-microphone array

ViewBoard 6550-5

ViewBoard® 65" 4K Interactive Display

ViewBoard IFP7535-1-1C

شاشة عرض مقاس 75 بوصة حاصلة على شهادة EDLA ومزودة بمستشعر حركة موفر للطاقة

ViewBoard IFP7541-1-1C

EDLA-certified 75” display with motion sensor and 8-microphone array

ViewBoard 7550-5

ViewBoard® 75” 4K Interactive Display

ViewBoard IFP8635-1-1C

شاشة مقاس 86 بوصة حاصلة على شهادة EDLA ومزودة بمستشعر حركة موفر للطاقة

ViewBoard IFP8641-1-1C

EDLA-certified 86” display with motion sensor and 8-microphone array

ViewBoard 8650-5

ViewBoard® 86" 4K Interactive Display

ViewBoard IFP9841-1-1C

EDLA-certified 98” display with motion sensor and 8-microphone array

SUPPORT & DOWNLOADS

Datasheets

VB-WMK-001 Datasheet
