OVERVIEW

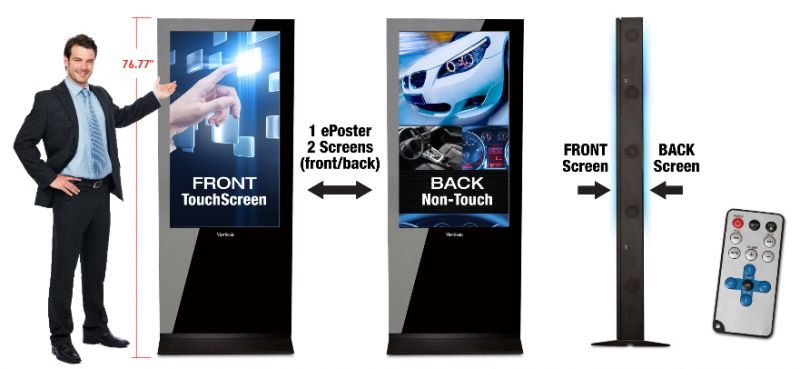

In-store "Way-finding" is easy with ViewSonic's new interactive ePoster display solution. With its drift free 4K x 4K touch interface and vivid screen resolution, retail messaging and image navigation is easy with all-in-one EP5555T* ePoster. Simple connect the output of your PC to the versatile input ports and common USB port for your touch interface and your application comes alive. ViewSonic's ePoster display can easily be connected to a corporate network by adding a network media player. Security is achieved through the locking back cover.

Features

  • Dual screen 55" full HD ePoster featuring 1920x1080 resolution and tempered glass faceplate for screen protection
  • Interactive built-in multi-touch panel features 4096x4096 touch resolution for accurate selection of data
  • All-in-One design provides easy customer deployment with no required construction
  • Dual Internal RISC media player with memory card for playing JPEG images and digital video files
  • Built-in power outlet and mounting cradle for adding your own media player

SPECIFICATIONS


  • DISPLAY
    Diagonal: 55" (139.7 cm)
    Resolution: 1920x1080 pixel resolution
    Color: Over 16.7M color (depending on video card used)
    Brightness: 450 cd/m2 (typ)
    Contrast Ratio: 5000:1 (typ)
    Response Time: 6.0ms (typ gray-to-gray)
    Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10
  • TOUCH SCREEN
    Touch Mode: Dual point click, long press right click, double click, draw
    Resoltuion: 4096x4096 dots
    Response Time: 8ms
    Supports OS: Windows® 7/2000/XP/Vista
    Interface: USB 2.0 (full speed), USB 1.1 port HID compliant
  • CONNECTIVITY
    I/O Ports: HDMI, VGA, YPbPr, USB (x2), A/V, RJ45 Pigtail

SUPPORT & DOWNLOADS


Datasheets

EP5555T Datasheet
