Key Features

EP5555T
Product Description

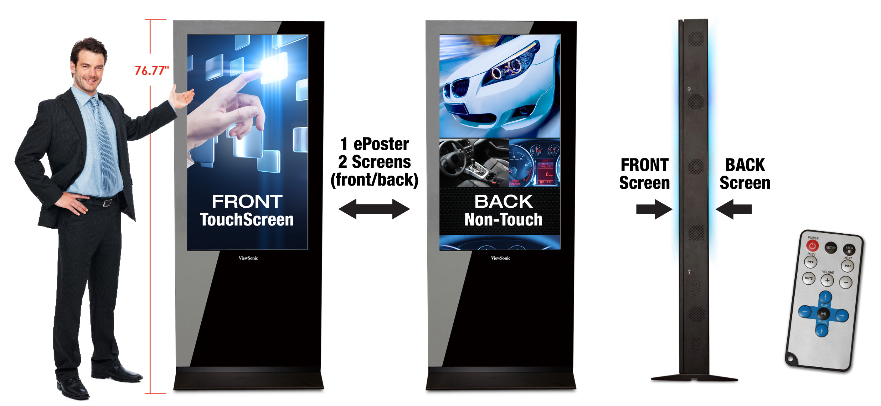

In-store "Way-finding" is easy with ViewSonic's new interactive ePoster display solution. With its drift free 4K x 4K touch interface and vivid screen resolution, retail messaging and image navigation is easy with all-in-one EP5555T* ePoster. Simple connect the output of your PC to the versatile input ports and common USB port for your touch interface and your application comes alive. ViewSonic's ePoster display can easily be connected to a corporate network by adding a network media player. Security is achieved through the locking back cover.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Diagonal: 55" (139.7 cm)
    Resolution: 1920x1080 pixel resolution
    Color: Over 16.7M color (depending on video card used)
    Brightness: 450 cd/m2 (typ)
    Contrast Ratio: 5000:1 (typ)
    Response Time: 6.0ms (typ gray-to-gray)
    Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10
  • TOUCH SCREEN
    Touch Mode: Dual point click, long press right click, double click, draw
    Resoltuion: 4096x4096 dots
    Response Time: 8ms
    Supports OS: Windows® 7/2000/XP/Vista
    Interface: USB 2.0 (full speed), USB 1.1 port HID compliant
  • CONNECTIVITY
    I/O Ports: HDMI, VGA, YPbPr, USB (x2), A/V, RJ45 Pigtail
  • COMPATIBILITY
    Photo Formats: JPEG
    Video Formats: MPEG 1/2/3, H.264, Xvid 1.00–AVI, MP4
    Audio Formats: WMA, MP3, M4A (AA CC )
  • INTERNAL
    Storage: 4GB
    Media Player Supports: Video: MPEG 1/2/3, H.264, Xvid 1.00–AVI, MP4
    Photo: JPEG
    Audio: WMA, MP3, M4A (AA CC)
  • PHOTO: JPEGAUDIO
    Speakers: 5W (x2)
  • POWER
    Supply: 3.2–1.38 A @ 100–240VAC, 50/60Hz
    Consumption: 900W (max)
    Save: Off < 1W
  • OPERATING CONDITIONS
    Temperature: 32–104º F (0–40º C)
    Humidity: 20–90% (non-condensing)
  • STORAGE ENVIRONMENT
    Temperature: -4–140º F (-20–60º C)
    Humidity: 10–90% (non-condensing)
  • DIMENSIONS (WXHXD)
    Physical: 32.68" x 76.77" x 18.31" (830mm x 1950mm x 465mm)
  • WEIGHT
    Net: 308 lbs. (140 kg)
    Gross: 334.4 lbs. (152 kg)
  • REGULATIONS
    FCC, ICES 003, CE
  • MTBF
    50,000 hrs.
  • PACKAGE CONTENTS
    ePoster, power cord, remote control with batteries, key, Quick Start Guide, User Manual and Software on CD
