OVERVIEW

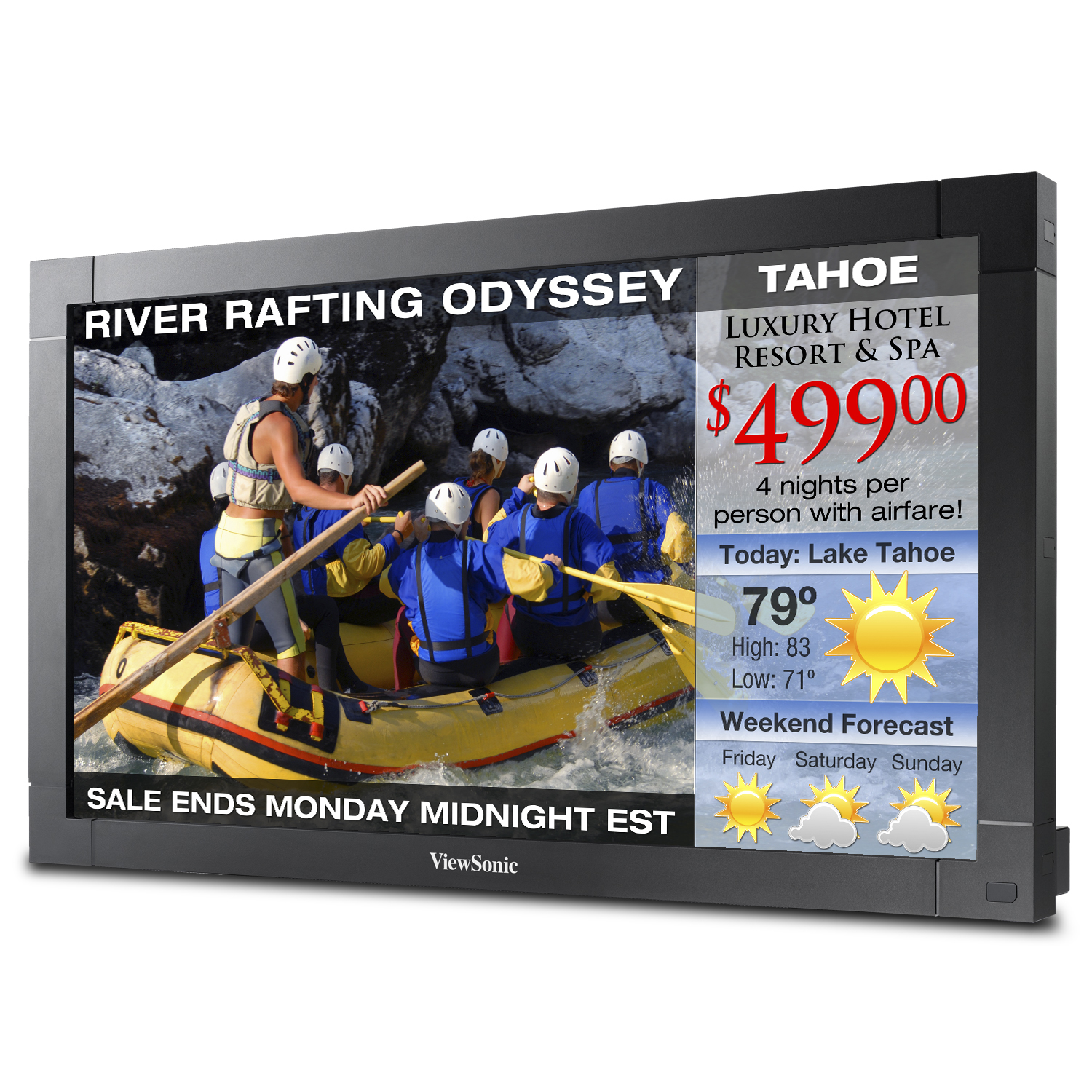

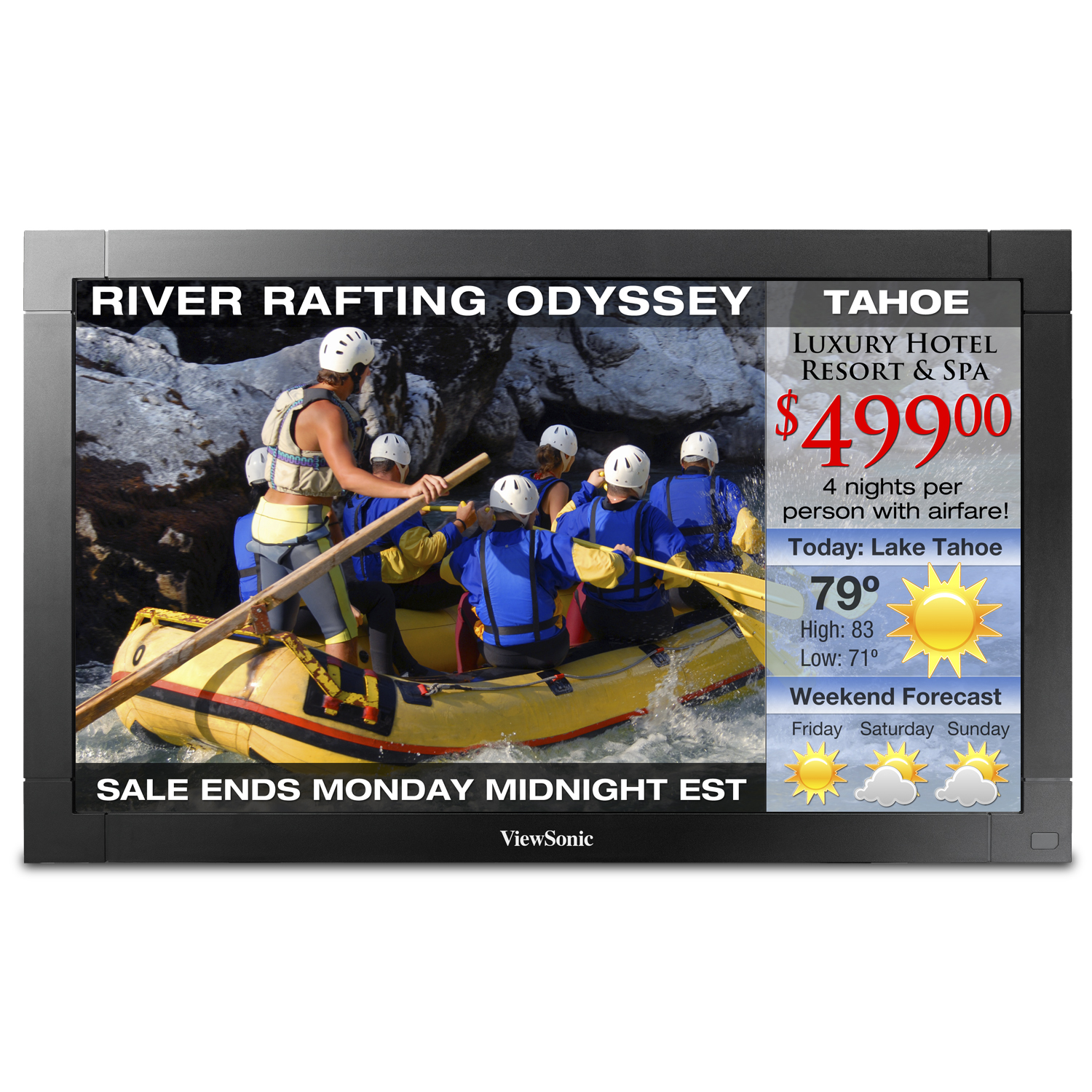

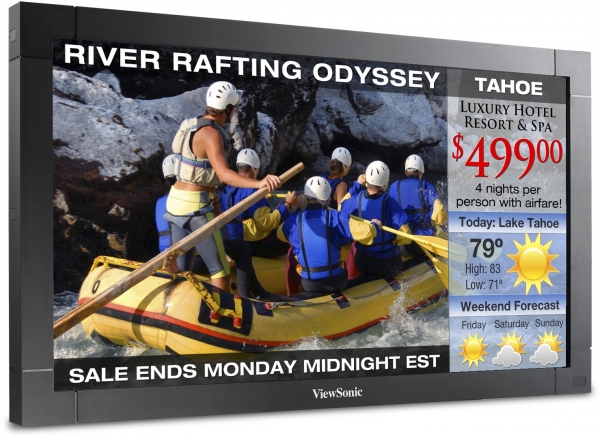

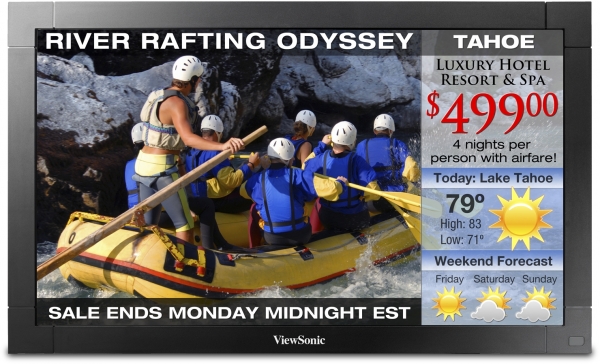

The ViewSonic® CDP3235 HD commercial display is theperfect solution for applications requiring a 32" commercialdisplay capable of a duty cycle of 24/7 operation. TheCDP3235 HD commercial display features a 1366x768HD panel with 3000:1 contrast ratio. Additional featuresinclude versatile inputs – HDMI, DVI, VGA, S-video andcomposite, component video and built-in 10W x 2 speakers.The CDP3235 will support up to a 5x5 display video wallwith internal clock and scheduler. RS-232 daisy chaincapability and a RJ45 connection for LAN remote controlare also provided.32"" HD Display Optimized for Commercial Applications
The ViewSonic CDP3235 is designed for use in public, retail and commercial signage installations.- Public display areas that need robust
commercial displays
- Mount in portrait or landscape orientation
- Designed for 24/7 operation
- Ideal for transportation – arrival / departure
display applications
- Video Wall solution – up to 5x5 tile matrix
- Quick Service Restaurant menus (QSR)"
Versatile Connectivity for Any Environment
- Multiple digital and analogue inputs/outputs
- RS-232 daisy chain capable
- Component BNC connections
- RJ45 LAN control
- Internal speakers
- External speaker connections
SPECIFICATIONS
- COLORSBlack
- LCDType: 32" (31.5" viewable) colour TFT active matrix, wide LCD
Rapport de contraste: 3000:1 (typ)
Angles de vue: 178º horizontal, 178º vertical
Zone d'affichage: 27.5" horizontal x 15.4" vertical; 31.5" diagonal
Résolution optimale: 1366x768 530mm dot pitch
Temps de réponse: 6.5 ms
Source lumière: Long life, 50,000 hrs. (typ)
Rapport largeur/hauteur: 16:9
Surface panneau: Anti-glare, hard coating (3H)
Luminosité: 450 cd/m2 (typ) - Dimensions (mm)Physique avec support: 30.4 x 24.5 x 9.4 in. / 772.6 x 621 x 238.8 mm
Physique sans support: 30.4 x 23.0 x 4.6 in. / 772.6 x 584 x 116.1 mm
Emballage: 44.8 x 29.3 x 12.0 in. / 880 x 670 x 252 mm

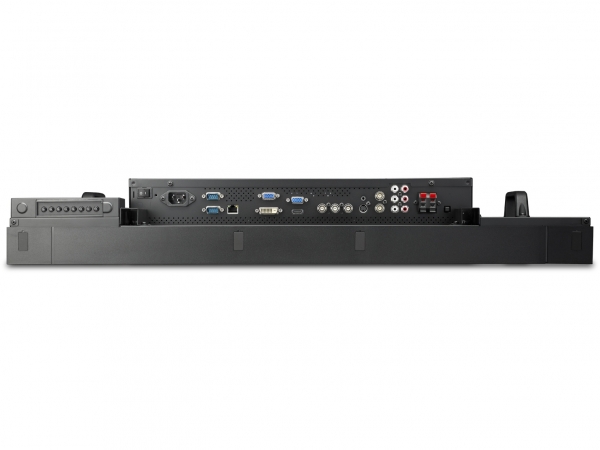

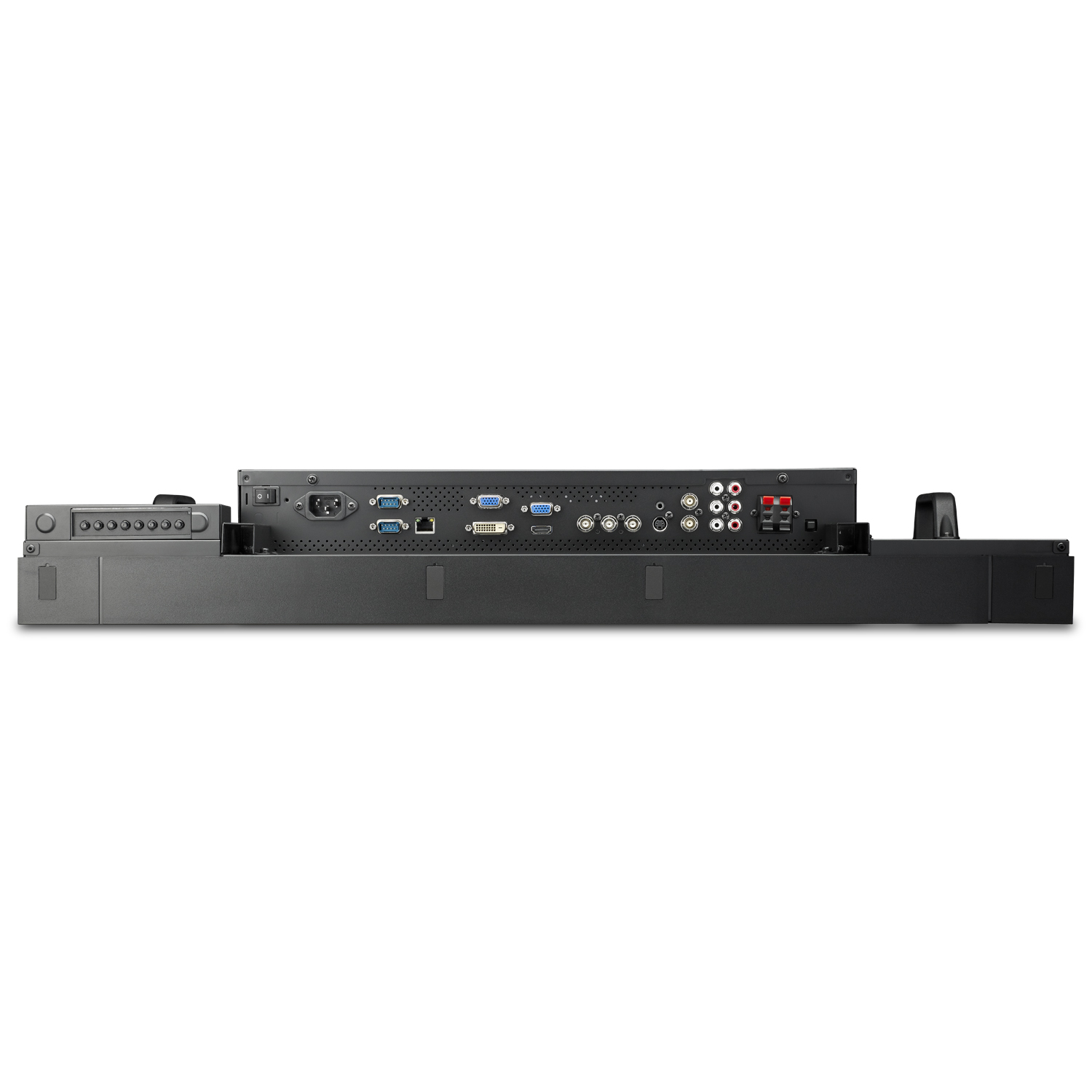

- EntréeEntrée vidéo: HDMI, DVI, component, VGA, S-Video, composite
Sortie vidéo: VGA, component, DVI
Control Input/Output: RS-232/RJ45 - Signal d'entréeComp. TV/Vidéo: 480i, 480p, 720p, 1080i, 1080p
- CONNECTEURSNumérique: HDMI, DVI
Alimentation: 3-pin plug
Analogique: 9-pin mini D-sub (VGA) - AlimentationTension: AC 100–240V (universal), 50–60Hz
Consommation: 140W (typ) - COMMANDESDe base: Power, Exit, +, –, Menu/Enter
Photo: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
Audio: Volume, mute, audio source
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: VGA, DVI, HDMI, YPbPr
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
VGA Setting: Auto adjustment, clock, phase, sharpness,

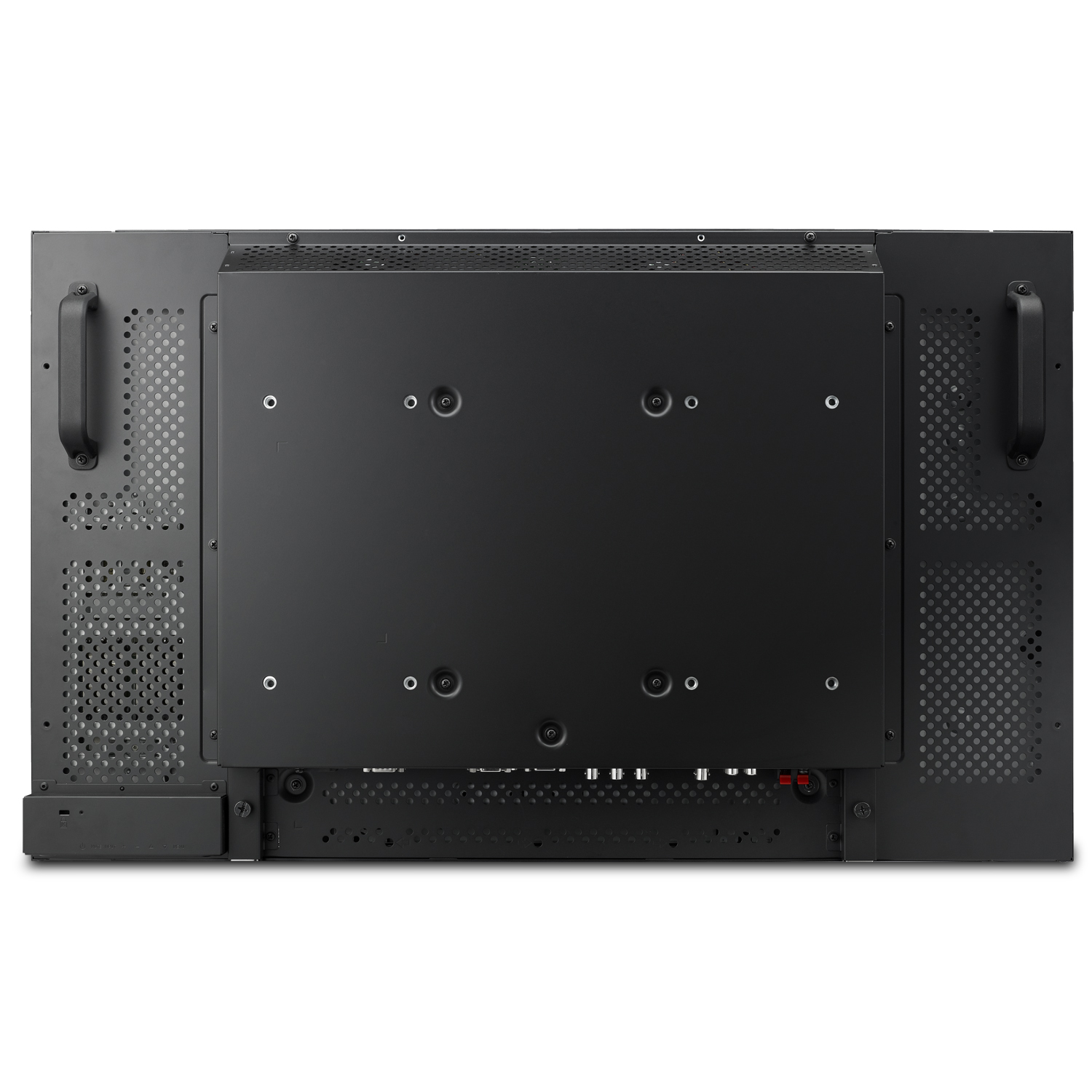

H. position, V. position - MONTAGE VESA™400mm x 200mm, 200mm x 200mm
- PoidsBrut: 40.8 lb. / 18.5 kg
Net avec le support: 33.1 lb. / 14.6 kg
Net sans le support: 32.2 lb. / 15 kg - CONDITIONS D'EXPLOITATIONHumidité: 10–80% (non-condensing)
Temperature (landscape): 32–104ºF (0–40ºC)
Temperature (portrait): 32–95ºF (0–35ºC) - AUDIO OUTSpeakers: Internal 10-watt (x2)

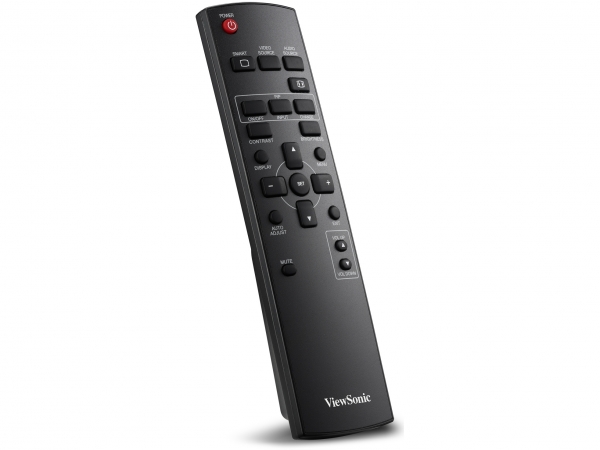

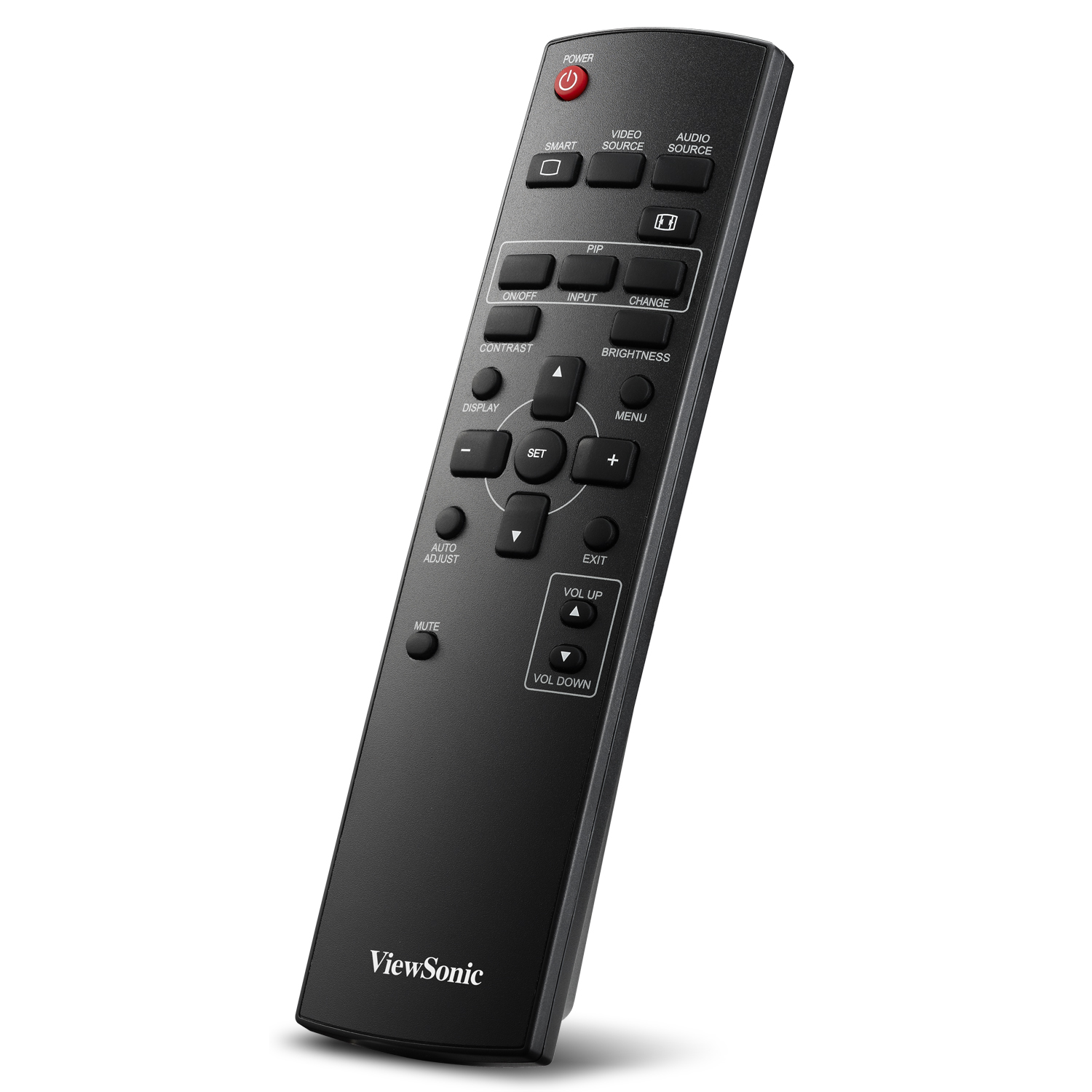

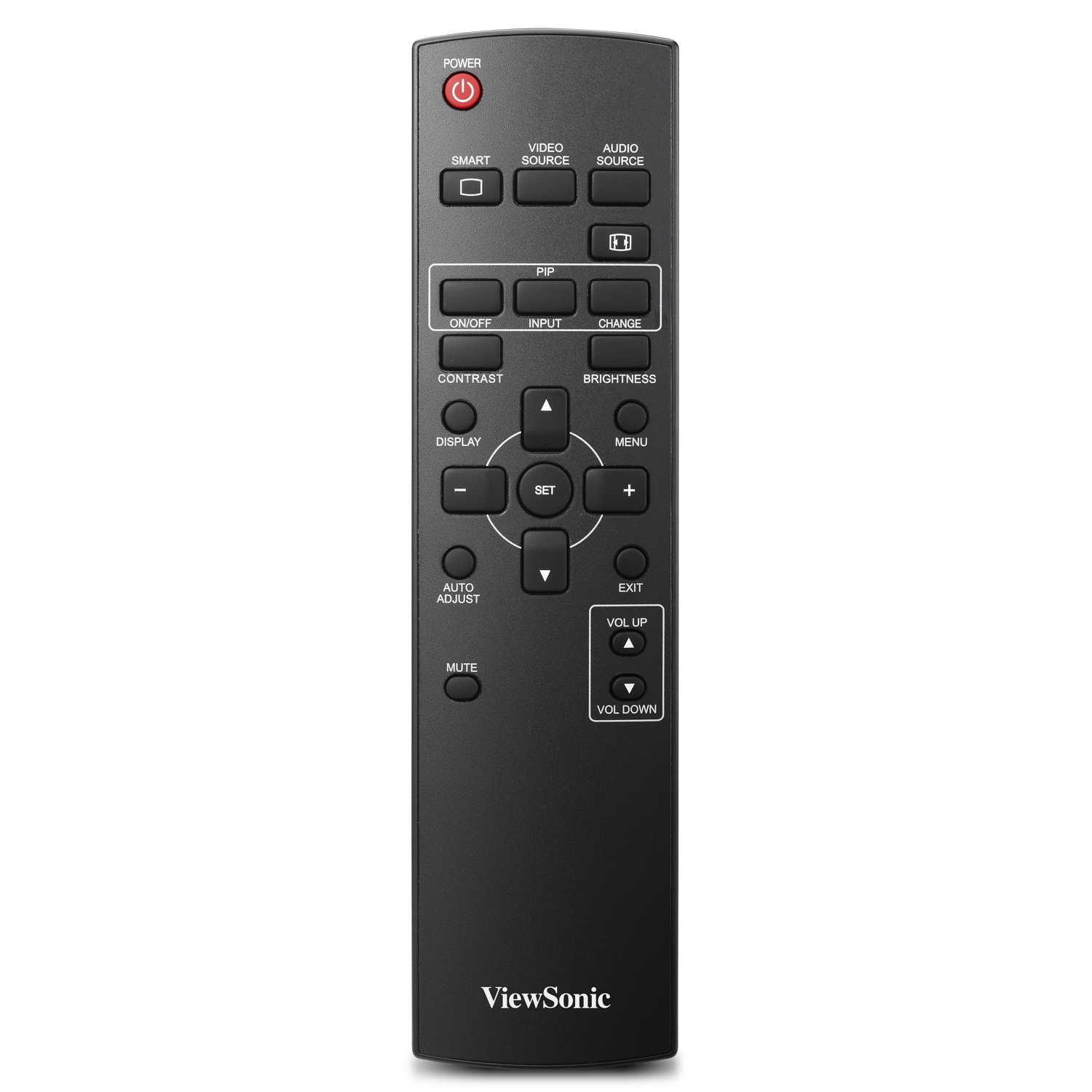

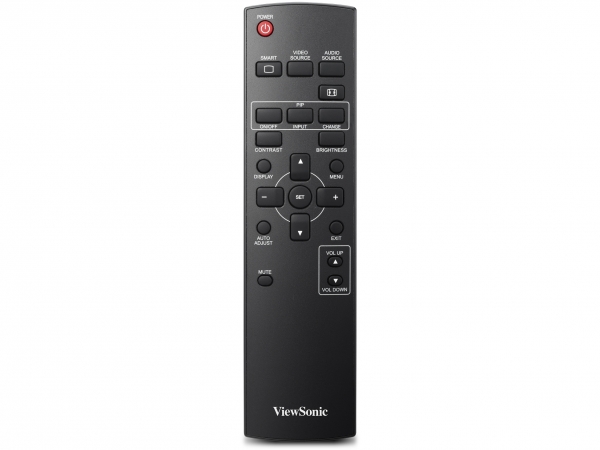

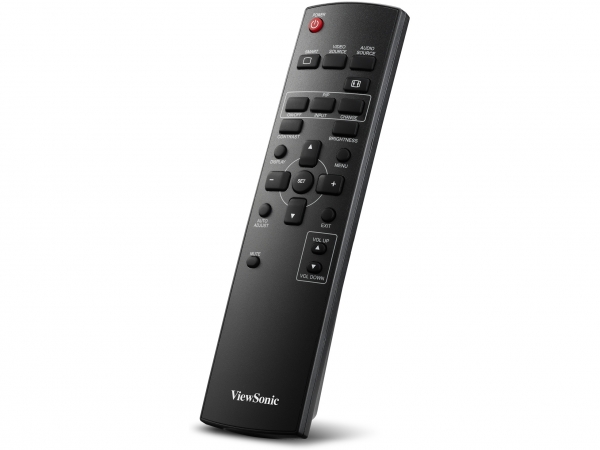

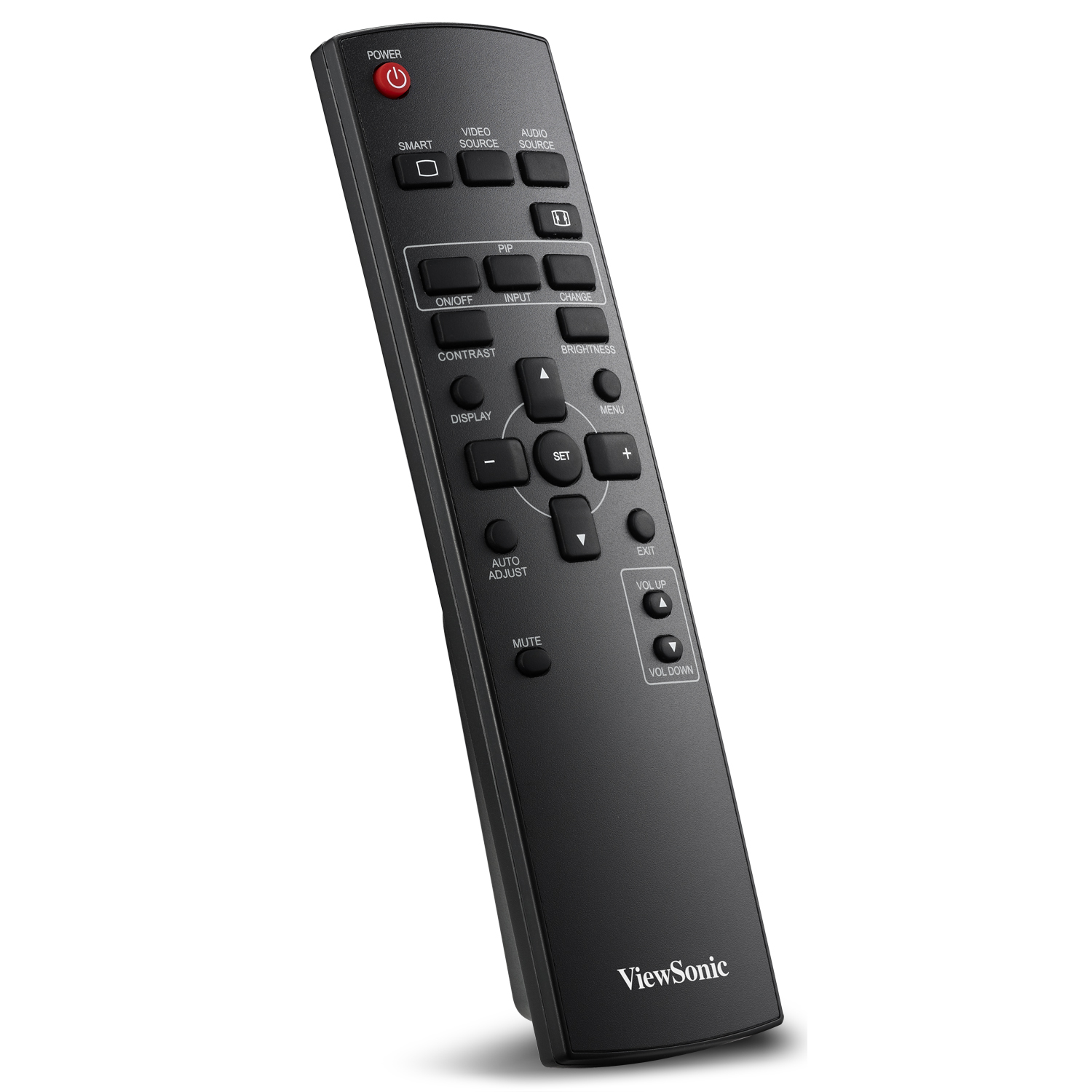

- Package ContentsCDP3235 LCD Display, power cable, remote control with batteries, User Guide, Quick Start Guide
- Recycle/DisposalThe lamp in this product contains mercury. Please dispose
of in accordance with local, state or federal laws. - RegulationsFCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
