Key Features

CDP3235
Product Description

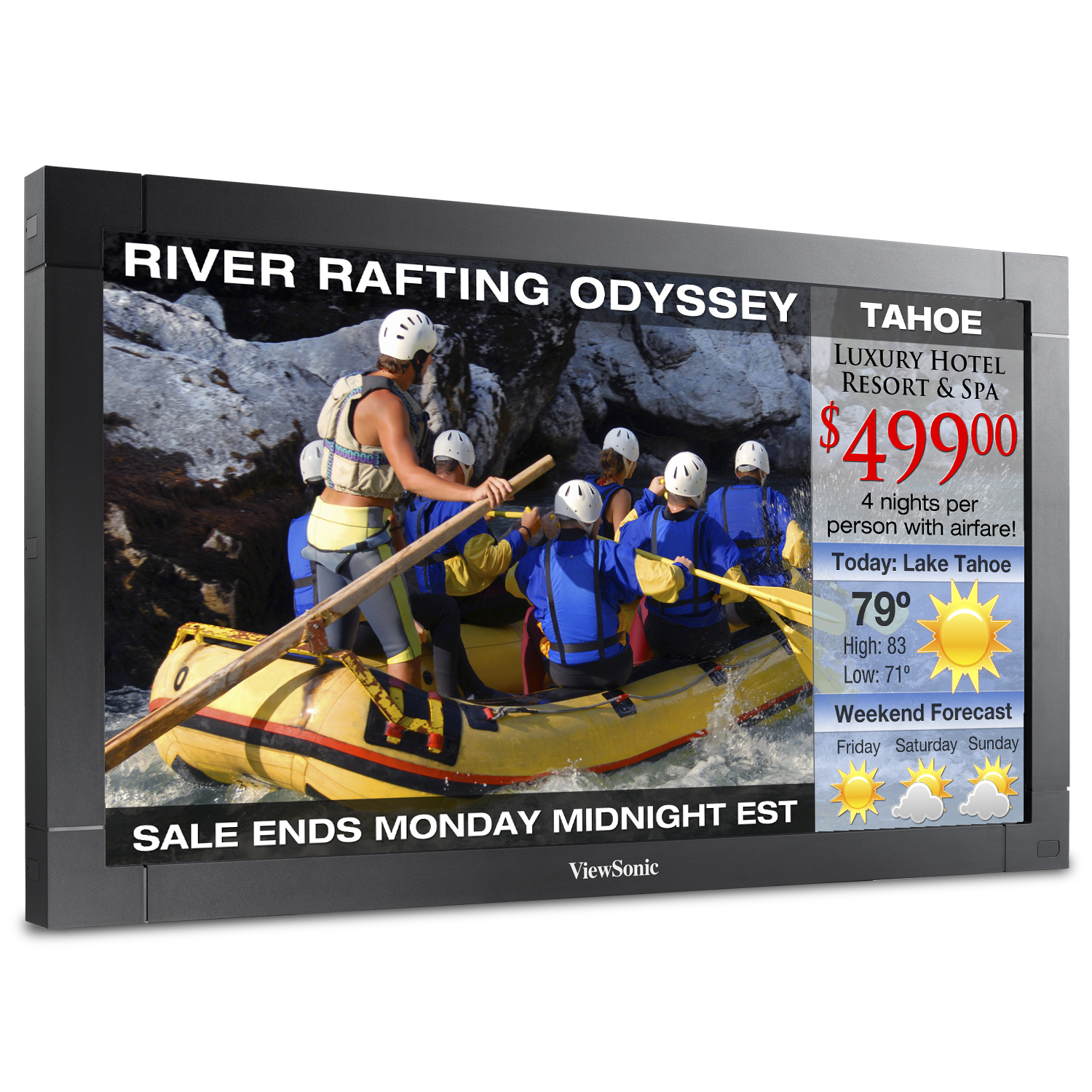

The ViewSonic® CDP3235 HD commercial display is theperfect solution for applications requiring a 32" commercialdisplay capable of a duty cycle of 24/7 operation. TheCDP3235 HD commercial display features a 1366x768HD panel with 3000:1 contrast ratio. Additional featuresinclude versatile inputs – HDMI, DVI, VGA, S-video andcomposite, component video and built-in 10W x 2 speakers.The CDP3235 will support up to a 5x5 display video wallwith internal clock and scheduler. RS-232 daisy chaincapability and a RJ45 connection for LAN remote controlare also provided.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 32" (31.5" viewable) colour TFT active matrix, wide LCD
    Rapport de contraste: 3000:1 (typ)
    Angles de vue: 178º horizontal, 178º vertical
    Zone d'affichage: 27.5" horizontal x 15.4" vertical; 31.5" diagonal
    Résolution optimale: 1366x768 530mm dot pitch
    Temps de réponse: 6.5 ms
    Source lumière: Long life, 50,000 hrs. (typ)
    Rapport largeur/hauteur: 16:9
    Surface panneau: Anti-glare, hard coating (3H)
    Luminosité: 450 cd/m2 (typ)
  • DIMENSIONS (MM)
    Physique avec support: 30.4 x 24.5 x 9.4 in. / 772.6 x 621 x 238.8 mm
    Physique sans support: 30.4 x 23.0 x 4.6 in. / 772.6 x 584 x 116.1 mm
    Emballage: 44.8 x 29.3 x 12.0 in. / 880 x 670 x 252 mm
  • ENTRéE
    Entrée vidéo: HDMI, DVI, component, VGA, S-Video, composite
    Sortie vidéo: VGA, component, DVI
    Control Input/Output: RS-232/RJ45
  • SIGNAL D'ENTRéE
    Comp. TV/Vidéo: 480i, 480p, 720p, 1080i, 1080p
  • CONNECTEURS
    Numérique: HDMI, DVI
    Alimentation: 3-pin plug
    Analogique: 9-pin mini D-sub (VGA)
  • ALIMENTATION
    Tension: AC 100–240V (universal), 50–60Hz
    Consommation: 140W (typ)
  • COMMANDES
    De base: Power, Exit, +, –, Menu/Enter
    Photo: Picture mode, contrast, brightness, color temperature,
    temperature adjust, sharpness
    Audio: Volume, mute, audio source
    Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
    Input: VGA, DVI, HDMI, YPbPr
    OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
    Special: Aspect ratio, over scan, power save, image retention,
    auto adjustment, monitor ID, reset
    VGA Setting: Auto adjustment, clock, phase, sharpness,
    H. position, V. position
  • MONTAGE VESA™
    400mm x 200mm, 200mm x 200mm
  • POIDS
    Brut: 40.8 lb. / 18.5 kg
    Net avec le support: 33.1 lb. / 14.6 kg
    Net sans le support: 32.2 lb. / 15 kg
  • CONDITIONS D'EXPLOITATION
    Humidité: 10–80% (non-condensing)
    Temperature (landscape): 32–104ºF (0–40ºC)
    Temperature (portrait): 32–95ºF (0–35ºC)
  • AUDIO OUT
    Speakers: Internal 10-watt (x2)
  • PACKAGE CONTENTS
    CDP3235 LCD Display, power cable, remote control with batteries, User Guide, Quick Start Guide
  • RECYCLE/DISPOSAL
    The lamp in this product contains mercury. Please dispose
    of in accordance with local, state or federal laws.
  • REGULATIONS
    FCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
