OVERVIEW

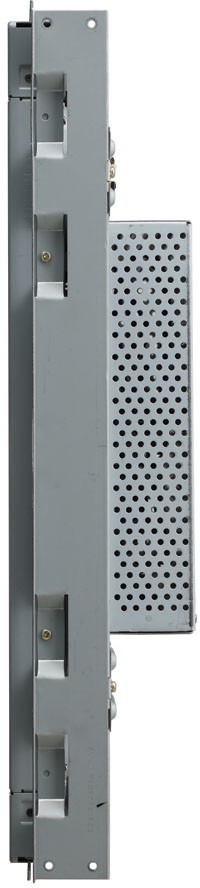

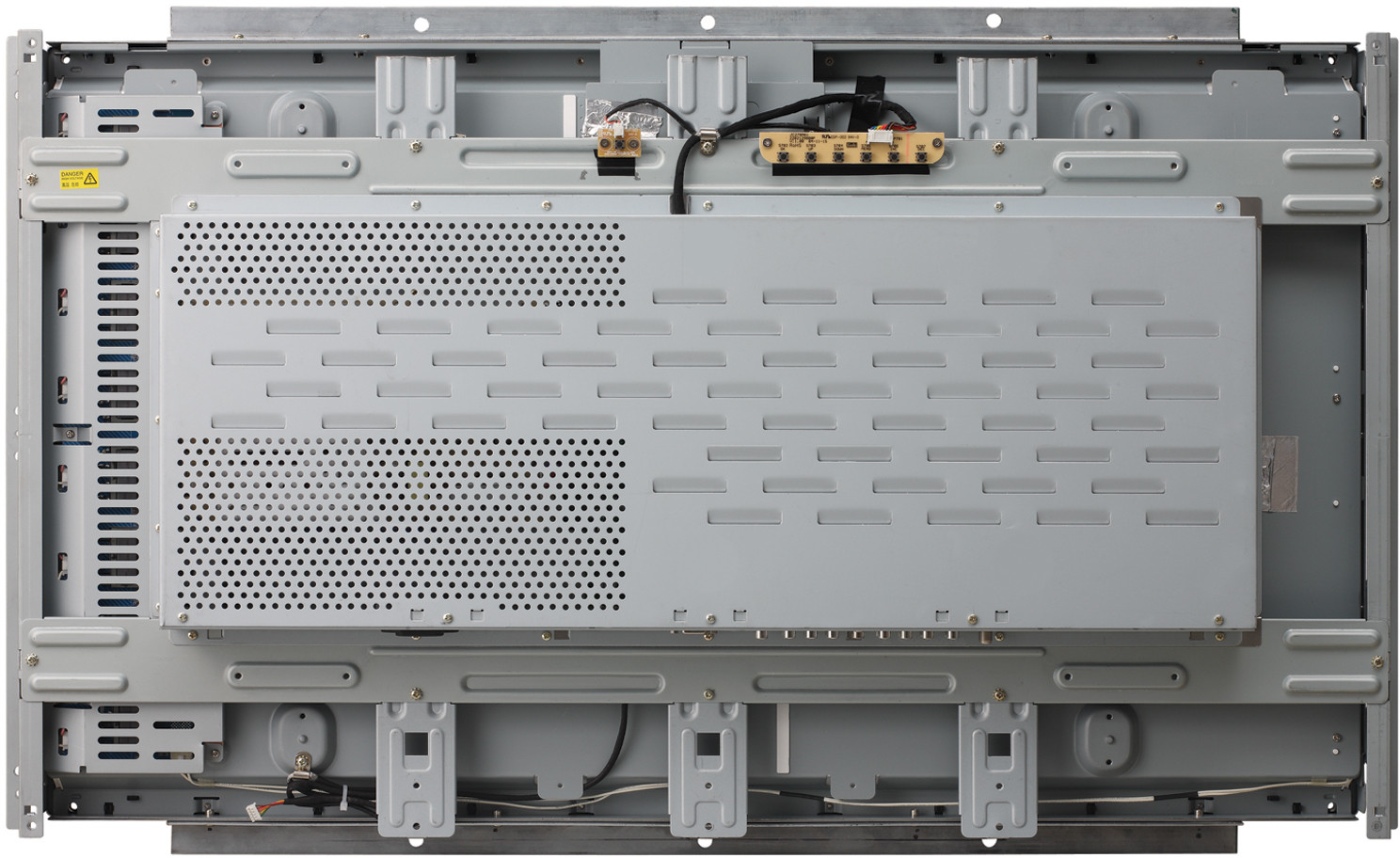

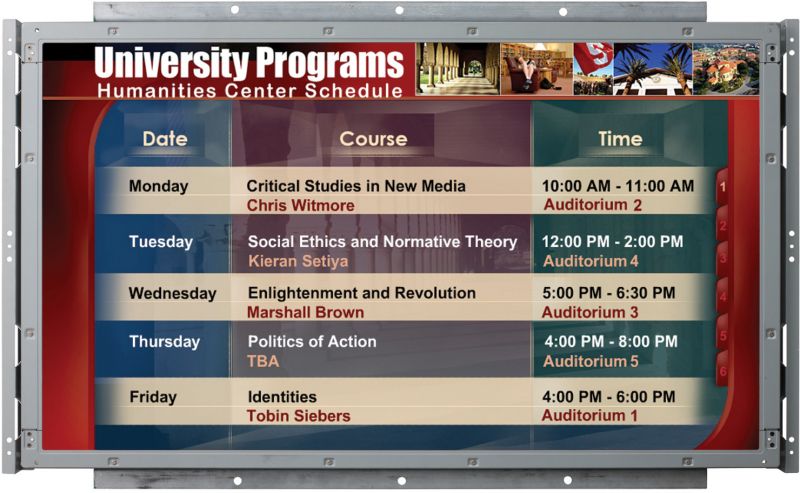

ViewSonic’s 37" OP3710 Open Frame Commercial LCD Display is ideal for use in kiosks, simulators, instrumentation packs, and gaming/entertainment installations.- Six-point metal chassis makes it easy to mount in any of these applications and eliminates the need for non-bezel displays
- Communicate targeted messages or play gaming/entertainment content on your schedule to your chosen audience
- The LCD panel delivers vibrant images for high-quality digital signage displays
- VGA inputs and outputs allow you to connect to PCs and high-def content sources
- Wide viewing angles, high brightness and contrast and 1366x768 PC resolution display crystal clear images in scrolling text or video
- Sets a new standard for large format, open frame displays.
SPECIFICATIONS
- LCDTipo: 94cm / 37" color TFT active matrix, wide LCD
Ratio de contraste: 2000:1 (typ)
Ángulos de visión: 176º horizontal, 176º vertical
Brillo : 500 cd/m2 (typ)
Área de visualización: 813mm/32,2" horizontal x 460mm/18,1" vertical; 940mm/37" diagonal
Resolución óptima: 1366x768
Tiempo de respuesta: 8ms
Fuente de luz : Long life, 50,000 hrs. (typ)
Relación de aspecto: 16:9
Superficie del panel: Anti-glare, hard coating (3H) - DimensionesFísicas sin la base: 44.2" x 26.1" x 5.4" (1122mm x 663mm x 136mm)
- NormativasUL/cUL, FCC
- CONTENIDO DE LA CAJALCD display, power cable, Quick Start Guide
- GARANTÍAOne-year limited warranty on parts and backlight
- RECICLAJE/ALMACENAMIENTOThe lamp in this product contains mercury. Please dispose of in accordance with local and federal laws.
- EntradaEntrada de vídeo: VGA 15-pin mini D-sub
Salida de vídeo: VGA 15-pin mini D-sub - SEÑAL DE ENTRADATV/Vídeo comp.: 1360x768, 1280x1024, 1280x768, 1280x720, 1024x768, 800x600, 720x400, 640x480
- ConectividadAnalógico: 15-pin mini D-sub (VGA)
Alimentación: 3-pin plug - AlimentaciónVoltaje: AC 100-240V (universal), 50-60Hz
Consumo: 185W (typ) - CONTROLESImagen: Auto image adjust, brightness, contrast, color adjust (9300k, 6500k, 5400k, user color), information (H/V frequency, resolution, pixel clock, serial number, model number, web site address), manual image adjust ( H. size, H/V position, fine tune, sharpness), set up menu (language select, resolution notice, OSD position, OSD time out, OSD background), memory recall
- CONDICIONES DE FUNCIONAMIENTOTemperatura: 41-104ºF (5-40ºC) landscape, 41-95ºF (5-35ºC)portrait
Humedad: 20-85% (non-condensing) - PesoNeto sin la base: 31.9 lb. (15.4 kg)
