Digital Signage
OP3710
Key Features
Product Description

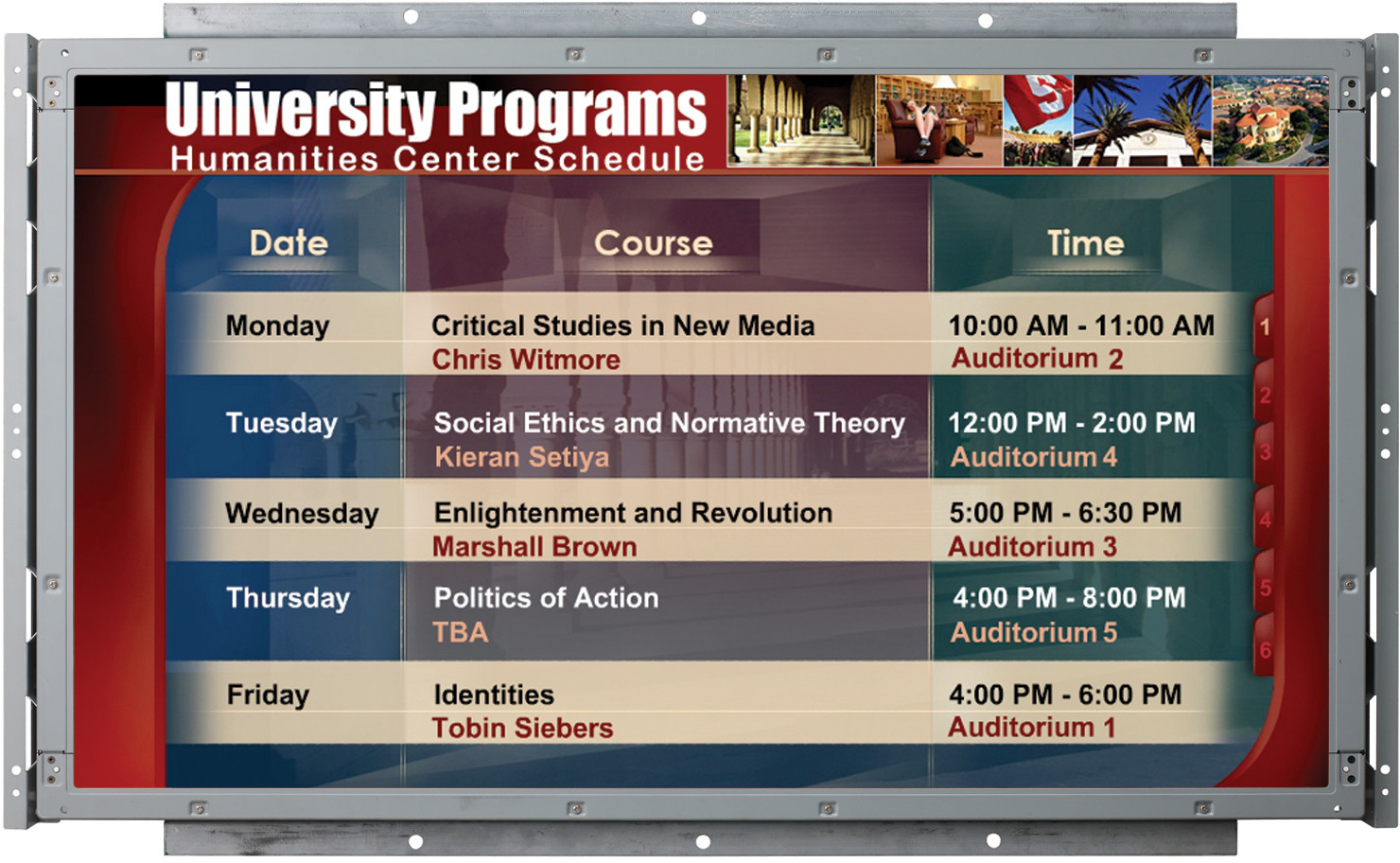

ViewSonic’s 37" OP3710 Open Frame Commercial LCD Display is ideal for use in kiosks, simulators, instrumentation packs, and gaming/entertainment installations.
Visit Us
- www.viewsonic.com
-
LCD
Tipo: 94cm / 37" color TFT active matrix, wide LCD Ratio de contraste: 2000:1 (typ) Ángulos de visión: 176º horizontal, 176º vertical Brillo: 500 cd/m2 (typ) Área de visualización: 813mm/32,2" horizontal x 460mm/18,1" vertical; 940mm/37" diagonal Resolución óptima: 1366x768 Tiempo de respuesta: 8ms Fuente de luz: Long life, 50,000 hrs. (typ) Relación de aspecto: 16:9 Superficie del panel: Anti-glare, hard coating (3H) -
DIMENSIONES
Físicas sin la base: 44.2" x 26.1" x 5.4" (1122mm x 663mm x 136mm) -
NORMATIVAS
UL/cUL, FCC -
CONTENIDO DE LA CAJA
LCD display, power cable, Quick Start Guide -
GARANTÍA
One-year limited warranty on parts and backlight -
RECICLAJE/ALMACENAMIENTO
The lamp in this product contains mercury. Please dispose of in accordance with local and federal laws. -
ENTRADA
Entrada de vídeo: VGA 15-pin mini D-sub Salida de vídeo: VGA 15-pin mini D-sub -
SEÑAL DE ENTRADA
TV/Vídeo comp.: 1360x768, 1280x1024, 1280x768, 1280x720, 1024x768, 800x600, 720x400, 640x480 -
CONECTIVIDAD
Analógico: 15-pin mini D-sub (VGA) Alimentación: 3-pin plug -
ALIMENTACIóN
Voltaje: AC 100-240V (universal), 50-60Hz Consumo: 185W (typ) -
CONTROLES
Imagen: Auto image adjust, brightness, contrast, color adjust (9300k, 6500k, 5400k, user color), information (H/V frequency, resolution, pixel clock, serial number, model number, web site address), manual image adjust ( H. size, H/V position, fine tune, sharpness), set up menu (language select, resolution notice, OSD position, OSD time out, OSD background), memory recall -
CONDICIONES DE FUNCIONAMIENTO
Temperatura: 41-104ºF (5-40ºC) landscape, 41-95ºF (5-35ºC)portrait Humedad: 20-85% (non-condensing) -
PESO
Neto sin la base: 31.9 lb. (15.4 kg)
