Get your message across, brilliantly

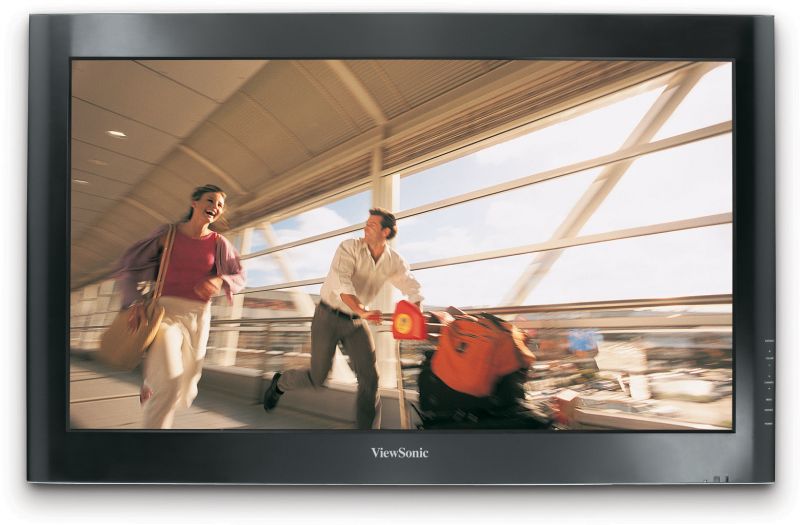

ViewSonic’s 32” CD3200 Commercial Display is designed for use in educational, retail, public and commercial signage applications. This widescreen LCD ACCOMMODATES MIXED MEDIA CONTENT with enough room for movies, internet content, digital pictures, PowerPoint, Flash files and much more. Wide viewing angles, high brightness and contrast and 1366 x 768 native resolution display crystal clear images in virtually any room lighting while the fast 8ms response time delivers fast-action video. MULTIPLE INPUTS INCLUDING HDMI, S-video, component, composite and PC VGA, give you plenty of connectivity options for all your digital signage needs.
SPECIFICATIONS
- COLORSBlack
- LCDTipo: 81 cm / 32" colour TFT active matrix, wide XGA 1366 x 768
Ratio de contraste: 1200:1 (typ.)
Ángulos de visión: 176° horizontal, 176° vertical
Brillo : 500cd/m² (typ.)
Superficie de cristal: Anti-glare, hard coating (3H)
Área de visualización: 69.8cm (horizontal) x 39.2cm (vertical), 81.3cm diagonal
Tiempo de respuesta: 8ms (grey-to-grey typ.)
Relación de aspecto: 16:9
Resolución nativa: 1366 x 768 - DimensionesFísicas (AnxAlxP): 828mm x 515 x 99mm (without stand)
- NormativasCE, CB, Gost, UL/cUL, FCC, NOM, WEEE, RoHS
- CONTENIDO DE LA CAJALCD display, power cable, remote control, batteries, Quick Start Guide, User Guide
- AUDIOAltavoces: 2 x 10-watt (optional)
- EntradaPC: RGB analogue (75 ohms, 0.7 Vp-p), RS232 (control)
TV: 2 x SCART, 1 x composite, 1 x component YPbPr/YCbCr, 1 x S-video
Audio: 3.5mm mini stereo audio in/out and RCA (left/right) audio in
1 x RCA R/L Out
Digital: HDMI (with HDCP and audio support)
Sintonizador: None - SEÑAL DE ENTRADAVideo: RGB analogue (0.7 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
- ConectividadAnalógico: 1 x 15-pin mini D-Sub (detachable cable)
Digital: 1 x HDMI (with HDCP)
Alimentación: 3-pin plug
Entrada de vídeo compuesto: 1 x RCA (CVBS)
Entrada S-Video: 1 x 4-pin mini DIN jack (Y/C)
Entrada de vídeo por componentes: 1 x RCA (YPbPr/YCbCr)
Control: 1 x D-sub RS-232
USB: 1 x USB Typ B (for firmware update)
Audio: 1 x 3.5mm mini stereo audio in
2 x RCA (left/right) audio in
3 x RCA (left/right/subwoofer) audio line 0ut
1 x SP/DIF (optic) HDMI loop through
2 x speaker connector (for optional speakers) - AlimentaciónVoltaje: AC 100–240V (universal), 50/60Hz
Consumo: < 220watt (typ.) - CONTROLESBásico: Power, channel +/-, volume +/-, menu, source, exit/wide
Modo AV: Brightness, contrast, colour, hue, sharpness, colour temperature, sound (volume, bass, treble, balance), ARC, OSD language, reset all
Menú en pantalla: Auto sync, contrast, brightness, H/V position, colour temperature, aspect ratio control (ARC), OSD language, reset all, treble, balance - CONDICIONES DE FUNCIONAMIENTOTemperatura: 0°C–40°C
Humedad: 10–85% (non-condensing) - PesoNeto: 22.2kg (without stand)
Bruto: 33.0kg (without stand) - MONTAJE EN LA PAREDVESA FDMI 100mm x 100mm, 100mm x 200mm
