Key Features

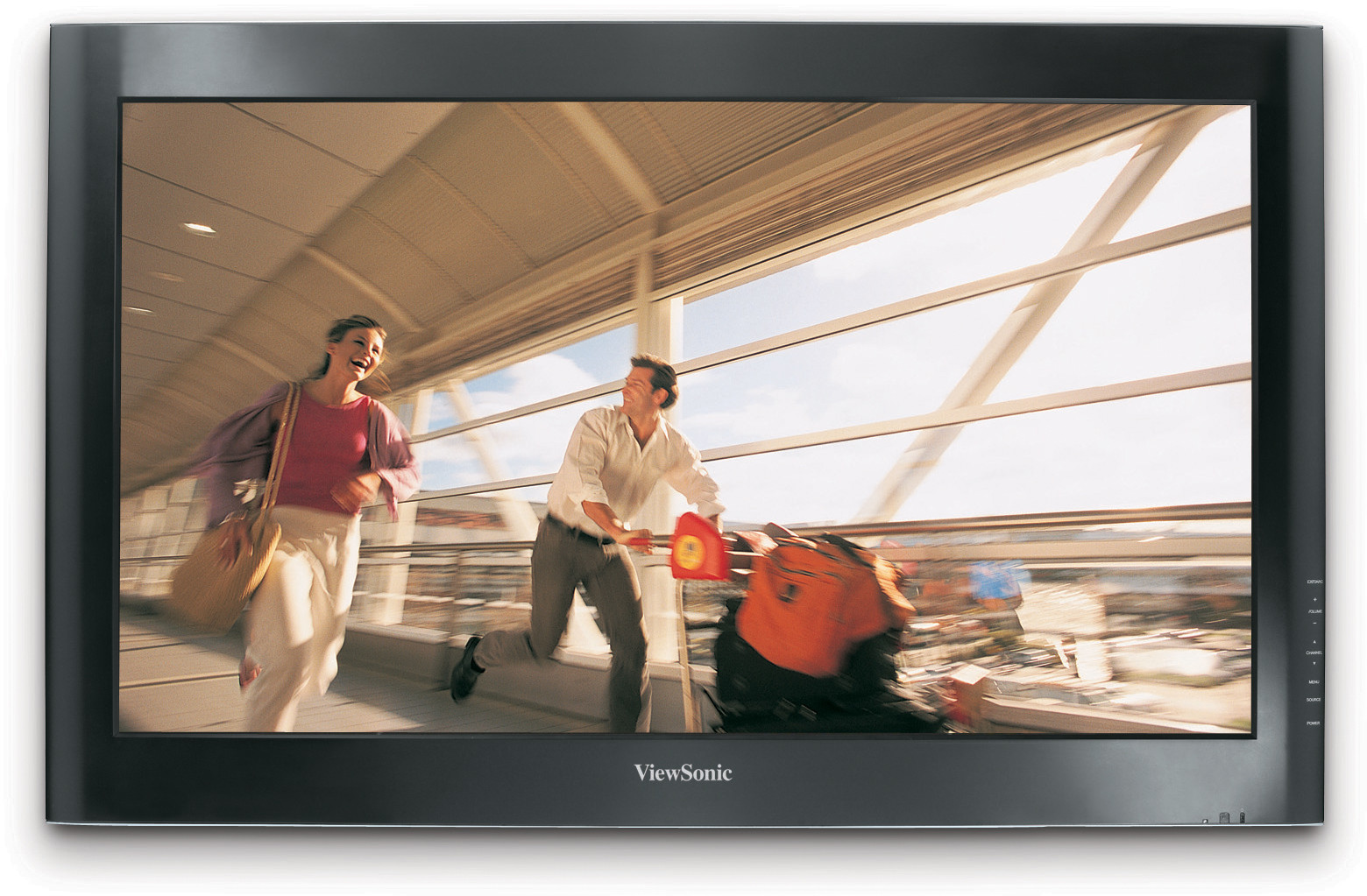

CD3200
Product Description
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Tipo: 81 cm / 32" colour TFT active matrix, wide XGA 1366 x 768
    Ratio de contraste: 1200:1 (typ.)
    Ángulos de visión: 176° horizontal, 176° vertical
    Brillo: 500cd/m² (typ.)
    Superficie de cristal: Anti-glare, hard coating (3H)
    Área de visualización: 69.8cm (horizontal) x 39.2cm (vertical), 81.3cm diagonal
    Tiempo de respuesta: 8ms (grey-to-grey typ.)
    Relación de aspecto: 16:9
    Resolución nativa: 1366 x 768
  • DIMENSIONES
    Físicas (AnxAlxP): 828mm x 515 x 99mm (without stand)
  • NORMATIVAS
    CE, CB, Gost, UL/cUL, FCC, NOM, WEEE, RoHS
  • CONTENIDO DE LA CAJA
    LCD display, power cable, remote control, batteries, Quick Start Guide, User Guide
  • AUDIO
    Altavoces: 2 x 10-watt (optional)
  • ENTRADA
    PC: RGB analogue (75 ohms, 0.7 Vp-p), RS232 (control)
    TV: 2 x SCART, 1 x composite, 1 x component YPbPr/YCbCr, 1 x S-video
    Audio: 3.5mm mini stereo audio in/out and RCA (left/right) audio in

    1 x RCA R/L Out
    Digital: HDMI (with HDCP and audio support)
    Sintonizador: None
  • SEÑAL DE ENTRADA
    Video: RGB analogue (0.7 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
  • CONECTIVIDAD
    Analógico: 1 x 15-pin mini D-Sub (detachable cable)
    Digital: 1 x HDMI (with HDCP)
    Alimentación: 3-pin plug
    Entrada de vídeo compuesto: 1 x RCA (CVBS)
    Entrada S-Video: 1 x 4-pin mini DIN jack (Y/C)
    Entrada de vídeo por componentes: 1 x RCA (YPbPr/YCbCr)
    Control: 1 x D-sub RS-232
    USB: 1 x USB Typ B (for firmware update)
    Audio: 1 x 3.5mm mini stereo audio in

    2 x RCA (left/right) audio in

    3 x RCA (left/right/subwoofer) audio line 0ut

    1 x SP/DIF (optic) HDMI loop through

    2 x speaker connector (for optional speakers)
  • ALIMENTACIóN
    Voltaje: AC 100–240V (universal), 50/60Hz
    Consumo: < 220watt (typ.)
  • CONTROLES
    Básico: Power, channel +/-, volume +/-, menu, source, exit/wide
    Modo AV: Brightness, contrast, colour, hue, sharpness, colour temperature, sound (volume, bass, treble, balance), ARC, OSD language, reset all
    Menú en pantalla: Auto sync, contrast, brightness, H/V position, colour temperature, aspect ratio control (ARC), OSD language, reset all, treble, balance
  • CONDICIONES DE FUNCIONAMIENTO
    Temperatura: 0°C–40°C
    Humedad: 10–85% (non-condensing)
  • PESO
    Neto: 22.2kg (without stand)
    Bruto: 33.0kg (without stand)
  • MONTAJE EN LA PARED
    VESA FDMI 100mm x 100mm, 100mm x 200mm
