A design statement delivering excellent performance

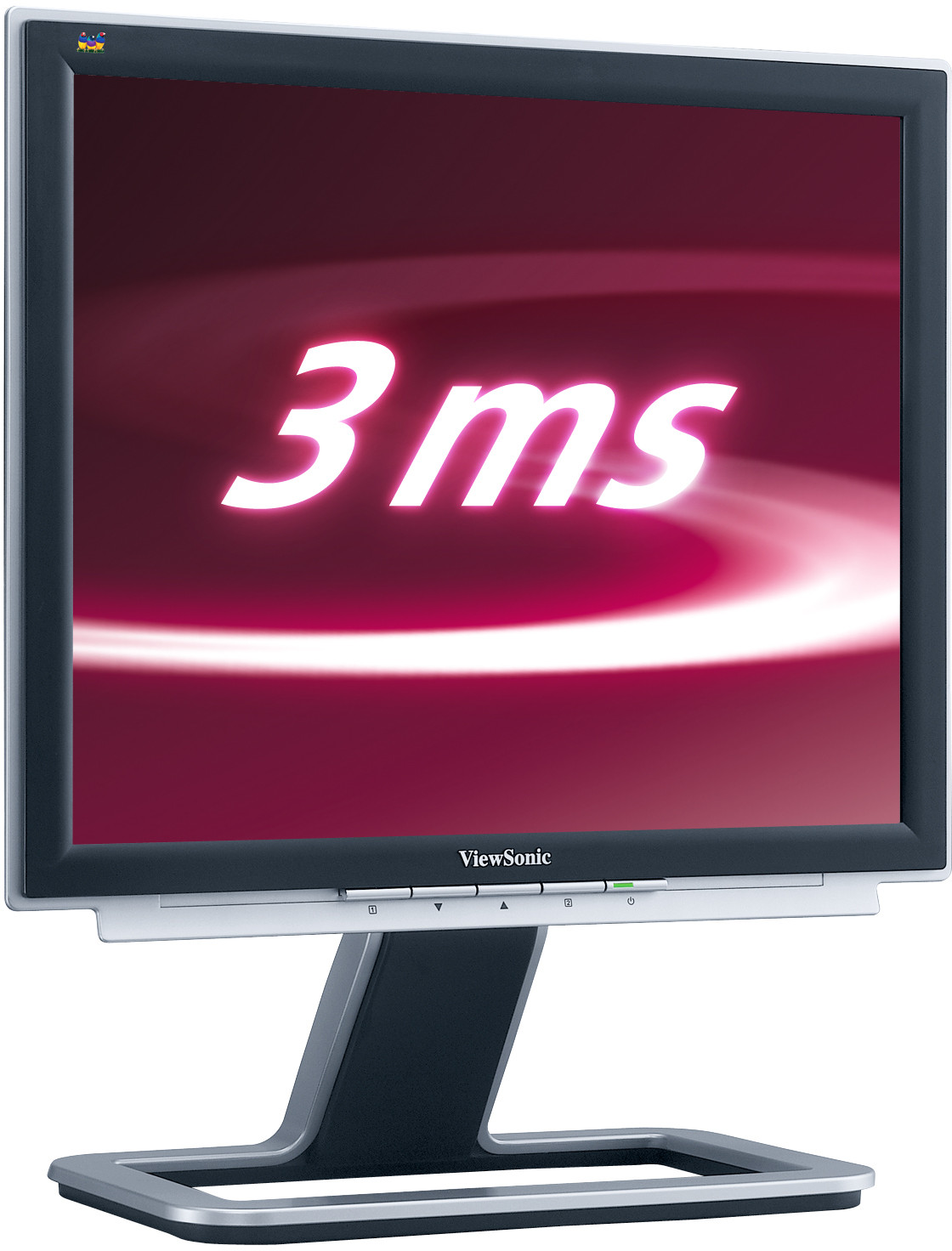

The 17" LCD monitor VX750 is the first choice for all those who are looking for a stunning combination of AESTHETICS, STYLE AND SUPERIOR PERFORMANCE. Framed by a silver-metallic bezel, the panel delivers high contrast and brightness plus wide viewing angles to ensure a super-sharp picture from almost every perspective. The RESPONSE TIME OF JUST 16 MILLISECONDS further guarantees fast-moving Games, Video or DVD action is shown clearly. Two 5-watt speakers integrated in the side of the monitor provide the sound to accompany the images. In addition, this model comes with analogue as well as digital inputs to allow greater flexibility and connection options. Created for both business and home applications, the VX750 multimedia design LCD monitor represents the cutting edge in LCD technology.
SPECIFICATIONS
- LCDType: 43cm / 17" colour TFT active matrix SXGA LCD
Contrast Ratio: 450:1 (typ)
Viewing Angles: 150° h, 125° v (at 10:1), 160° h, 145° v (at 5:1)
Display Area: 33.8cm horizontal x 27.0cm vertical, 43.2cm diagonal
Optimum Resolution: 1280x1024
Response Time: 16 ms (typ)
Panel Surface: Anti-glare
Brightness: 270 cd/m² (typ) - COMPATIBILITYPC: PC compatible from VGA to 1280x1024
Mac®: Power Mac™ (up to 1280x1024) - DIMENSIONSW x H x D mm: 502 x 405 x 195 (with stand),
502 x 340 x 63 (without stand)
- REGULATIONSTCO’99, TÜV/GS, TÜV/Ergo, ISO 13406-2 (class 2), TÜV S, CE
UL, cUL, IC-B, CB-Report, FCC-B, CB, CE, EPA, NOM, NEMKO,
SEMKO, DEMKO, FIMKO, GOST-R, PCBC, VCCI, BSMI, CCC, PSB,
C-TICK, ENERGY, EnergyStar, PCT (BZ02), Taiwan green mark - WARRANTYPlease see:
http://www.viewsoniceurope.com/UK/Support/warranty.htm - AUDIOSpeaker: 2 x 5 watts
Amplifier: 5 watts at 1kHz - INPUTSync: H/V separated (TTL), composite, sync on green
Analogue: RGB analogue (0.7 Vp-p, 75 ohms)
Digital: DVI-D (TMDS, 100 ohms)
Frequency: Fh: 30-82 kHz, Fv: 50-85 Hz - CONNECTORAudio (input/output): 3.5mm stereo connector (line-in)/(line-out)
Headphone: 3.5mm stereo connector
Signal: RGB (15-pin mini D-sub), DVI-D, detachable cable
Power: 3-pin plug (IEC) to External brick, 12 volt DC to Head - POWERVoltage: AC 100-240 V (50/60Hz), auto switch
Consumption: 50 watts (max.) - CONTROLSOSD: Auto image adjust, contrast, brightness, input select, colour
adjust (sRGB, 9300K, 6500K [default], 5400K, user RGB), information
(mode, model number, serial number, website), manual
image adjust (H/V position, H size, fine tune, sharpness), setup
menu (language, resolution notice, OSD position, OSD timeout,
OSD background), memory recall
Physical: Power (soft), 1, menu up, down, 2, (enter) input select, volume +/- - OPERATING CONDITIONSTemperature: 0°C to 40°C
Humidity: 10% to 90% (non-condensation) - WEIGHTNet: 5.6 kg
- POWER MANAGEMENTTCO’99, ENERGY Standards
