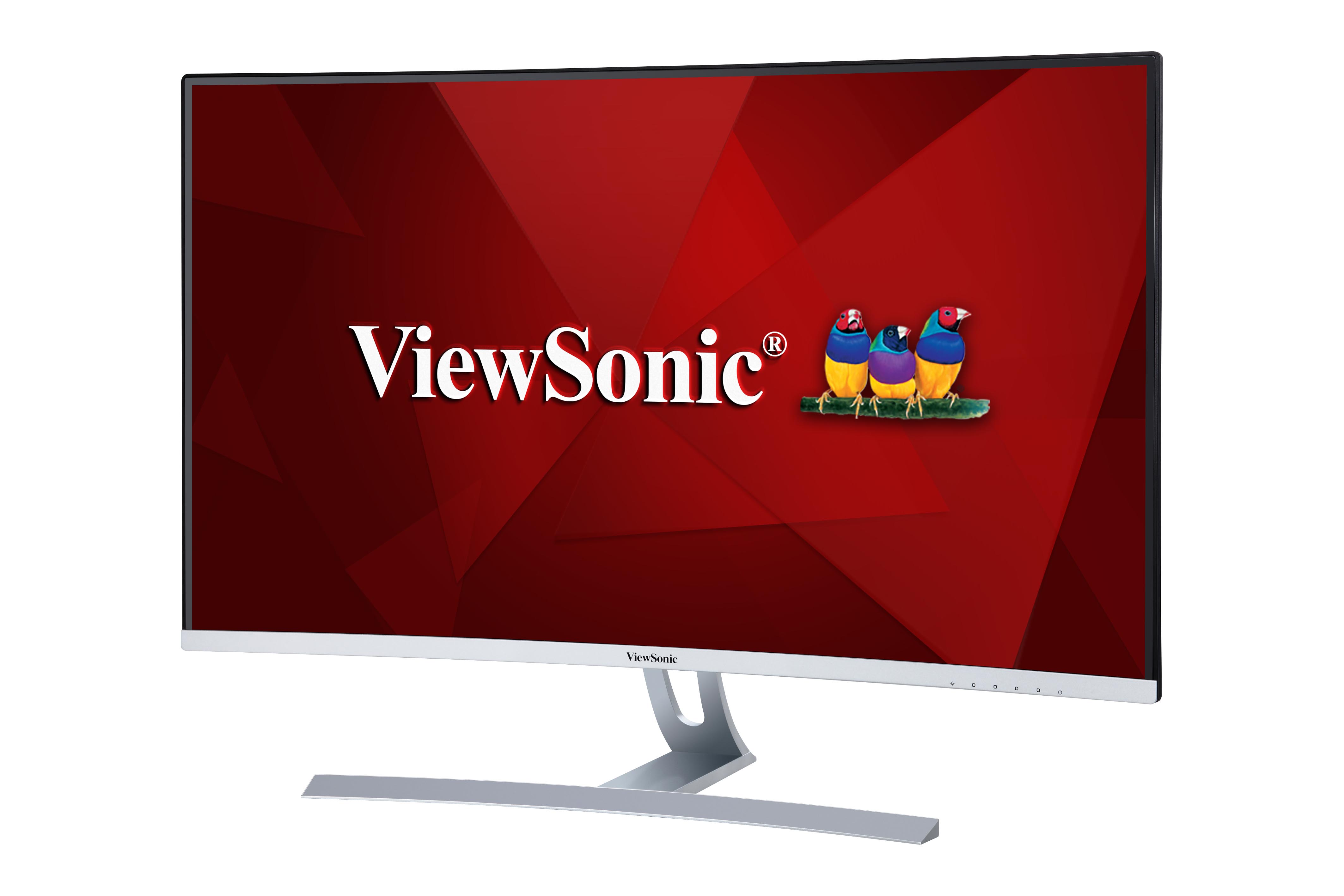

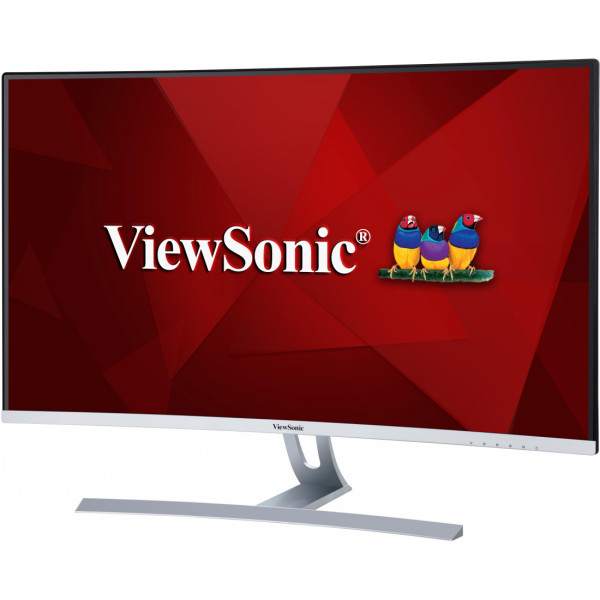

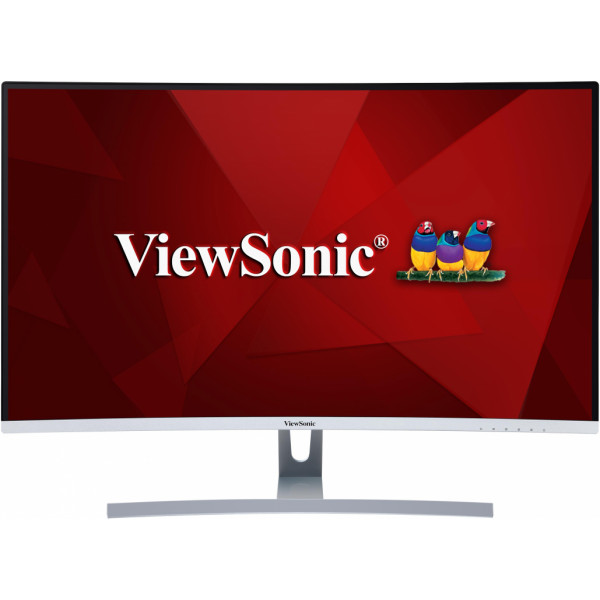

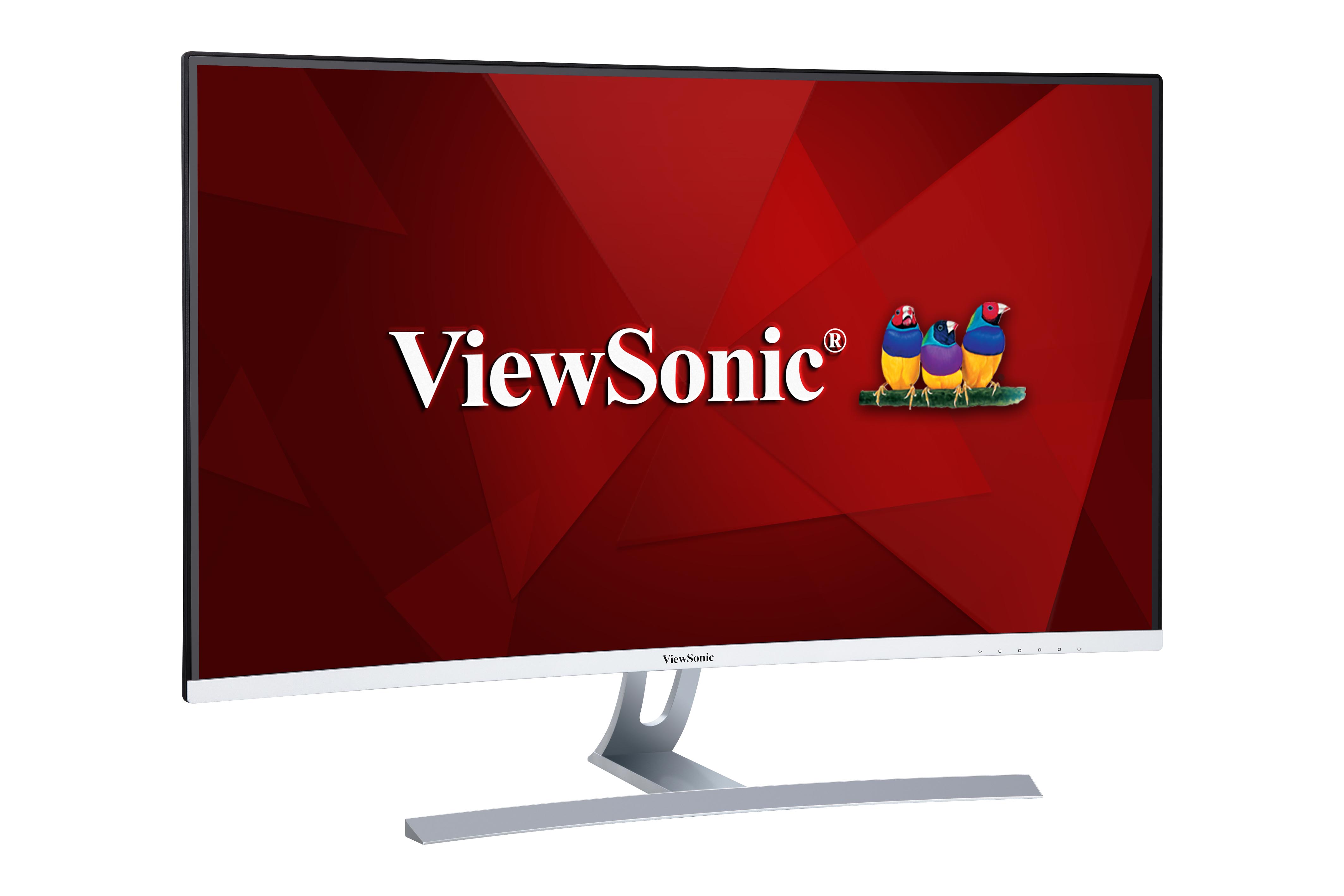

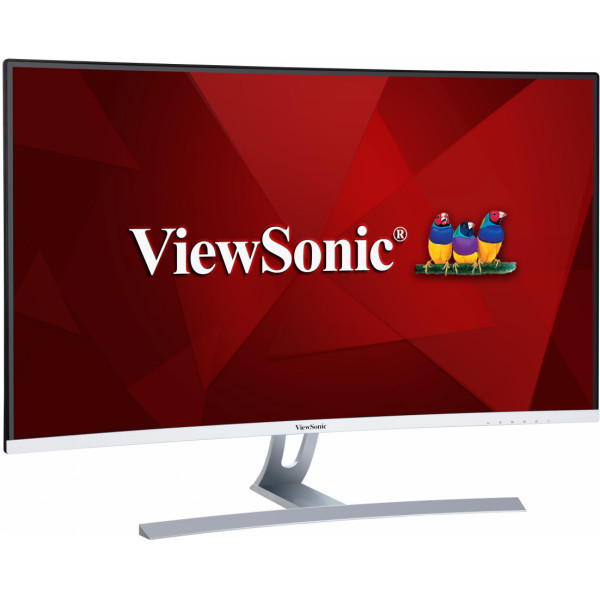

VX3217-2KC-mhd
32" Curved Entertainment Monitor
- WQHD 1440p resolution
- 75Hz refresh rate
- Dual HDMI, DisplayPort and mini DP inputs
- Frameless bezel
- Dual integrated speakers
OVERVIEW
ViewSonic VX3217-2KC-mhd’s curved screen immersion and high resolution combine to provide a stunning panoramic viewing experience. VX3217-2KC-mhd features a 32" panel with WQHD (2560 x 1440) resolution for clear, detailed images and a 75Hz refresh rate for smooth overall screen performance. The monitor has been designed with a sleek, edge-to-edge frameless bezel for a clean aesthetic that integrates seamlessly into multi-monitor setups, while dual speakers take the immersive experience one step further with stereo sound. DisplayPort, Mini DisplayPort and 2 HDMI inputs offer flexible connectivity options for entertainment and ViewSonic’s exclusive ViewMode™ provides intuitive presets for optimized screen performance in different home entertainment and multimedia applications.Curved Screen Immersion

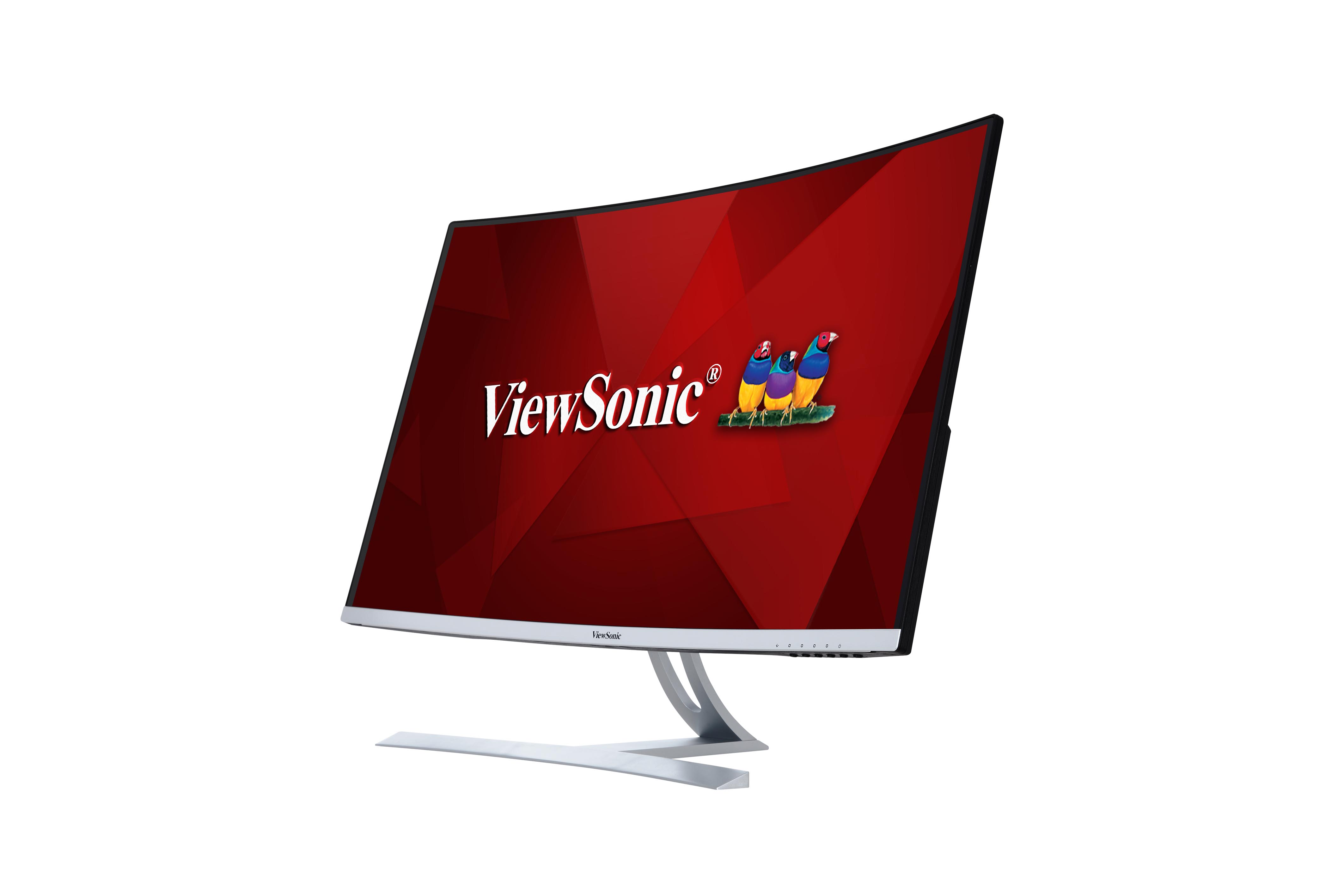

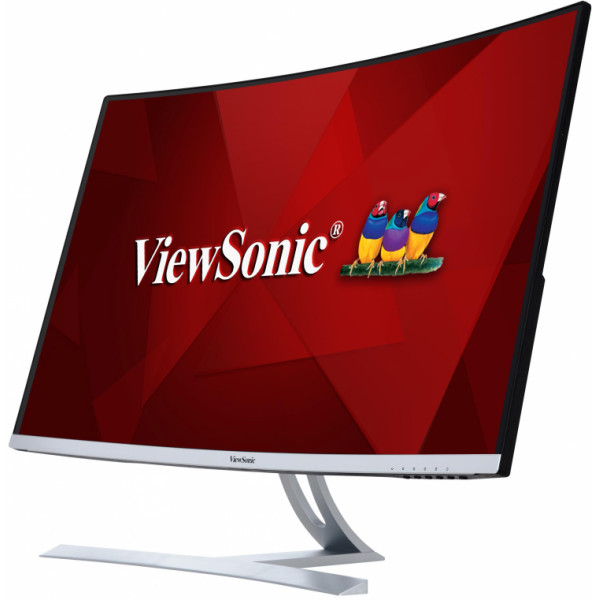

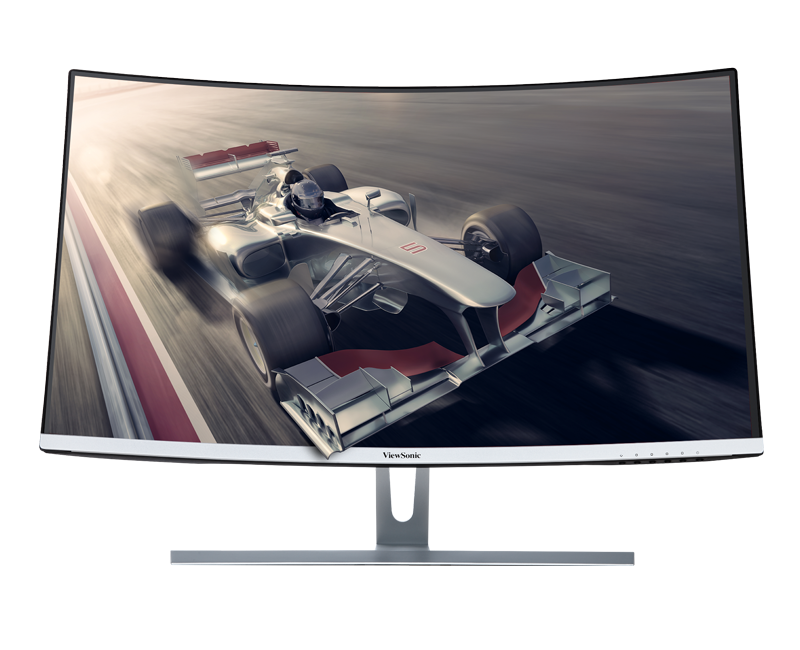

Curved Screen Immersion
High Detail and Smooth Visuals
VX3217-2KC-mhd’s 32” panel features WQHD (2560 x 1440) resolution, allowing users to enjoy the benefits of a high PPI pixel density with excellent detail and clarity. WQHD displays more on-screen content with up to 70% more usable desktop space than Full HD, making project management and multitasking easier than ever before. The monitor’s 75Hz refresh rate ensures smooth action scenes when watching movies or playing games.
- WQHD (2560 x 1440)
- 75Hz

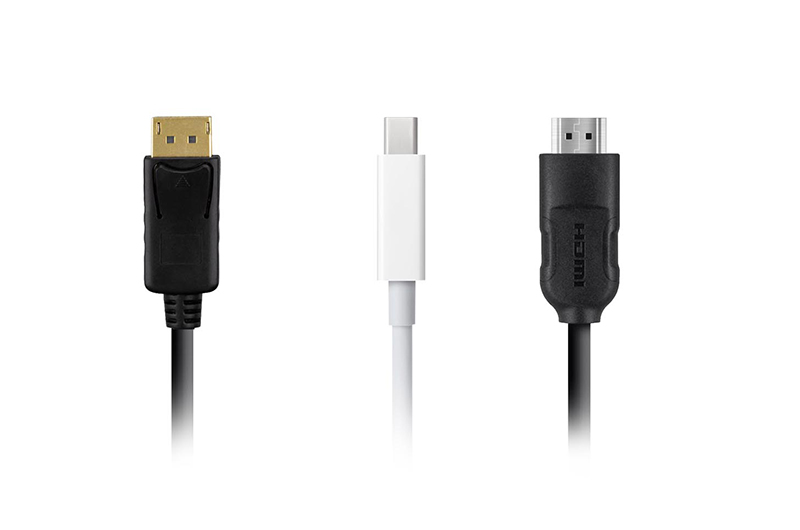

Flexible Connectivity
DisplayPort, Mini DisplayPort and 2 HDMI inputs offer a wide range of compatibility, giving you the ultimately flexibility when connecting your devices.
- DisplayPort
- MiniDP
- HDMI x 2

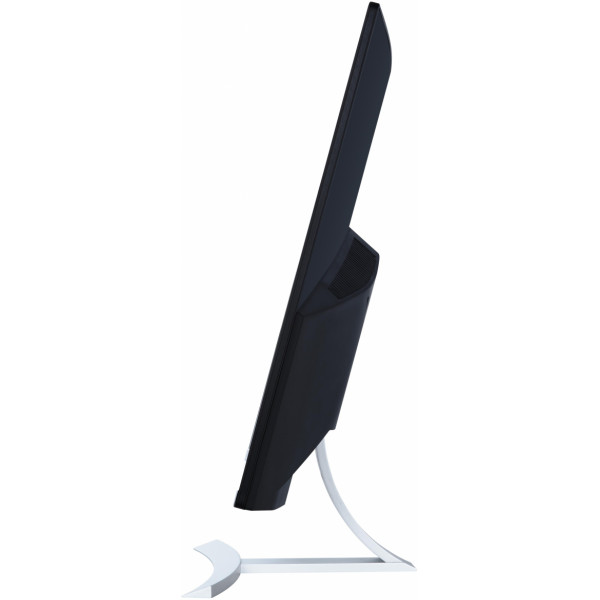

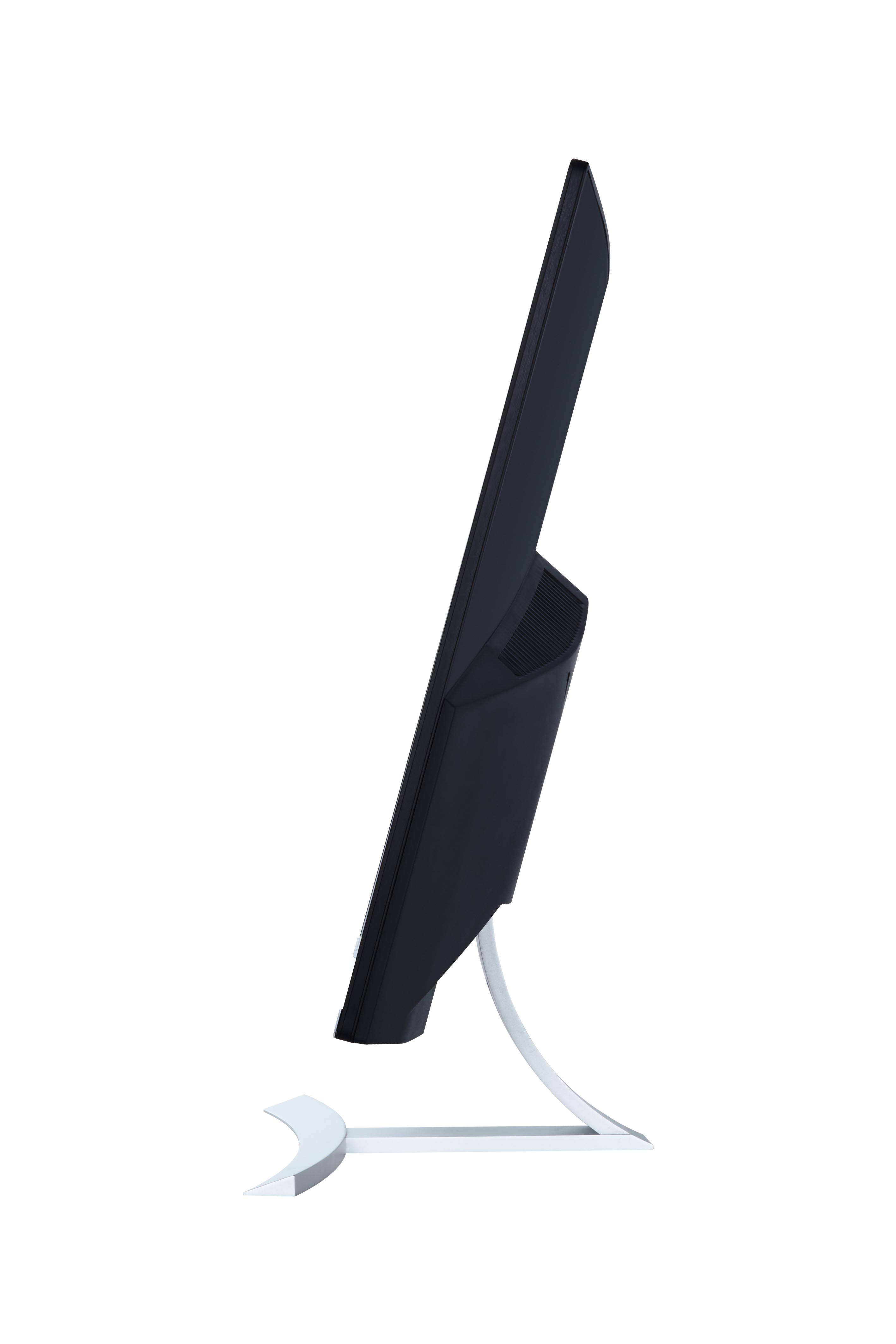

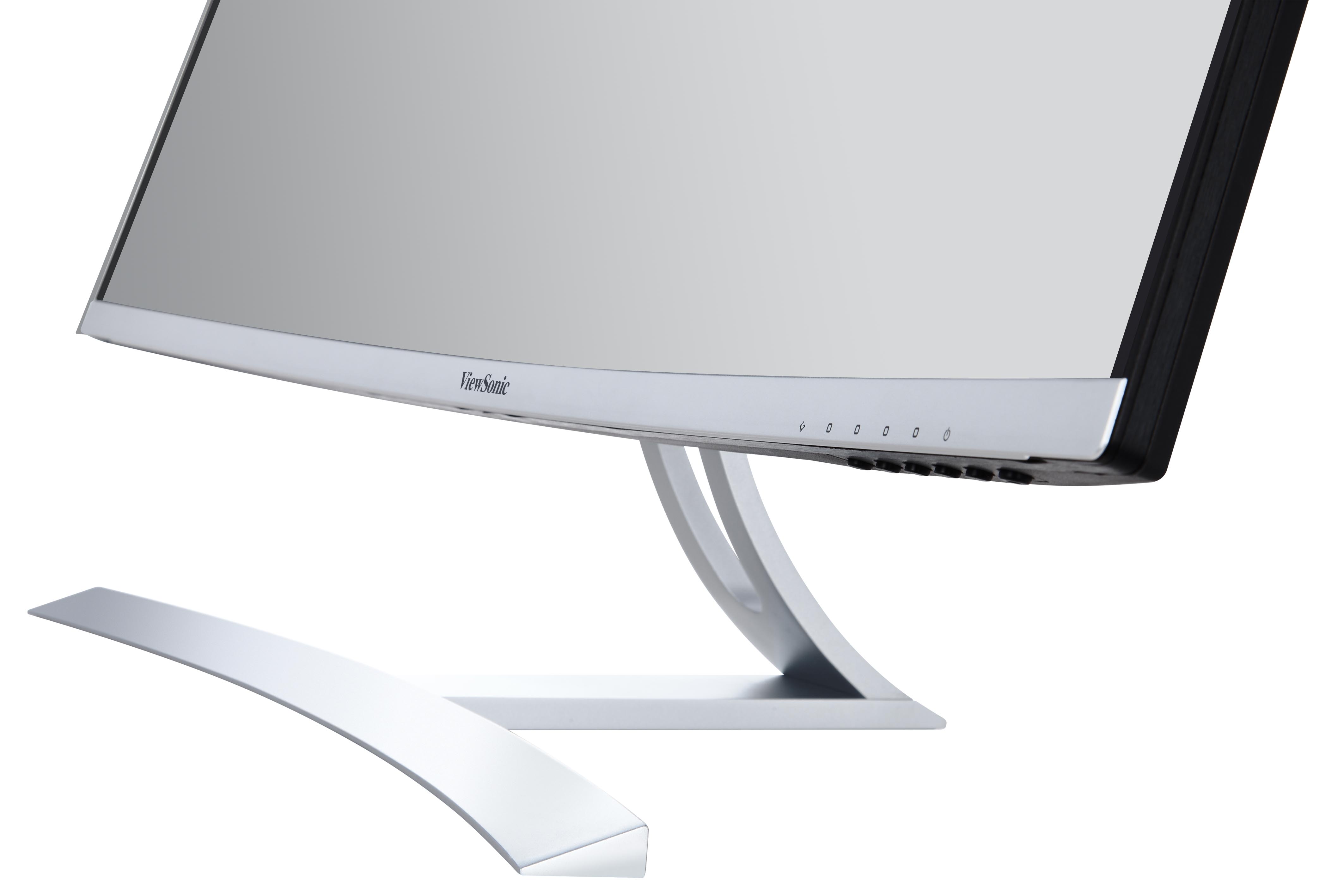

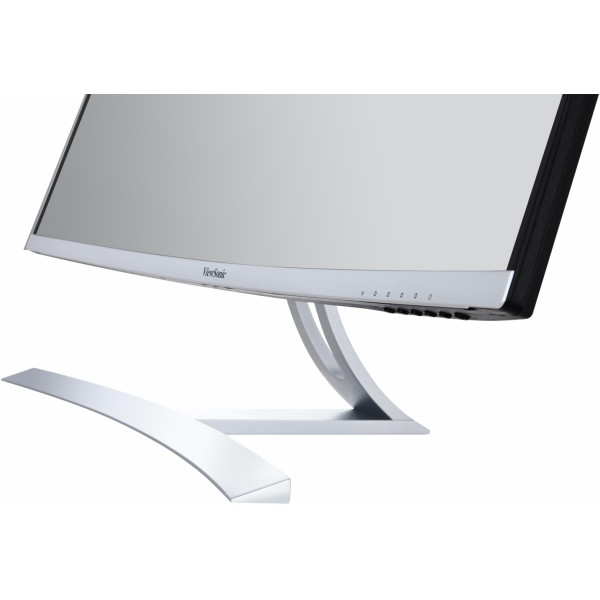

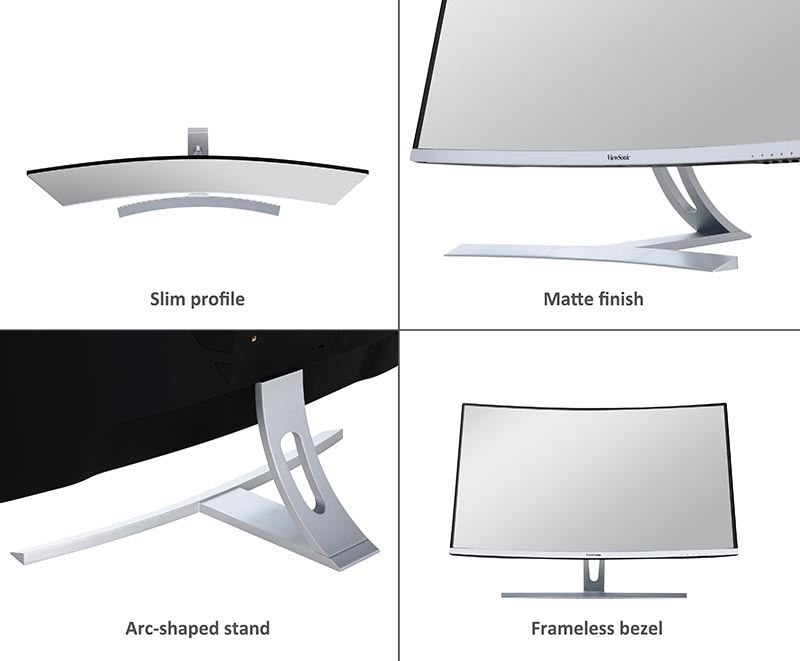

Stylish Design for Seamless Viewing
VX3217-2KC-mhd’s slim profile, matte finish, and attractive arc-shaped stand make it an outstanding addition to any tastefully decorated modern space. In addition, the monitor is equipped with a 3-sided frameless bezel that gives users a clean look and a seamless flow when used in a multi-monitor setup.
- Slim profile
- Matte finish
- Arc-shaped stand
- Frameless bezel
The Optimal Viewing Conditions
ViewSonic’s exclusive ViewMode offers specialised presets to fit different usage scenarios including “Game”, “Movie”, “Web”, “Text”, “Mac”, and “Mono” modes. These presets enhance gamma curve, colour temperature, contrast, and brightness to deliver the optimal viewing characteristics for each application.

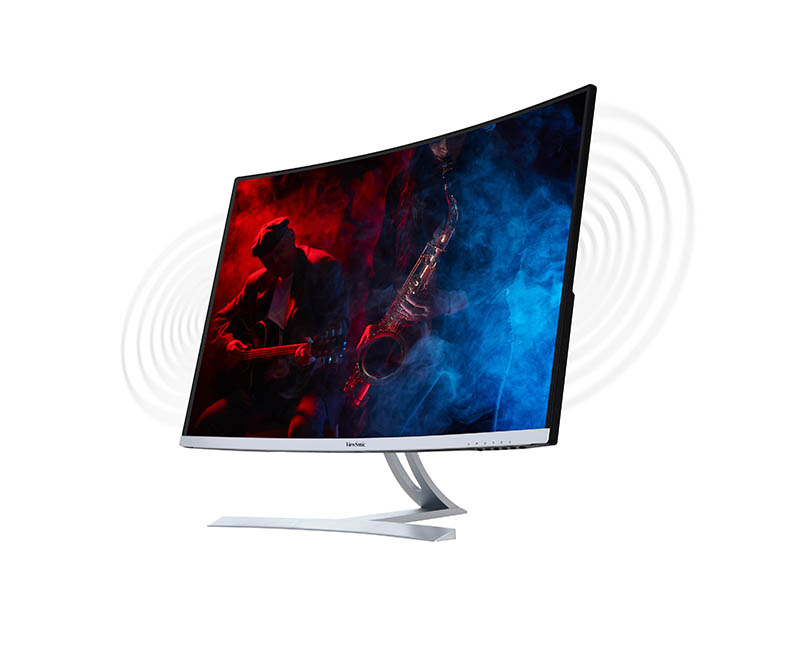

Immersive Audio
Designed with dual integrated speakers, VX3217-2KC-mhd accents its incredible screen performance with immersive stereo sound for a complete multimedia experience.
Comfortable Viewing
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
- Blue Light Filter
- Flicker Free
Low Power Consumption
ViewSonic’s energy efficient Eco-mode adjusts brightness to the optimal setting to reduce power consumption and eye fatigue while also prolonging the monitor’s lifespan.

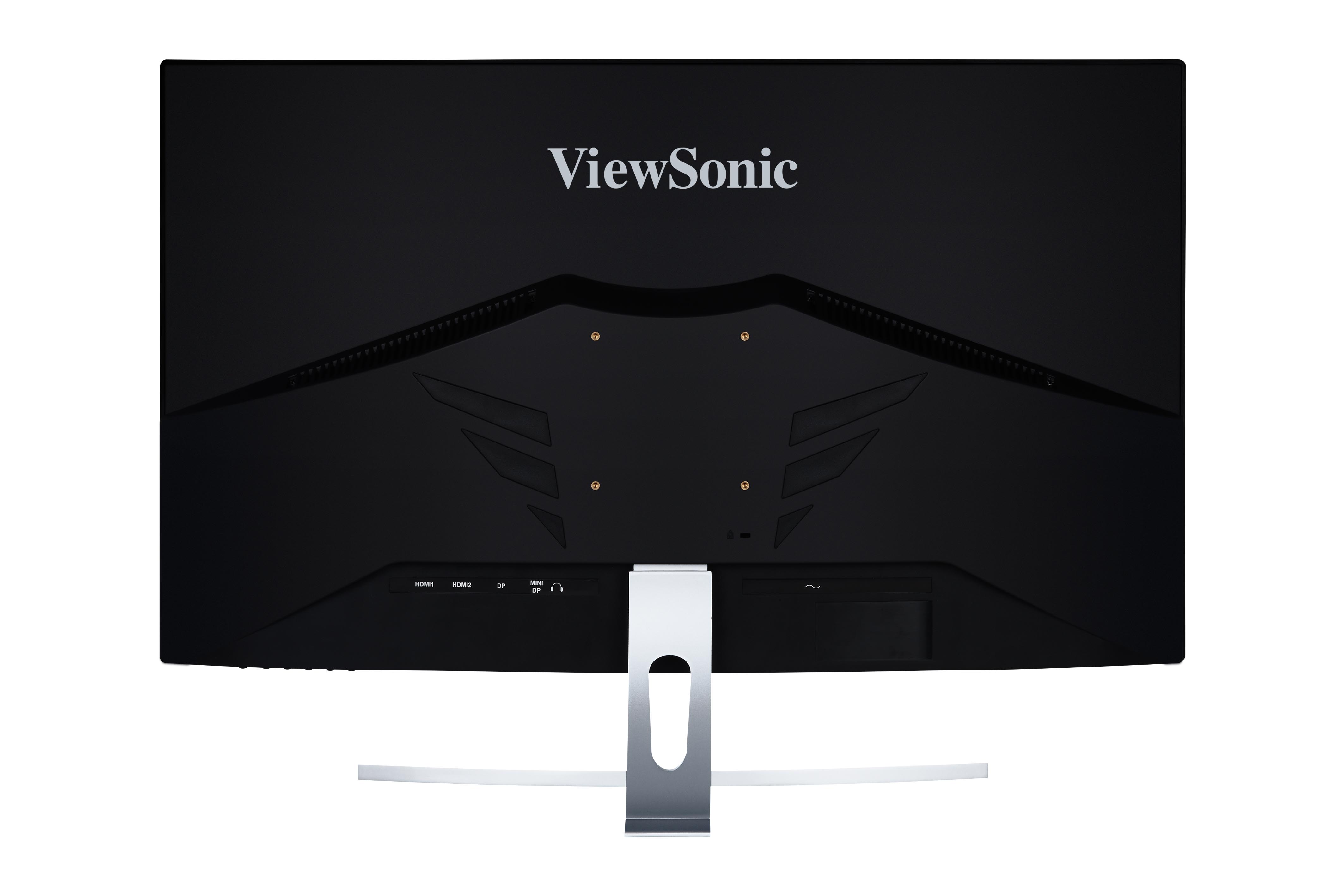

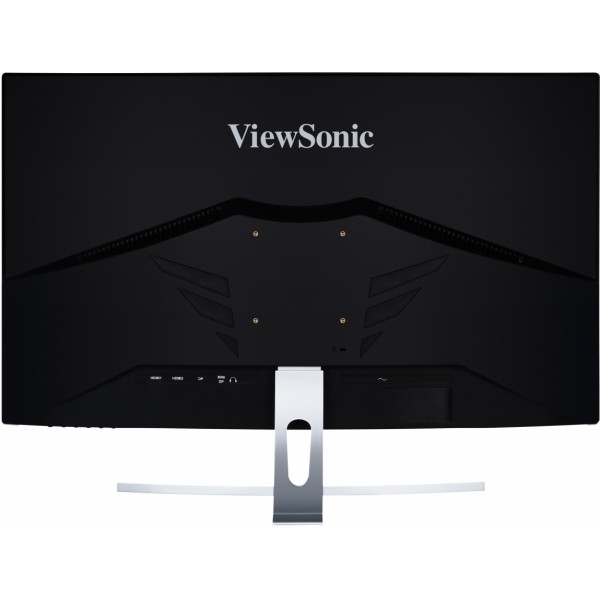

VESA-Compatibility
Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.
- VESA Compatible (Wall Mount 100 x 100 mm)

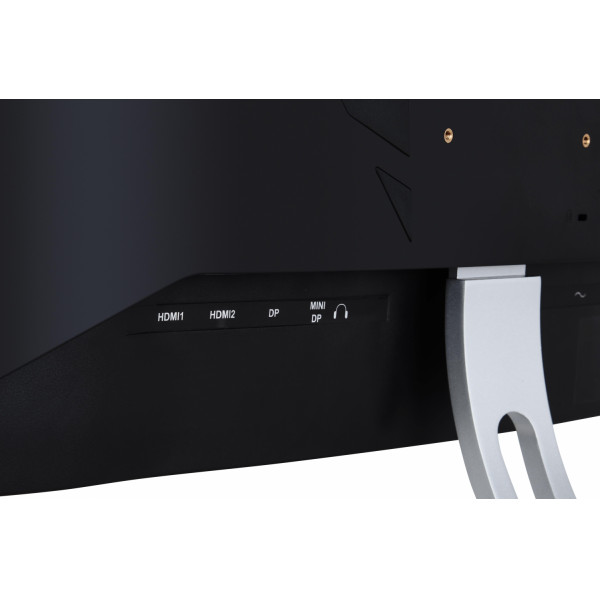

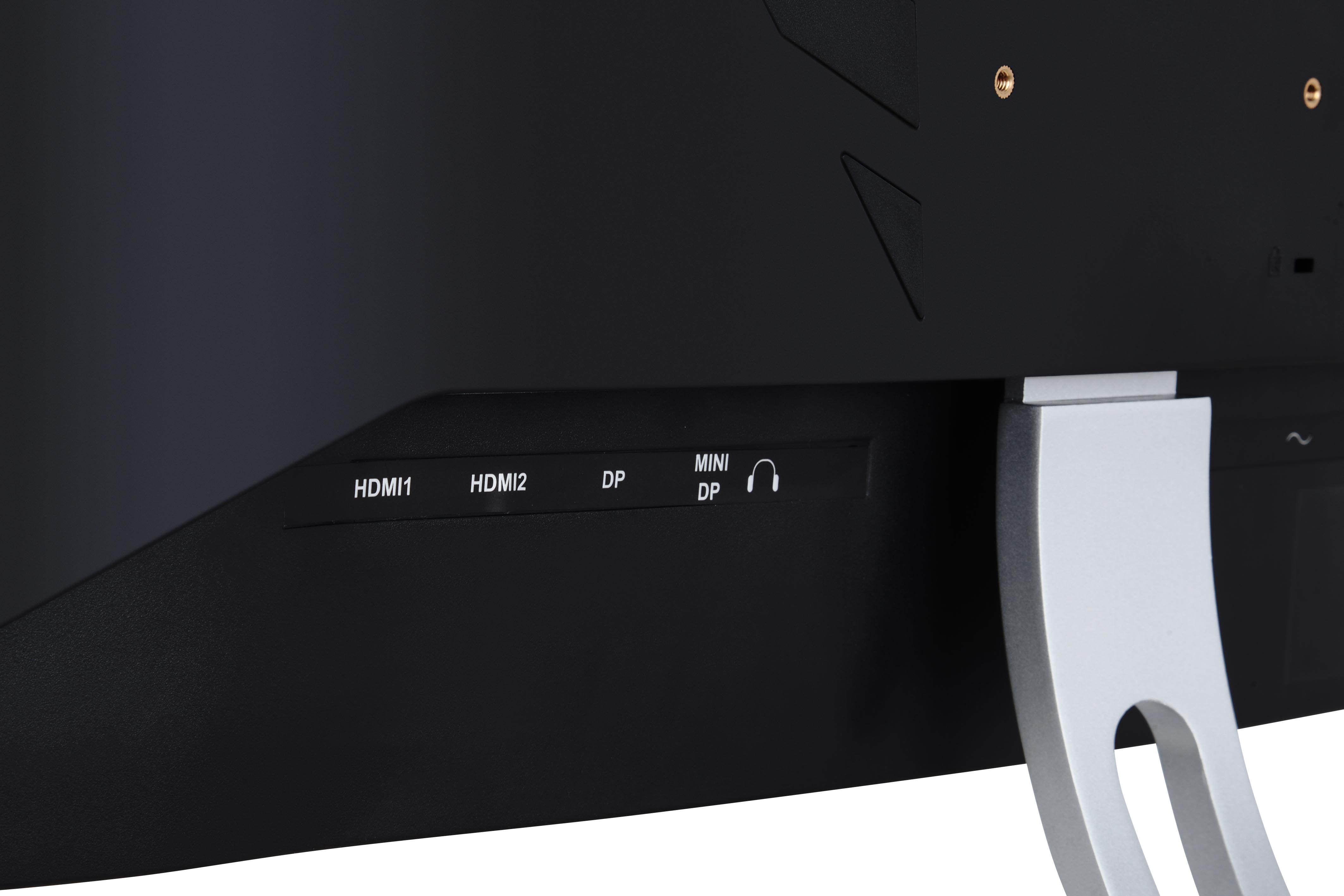

- Menu Control Panel
- HDMI x 2
- DisplayPort
- Mini DisplayPort
- Audio out
- AC Power In
- Internal Speakers
SPECIFICATIONS
- DISPLAYMonitor Size: 32”W (31.5” Viewable)
Panel Technology: SuperClear® VA (Curved 1800R), TFT LCD
Resolution: QHD 2560 x 1440
Display Area: 697.344mm (H) x 392.256mm (V)
Aspect Ratio: 16:9
Brightness: 250 cd/m² (Typ)
Contrast Ratio: 3000:1 (Typ)
Dynamic Contrast Ratio: 80,000,000:1
Viewing Angle: 178 degrees / 178 degrees (Typ)
Refresh Rate: 75Hz
Response Time: 5ms (GtG)
Colours: 16.7M colors (8 bits color depth)
Colour Gamut: 75% of NTSC (Typ)
Panel Surface: Anti-Glare type, Hard-coating (3H), Haze 25%
Dot Pitch: 0.272mm (H) x 0.272mm (V) - INPUT SIGNALFrequency: HDMI:Fh =Fh = 15 ~ 113KHz ; Fv = 24 ~ 75Hz
DisplayPort:Fh = Fh = 24 ~ 113KHz ; Fv = 50 ~ 75Hz
Mini DP:Fh = Fh = 24 ~ 113KHz ; Fv = 50 ~ 75Hz
Sync: HDMI:TMDS
DisplayPort:PCI-E
Mini DP:PCI-E - COMPATIBILITYPC: Windows 7, Windows 8, Windows 8.1, Windows 10 certified
Mac®: Power Mac tested
- CONNECTORDigital: HDMI x 2 (v1.4 compatible)
DisplayPort x 1 (v1.2 compatible)
Mini DP x 1 (v1.2 compatible)
Audio Out: Earphone out x 1 (3.5mm plug) - SPEAKERS2W x 2
- POWERPower: 3-pin plug (CEE22) x 1
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 40W
Optimize: 35W
Conserve: 30W - ERGONOMICSTilt: 15 ~ -5 degrees
- WALL MOUNTVESA®: 100mm x 100mm
- OPERATING CONDITIONSTemperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 90% (no condensation) - DIMENSIONS (W x H x D) (mm)Physical with stand (mm): 711.2mm (W) x 506.5mm (H) x 248.5mm (D)
Physical without stand (mm): 711.2mm (W) x 419.5mm (H) x 80.1mm (D)
Packaging (mm): 788mm (W) x 511mm (H) x 189mm (D) - WEIGHTNet with stand (kg): 6.7kg
Net without stand (kg): 6.0kg
Gross (kg): 9.0kg - REGULATIONSCE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, VCCI, PSE, KC, e-Standby
- PACKAGE CONTENTSLCD Display
Power Cable (1.5m)
HDMI Cable (1.5m)
Quick Start Guide
*Actual content may differ from market to market
