- DIMENSIONS
Physical With Stand: 481 x 369 x 200 (mm), 18.94 x 14.51 x 7.86 (in)
Physical Without Stand: 481 x 288 x 64(mm), 18.94 x 11.32 x 2.52 (in)
- REGULATIONS
CB,WEEE,ROHS, EAEPT, UL/cUL, FCC-B, IRAM, NOM, Energy
Star, ERGO,CE, Ukraine, GOST-R+Hygienic ,SASO, BSMI, PSB,
C-TICK, KCC, CCC
- PACKAGE CONTENTS
LCD display, VGA cable, Power cable, Quick Start Guide,
ViewSonic ,Wizard CD
- INPUT
Sync: Separate Sync
Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Frequency: Fh: 24-82kHz, Fv: 50-75Hz
- CONNECTOR
Analogue: 1×15 pin mini D-sub
Power: Built-in power Adapter, 3-Pin plug
- POWER
Voltage: AC 100-240V (Universal); 50/60Hz(Switch)
Consumption: 25 (Typical)
Eco Mode: optimize 23W (Typical) / conserve 19W (Typical)
Save mode: <= 0.5W
- CONTROLS
Basic: [1], [2], Power, Down[▼], Up[▲]
OnView®: Auto Image Adjust
Contrast/Brightness
Audio adjust: Volume mute
Colour Adjust: sRGB, 9300K, 7500K, 6500K, 5000K
User Colour : [R, G, B]
Information
Manual Image Adjust: H/V position, horizontal size, fine tune, sharpness,
dynamic contrast, aspect ratio, Eco mode, setup menu, language
select, resolution notice, OSD Position, OSD Time Out, OSD Background,
memory recall.
- POWER MANAGEMENT
ENERGY STAR
- VESA MOUNT COMPLIANT
VESA 100mm x 100mm
- WEIGHT
Gross: 5.8 kg (12.8 lbs)
Net: 4 kg (8.8 lbs)
- OPERATING CONDITIONS
Humidity: 20 - 80% (Non condensed)
Temperature: 41°F - 95°F (5°C - 35°C)

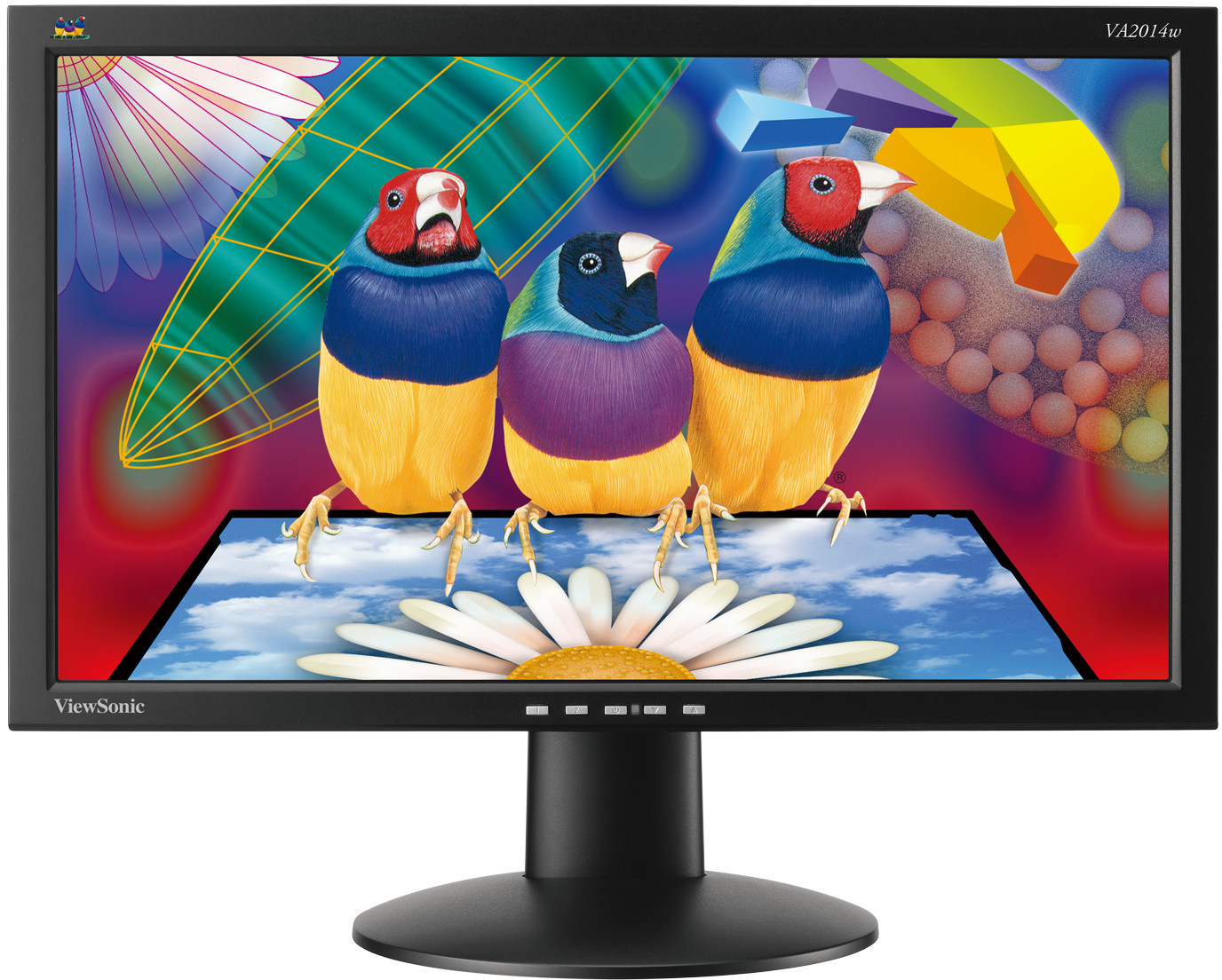

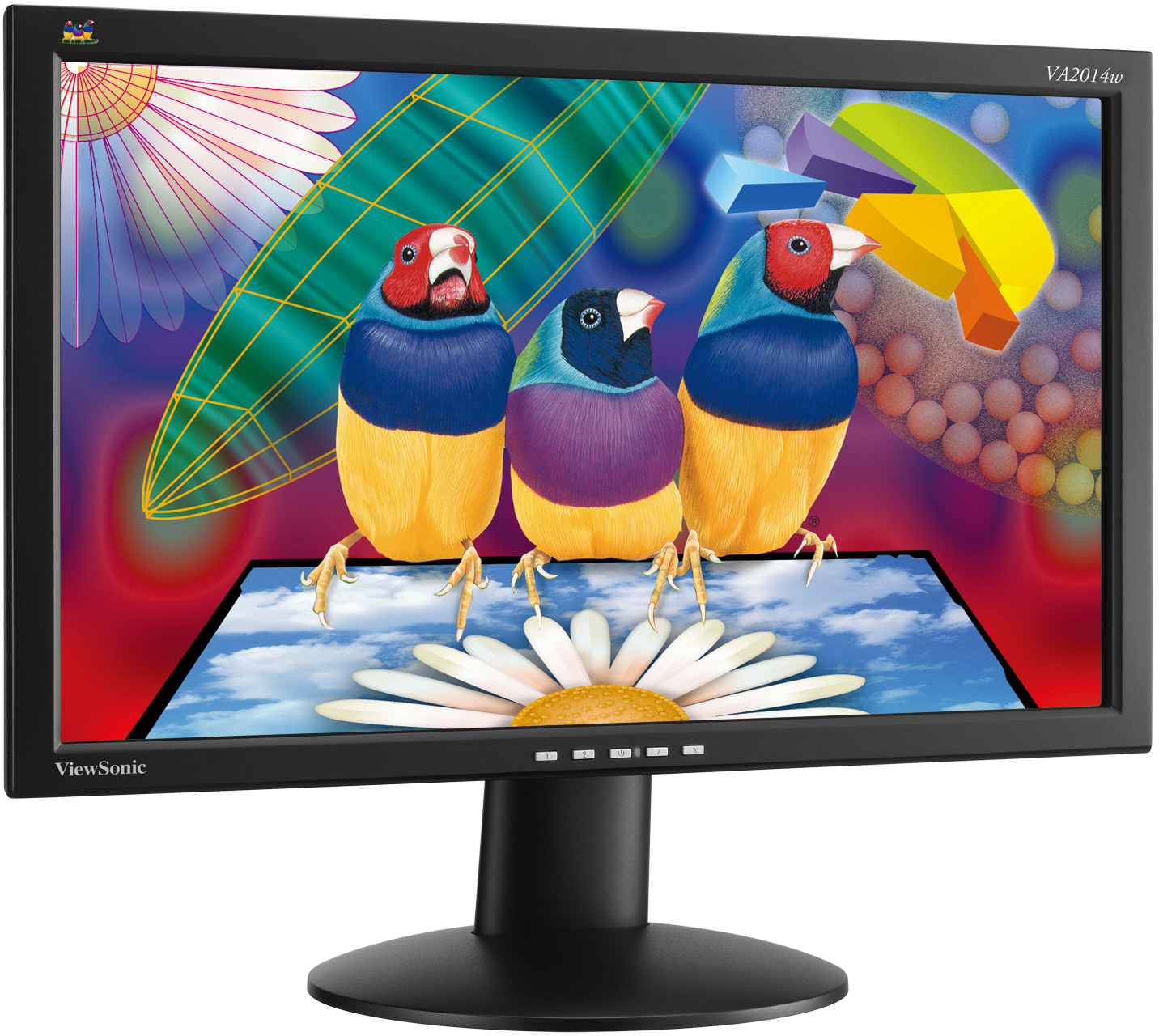

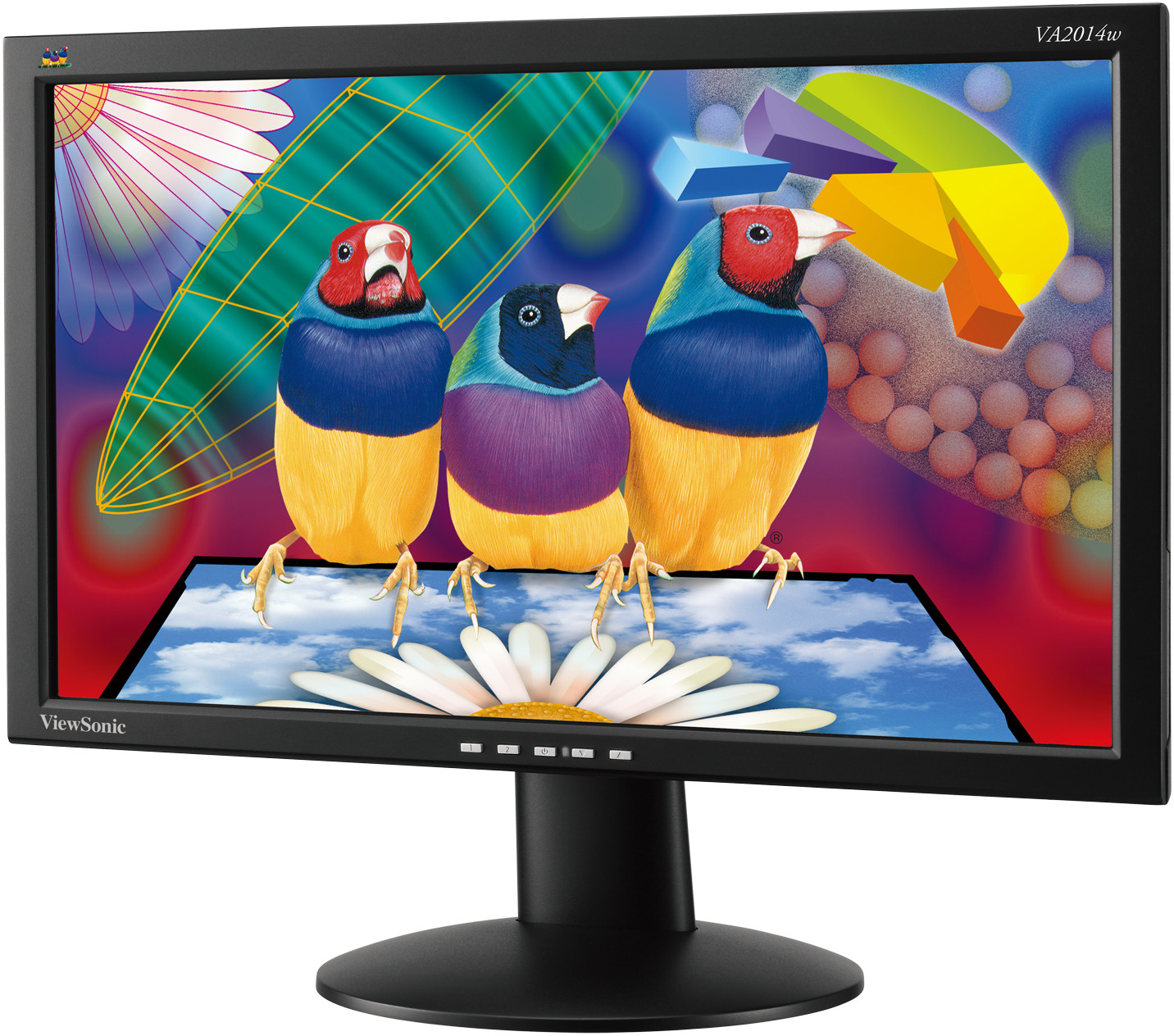

ViewSonic’s 50cm/20" VA2014w LCD brings value to big,widescreen displays. This display doesn’t compromise on featureswith 1600x900 resolution for brilliant HD images. This stylish50cm/20-inch LCD delivers extreme clarity, amazing colour with20,000:1 dynamic contrast ratio and fast ClearMotiv® 5ms videoresponse. Benefit from greater productivity with the ability toview two fullsize documents side-by-side or work in multipleapplications simultaneously on the widescreen display. Eco-mode conserves power and canextend backlight life. VA2014w fits seamlessly into anyofficedécor. It’s great for desktop applications at home, school or in the office.
