- REGULATIONS
TCO’99, CE, ISO9241-3,-7,- 8, TÜV/S,TUV GS, TUV/ ERGO, MPR-II,
CCC, GOST-R, SASO, PCBC, BSMI, C-Tick, NOM, UL/cUL, DHHS,
FCC-B, CB, ICES 003, Argentina
- INPUT SIGNAL
Frequency: Fh:30~70kHz, Fv:50~160Hz
Video: RGB analogue (75 ohms, 0.714 Vp-p)
Sync: H/V separated (TTL)
- CONNECTOR
Analogue: 15 pin mini D-sub
Power: 3-pin plug (IEC320)
- POWER
Voltage: AC 100–240V, 50/60Hz
Consumption: 75W (typ)
- CONTROLS
Basic: Power, on/off, 1, down, up, 2, speaker mute
OnView®: Contrast, brightness, degauss, H./V. size, H./V. position,
pincushion, pinbalance, trapezoid, parallelogram, tilt, moiré
reduction, ViewMatch® colour (9300K, 6500K, user), language,
OSD position, zoom, recall and ViewMeter®
- OPERATING CONDITIONS
Temperature: 0–40° C
Humidity: 5–95% (no condensing)
- WEIGHT
Net: 16.2kg
- VIDEO INPUT
Bandwidth: 110MHz (typ)
- POWER MANAGEMENT
Meets TCO'99 standards

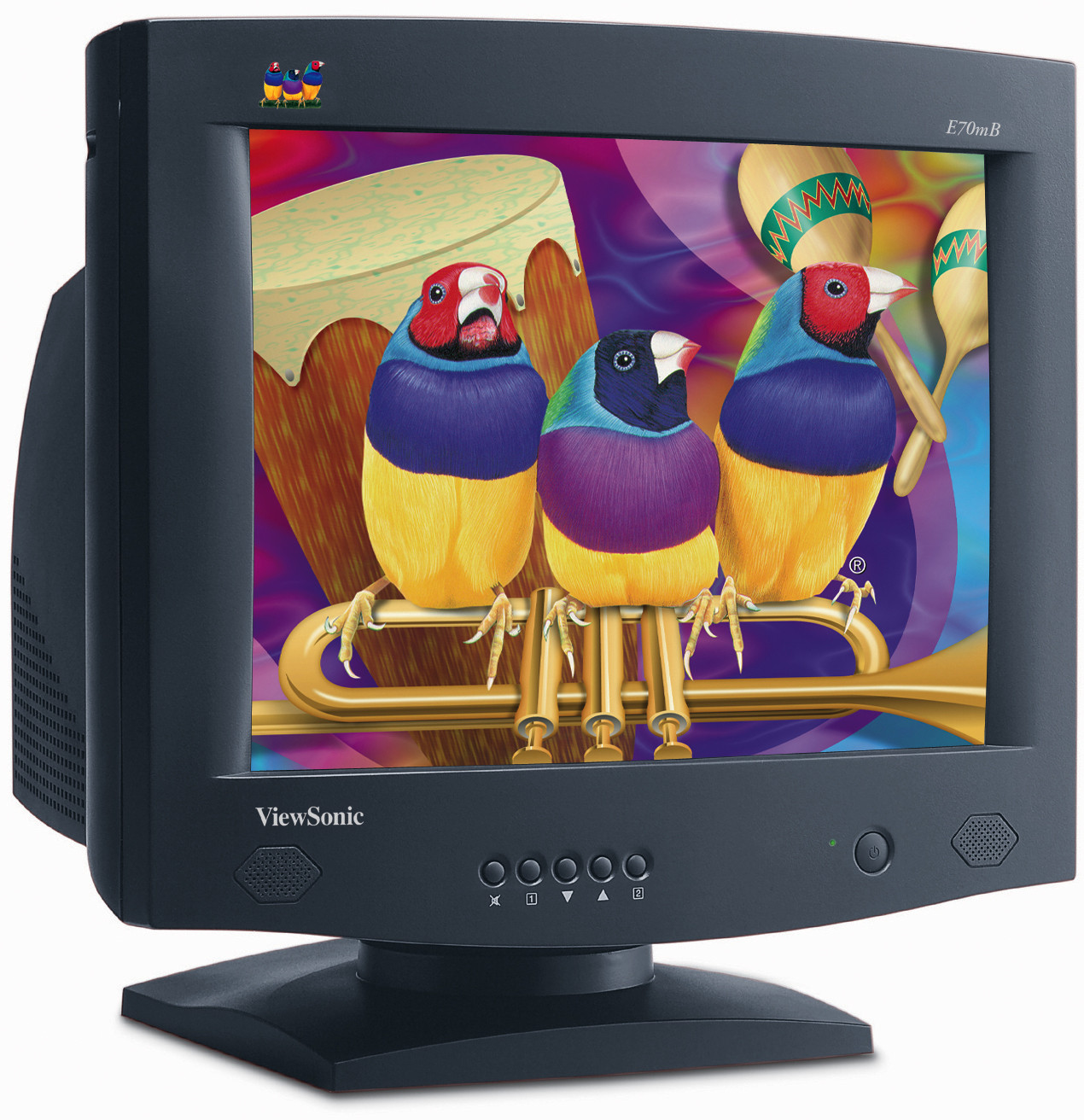

- CRT
Type: 43cm / 17'' (16.0" viewable) 90° deflection
Dot Pitch: 0.23mm horizontal x 0.13mm vertical; 0.27mm diagonal
Phosphor: RGB P22 medium persistence
Glass Surface: Tint: TM~52%, anti-static, anti-glare screen coating
- MISCONVERGENCE
0.25mm (max) at centre
0.35mm (max) at corner
- DISPLAY AREA
Factory Setting: 310mm horizontal x 230mm vertical
Maximum Scan: 320mm horizontal x 240mm vertical (dependent upon signal timing)
