CD4636
46" Ultra slim bezel full HD 1080p commercial LCD display for video wall application
OVERVIEW
ViewSonic’s 46" CD4636 Commercial Display is designed for use in educational, retail, public and commercial signage applications. Super slim bezel is great for display wall applications. High Definition resolutions provides a clear view in any installation. Generous screen size and super slim bezel make messages stand out in a big way. Multiple connectivity and resolutions provide you with lots of options for showing a diverse set of digital signage content; from video, to internet pages, PowerPoint, Flash, and much more with ultimate HD clarity. Display your vivid graphics and stunning video beautifully with this large, bright and high contrast screen.SPECIFICATIONS
- COLORSBlack
- LCDType: 46" color TFT active matrix, wide LCD
Contrast Ratio: 3000:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Brightness: 450 cd/m2 (typ)
Display Area: 40" horizontal x 22.5" vertical; 46" diagonal
Optimum Resolution: 1366x768, 600mm dot pitch
Response Time: 8ms
Light Source: Long life, 50,000 hrs. (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H) - DIMENSIONSPhysical With Stand: 40.4" x 24.8" x 16" (1025.25mm x 650mm x 405mm)
Physical Without Stand: 40.4" x 22.8" x 4.8" (1025.25mm x 579.8mm x 120.8mm)
- REGULATIONSFCC, ICES003, UL, cUL, CE, CB, ENERGY STAR®
- PACKAGE CONTENTSLCD display, power cable, remote control with batteries,
User Guide CD - AUDIOAmplifier: 7-watt / 8 ohm

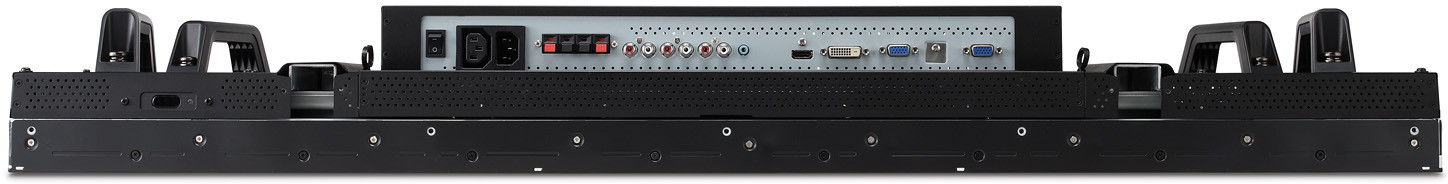

- INPUTVideo Input: HDMI, DVI, component, VGA, S-Video, composite
Video Output: VGA, component, DVI
Control Input/Output: RS-232 - INPUT SIGNALTV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
- CONNECTORDigital: HDMI, DVI
Power: 3-pin plug
Analog: 15-pin mini D-sub (VGA) - POWERVoltage: AC 100-240V (universal), 50-60Hz
Consumption: 232W (typ) - CONTROLSPicture: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
Front Panel: Power, Exit, +, –, Menu/Enter
Screen: Auto adjustment, clock, phase, sharpness,
H. position, V. position

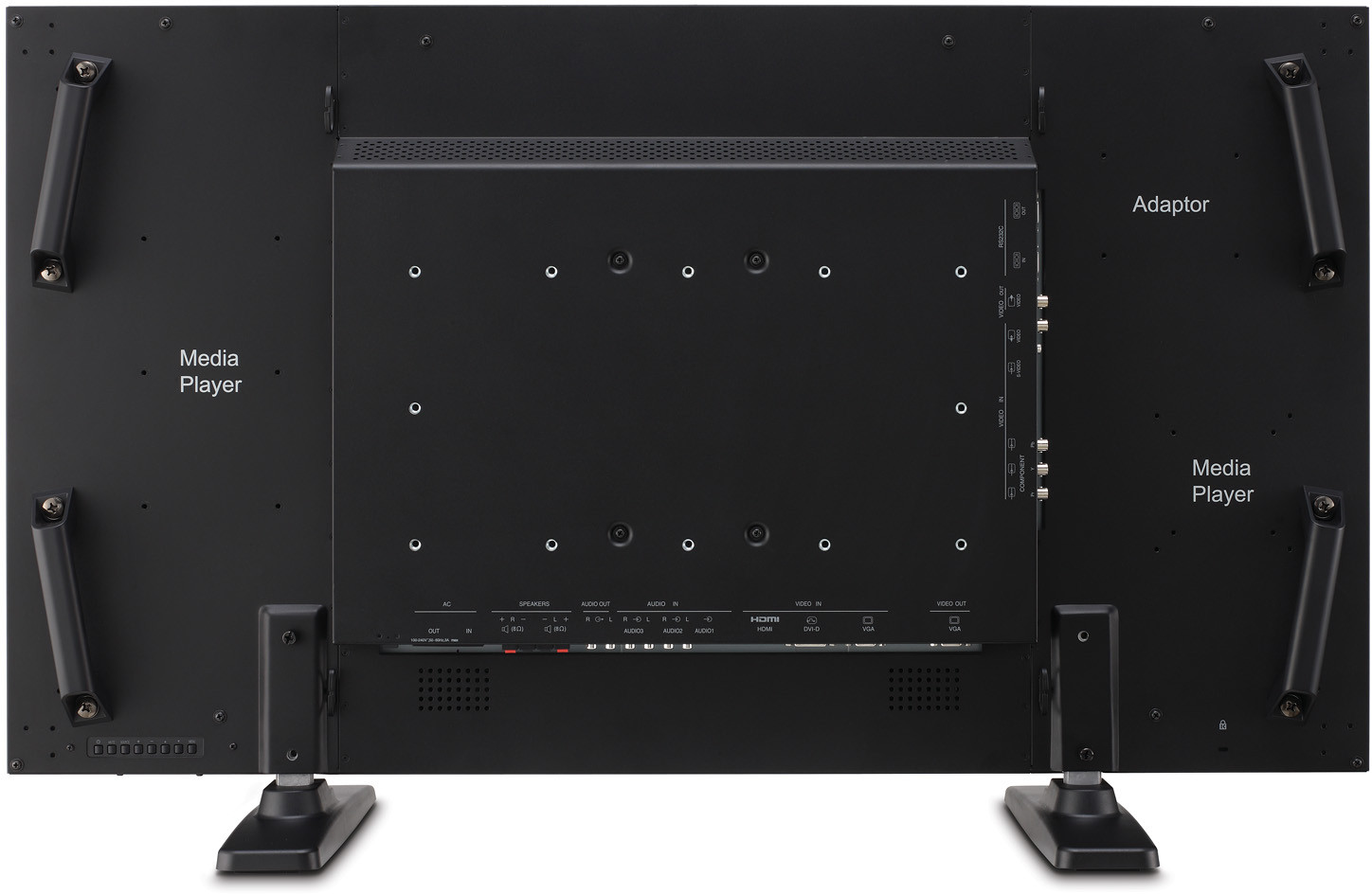

Audio: Volume, mute, audio source - VESA® MOUNTVESA 100mm x 100mm, 12 holes
- WEIGHTGross: without stand - 76.5 lb. (34.7 kg)
Net With Stand: 69.8 lb. (31.7 kg)
Net Without Stand: 69.0 lb. (31.7 kg) - OPERATING CONDITIONSHumidity: 20-85% (non-condensing)
Temperature: 41-104ºF (0-40ºC) - Landscape
41-95ºF (0-35ºC) - Portrait - WARRANTYThree-year limited warranty on parts, labor and backlight
- RECYCLE/DISPOSALThe lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws.
