LCD Display

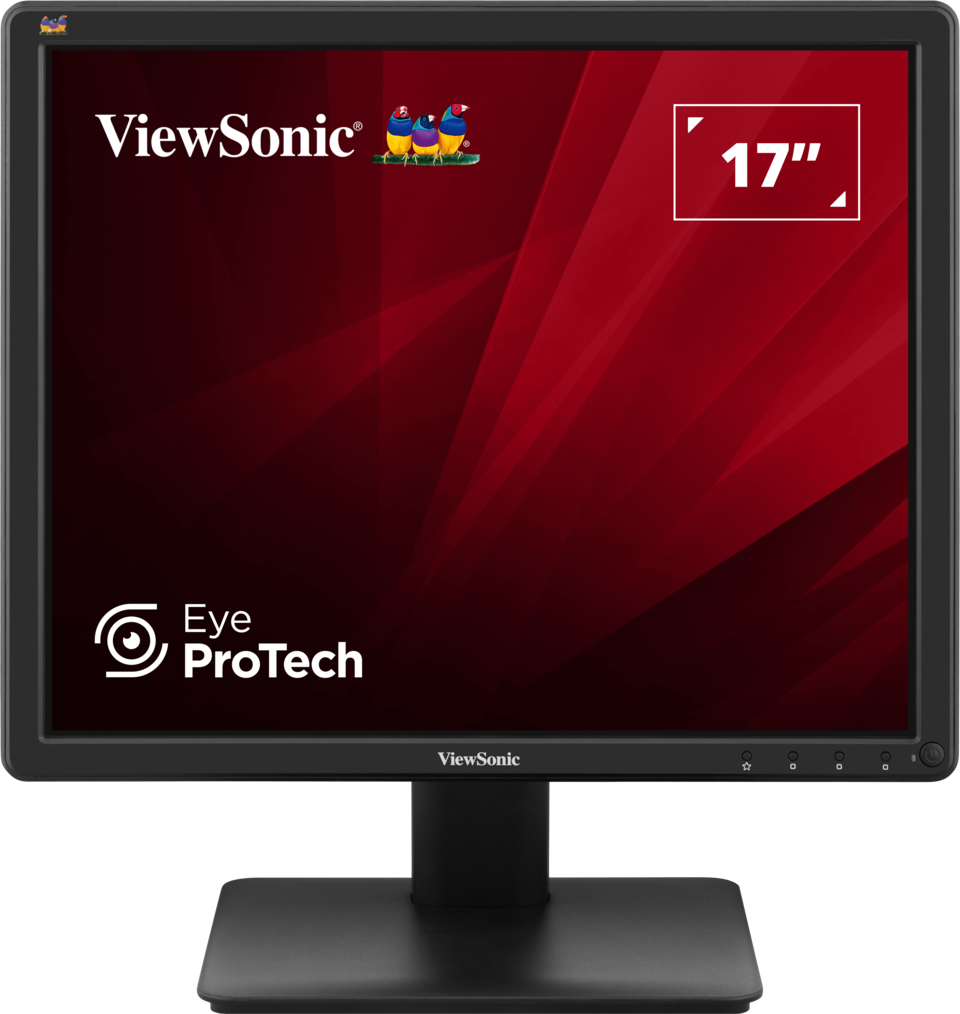

VA709
Key Features
- 75Hz 更新率提供流暢視覺體驗
- Eye ProTech 護眼技術提供舒適觀看體驗
- VGA 和 DVI 輸入，提供靈活連接方式
- Eco-mode 低耗節能
- 多種 ViewMode 色彩顯示模式
Product Description
ViewSonic VA709 是一款 17 吋 1280 x 1024 解析度顯示器，具有 VGA 和 DVI 輸入，適合家用和商業用途。透過 Eye ProTech 技術和各種 ViewMode 預設，可提供最佳的螢幕性能和舒適的觀看體驗。使用 VESA 兼容的安裝支架，實現真正無縫視覺體驗。
- Menu Control Panel
- VESA Compatible(Wall Mount 100 x 100mm)
- Power In
- DVI
- VGA
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 17 Viewable Area (in.): 17 Panel Type: TN Technology Resolution: 1280 x 1024 Resolution Type: SXGA (Super XGA) Static Contrast Ratio: 1,000:1 (typ) Dynamic Contrast Ratio: 50M:1 Light Source: LED Brightness: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) Aspect Ratio: 5:4 Response Time (Typical Tr+Tf): 5ms Viewing Angles: 170º horizontal, 160º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 75 Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)Pixel Size: 0.264 mm (H) x 0.264 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) -
COMPATIBILITY
PC Resolution (max): 1280x1024 Mac® Resolution (max): 1280x1024 PC Operating System: Windows 10/11 certified; macOS tested Mac® Resolution (min): 1280x1024 -
CONNECTOR
VGA: 1 DVI-D (Dual Link): 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
POWER
Eco Mode (Conserve): 10W Eco Mode (optimized): 12W Consumption (typical): 14W Consumption (max): 16W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 -
CONTROLS
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power) On Screen Display: Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: 30 ~ 83KHz Frequency Vertical: 50 ~ 76Hz -
VIDEO INPUT
Digital Sync: TMDS - DVI-D Analog Sync: Separate - RGB Analog -
ERGONOMICS
Tilt (Forward/Back): -5º / 20º -
WEIGHT (IMPERIAL)
Net (lbs): 5.5 Net Without Stand (lbs): 4.6 Gross (lbs): 7.7 -
WEIGHT (METRIC)
Net (kg): 2.5 Net Without Stand (kg): 2.1 Gross (kg): 3.5 -
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 17.6 x 15 x 5.4 Physical (in.): 14.72 x 15.19 x 7.28 Physical Without Stand (in.): 14.72 x 12.09 x 1.85 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 446 x 382 x 138 Physical (mm): 373.8 x 385.7 x 184.8 Physical Without Stand (mm): 373.8 x 307.1 x 47 -
GENERAL
Regulations: RoHS, WEEE, BSMI, CCC, China RoHS, China Energy Label, CECP PACKAGE CONTENTS: VA709 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
