LCD Display

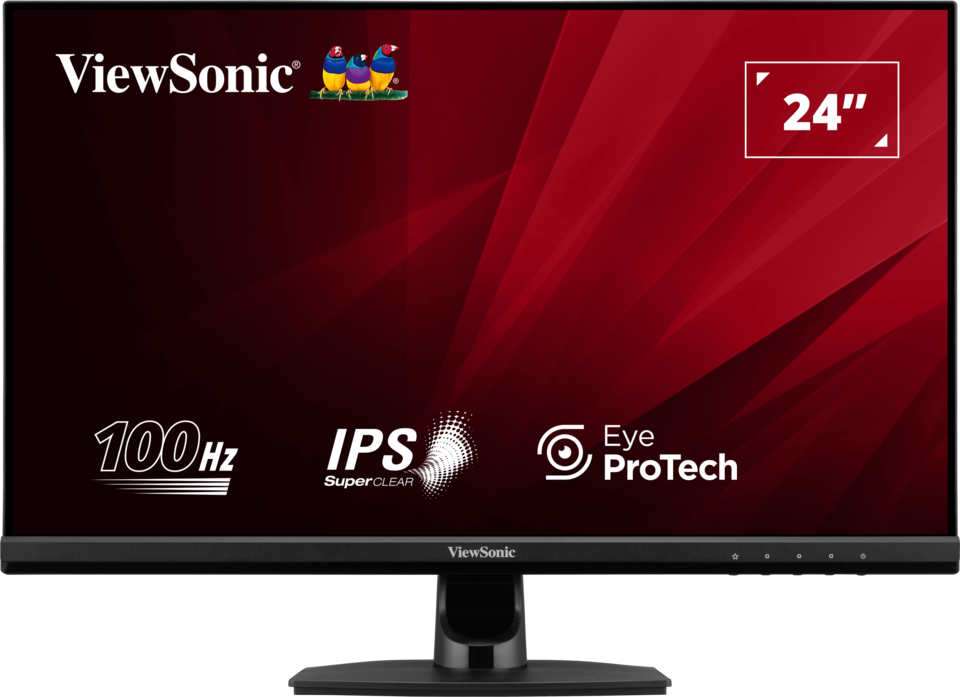

VA2414-MH
Key Features
- SuperClear® IPS 面板
- Full HD 1080p 解析度
- 100Hz 可變刷新率提供流暢的視覺效果
- Eye ProTech 可提供舒適的觀賞效果
- HDMI 與 VGA 輸入，提供彈性的連接方式
Product Description
ViewSonic VA2414-MH 是一款 24 吋 Full HD 顯示器，具備 HDMI 和 VGA 輸入，適合企業和家庭使用。透過 100Hz 可變更新率、Eye ProTech 技術以及各種 ViewMode 預設值，可提供最佳螢幕效能與舒適的觀賞效果，不會產生撕裂或卡頓現象。只需擴充您的工作空間，並透過低耗電的 VESA 相容支架，在單一螢幕上體驗真正無縫的多工作業。
- Menu Control Panel
- Speakers
- VESA Compatible(Wall Mount 100x100mm)
- Power In
- HDMI
- VGA
- Audio In
- Audio Out
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 24 Viewable Area (in.): 23.8 Panel Type: IPS Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 1,300:1 (typ) Dynamic Contrast Ratio: 50M:1 Light Source: LED Brightness: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + FRC) Aspect Ratio: 16:9 Response Time (Typical GTG): 4ms Viewing Angles: 178º horizontal, 178º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 100 Variable Refresh Rate Technology: Yes Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)Pixel Size: 0.275 mm (H) x 0.275 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) -
COMPATIBILITY
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 10/11 certified; macOS tested Mac® Resolution (min): 1920x1080 -
CONNECTOR
VGA: 1 3.5mm Audio In: 1 3.5mm Audio Out: 1 HDMI 1.4: 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
AUDIO
Internal Speakers: 2Watts x2 -
POWER
Eco Mode (Conserve): 14W Eco Mode (optimized): 16W Consumption (typical): 18W Consumption (max): 24W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 -
CONTROLS
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power) On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 24 ~ 115KHz Frequency Vertical: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz -
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4) Analog Sync: Separate - RGB Analog -
ERGONOMICS
Tilt (Forward/Back): -5º / 20º -
WEIGHT (IMPERIAL)
Net (lbs): 7.7 Net Without Stand (lbs): 7.1 Gross (lbs): 10.6 -
WEIGHT (METRIC)
Net (kg): 3.5 Net Without Stand (kg): 3.2 Gross (kg): 4.8 -
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 23.7 x 15.7 x 5.3 Physical (in.): 21.24 x 15.51 x 8.12 Physical Without Stand (in.): 21.24 x 12.81 x 1.69 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 602 x 398 x 135 Physical (mm): 539.5 x 394 x 206.32 Physical Without Stand (mm): 539.5 x 325.3 x 42.8 -
GENERAL
Regulations: Energy Star, EPEAT, RoHS, WEEE, BSMI, TGM, VCCI, PSE PACKAGE CONTENTS: VA2414-MH x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Power Management: Energy Star standards, EPEAT
