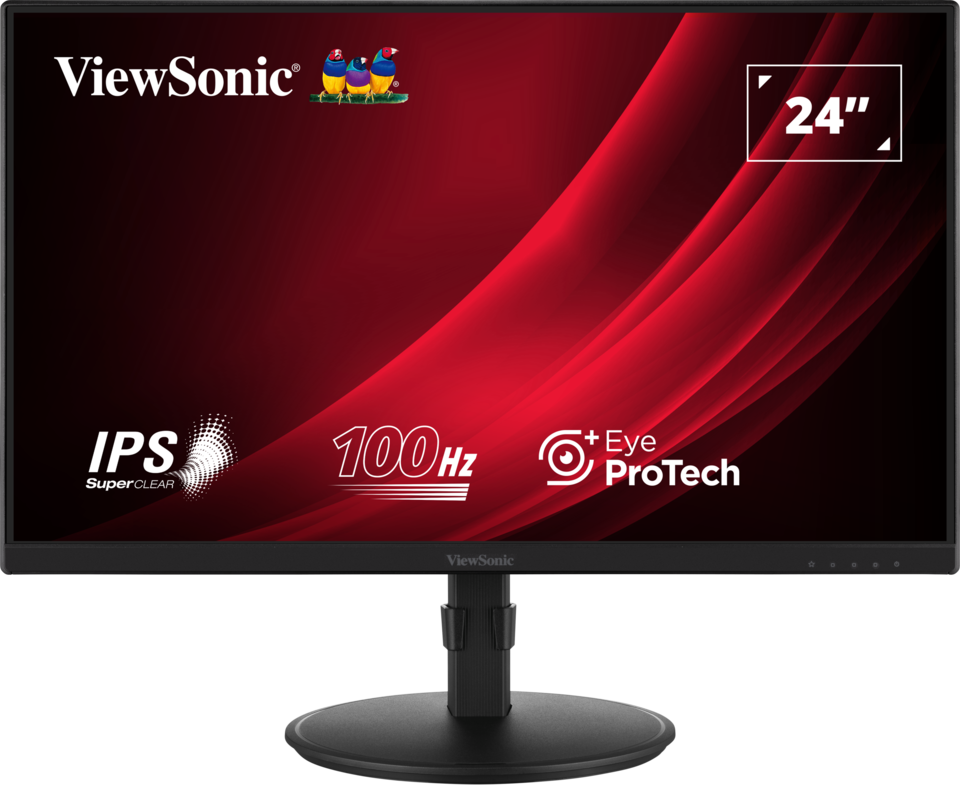

LCD Display
VA2408-HDJ
Key Features
- 99% sRGB SuperClear® IPS 面板
- 100Hz 可變更新率提供流暢的視覺效果
- 支援 HDMI, Display Port 和 VGA 多元連接輸入
- 人體工學支架，具備旋轉和傾斜功能並能調整高度
- Eye ProTech+ 護眼技術 提供全天候舒適觀賞體驗
Product Description
ViewSonic VA2408-HDJ 24 吋 FHD 顯示器，適用於商務及家用辦公娛樂。VA2408-HDJ 搭載 HDMI、VGA 和 DisplayPort 輸入，支援 100Hz 更新率降低畫面撕裂或卡頓現象，護眼技術和多種 ViewMode 預設模式，提供最佳的螢幕性能和舒適的觀看體驗。人體工學設計，搭配 VESA 相容型壁掛架，能視需要輕鬆的將顯示器安裝於牆面上，實現多任務處裡。
- 選單控制面板
- Display Port
- HDMI
- VGA
- 音源輸出
- 電源輸入
- VESA 相容壁掛(壁掛式 100 x 100mm)
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 24 Viewable Area (in.): 23.8 Panel Type: IPS 面板技術 Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 1,300:1 (typ) Dynamic Contrast Ratio: 50M:1 Light Source: LED Brightness: 250 cd/m² (typ) Colors: 16.7M 色彩空間支援: 8 bit (6 bit + FRC) Aspect Ratio: 16:9 Response Time (Typical GTG): 5ms Viewing Angles: 178º 水平, 178º 垂直 Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 100 可變更新率: Yes Blue Light Filter: Yes Flicker-Free: Yes Color Gamut: NTSC: 77% size (Typ)
sRGB: 108% size / 99% coverage (Typ)Pixel Size: 0.275 mm (H) x 0.275 mm (V) Surface Treatment: 防眩光，硬塗層 (3H) -
COMPATIBILITY
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: 通過 Windows 10/11 認證；經 macOS 測試 Mac® Resolution (min): 1920x1080 -
CONNECTOR
VGA: 1 3.5mm Audio Out: 1 HDMI 1.4: 1 DisplayPort: 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
POWER
Eco Mode (Conserve): 12W Eco Mode (optimized): 14W Consumption (typical): 16W Consumption (max): 18W Voltage: AC 100-240V Stand-by: 0.3W Power Supply: Internal Power Supply -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 Cable Organization: Yes -
CONTROLS
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power) On Screen Display: 輸入選擇、音訊調整、觀看模式、色彩調整、手動影像調整、設定選單 -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 30 ~ 115KHz, DisplayPort (v1.2): 30 ~ 115KHz Frequency Vertical: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz, DisplayPort (v1.2): 48 ~ 100Hz -
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2) Analog Sync: Separate - RGB Analog -
ERGONOMICS
Height Adjust (mm): 130 Swivel: 360º Tilt (Forward/Back): -3º / 28º Pivot (Right/Left): 90º / 90º -
WEIGHT (IMPERIAL)
Net (lbs): 11.5 Net Without Stand (lbs): 7.1 Gross (lbs): 15 -
WEIGHT (METRIC)
Net (kg): 5.2 Net Without Stand (kg): 3.2 Gross (kg): 6.8 -
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 24 x 15.7 x 6.8 Physical (in.): 21.3 x 15.21~20.32 x 8.8 Physical Without Stand (in.): 21.3 x 12.7 x 1.7 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 609 x 398 x 172 Physical (mm): 542 x 386.2~516.2 x 223 Physical Without Stand (mm): 542 x 323 x 44 -
GENERAL
Regulations: EPEAT, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 9.0, EAC, UkrSEPRO, BSMI, TGM, BIS PACKAGE CONTENTS: VA2408-HDJ x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, 快速使用指南 x1 Recycle/Disposal: 請依照政府回收規定
