Key Features
  • SuperClear® IPS 面板
  • 1080p 全高清解析度
  • 100Hz 更新率提供流暢視覺效果
  • 1 毫秒（MPRT）反應時間
  • 內建低藍光護眼技術，提供舒適觀看體驗
  • 支援 HDMI 和 VGA 輸入，提供靈活連接性

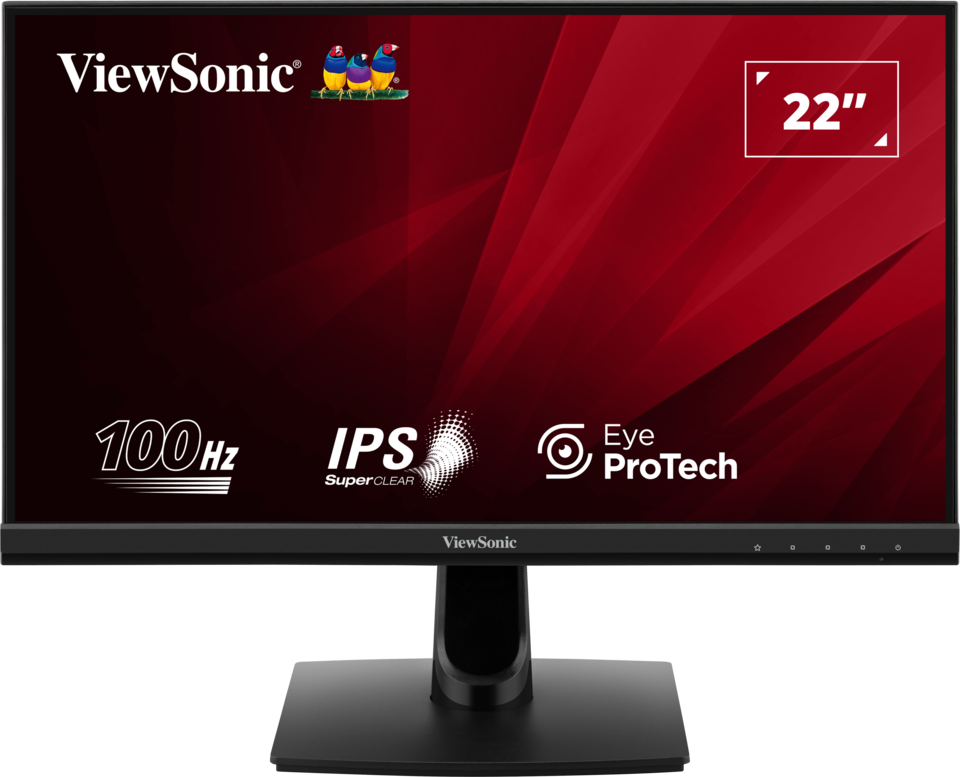

VA2214-MH
Product Description
ViewSonic VA2214-MH 是一款 22 吋 Full HD 顯示器，配備 HDMI 和 VGA 輸入，適合商務和家用娛樂使用。在低功耗的情形下，帶給你高品質的視聽享受；此外這台顯示器提供六種預設的 ViewMode 選項，針對不同的應用提供最佳的螢幕表現。100Hz 可變更新率解決遊戲畫面惱人的影像撕裂及卡頓情形。Eye ProTech 護眼技術，有助於消除長時間觀看螢幕所產生的眼睛疲勞。VESA 相容型壁掛架設計，就能視需要輕鬆的將顯示器安裝於牆面上
  1. 選單控制面板
  2. HDMI
  3. VGA
  4. 音源輸出
  5. VESA 壁掛相容(壁掛尺寸 100x100mm)
  6. 電源輸入
  7. 揚聲器
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 22
    Viewable Area (in.): 21.5
    Panel Type: IPS 面板技術
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    色彩: 16.7M
    色彩空間支援: 8 bit (6 bit + FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 4ms
    Viewing Angles: 178º 水平, 178º 垂直
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 100
    可變更新率: Yes
    抗藍光: Yes
    低藍光: 軟體解決方案
    Flicker-Free: Yes
    色域: NTSC: 72% size (Typ)
    sRGB: 104% size (Typ)
    Pixel Size: 0.249 mm (H) x 0.241 mm (V)
    Surface Treatment: 防眩光，硬塗層 (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10/11 認證；經 macOS 測試
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 13W
    Eco Mode (最佳): 15W
    Consumption (typical): 17W
    Consumption (max): 21.3W
    Voltage: AC 100-240V
    Stand-by: 0.3W
    Power Supply: 內建電源
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
    On Screen Display: 輸入選擇、音訊調整、觀看模式、色彩調整、手動影像調整、設定選單
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 24 ~ 115KHz
    Frequency Vertical: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4)
    Analog Sync: Separate - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): -5º / 20º
  • WEIGHT (IMPERIAL)
    Net (lbs): 6
    Net Without Stand (lbs): 5.3
    Gross (lbs): 8.4
  • WEIGHT (METRIC)
    Net (kg): 2.7
    Net Without Stand (kg): 2.4
    Gross (kg): 3.8
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 21.5 x 13.8 x 5.5
    Physical (in.): 19.42 x 15.17 x 8.12
    Physical Without Stand (in.): 19.42 x 11.42 x 1.97
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 547 x 350 x 140
    Physical (mm): 493.36 x 385.28 x 206.32
    Physical Without Stand (mm): 493.36 x 290.11 x 50.1
  • GENERAL
    Regulations: Energy Star, EPEAT, RoHS, WEEE, BSMI, TGM
    PACKAGE CONTENTS: VA2214-MH x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, 使用指南 x1
    Recycle/Disposal: 請依照政府回收規定
    Power Management: Energy Star standards, EPEAT
