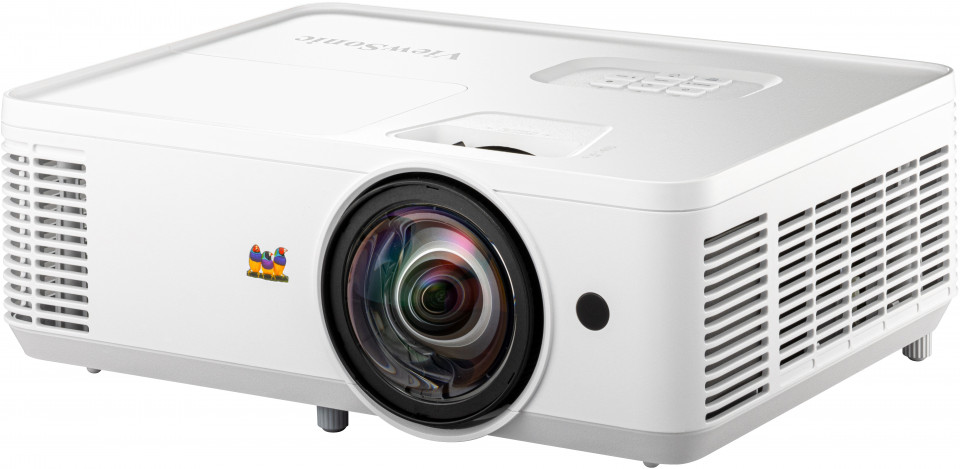

ViewSonic PS502W 4,000 ANSI 流明 WXGA 短焦商用&教育用投影機 - Datasheet

Key Features

4,000 ANSI 流明高亮度，能在任何環境中呈現清晰影像
0.52 的短焦比設計縮短投影距離，占用更少的空間
可投影最大 300 吋的超大畫面，更低的每吋畫面成本
簡便靈活的連接方式：雙 HDMI 輸入，以及 USB Type-A 連接口
透過 USB 連接即可更新投影機韌體，便捷又簡單

Product Description

ViewSonic PS502W 是採用了短焦點設計的高亮度 WXGA 短焦商用與教育用投影機。憑藉 4,000 ANSI 流明的高亮度，PS502W在會議室、教室或其他明亮環境中，能夠在最大 300 吋的大畫面呈現清晰影像。PS502W 具有 0.52 的短焦比，只要有 1.1 公尺的距離就可以投影出 100 吋的大畫面，使畫面更不會受到陰影的干擾，即使在小空間中也能體驗大畫面。雙 HDMI 輸入使您能夠靈活連接多個外部裝置，輕鬆切換輸入源。USB Type-A 連接口可為 HDMI 無線傳輸器供電，使無線的多媒體串流更加便利。PS502W 還可以通過 USB Type-A 進行韌體更新，您只需使用筆電就可以簡單的操作，不再需要特地前往服務中心。

Visit Us

www.viewsonic.com

SPECIFICATION

Projection System:	0.65" WXGA
Native Resolution:	1280x800
Brightness:	4000 (ANSI Lumens)
Contrast Ratio with SuperEco Mode:	15000:1
Display Color:	1.07 Billion Colors
Light Source Type:	240W UHP Lamp
Light Source Life (hours) with Normal Mode:	4000
Light Source Life (hours) with SuperEco Mode:	12000
Lens:	F=2.8, f=7.51mm
Projection Offset:	124.8%+/-10%
Throw Ratio:	0.52
Optical Zoom:	Fixed
Digital Zoom:	0.8x-2.0x
Image Size:	60"-300"
Throw Distance:	0.67-3.36m (87"@0.97m)
Keystone:	+/- 19° (V)
Auto Keystone:	+/- 19° (V)
Audible Noise (Normal):	34dB
Audible Noise (Eco):	25dB
Input Lag:	33.2ms
Resolution Support:	VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency:	15K-102KHz
Vertical Scan Rate:	23-120Hz

INPUT

Computer in (share with component): 1

HDMI: 2 (HDMI 1.4, HDCP 1.4)

Audio-in (3.5mm): 1
OUTPUT

Monitor out: 1

Audio-out (3.5mm): 1

Speaker: 16W

USB Type A (Power): 1 (5V/1.5A)
CONTROL

RS232 (DB 9-pin male): 1

USB Type A (Services): 1 (share with USB A Output)

OTHERS

Power Supply Voltage:	100-240V+/- 10%, 50/60Hz (AC in)
Power Consumption:	Normal: 295W Standby: <0.5W
Operating Temperature:	0~40℃
Carton:	Brown
Net Weight:	2.87kg (6.33 lbs)
Gross Weight:	4.08kg (8.99 lbs)
Dimensions (WxDxH) with Adjustment Foot:	309x234x115mm (12.2x9.2x4.5 in)
Packing Dimensions:	400x337x168mm (15.7x13.3x6.6 in)
OSD Language:	English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian, Total 22 languages
User Guide Language:	English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages

STANDARD ACCESSORY

Power Cord: 1

VGA Cable: 1

Remote Control: 1

QSG: Yes

Lens Cover: Yes

Air Filter: Yes (CN Only)

Warranty Card: Yes (CN Only)
OPTIONAL ACCESSORY

Lamp/Light Source: RLC-128

Air Filter: RSPL

Wall/Ceiling Mount: PJ-WMK-305 PJ-WMK-007

Carry Bag: PJ-CASE-008

Computer in (share with component):	1
HDMI:	2 (HDMI 1.4, HDCP 1.4)
Audio-in (3.5mm):	1

Monitor out:	1
Audio-out (3.5mm):	1
Speaker:	16W
USB Type A (Power):	1 (5V/1.5A)

RS232 (DB 9-pin male):	1
USB Type A (Services):	1 (share with USB A Output)

Power Cord:	1
VGA Cable:	1
Remote Control:	1
QSG:	Yes
Lens Cover:	Yes
Air Filter:	Yes (CN Only)
Warranty Card:	Yes (CN Only)

Lamp/Light Source:	RLC-128
Air Filter:	RSPL
Wall/Ceiling Mount:	PJ-WMK-305 PJ-WMK-007
Carry Bag:	PJ-CASE-008
