Key Features
  • 獨家 SuperColor™ 提供精準色彩
  • 3,500 高流明高對比設計
  • 支援 3D 卓越細節的 WUXGA 解析度
  • 客製化使用者模式
  • 線上即時韌體更新
  • 雙HDMI輸入
  • 內建USB電源輸出支援 HDMI dongle 的電力
  • 燈泡壽命長達 20,000小時

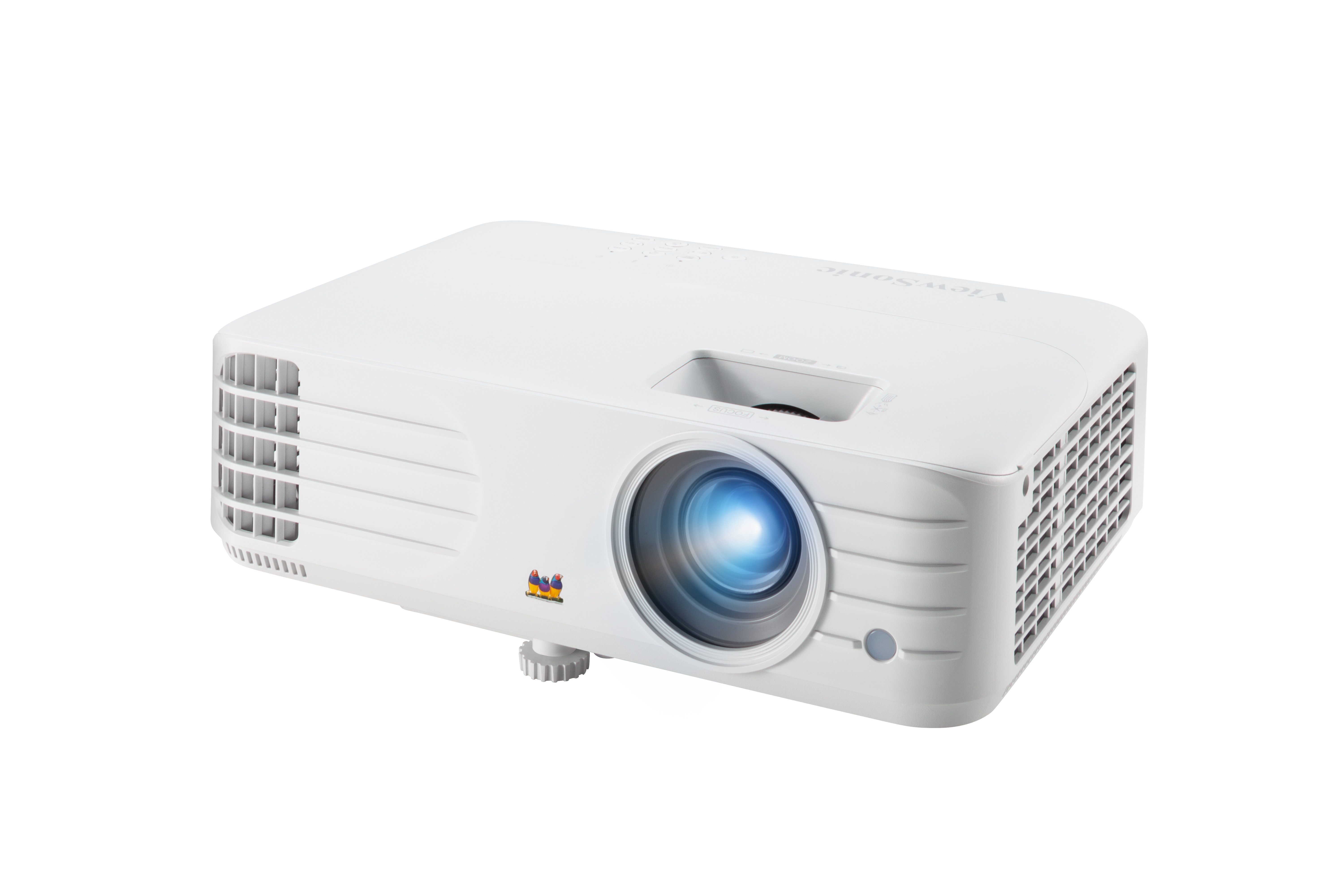

PG701WU
Product Description
ViewSonic PG701WU 搭載高亮度 3,500 ANSI 流明，確保投影效果更立體細膩，並支援1920 x 1200解析度和16:10長寬比。 是專為家庭娛樂用途設計的家用 3D 劇院投影機。即便是在明亮的中型空間環境，例如家中客廳，書房，工作會議室和教室，也能夠完美呈現。全新的 SuperEco+ 模式可延長投影機燈泡壽命至20,000小時，有效降低燈泡更換次數及維護成本。 同時，支援雙HDMI輸入連接埠，讓您更靈活彈性地連接筆記型電腦、桌上型電腦和其他高畫質裝置來播放影片，簡報或多媒體應用，內建的具供電功能的 USB Type A 電源供應器則可為連接的各類傳輸器（Dongle）與裝置供應電源，讓你輕鬆連接USB接收器，進行無線投影或簡報等。輕鬆打造百吋大畫面投影的家庭劇院及會議室投影使用。

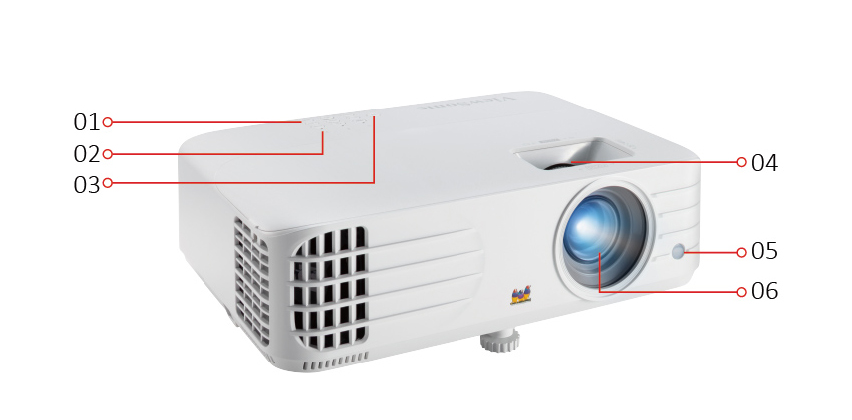

  1. 按鍵區
  2. LED 指示燈
  3. 電源鑑
  4. 縮放/對
  5. 前紅外線接收器
  6. 投影鏡頭

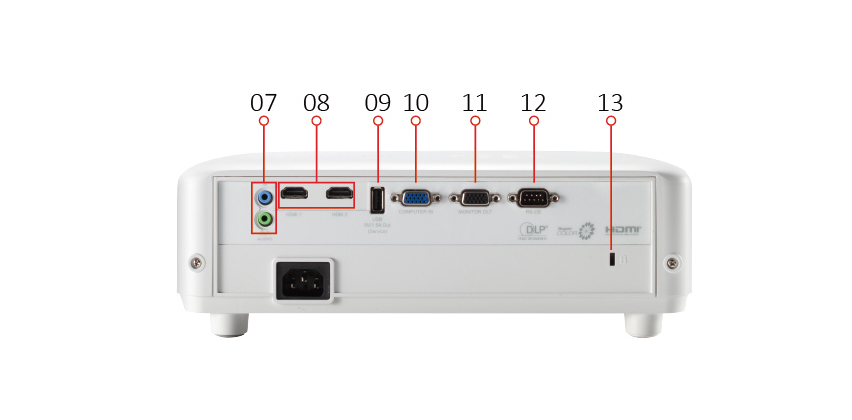

  7. 音源輸入/輸出
  8. 雙HDMI
  9. USB Type A
  10. 電腦輸入
  11. 螢幕輸出
  12. RS232
  13. Kensington® 防盜鎖
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projection System: 0.48" WUXGA
    Native Resolution: 1920x1200
    Brightness: 3500 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 12000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Lamp
    Light Source Life (hours) with Normal Mode: 5000
    Light Source Life (hours) with SuperEco Mode: 20000
    Lamp Watt: 203W
    Lens: F=2.0~2.05, f=15.843-17.445mm
    Projection Offset: 100%+/-6%
    Throw Ratio: 1.5-1.65
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.97m-10.67m
    (100"@3.23m)
    Keystone: +/- 40° (V)
    Audible Noise (Normal): 31dB
    Audible Noise (Eco): 27dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
  • OUTPUT
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 2W
    USB Type A (Power): 1 (5V/1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 300W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.57kg
    Gross Weight: 3.73kg
    Dimensions (WxDxH) with Adjustment Foot: 312x222x108mm
    Packing Dimensions: 415x168x297mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, Total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-119
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-008
