Key Features
  • 第三代雷射光源技術，使用壽命長達 30,000 小時
  • 專為 Xbox 設計 1440p @ 120Hz 帶來流暢遊戲體驗
  • 4K HDR 可投影 300 吋大畫面
  • 3,500 ANSI 流明，隨時呈現清晰影像
  • 採用 0.65 吋DMD晶片，實現高對比度
  • 水平/垂直梯形校正、四角調整功能、1.36倍光學變焦

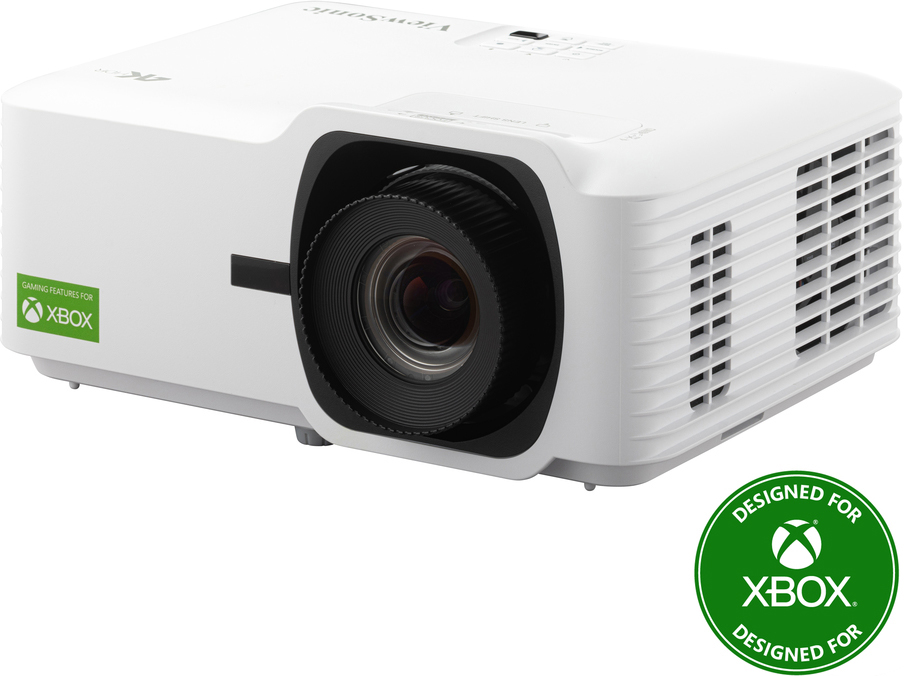

LX700-4K
Product Description
LX700-4K 高亮度劇院娛樂3D雷射投影機，將每一次觀影體驗升級為一場視覺盛宴。採用第三代雷射光源技術，具備3,500 ANSI流明亮度和長達30,000小時的壽命，提供生動且明亮的視覺效果，無需更換燈泡。專為Xbox設計，支援Xbox獨家解析度和更新率組合，實現流暢的遊戲體驗。支援1440p@120Hz，完美平衡視覺享受與遊戲流暢性，深受玩家喜愛。搭載德州儀器0.65吋DMD晶片，可投影300吋大畫面，帶來震撼視覺效果。LX700-4K配備垂直鏡頭位移、1.36倍光學變焦、水平/垂直梯形校正及四角調整功能，輕鬆完成個人化設定，享受專屬的完美影視畫面。

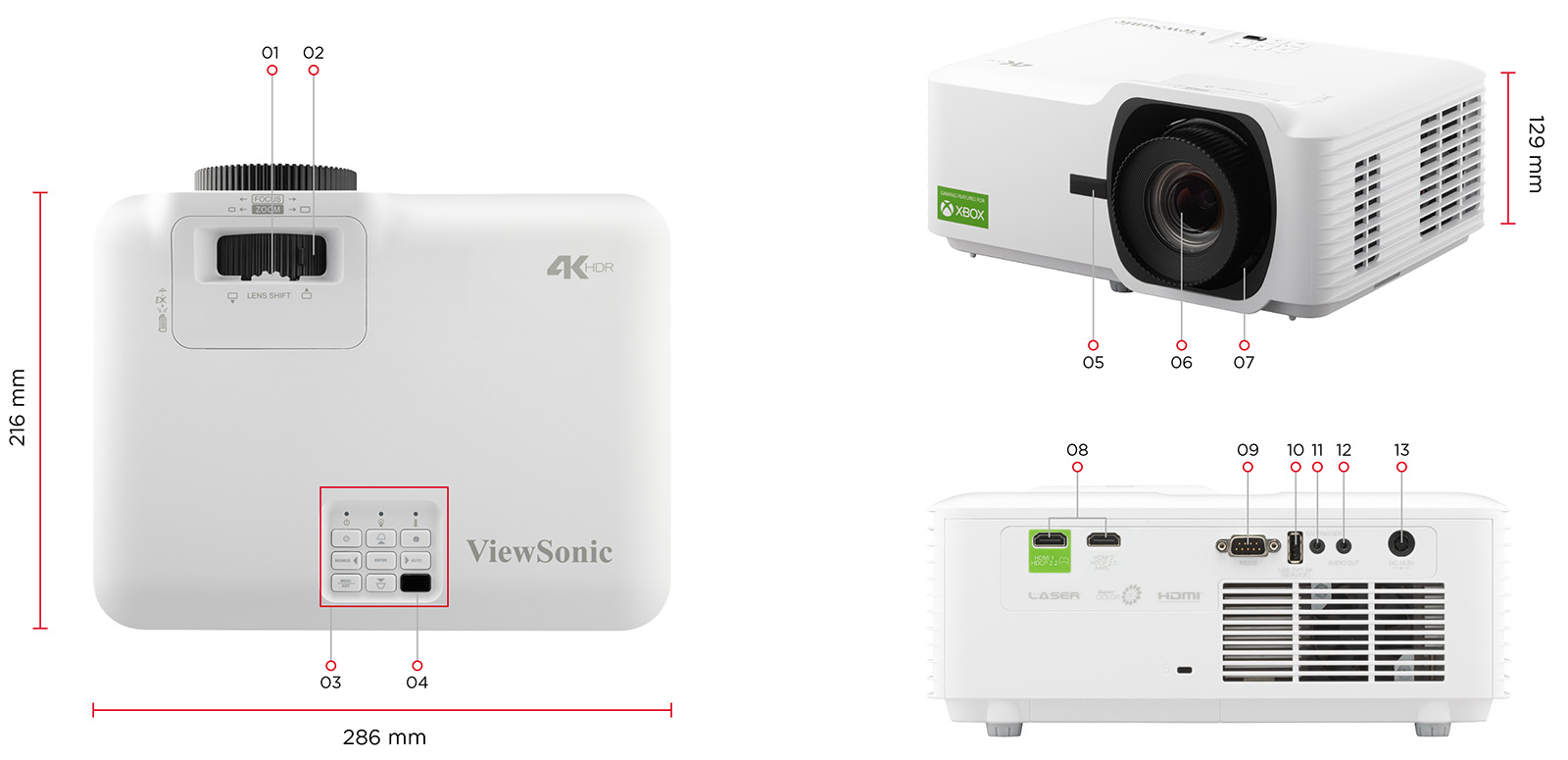

  1. Lens Shift Control Knob
  2. Zoom Ring
  3. Keypad
  4. Top IR
  5. Front IR
  6. Lens
  7. Focus Ring
  8. HDMI 2.0/ HDCP 2.2
  9. RS232
  10. USB-A (5V/1.5A , Service)
  11. 12V Trigger
  12. Zoom Ring
  13. Audio Out
  14. DC In
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projection System: 0.65" 4K-UHD
    Native Resolution: 3840x2160
    Brightness: 3500 (ANSI Lumens)
    Contrast Ratio: 3000000:1
    顯示色彩: 1.07 Billion Colors
    Light Source Type: Laser Phosphor
    (正常模式) 光源壽命: 20,000 小時
    (節能模式) 光源壽命: 30,000 小時
    Lens: F=2.51-2.93, f=15.985-21.423mm
    Projection Offset: 137%+/-10%
    Throw Ratio: 1.06-1.45
    Optical Zoom: 1.36x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.70-9.63m
    (100"@2.35m)
    梯形校正: H:+/-30° , V:+/-30°
    Lens Shift V. Range: +0%, -15%
    (正常模式) 音量標準: 31dB
    (節能模式) 音量標準: 26dB
    Input Lag: 4.2ms
    Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Horizontal Frequency: 15K-135KHz
    Vertical Scan Rate: 23-240Hz
  • INPUT
    HDMI: 2
    (HDMI 2.0/ HDCP 2.2)
  • OUTPUT
    音源輸出 (3.5mm): 1
    音源輸出 (HDMI ARC): 1 (eARC)
    (Share with HDMI Input)
    Speaker: 15W
    USB Type A (Power): 1 (5V/1.5A)
    12V Trigger (3.5mm): 1
  • 控制連接埠
    RS232 (DB 9-pin male): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: 電源變壓器:
    Input: 100~240V
    Output: 19.5VDC / 9.23A
    Power Consumption: 正常運作: 180W
    待機休眠: <0.5W
    運作溫度: 0~40℃
    包裝紙箱: Brown
    Net Weight: 3.30kg
    毛重: 4.70kg
    Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
    外箱尺寸: 400x280x155mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Greek, Norsk。提供 23 種語言
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese。提供 20 種語言
  • STANDARD ACCESSORY
    Power Cord: 1
    Remote Control: 1
    (w/ backlit)
    QSG: Yes
    保固書: Yes (CN Only)
  • OPTIONAL ACCESSORY
    壁掛配件: PJ-WMK-007
