Key Features
  • 第三代雷射光源技術，壽命可達 30,000 小時
  • 4,500 ANSI 流明，WXGA 解析度，提供在任何環境下清晰的影像
  • 高原生對比度，搭載 0.65" DMD 晶片和 DLP 技術
  • 超大 300 吋畫面，單位尺寸成本更低
  • 安裝靈活性：1.3 倍光學變焦、H/V 梯形校正及 360° 投影
  • 集中 LAN 控制，提升管理效率

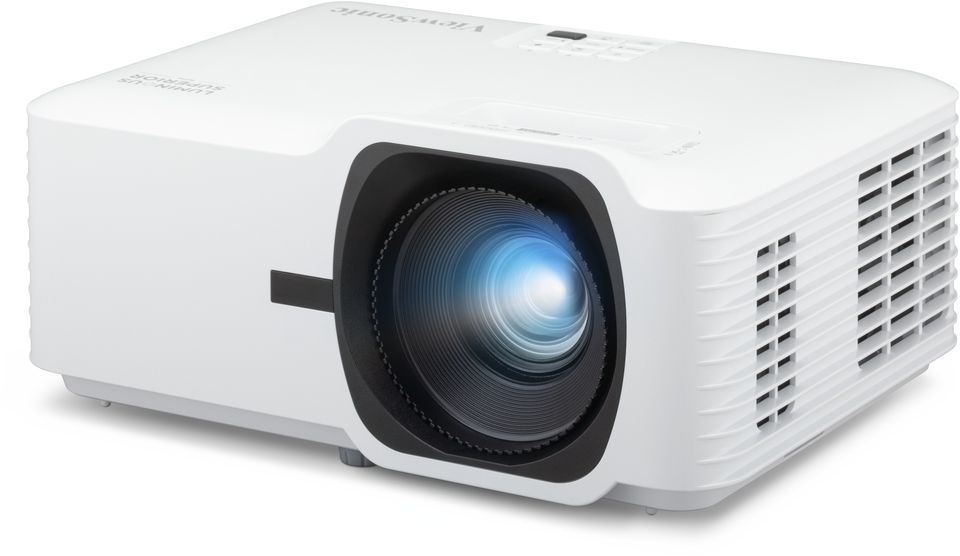

LS630W
Product Description
LS630W 是 Luminous Superior 系列一部分，這款無燈泡投影機專為商業和教育環境設計。它可提供高達 300 吋的 WXGA 解析度投影，利用 0.65" DMD 晶片和 DLP 技術提供高原生對比度。搭載第三代雷射光源技術，該投影機擁有 4,500 ANSI 流明的亮度和可達 30,000 小時的驚人壽命。無燈泡設計不僅環保，還能降低功耗，提高成本效益。配備 1.3x 光學變焦、H/V 梯形校正和 360° 投影，LS630W 支援靈活的安裝選項。全面的 LAN 控制簡化了集中管理，使其成為會議室、大型講堂和公共空間的理想選擇。

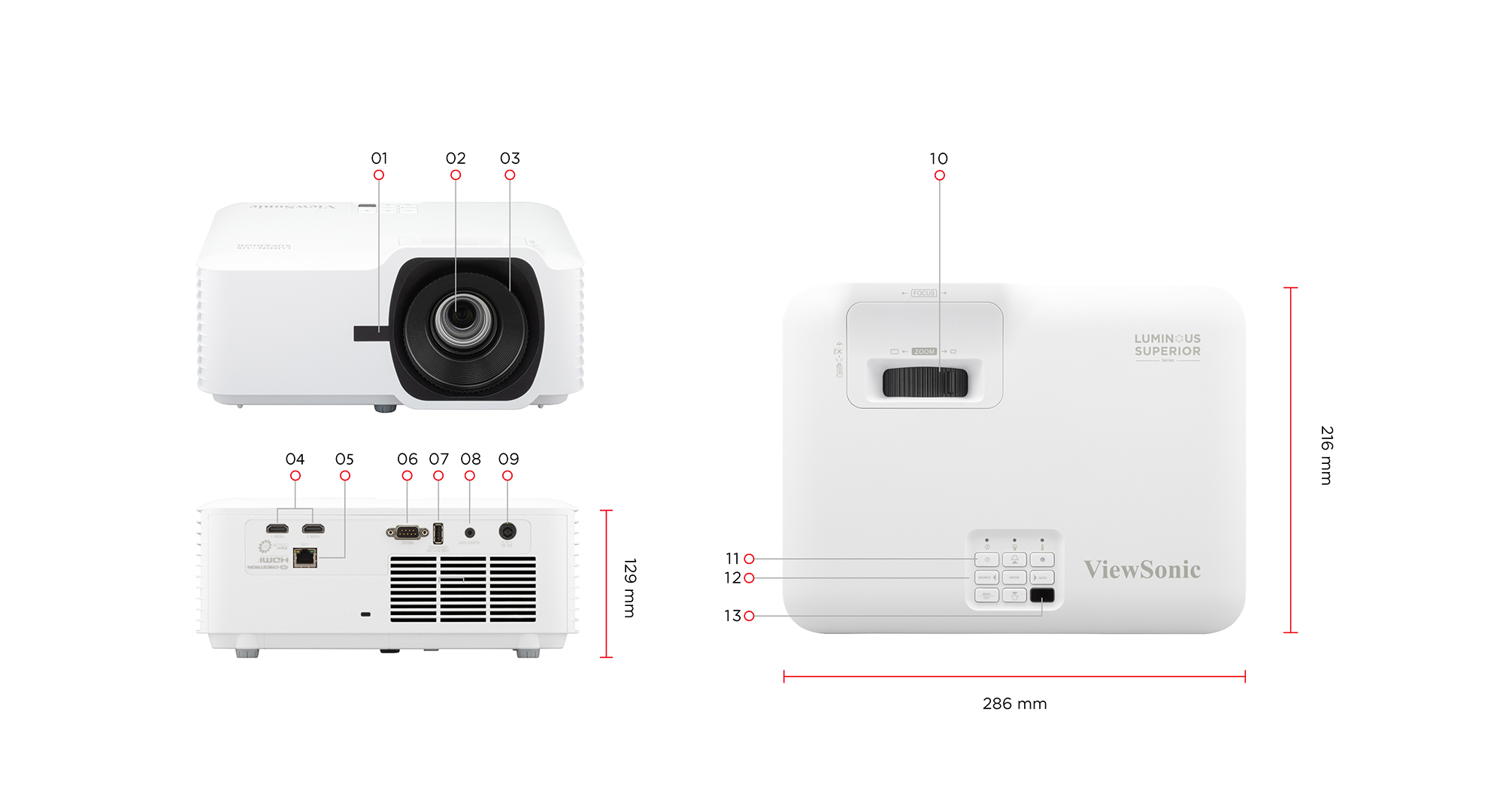

  1. Front IR
  2. Lens
  3. Focus Ring
  4. HDMI x 2
  5. RJ45
  6. RS232
  7. USB-A (5V/1.5A, Service)
  8. Audio Out
  9. DC In
  10. Zoom Ring
  11. Power Button
  12. Keypad
  13. Top IR
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projection System: 0.65" WXGA
    Native Resolution: 1280x800
    Brightness: 4500 (ANSI Lumens)
    Brightness (Center Lumens): 5500
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lens: F=2.43-2.78, f=16.90-21.61mm
    Projection Offset: 124%+/-10%
    Throw Ratio: 1.18-1.54
    Optical Zoom: 1.3X
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.77-9.98m
    (100"@2.56m)
    Keystone: H:+/-30° , V:+/-30°
    Audible Noise (Normal): 32dB
    Audible Noise (Eco): 27dB
    Input Lag: 25ms
    Resolution Support: VGA(640 x 480) to WUXGA RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 24-120Hz
  • INPUT
    HDMI: 2
    (HDMI 1.4, HDCP 1.4)
  • OUTPUT
    Audio-out (3.5mm): 1
    Speaker: 15W
    USB Type A (Power): 1 (5V/1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    RJ45 (LAN control): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: Power adaptor:
    Input: 100~240V
    Output: 19.5VDC / 9.23A
    Power Consumption: Normal: 175W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 3.1kg (6.83 lbs)
    Gross Weight: 4.6kg (10.14 lbs)
    Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm (11.3x8.5x5.1 in)
    Packing Dimensions: 400x280x155mm (15.7x11x6.1 in)
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese,Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    Remote Control: 1
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-008
