Direct View LED
LDS138-151
Key Features
- 即開即用免組裝：移動式解決方案 ，快速完成安裝設置
- 可折疊式螢幕設計：搭配移動式航空箱便於運輸，適用大型客用電梯
- GOB 表面處理技術：防撞、防塵、防潮，堅固耐用
- 一體整合支架：內建控制箱與電動升降支架，調整自如
- 無接縫 138 吋畫面：適用各種場域，呈現震撼視覺體驗
Product Description
ViewSonic® LDS138-151 是一款All-in-One 可折疊式的 138 吋 LED 顯示器，提供即開即用、方便移動及簡易操作等優點。此款顯示器採用預先組裝設計，並內建電動高度調整功能，僅需約10分鐘即可完成設置，且無需壁掛，特別適合大型場地或不適合施工的空間。可摺疊的設計也大幅縮小了包裝體積，並有效地降低運輸成本、提升運送效率，並能在不同地點之間輕鬆移動。底座內建系統控制盒，能整齊收納線材，並提供無邊框的優質視覺體驗。我們採用Glue-on-Board (GOB)表面封裝技術，讓LED模組具備IP54防護等級，有效強化安裝及使用時的抗衝擊、防塵與防潮能力。 LDS138-151 還擁有無縫大螢幕與兩個30W揚聲器，讓 LDS138-151 非常適合高階會議室、接待區、藝廊、禮堂等大型場所，帶給觀眾震撼的視聽效果。
- HDMI輸出
- 音訊輸出
- HDMI 輸入 x4
- S/PDIF 輸出
- USB 2.0 (5V/2A)
- LAN
- IR 擴展埠
- 高度升降控制板
- 光線感測器
- IR 接收器
- USB-C (5V/1.0A)
- USB 3.0 (5V/0.9A)
- USB 2.0 (5V/0.5A)
- 主選單控制鈕: 設定
- 主選單控制鈕: 確認
- 主選單控制鈕: 亮度調整
- 電源開關
- 指示燈
Visit Us
- www.viewsonic.com
-
SPECIFICATION
Screen Size: 138" Display Area (mm): 3050 (H) x 1715 (V) Native Resolution: 1920x1080 Panel Technology: Direct view LED LED Package Type: SMD 3 in 1 (GOB) Bonding Wire: Copper Pixel Pitch (mm): 1.588 Brightness (max.): 600 nits (100 levels adjustable) Contrast Ratio (typ.): 6500:1 Color Temperature: 3000K -10000K Orientation: Landscape Viewing Angles (typ.): H = 170, V = 170 LED Lifetime (typ.): 100,000 Hours Local Storage: Total 32GB
(26GB available storage)Embedded OS: Android 9.0 Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@60hz) HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p Horizontal Frequency: 31K-94kHz Vertical Scan Rate: 56-85Hz -
INPUT
HDMI: 4
(HDMI 2.0/HDCP 2.2)
(internal x3, external x1)USB Type A: 3
(USB3.0 x1, USB2.0 x2)RJ45 Input: 3
(internet x2, control x1)IR in (3.5mm): 1 Wi-Fi Input: 2.4G/5G Hz USB Type C: 1
(data only) -
OUTPUT
HDMI out: 1
(HDMI 1.4/HDCP 1.4)
(internal x1)Speaker: 30Wx2 Audio out (3.5mm): 2 S/PDIF: 1 USB Type A (Power): Shared with USB A input
(USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1)USB Type C (Power): Shared with USB Type C input
(5V/1A x1) -
CONTROL
RJ45 (LAN control): 1(shared with internet) USB Type A (Services): 1(shared with USB A input) RS232 (DB 9-pin female): 1 IR Receiver: 1 Light Sensor: 1 -
OTHERS
Power Supply Voltage: 100-240V ~ 50/60Hz
(vary by country)Power Consumption (W/unit): 581W (typ), 1745W (max)
< 0.5W (Hibernate)
Inrush Current:
220V: 84A / 110V: 58AOperating Temperature: 0~40℃ Total LED Module Quantity: 200 Ingress Protection Rating: IP54(Front) Impact Protection Rating: IK06(Front) Net Weight: 676.82 lbs
(307 kg)Gross Weight: 1044.99 lbs
(474 kg)Product Dimensions (WxHxD): 72.87x76.71x30.71 inches (min.)
(1850.81x1948.4x780 mm (min.))
120.63x102.28x30.71 inches (max.)
(3064x2598x780 mm (max.))Packing Dimensions (WxHxD): 81.5x78.58x33.35 inches
(2070x1996x847 mm) -
STANDARD ACCESSORIES

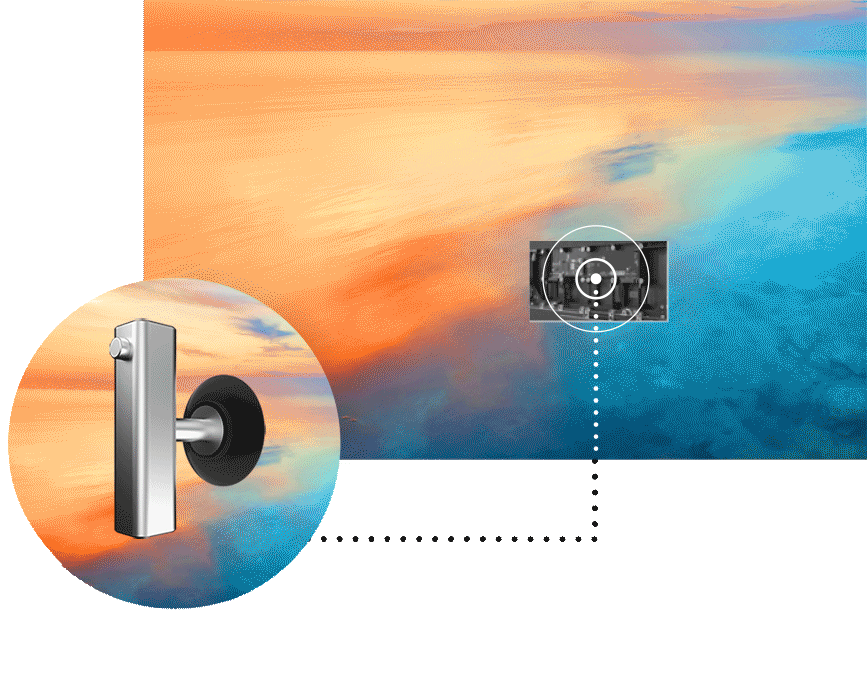

Power Cord: 1 LAN Cable (Cat 5E): 1 IR Extender Cable: 1 Remote Control: 1 QSG: 1 Spare Parts: LED module x14
3 in 1 hub board x3Maintenance Tool: LD-MK-006 x1 -
OPTIONAL ACCESSORIES
Maintenance Tool: LD-MK-006
