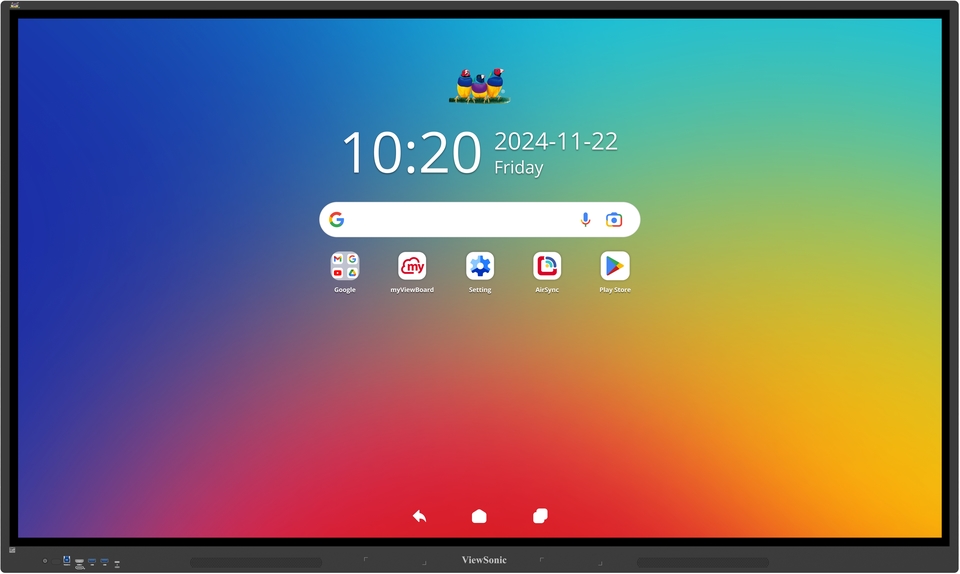

ViewBoard
IFP7534
Key Features
- 節能升級：EPEAT 金級認證，省電提升 20%
- 專屬軟體：整合 ViewSonic 數位白板，提升互動教學
- EDLA 認證：Android 14 支援 Google Play，各式應用輕鬆用
Product Description
ViewBoard IFP34 系列 — 教育與企業數位協作的理想選擇 - ViewBoard IFP34 系列專為現代教學與辦公空間量身打造，全面支援數位協作與高效溝通，無論應用於教室教學或企業會議，皆能發揮卓越整合效益，打造智慧互動新體驗。搭載通過 EDLA 認證 的 Android 14 作業系統，提供流暢、安全的操作環境，完整支援 Google Play 商店，讓各類應用程式靈活運用、即裝即用。內建 ViewSonic 數位白板系統、無線投影功能與 集中裝置管理平台，協助教師打造更具互動性與吸引力的教學環境，同時簡化課堂流程；對企業而言，則可優化會議體驗，提升團隊協作與決策效率。不論是教學授課、創意思考、跨區會議或簡報提案，ViewBoard IFP34 系列皆能提供 直覺互動操作、簡化流程管理 與 穩定可靠的使用體驗，是打造現代化互動空間的首選方案。
- 電源開關
- 觸控輸入 2
- HDMI 3
- USB 3.2 Gen 1
- USB-C
- 相容 VESA 壁掛安裝（800 x 400 mm）
- OPS 插槽
- HDMI 輸出
- USB 3.2 Gen 1
- USB-C
- 觸控輸入 1
- HDMI 1
- HDMI 2
- DP
- VGA
- 音訊輸入
- Micro SD 卡插槽
- 電源輸入（AC In）
- 總電源開關
- WiFi 模組插槽
- USB
- RS232
- SPDIF
- 音訊輸出
- LANx2
Visit Us
- www.viewsonic.com
-
DISPLAY
Panel Size: 75" Panel Type: TFT LCD Module with DLED Backlight. Display Area (mm): 1650.24(H) x 942.01(V) Aspect Ratio: 16:9 Resolution: UHD 3840x2160(Pixels) Colors: 1.07B colors Brightness: 450 nits Contrast Ratio: 5000:1 (max. with DCR enabled) Response Time: 8ms Viewing Angles: H=178, V=178 Backlight Life: 50,000 Hours (8 hours of use per day) Surface Treatment: Hardness: 9H Anti-glare coating Orientation: Landscape -
PLATFORM
Processor: Quad-core RAM: 8GB DDR4 Storage: 128 GB -
TOUCH
Type/ Tech: Ultra Fine Touch Technology Touch Resolution: 32767 x 32767 Touch Point: 40 points touch Palm Rejection: Yes -
INPUT
HDMI: x3 (Front x1: HDMI2.0/HDCP 2.2/CEC; Rear x 2:HDMI2.0/HDCP 2.2/CEC/ARC for HDMI 2) RGB / VGA: x1 DisplayPort: x1 Audio: x1 RS232: x1 SD/SDHC: x1 OPS: x1 (Optional Intel Standard OPS) WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050) -
OUTPUT
HDMI: HDMI 2.0 x1 Audio: x1 SPDIF: x1 -
LAN
RJ45: x2 -
USB
Type A: USB3.2 Gen 1 x 4 (Front x 2; Rear x 2 )
USB 2.0x1 (Rear)Type B: USB 3.0 x2 (Rear x1 + Front x1) Type C: Front*1 [PD65W (15W with OPS, 65W without OPS)+ DP1.2 + Data + 10M/100M sharing)]
Rear *1 (PD15W +Data) -
SPEAKERS
20W x 2 -
TOP CAMERA PLATE
Yes -
EMBEDDED OS
Android 14 EDLA -
BUNDLED SOFTWARE
Basic Annotation Software: myViewBoard Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC) Wireless Presentation: AirSync Device Management: Manager ViewSonic Launcher: Yes -
SPECIAL FEATURES
All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels. Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC Light Sensor: Yes -
POWER
Voltage: 100-240V AC Consumption: On:89.24W ; Off: ≤ 0.5W -
ERGONOMICS
Wall Mount (VESA® ): 800*400 -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% RH non-condensing -
DIMENSIONS (W X H X D)
Physical (inch / mm): 67.5 x 40.4 x 3.42 (in.) / 1716.5 x 1025.8 x 86.9 (mm) Packaging (inch / mm): 73.22 x 44.29 x 7.28 (in.) / 1860 x 1125 x 185 (mm) -
WEIGHT
Net (lb / kg): 108.03 lb / 49 kg Gross (lb / kg): 133.38 lb /60.5 kg -
REGULATIONS
FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM, & RoHS DoC, ErP, REACH SVHC List, & DoC, EEL, WEEE, BSMI,BIS -
PACKAGE CONTENTS
1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m -
COMPATIBLE SLOT-IN PC
VPC3X, VPCF5-2A, VPCF5, VPC2X, VPC-A31-O1
