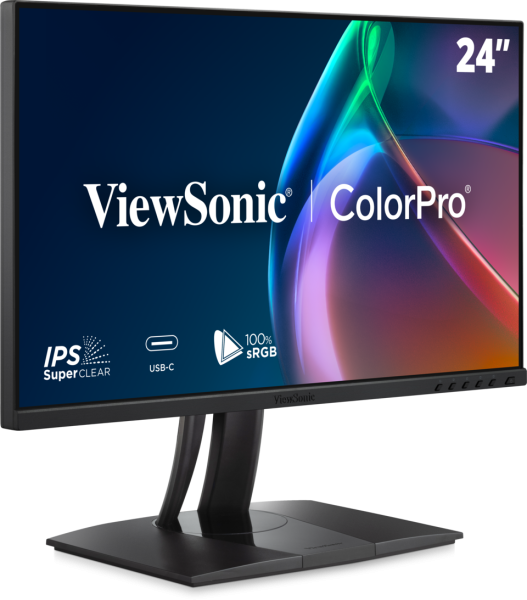

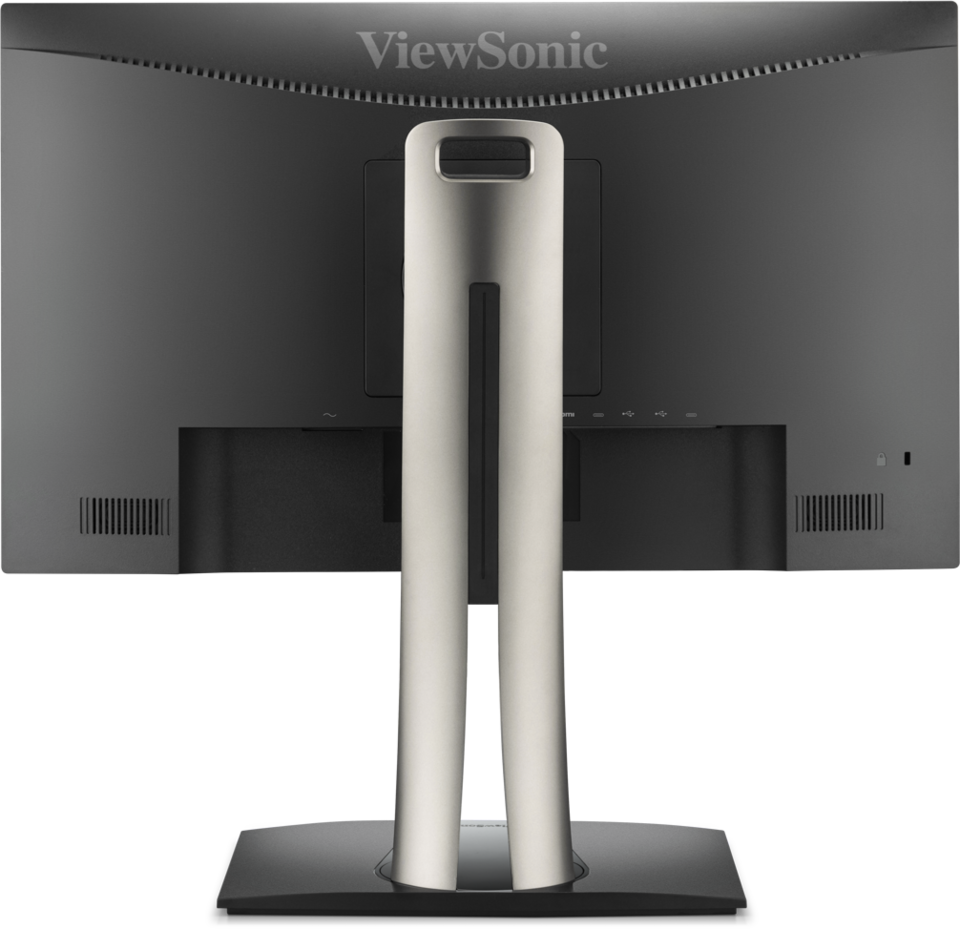

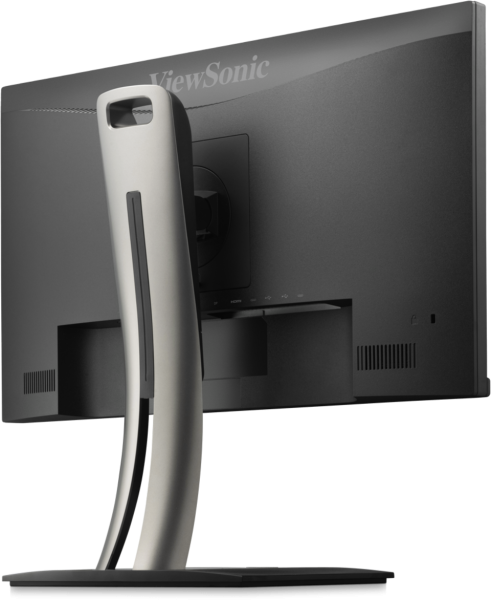

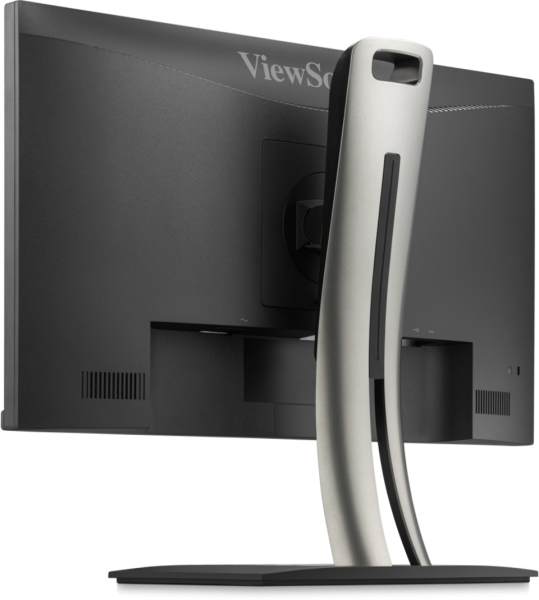

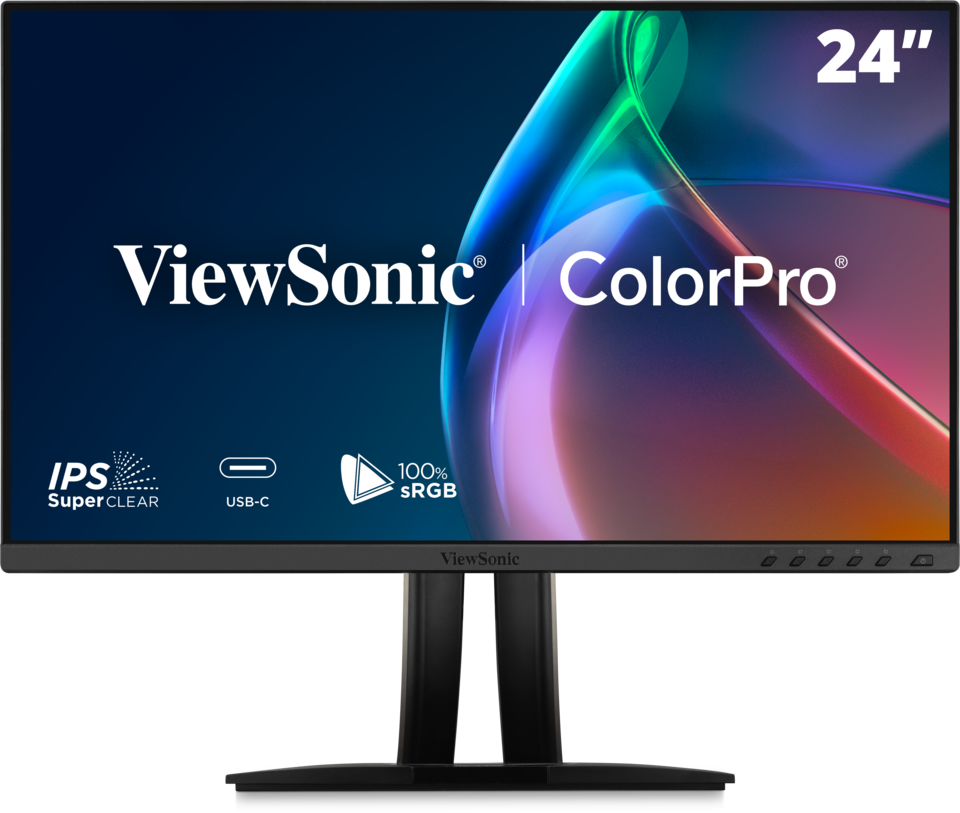

VP2456A
ColorPro 24吋 顯示器|支援120Hz FHD/Pantone 認證/100% sRGB 廣色域/90W USB-C 快充
- 精準色彩表現:通過 Pantone 認證,覆蓋 100% sRGB 廣色域,呈現鮮明豐富的色彩
- 專業校色標準:出廠皆經嚴格校準,達到 Delta E < 2 的色彩精準度,讓作品完美還原

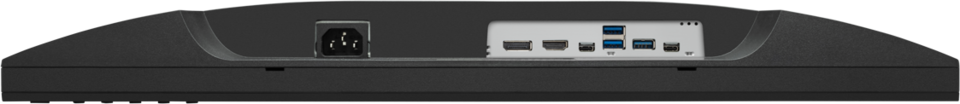

- 多元連接介面:搭載 90W 快速充電 USB-C、HDMI 1.4、DisplayPort 1.2 及 USB-A 3.2 連接埠,輕鬆串接
- 靈活人體工學:自動樞軸旋轉功能及人體工學支架,提供傾斜、旋轉、樞軸與高度調節,滿足各種工作姿勢
- 卓越視覺體驗:24 吋 FHD (1920×1080) IPS 面板,搭配三面無邊框設計,視野更寬廣,細節更清晰
- 專業觀看模式:超過 30 種優化顯示模式,適用於創意設計與休閒娛樂,隨時切換,盡享最佳觀賞效果
OVERVIEW
ViewSonic VP2456A 專為創作者精心打造,細膩呈現動人色彩。透過 Pantone 認證與 100% sRGB 廣色域覆蓋,每一處色彩細節皆被真實還原,讓作品如您所願般展現。120Hz 高更新率帶來流暢的畫面表現,不論創作或日常工作,都能帶來舒適的視覺感受。USB-C 連接埠方便您串接多種裝置,同時支援充電與資料傳輸。人體工學設計,能靈活調整姿勢,減輕疲勞與不適,自動樞軸旋轉(Auto Pivot)功能更祝您輕鬆切換橫豎螢幕,讓每件作品都以最適合的姿態呈現。SPECIFICATIONS
- DisplayDisplay Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,500:1 (typ)
Dynamic Contrast Ratio: 20M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5.394ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 120
Variable Refresh Rate Technology: Yes
Low Blue Light: TUV Low Blue Light (Hardware solution)
Flicker-Free: TUV Flicker Free
Color Gamut: Adobe RGB: 77% size / 76% coverage (Typ)
DCI-P3: 76% size / 76% coverage (Typ)
EBU: 103% size / 98% coverage (Typ)
REC709: 104% size / 100% coverage (Typ)
SMPTE-C: 112% size / 100% coverage (Typ)
NTSC: 72% size (Typ)
sRGB: 104% size / 100% coverage (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080 - Connector
- AudioInternal Speakers: 2Watts x2
- PowerEco Mode (Conserve): 18.8W
Eco Mode (optimized): 20.1W
Consumption (typical): 21.8W
Consumption (max): 32.4W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply - Additional HardwareKensington Lock Slot: 1
- ControlsPhysical Controls: Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall MountVESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: 30 ~ 135KHz
Frequency Vertical: 48 ~ 120Hz - Video InputDigital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C
- ErgonomicsHeight Adjust (mm): 130
Swivel: 120º
Tilt (Forward/Back): -5º / 21º
Pivot (Right/Left): 90º / 90º - Weight (imperial)Net (lbs): 14.2
Net Without Stand (lbs): 8.8
Gross (lbs): 20.1 - Weight (metric)Net (kg): 6.5
Net Without Stand (kg): 4
Gross (kg): 9.1 - Dimensions (imperial) (wxhxd)Packaging (in.): 24.4 x 15.4 x 9
Physical (in.): 21.23 x 15.29~20.41 x 8.46
Physical Without Stand (in.): 21.23 x 12.61 x 2.09 - Dimensions (metric) (wxhxd)Packaging (mm): 620 x 392 x 228
Physical (mm): 539.2 x 388.46~518.46 x 214.96
Physical Without Stand (mm): 539.2 x 320.2 x 53.2 - GeneralRegulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, BSMI, TGM, VCCI, PSE
PACKAGE CONTENTS: VP2456A x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Gen2 Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Power Management: Energy Star standards, EPEAT
