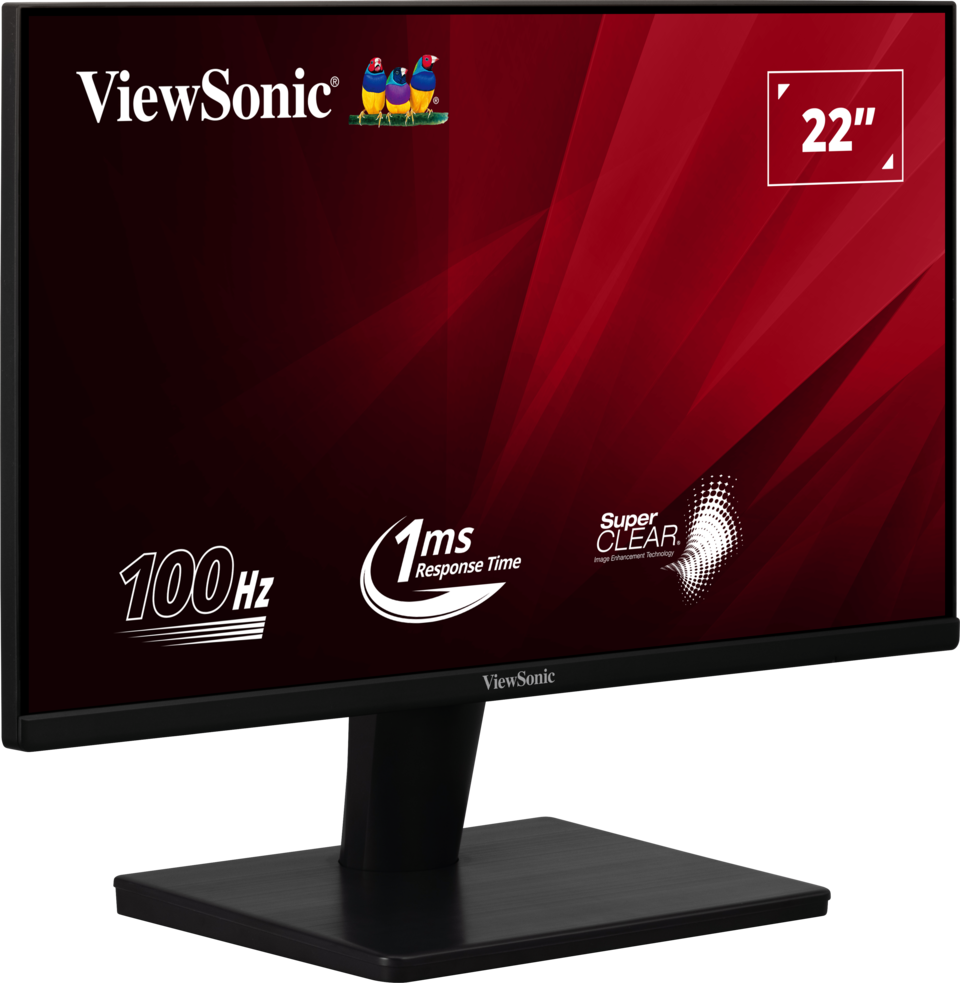

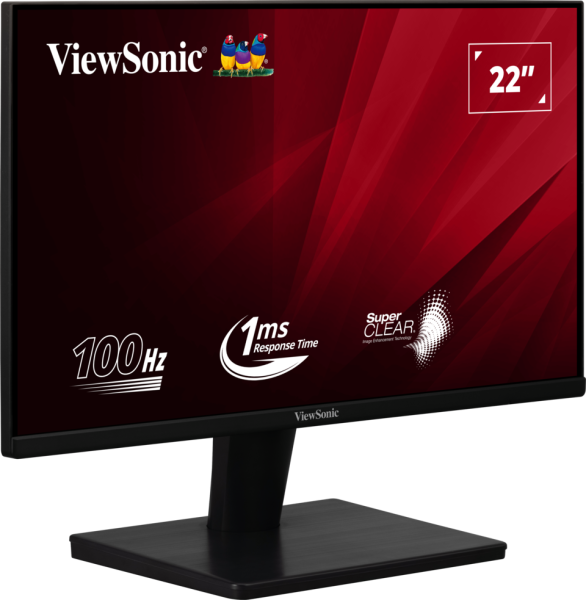

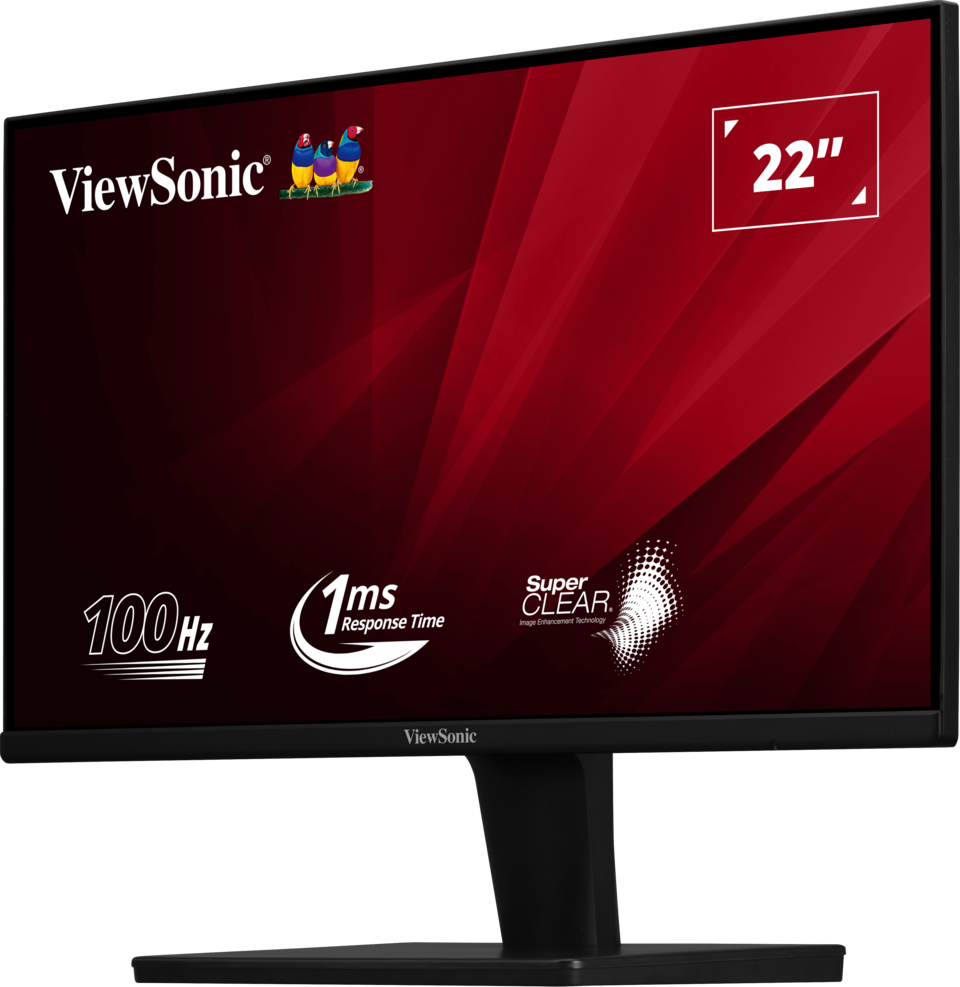

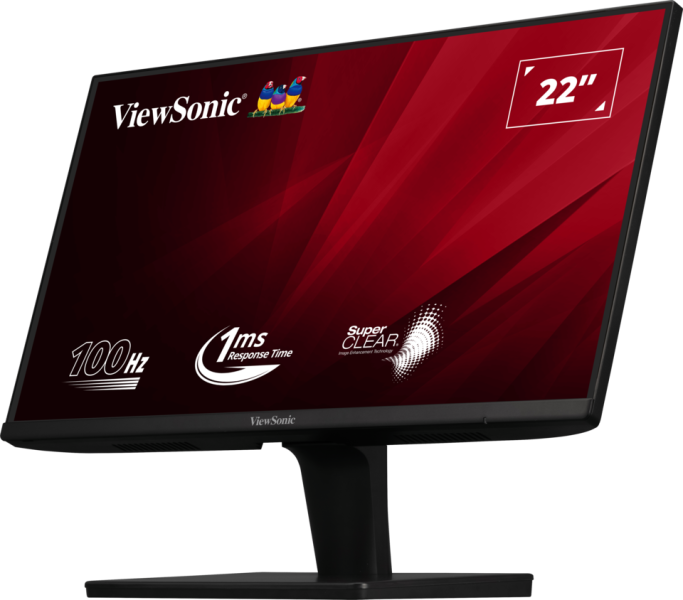

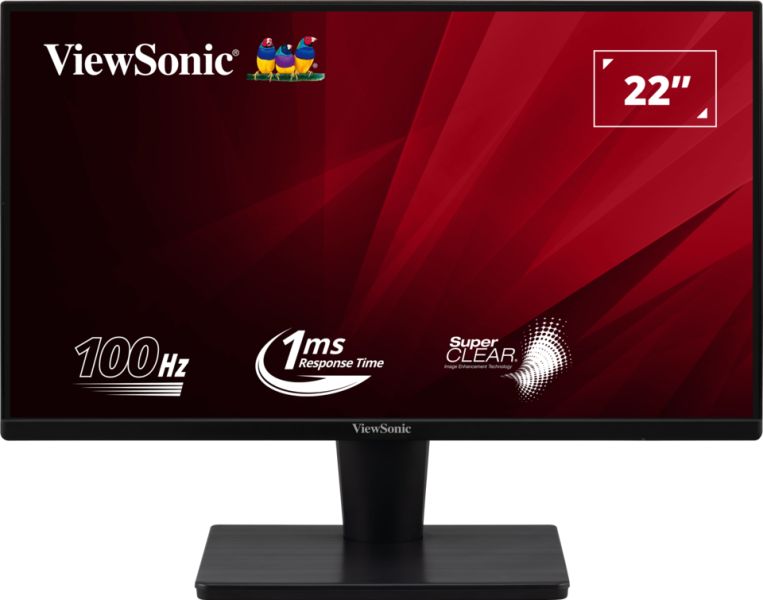

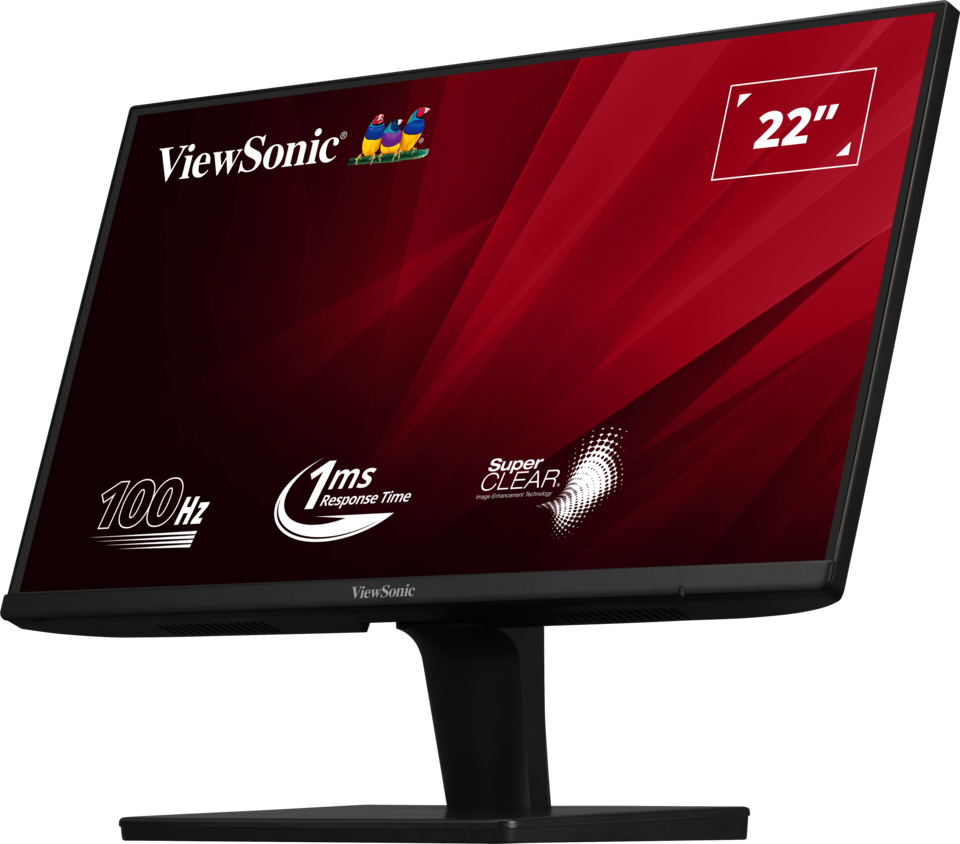

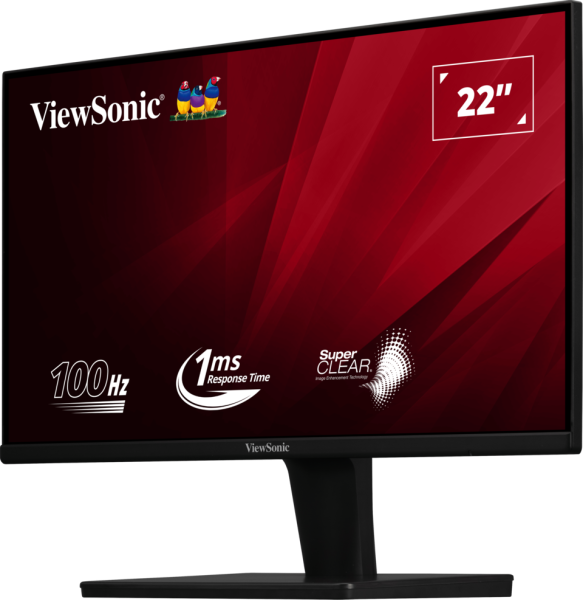

VA2215-H
22吋 顯示器(FHD)
- 護眼技術帶來舒適的觀賞體驗
- 省電 Eco-mode 功能
- ViewMode 多媒體影像效果最佳化
- 100Hz Freesync 降低螢幕撕裂及卡頓情形 傳遞流暢視覺表現
- HDMI 及 VGA 輸入
OVERVIEW
ViewSonic VA2215-H 是一款 22 吋 FHD 顯示器，適用於商業或家庭使用，配備 HDMI 和 VGA 輸入。這款顯示器提供令人驚嘆的影像品質，同時功耗低，六種 ViewMode 預設模式，可根據您的需求優化螢幕性能。FreeSync 技術確保遊戲時無撕裂或卡頓現象。ViewSonic 所有 VA 系列顯示器都配備了眼睛護理技術，有助於消除長時間觀看引起的眼睛疲勞。此外，VESA 兼容的支架使得這款顯示器易於安裝在牆上或與各種行業標準支架搭配使用。搭載 SuperClear® 技術 讓每個角度都清晰
從水平到垂直角度，都能享受卓越的性能和更好的視覺品質。憑藉 SuperClear® VA 面板技術，無論從上方、下方、前方還是側面觀看螢幕，顯示器都能保持清晰色彩、良好對比，觀看角度達到 178°，提供出色的視覺體驗。SuperClear® 178°/178°
100Hz 更新率流暢視覺效果
擁有快速的 100Hz 螢幕更新率，可以體驗到真正流暢的視覺顯示。這將帶來改善的觀看清晰度，在快速移動的動作場景中減少屏幕卡頓，同時對工作任務有益，減輕眼睛疲勞，提高生產力。100Hz 更新率
即時反應
憑藉快速的 1 毫秒（MPRT）反應時間，享受更出色的性能和平滑的像素轉換。迅速反應，精準作業。1ms 反應時間
Full HD 1080p 高畫質解析度
Full HD 1920×1080 高畫質真實解析度，適用於遊戲、影片、網頁瀏覽、文字閱讀等，提供精細的影像效果及完整內容呈現。Full HD 1080P
AMD FreeSync™ 動態畫面無撕裂、不易卡頓
AMD FreeSync™ 技術降低畫面撕裂、卡頓情形，讓每個畫面的動作流暢無比。100Hz FreeSync
舒適的觀賞體驗
零閃屏技術和抗藍光技術可消除有害光線與長時間觀看所產生的眼睛疲勞。零閃屏
抗藍光
影像調校 多媒體影像效果最佳化
ViewSonic 的獨家 ViewMode 有專為不同用途而提供的預設功能，包括「遊戲」(Game)、「電影」(Movie)、「網頁」(Web)、「文字」(Text) 以及「黑白」(Mono) 等模式。這些預設功能可增強色彩、對比和亮度，為您的特定應用提供最佳的觀賞特性。ViewMode: Game/Movie/Web/Text/Mono/Mac
環境持續性認證
VA2215-H 是一款 ENERGY STAR 和 EPEAT 認證的產品，可以節省能源成本，同時減少溫室氣體排放。*能源節省量可能因實際使用情況和其他因素而有所不同
*認證和安全規定取決於購買地區。
Energy Star & EPEAT

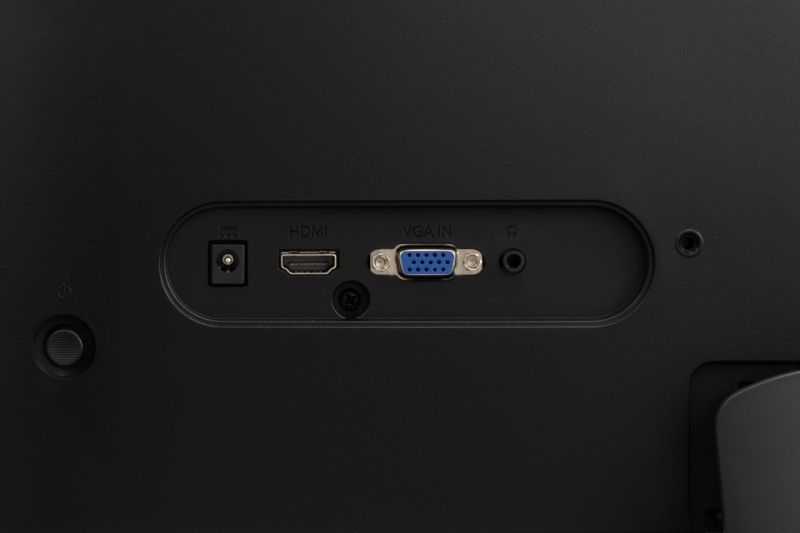

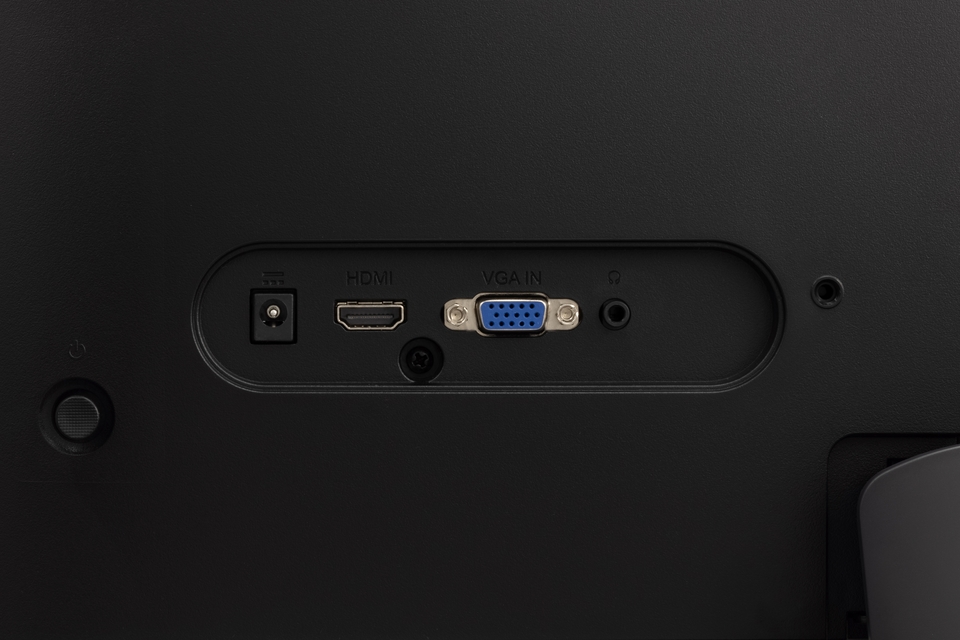

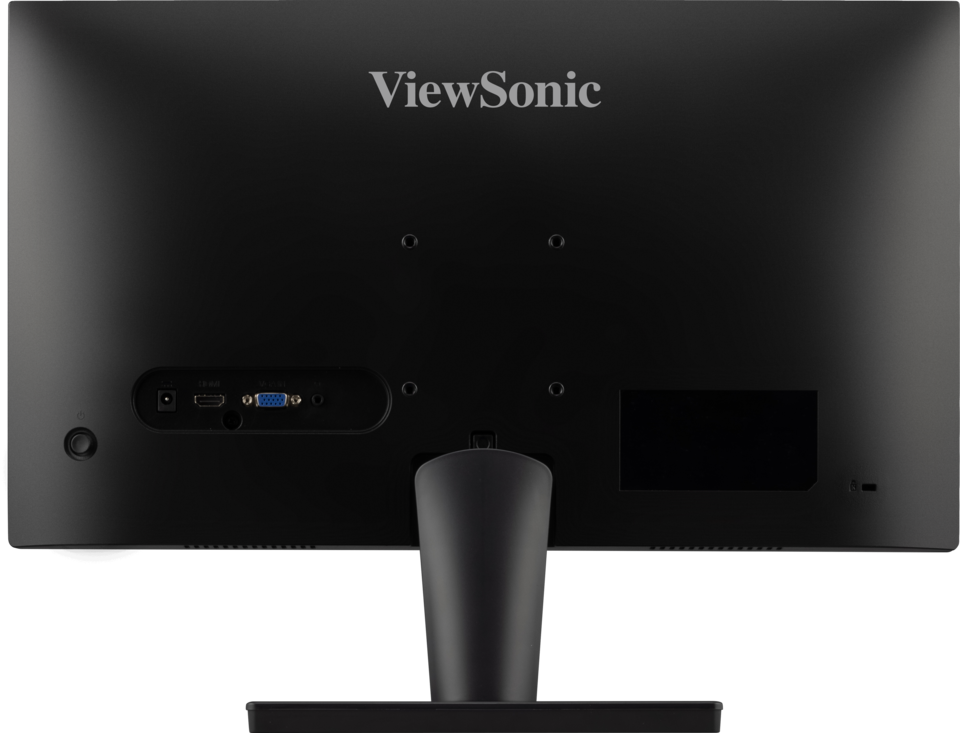

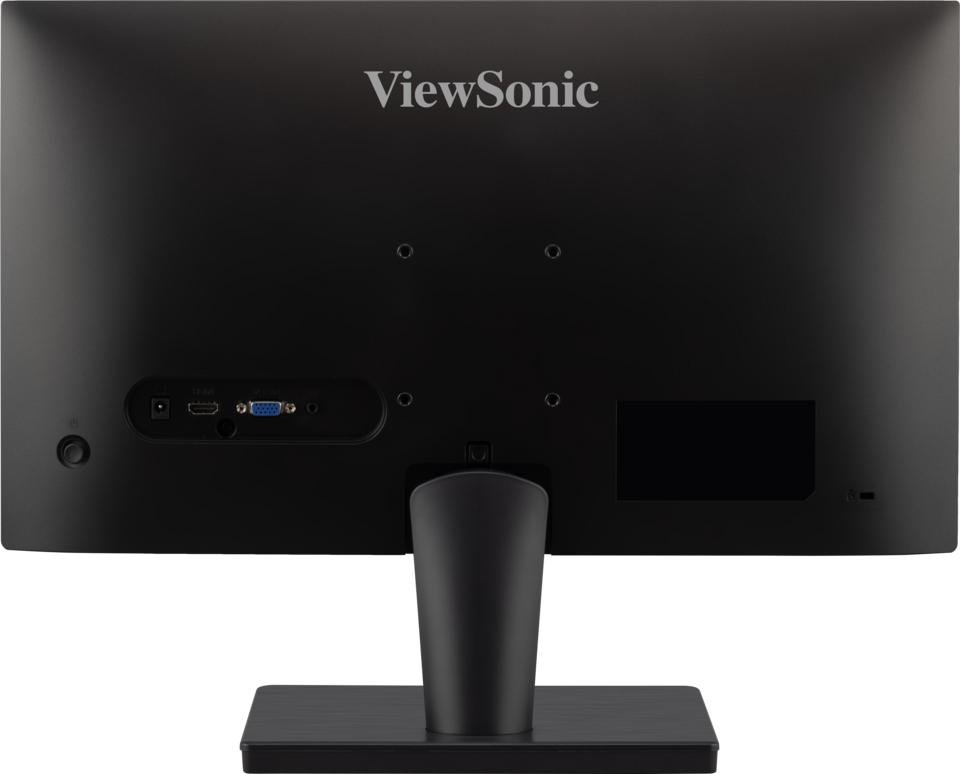

I/O 連接埠
- Joy Key
- Power in
- HDMI 1.4
- VGA
- 3.5mm Audio Out

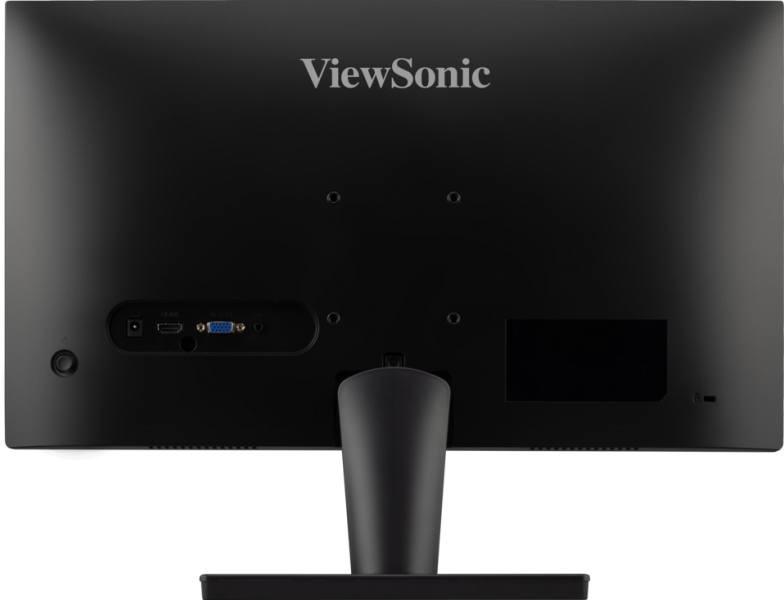

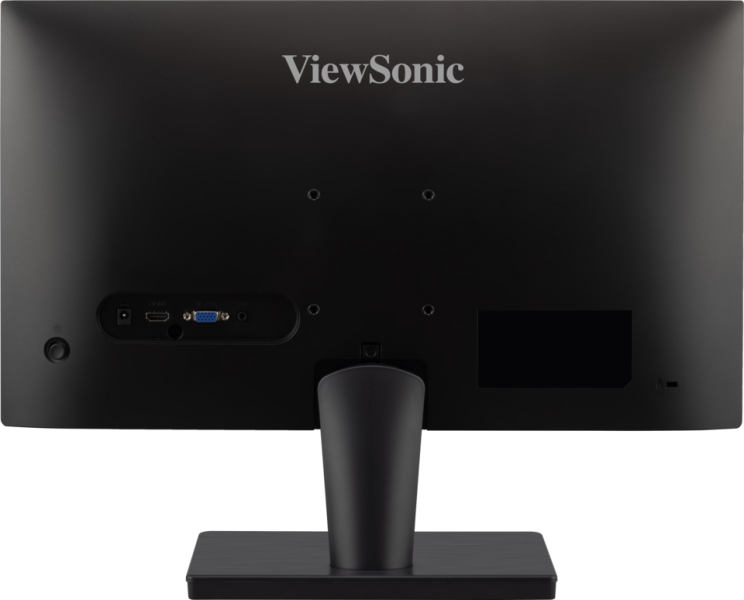

- VESA Compatible
(Wall Mount 75 x 75mm)
SPECIFICATIONS
- DisplayDisplay Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 16:9
Response Time (Typical GTG): 1ms(MPRT); 4ms(GTG)
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 100
Variable Refresh Rate Technology: FreeSync
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)sRGB: 104% size (Typ)
Pixel Size: 0.249 mm (H) x 0.241 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080 - ConnectorVGA: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
Power in: External power adapter
- PowerEco Mode (Conserve): 13W
Eco Mode (optimized): 15W
Consumption (typical): 20W
Consumption (max): 21W
Voltage: AC 100-240V, 50/60 Hz
Stand-by: 0.5W
Power Supply: External - Additional HardwareKensington Lock Slot: 1
- ControlsPhysical Controls: U, R, D, L, EN (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall MountVESA Compatible: 75 x 75 mm
- Input SignalFrequency Horizontal: 24 ~ 86KHz
Frequency Vertical: 48 ~ 75Hz - Video InputDigital Sync: TMDS - HDMI (v1.4)

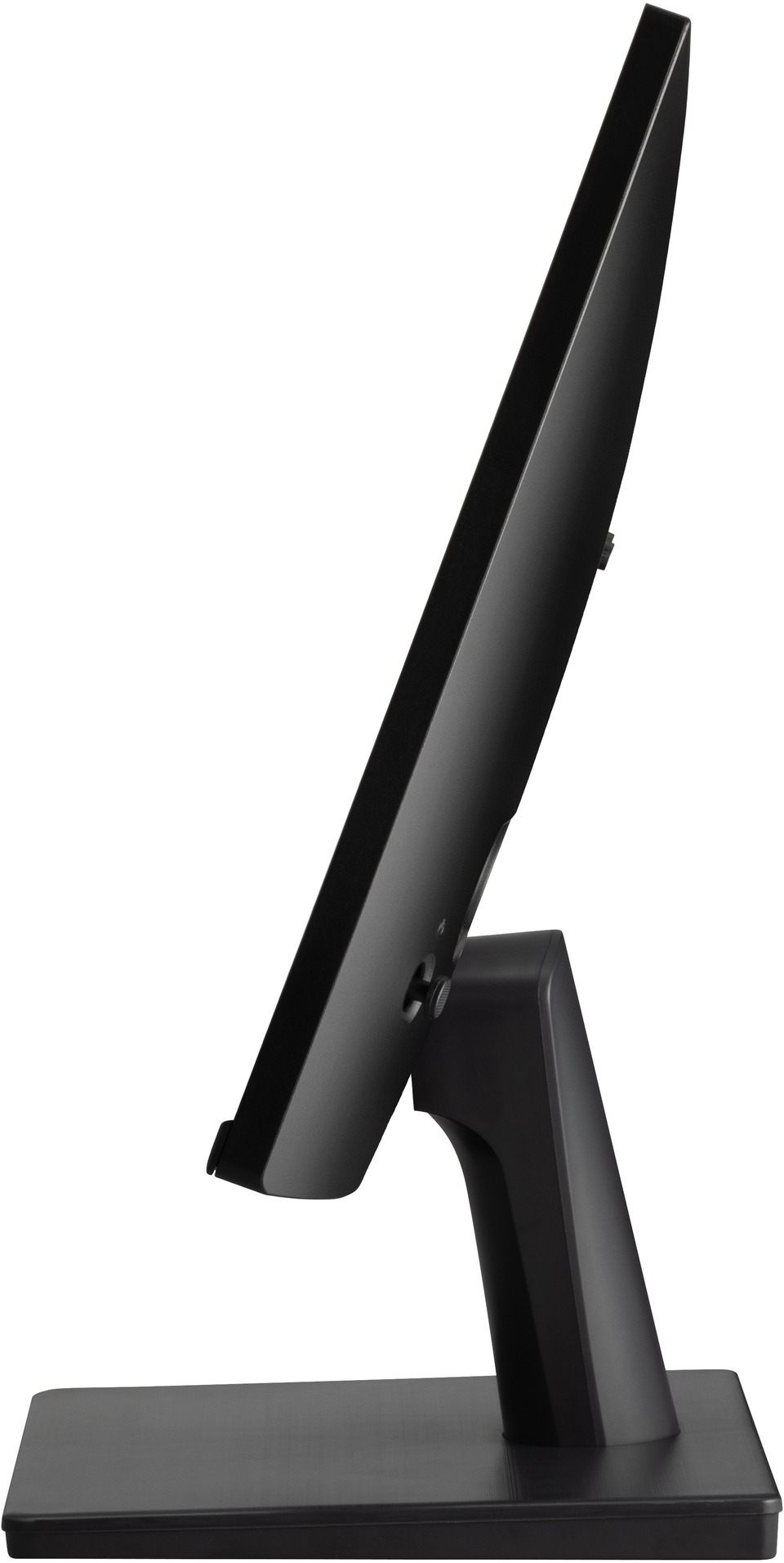

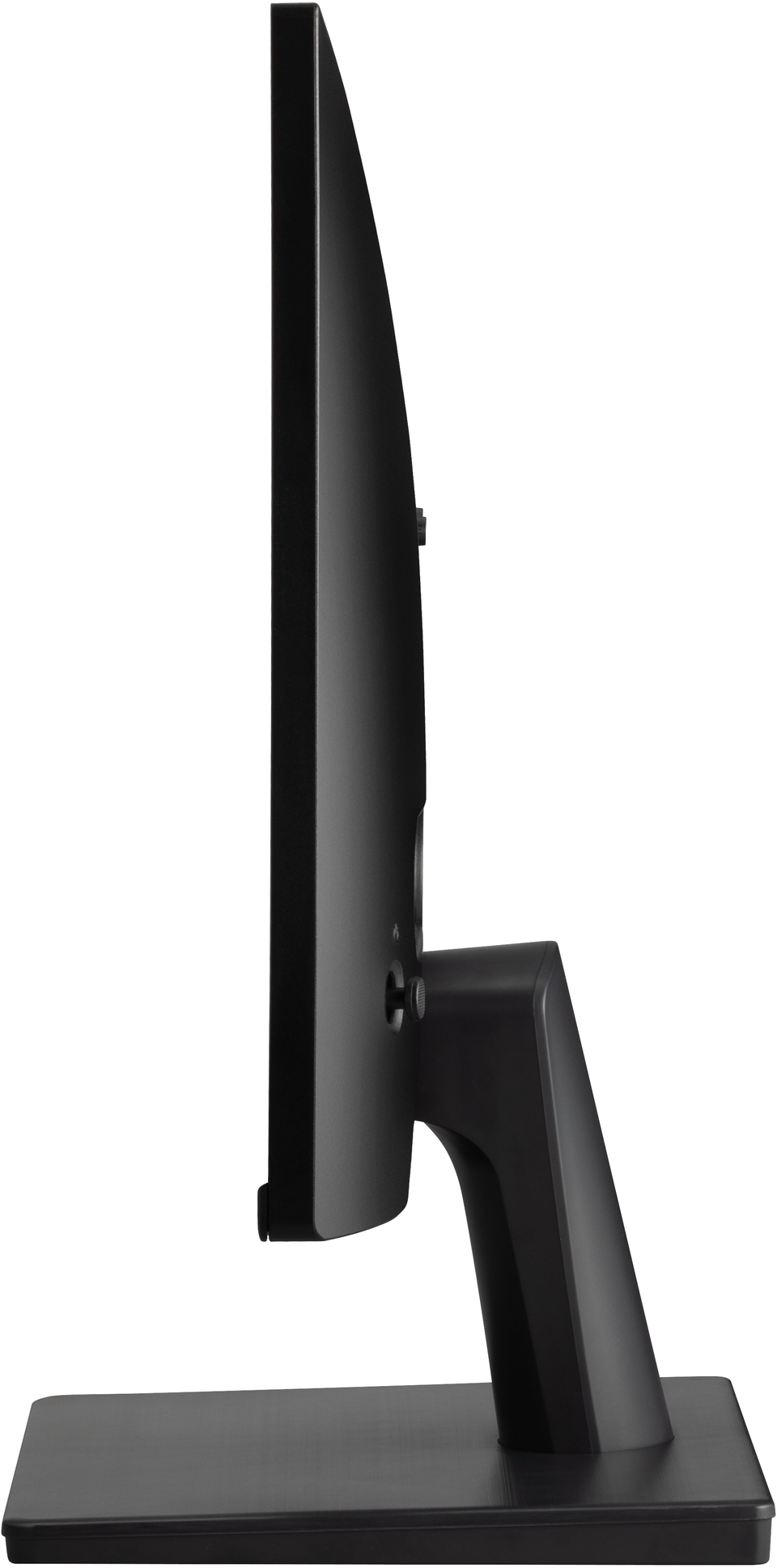

Analog Sync: Separate - RGB Analog - ErgonomicsTilt (Forward/Back): -3º / 20º
- Weight (imperial)Net (lbs): 5.3
Net Without Stand (lbs): 4.4
Gross (lbs): 7.7 - Weight (metric)Net (kg): 2.4
Net Without Stand (kg): 2
Gross (kg): 3.5 - Dimensions (imperial) (wxhxd)Packaging (in.): 22.4 x 15.1 x 4.6
Physical (in.): 19.4 x 14.8 x 7.4
Physical Without Stand (in.): 19.4 x 11.1 x 1.5 - Dimensions (metric) (wxhxd)外箱(mm): 570 x 383 x 118
實體(mm): 492 x 377 x 188
Physical Without Stand (mm): 492 x 282 x 38 - GeneralRegulations: cTUVus, FCC-B, ICES003, CEC, IQC-ST, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, TGM, BIS
PACKAGE CONTENTS: VA2215-H x1, HDMI 線 (v1.4; Male-Male) x1, AC/DC Adapter x1, 快速使用手冊 x1
Recycle/Disposal: 請依照政府回收規定
