Key Features
  • SuperClear® IPS panel keskin canlı renkler ve geniş görüş açısı
  • Çerçevesiz ve şık tasarım
  • 100Hz Yenilenme Oranı
  • HDMI ve VGA girişleri
  • ViewMode modu ile farklı senaryolar için hazır renk modları

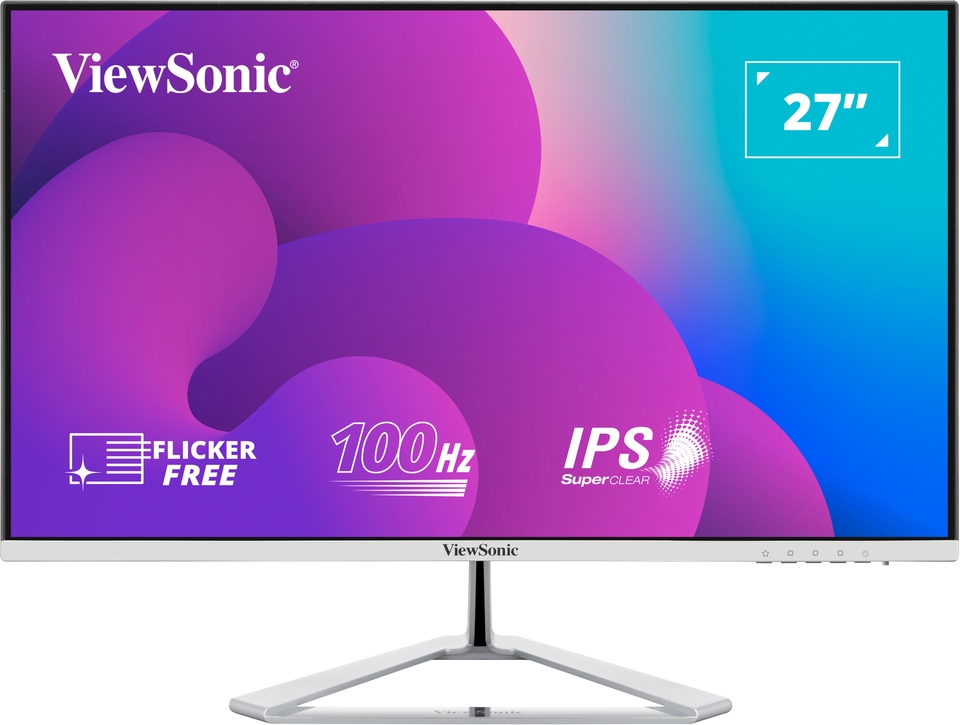

VX2776-smh
Product Description
ViewSonic® VX2776-smh Full HD SuperClear® IPS panele sahip çerçevesiz tasarımı ile hem şık hem de performansı bir arada sunuyor. 178 derece yatay/dikey geniş görüş açısı, standart TN panellere göre daha yüksek renk performansı sunan IPS paneli ve neredeyse çerçevesiz tasarımı ile ev eğlencesi ve ofis kullanımı için en şık çözümü sunuyor. HDMI ve VGA bağlantıları ile geniş bağlantı seçeneklerii getirirken, uzun süre kullanımda göz sağlığınızı koruyan teknolojileri ile de gözlerinizi koruyor.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 27
    Viewable Area (in.): 27
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,300:1 (typ)
    Dynamic Contrast Ratio: 80M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 4ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 100
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 100% size (Typ)
    Pixel Size: 0.311 mm (H) x 0.311 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    3.5mm Audio In: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 2
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 18W
    Eco Mode (optimized): 21W
    Consumption (typical): 24W
    Consumption (max): 25W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
    On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 75 x 75 mm
  • INPUT SIGNAL
    Frequency Horizontal: RGB Analog: 15 ~ 83KHz, HDMI (v1.4): 30 ~ 115KHz
    Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 100Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4)
    Analog Sync: Separate - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): -3º / 15º
  • WEIGHT (IMPERIAL)
    Net (lbs): 8.8
    Net Without Stand (lbs): 7.9
    Gross (lbs): 12.1
  • WEIGHT (METRIC)
    Net (kg): 4
    Net Without Stand (kg): 3.6
    Gross (kg): 5.5
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 27.6 x 18.2 x 4.4
    Physical (in.): 24.2 x 17.5 x 7.2
    Physical Without Stand (in.): 24.2 x 14.1 x 1.9
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 702 x 462 x 112
    Physical (mm): 614 x 443 x 184
    Physical Without Stand (mm): 614 x 357 x 49
  • GENERAL
    Regulations: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, BIS
    PACKAGE CONTENTS: VX2776-SMH x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
