Key Features
  • Entegre USBC docking istasyonu, sesli ve görüntülü iletişim ile veri transferi ve 96W güç iletimi sunar.
  • Kolay bağlantı için 1 upstream, 2 downstream bağlantı noktası, HDMI*2 ve DisplayPort girişli USB 3.0 hub
  • 21:9 ultra geniş ekran, UWQHD+ 3440 x 1440 çözünürlük
  • 1900R Kavisli panel
  • Yükseklik ayarlanabilir dönebilen stand, eğim fonksiyonu ile

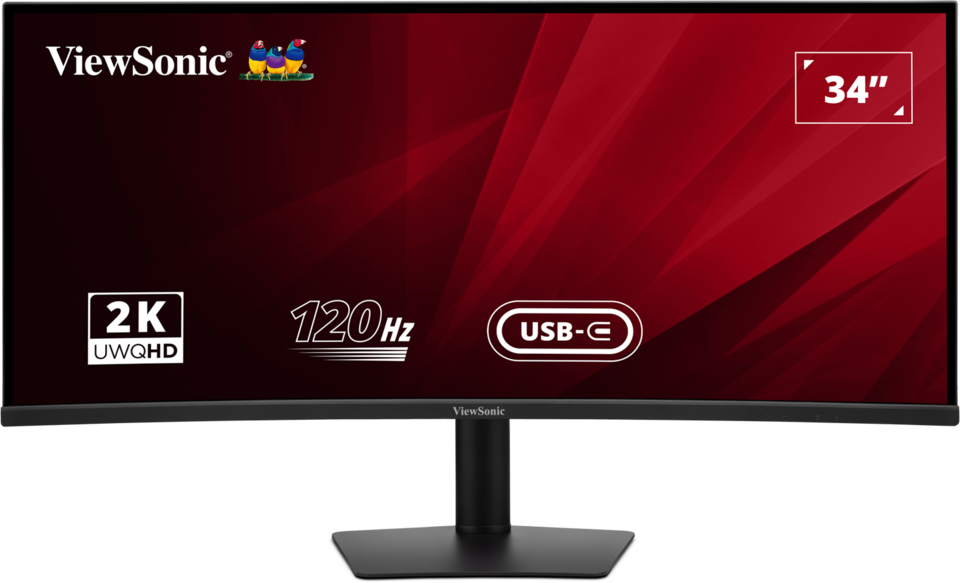

VA3420C
Product Description
ViewSonic VA3420C, iş ve ev kullanımı için 1 upstream, 2 downstream bağlantı noktası, 2 HDMI ve DisplayPort özelliğine sahip USB 3.0 Hub özelliğine sahip 34 inç UWQHD (3440 x 1440) monitördür. 21:9 en boy oranı ve 1900R eğriliği sürükleyici bir izleme deneyimi sağlar. Tek bir kablo ile işinizi basitleştirin; bu kablo, ses ve görüntü, veri ve 96W güç transferi sağlar. 120hz yenileme hızı, Eye ProTech+ teknolojisi ve çeşitli ViewMode ön ayarları, ekran performansını optimize etmek ve yırtılma veya takılma olmadan rahat bir görüntüleme sağlamak için tasarlanmıştır. Çalışma alanınızı genişletin ve düşük güç tüketimiyle VESA uyumlu bir montaj parçasıyla yalnızca tek bir ekranda gerçek anlamda kusursuz, ergonomik çoklu görevleri deneyimleyin.
  1. Menu Control Panel
  2. Speakers
  3. VESA Compatible(Wall Mount 100 x 100mm)
  4. USB-A*2
  5. USB Type-B
  6. USB Type-C
  7. Display Port
  8. HDMI*2
  9. Audio Out
  10. Power In
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 34
    Viewable Area (in.): 34.1
    Panel Type: IPS Technology
    Resolution: 3440 x 1440
    Resolution Type: UWQHD (UltraWide QHD)
    Static Contrast Ratio: 2,000:1 (typ)
    Dynamic Contrast Ratio: 80M:1
    High Dynamic Range: HDR10
    Light Source: LED
    Brightness: 300 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit true
    Aspect Ratio: 21:9
    Response Time (MPRT): 1ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: 1900R
    Refresh Rate (Hz): 120
    Variable Refresh Rate Technology: Yes
    Low Blue Light: Hardware and software solution
    Flicker-Free: Yes
    Color Gamut: DCI-P3: 98% size (Typ) NTSC: 94% size (Typ) sRGB: 132% size (Typ)
    Pixel Size: 0.233 mm (H) x 0.233 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 3440x1440
    Mac® Resolution (max): 3440x1440
    PC Operating System: Windows 10/11 certified; macOS tested
    Mac® Resolution (min): 3440x1440
  • CONNECTOR
    USB 3.2 Type A Down Stream (USB 2.0 Bandwidth): 2
    USB 3.2 Type B Up Stream: 1
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (96W power charger)
    3.5mm Audio Out: 1
    HDMI 2.1: 2
    DisplayPort: 1
    Power in: DC Socket (Center Positive)
  • AUDIO
    Internal Speakers: 2.5Watts x2
  • POWER
    Eco Mode (Conserve): 20W
    Eco Mode (optimized): 23W
    Consumption (typical): 26W
    Consumption (max): 36W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: External Power Adaptor
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: M, Right, Left, E, Power
    On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: HDMI (v2.1): 15 ~ 222KHz, DisplayPort (v1.4): 15 ~ 183KHz, Type C: 15 ~ 183KHz
    Frequency Vertical: HDMI (v2.1): 48 ~ 120Hz, DisplayPort (v1.4): 48 ~ 120Hz, Type C: 48 ~ 120Hz
  • VIDEO INPUT
    Digital Sync: FRL - HDMI (v2.1), PCI-E - DisplayPort (v1.4), Micro-Packet - Type C
  • ERGONOMICS
    Height Adjust (mm): 130
    Swivel: 60º
    Tilt (Forward/Back): -5º / 15º
  • WEIGHT (IMPERIAL)
    Net (lbs): 18.1
    Net Without Stand (lbs): 13.7
    Gross (lbs): 25.4
  • WEIGHT (METRIC)
    Net (kg): 8.2
    Net Without Stand (kg): 6.2
    Gross (kg): 11.5
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 39.4 x 17.1 x 7.7
    Physical (in.): 32.07 x 16.72~21.84 x 9.36
    Physical Without Stand (in.): 32.07 x 14.31 x 4.04
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 1000 x 435 x 196
    Physical (mm): 814.7 x 424.66~554.66 x 237.8
    Physical Without Stand (mm): 814.7 x 363.56 x 102.65
  • GENERAL
    Regulations: Energy Star, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM
    PACKAGE CONTENTS: VA3420C x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.1; Male-Male) x1, DisplayPort Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards
