Key Features
  • HD 768p Çözünürlük
  • 10 parmak kapasitif dokunmatik
  • HDMI ve VGA bağlantıları
  • Dahili hoparlör
  • Çizilmeye karşı dayanıklı ekran

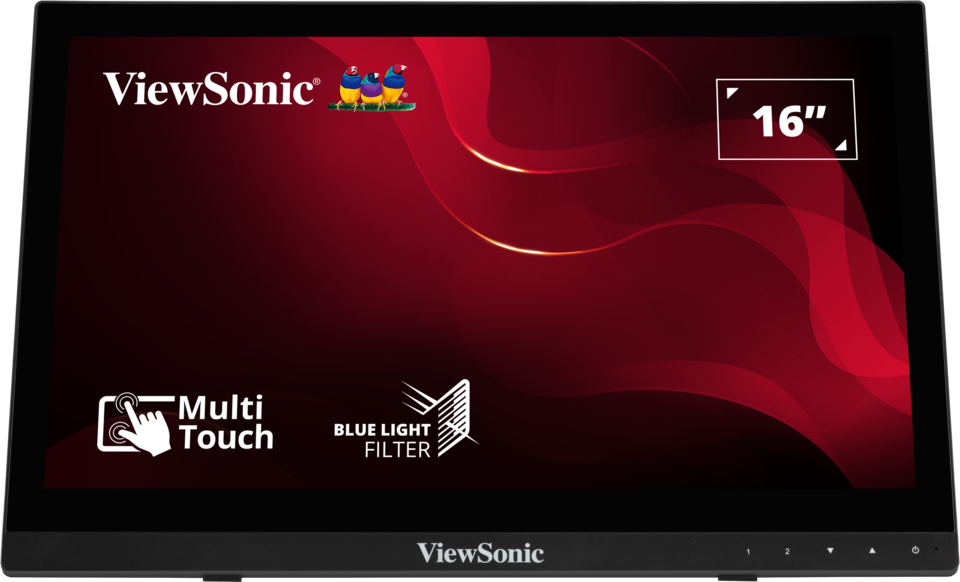

TD1630-3
Product Description
ViewSonic TD1630-3, 10-nokta çoklu dokunmatik özellikli 16” (15.6” görüntülenebilir) ekrandır. Üstün ergonomik tasarımı ile TD1630-3, kullanıcılara maksimum konfor sağlamak adına düz biçimde veya sağa sola yatabilir. Dokunmatik ekran çok yönlülüğü sayesinde ekran; VGA ve HDMI girişleri geniş bağlantı sağlarken, satış veya iş ayarlarınız için mükemmel esneklik sunar. Çift entegrasyonlu hoparlörler ile birlikte Windows 10/11 ve Linux sürümleri* dahil çok çeşitli işletim sistemleri ile uyumluluk, sezgileri güçlü bu dokunmatik ekranı, satış veya iş ayarlarında etkileşim için ideal kılan oldukça isabetli, yüksek tepki yeteneğine sahip bir dokunmatik ekran deneyimi haline getirir.
*Windows 7/8/10/11, Linux Kernel 4.X/3.X destekler
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 16
    Viewable Area (in.): 15.6
    Panel Type: TN Technology
    Resolution: 1366 x 768
    Resolution Type: WXGA (Wide XGA)
    Static Contrast Ratio: 500:1 (typ)
    Dynamic Contrast Ratio: 10M:1
    Light Source: LED
    Brightness: 190 cd/m² (typ)
    Colors: 262K
    Color Space Support: 6 bit true
    Aspect Ratio: 16:9
    Response Time (Typical Tr+Tf): 12ms
    Viewing Angles: 90º horizontal, 60º vertical
    Backlight Life (Hours): 15000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Blue Light Filter: Yes
    Color Gamut: NTSC: 45% size (Typ) sRGB: 67% size (Typ)
    Pixel Size: 0.252 mm (H) x 0.252 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 0.83mm
  • COMPATIBILITY
    PC Resolution (max): 1366x768
    Mac® Resolution (max): 1366x768
    PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
    Mac® Resolution (min): 1366x768
  • CONNECTOR
    VGA: 1
    USB 2.0 Type B: 1
    3.5mm Audio In: 1
    HDMI 1.4: 1
    Power in: DC Socket (Center Positive)
  • AUDIO
    Internal Speakers: 1Watts x2
  • POWER
    Eco Mode (Conserve): 4.3W
    Eco Mode (optimized): 4.9W
    Consumption (typical): 5.5W
    Consumption (max): 6W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: External Power Adaptor
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: 1, 2, Up, Down, Power
    On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 75 x 75 mm
  • INPUT SIGNAL
    Frequency Horizontal: 30 ~ 61KHz
    Frequency Vertical: 56 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4)
    Analog Sync: Separate - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): 15º / 50º
  • WEIGHT (IMPERIAL)
    Net (lbs): 2.9
    Net Without Stand (lbs): 2.9
    Gross (lbs): 5.5
  • WEIGHT (METRIC)
    Net (kg): 1.3
    Net Without Stand (kg): 1.3
    Gross (kg): 2.5

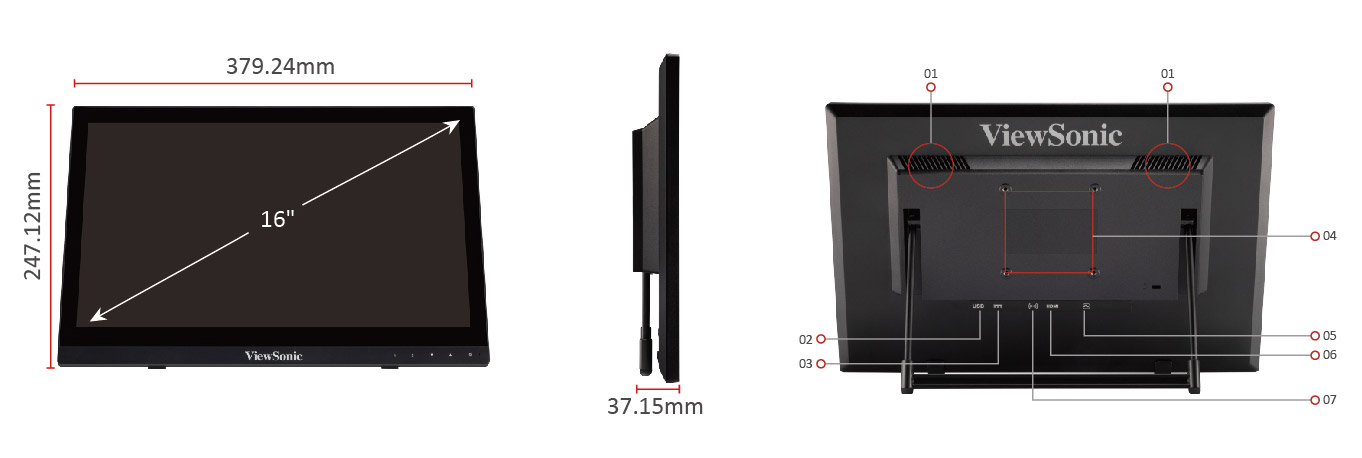

  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 17.8 x 15.3 x 3.4
    Physical (in.): 14.9 x 9.7 x 1.5
    Physical Without Stand (in.): 14.9 x 9.7 x 1.5
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 453 x 389 x 86
    Physical (mm): 379 x 247 x 37
    Physical Without Stand (mm): 379 x 247 x 37
  • GENERAL
    Regulations: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
    PACKAGE CONTENTS: TD1630-3 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
