“The ViewSonic VX1940w receives a four-out-of-five, “Great” rating and the Editors’ Choice award in this reviews roundup, highlighting its easy-to-use onscreen controls, resolution and overall image quality.”
VX1940w-4

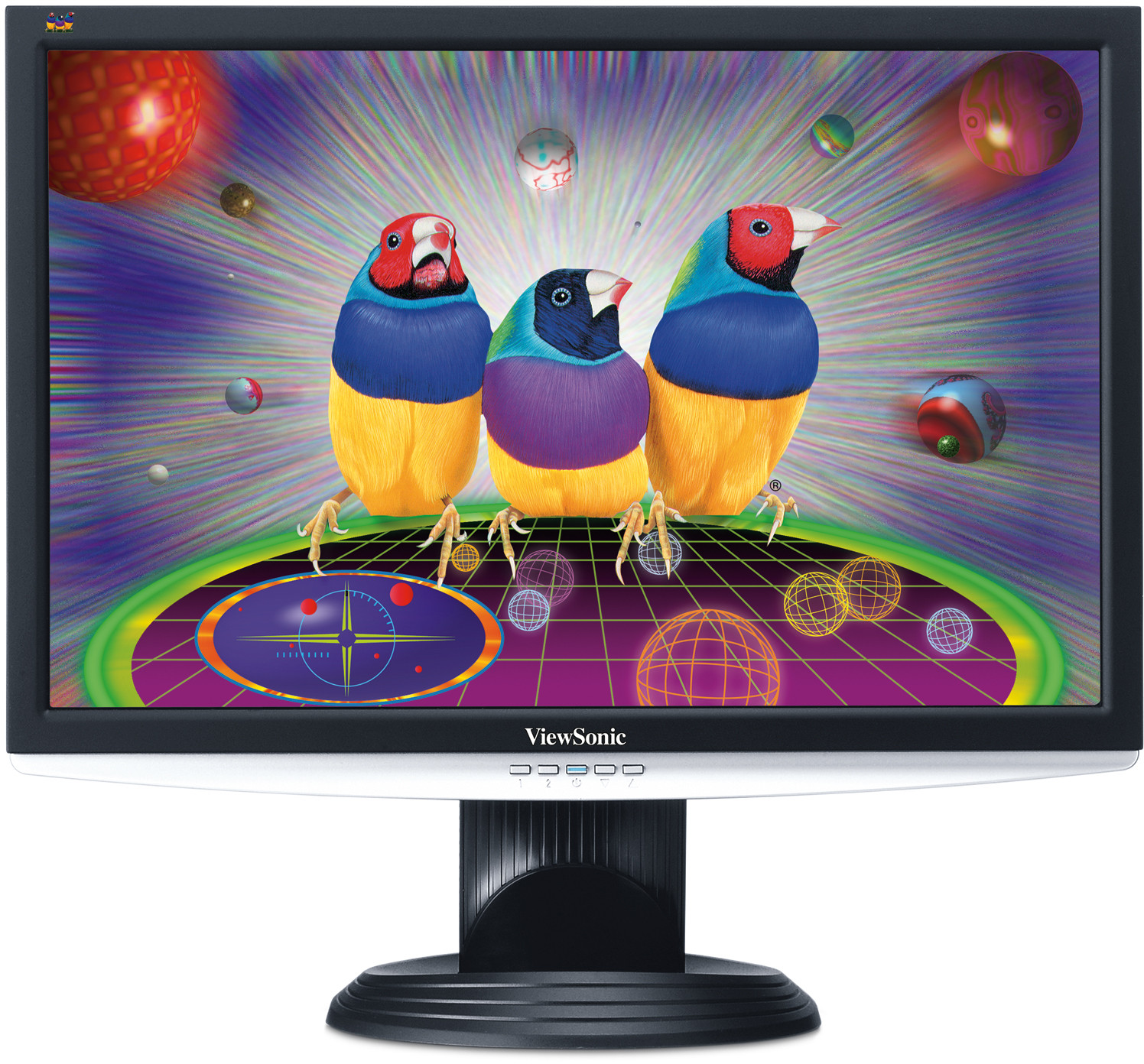

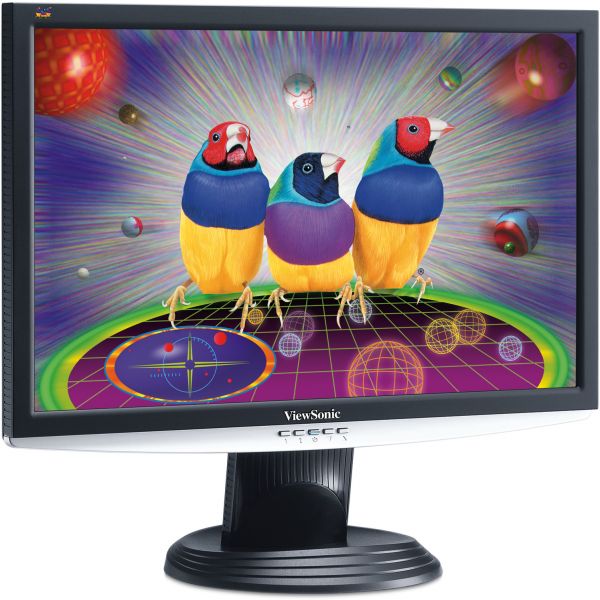

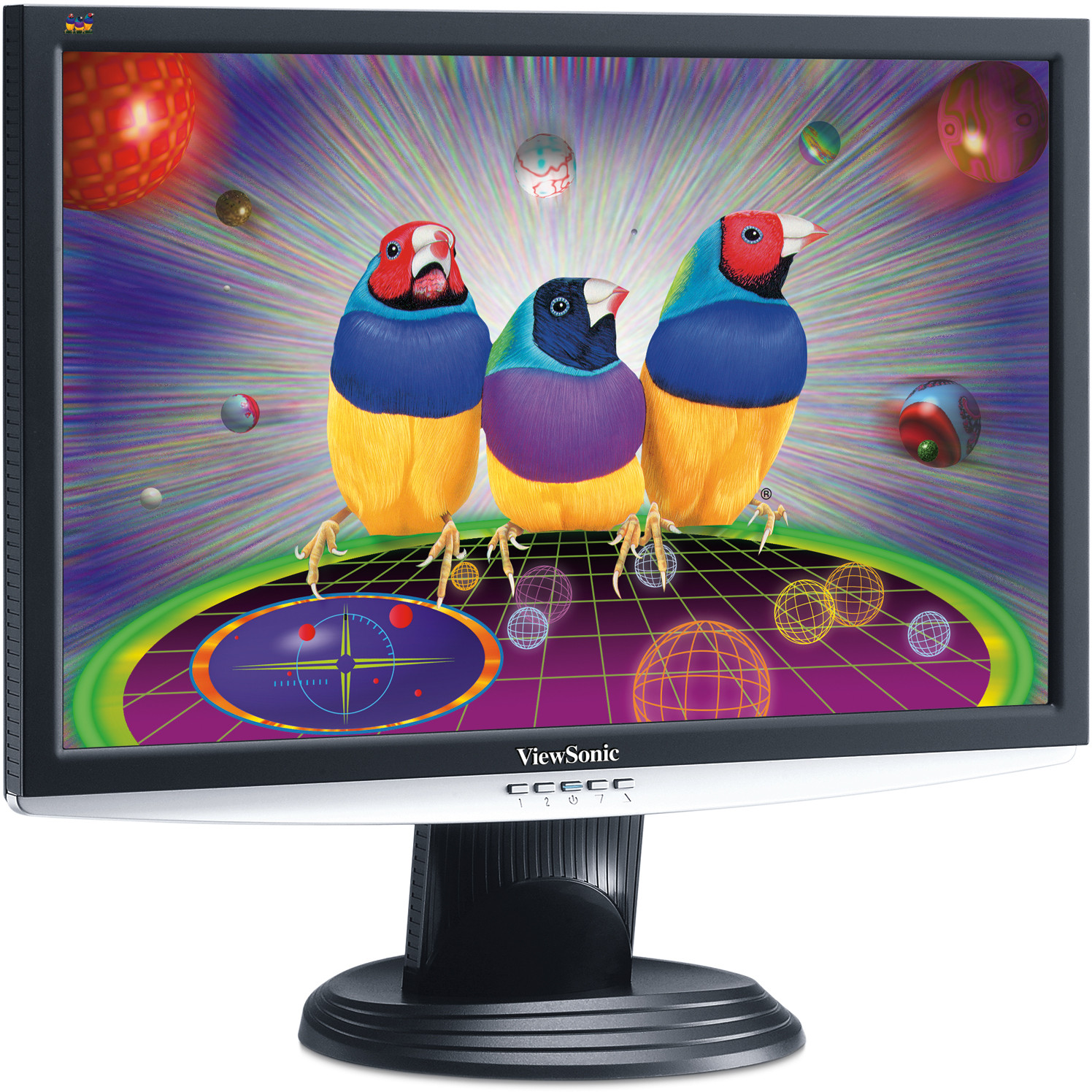

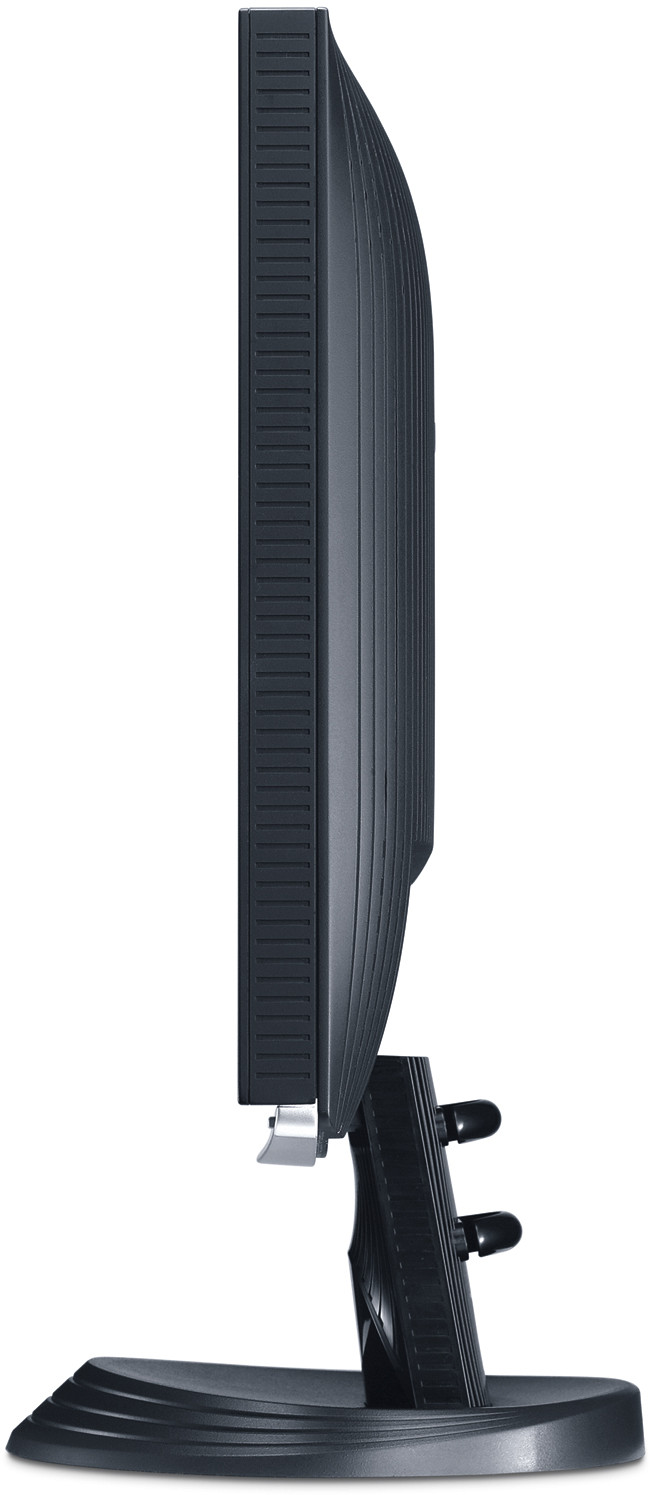

49 cm / 19" WIDESCREEN LCD MONITOR VX SERIES WITH 2MS RESPONSE TIME AND 3,000:1 DCR
OVERVIEW
ViewSonic’s 49 cm / 19"VX1940w widescreen LCD delivers unparalleled performance with video response as fast as 2ms, 3000:1 DYNAMIC CONTRAST RATIO (typ.) and SUPER-HD 1680 x 1050 RESOLUTION. Games, HD movies, videos and graphic-intensive applications have never looked better on your desktop. This Vista™ premium certified WIDESCREEN DISPLAY ENHANCES RODUCTIVITY by allowing you to view two documents side-by-side or work in two applications without toggling. Connect your game console, DVD player and other components through the DIGITAL (DVI-D HDCP) AND ANALOGUE INPUTS. The Kensington security port provides theft deterrence and the OSD and power lock prevent unauthorised changes to your optimal screen settings.Enjoy HD content on your desktop
It’s not just the ultimate HD gaming display. It’s a ViewSonic.
REVIEWS
SPECIFICATIONS
- COLORSBlack
- LCDTür: 49 cm / 19" Wide TN colour TFT active matrix WSXGA+ LCD
Kontrast Oranı: 1000:1 (typ.), 3000:1 DCR (typ.)
Görüntüleme Açıları: 170° horizontal, 160° vertical (at 0:1)
170° horizontal, 170° vertical (at 5:1)
Parlaklık: 300 cd/m2
Ekran Alanı: 41.0cm horizontal x 25.7cm vertical, 48.3cm diagonal
Optimum Çözünürlük: 1680 x 1050@60Hz
Yanıt Süresi: 2ms (grey-to-grey), 5ms (off-on-off) (typ.)
Işık Kaynağı: Long life, 40000 hrs. (typ.)
Panel Yüzeyi: Anti-glare
Piksel Aralığı: 0.243mm
Renk Desteği: 16.7M colours supported (6-bit+2-bit FRC)
Piksel Saat: 165MHz - UYUMPC: VGA up to 1680 x 1050 non-interlaced
Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
- BOYUTLARStand İle Birlikte Fiziksel: 442 x 385 x 195
Stand Olmadan Fiziksel: 442 x 310 x 54
Ambalaj (GxYxD): 520 x 469 x 145 - YÖNETMELİKLERTCO’03, GS, ERGO, ISO 13406-2 (pixel failure class II), CE, CB, GOST-R+Hygienic, UL, cUL, FCC-B, NOM, EPEAT, Ukraine, SASO, ENERGY, ENERGY STAR, C-Tick, MIC, BSMI, PSB, MPR II, TUV-S/IRAM/UL-AR S Mark, CCC, VCCI, Green Mark, WEEE, RoHS
- PAKET İÇERİĞİLCD Monitor, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
- KONEKTÖRLERAnalog: 15-pin mini D-Sub (detachable cable)
Dijital: 24-pin DVI-D (detachable cable) (HDCP enabled)
Güç: 3-pin AC plug (CEE22)certified) - Güç Gerilim: AC 100–240V, 50/60Hz (auto switch), internal power supply
Tüketim : 44 watt (typ.), <1 watt in power save mode - KONTROLLERTemel: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness, aspect ratio [4:3, full screen], response time), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, OSD/power lock, memory recall - İŞLETİM KOŞULLARIIsı: 0°C – 40°C
Nem: 10%–90% (non-condensation) - AğırlıkStand İle Birlikte Net: 4.6kg
Stand Olmadan Net: 3.8kg
Stand İle Birlikte Brüt: 5.8kg - Video GirişiFrekans: Fh: 24~82kHz, Fv: 50~85Hz
Senk.: H/V separate (TTL), composite, sync on green
Analog: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
Dijital: DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI) - GÜÇ YÖNETİMİTCO’03 and ENERGY STAR standards
- GÜVENLİKKensington® security port
- DUVAR MONTAJIVESA FDMI 100mm x 100mm
- Ergonomik ÖzelliklerEğilme: Down 5°, Up 20°
