Brilliant viewing with an ultraslim design.

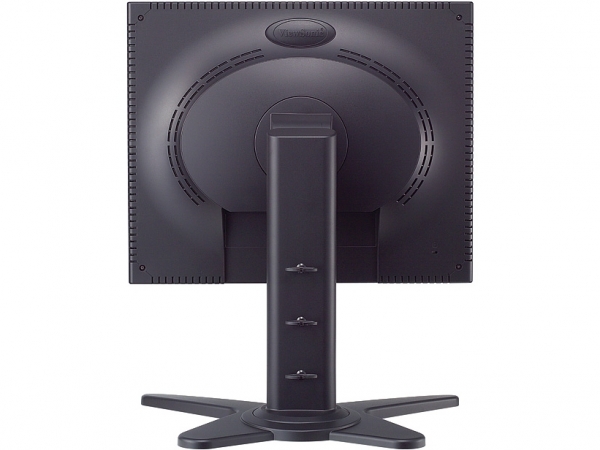

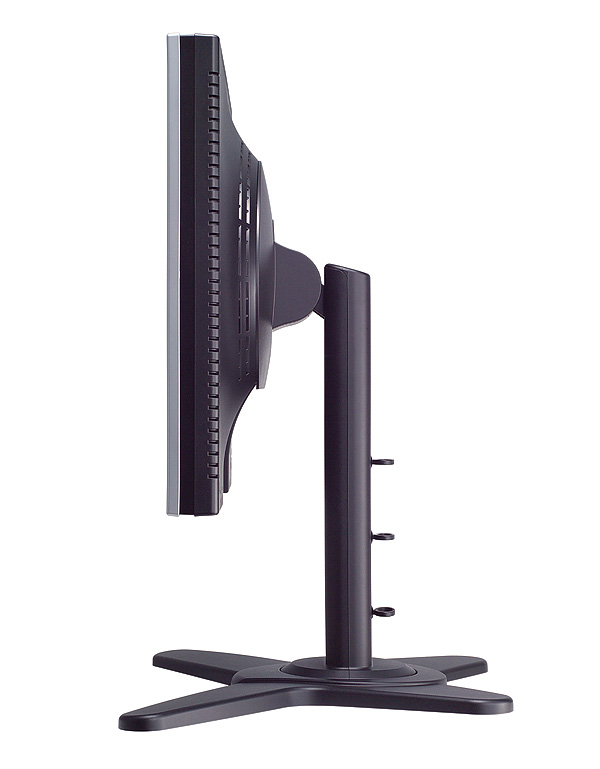

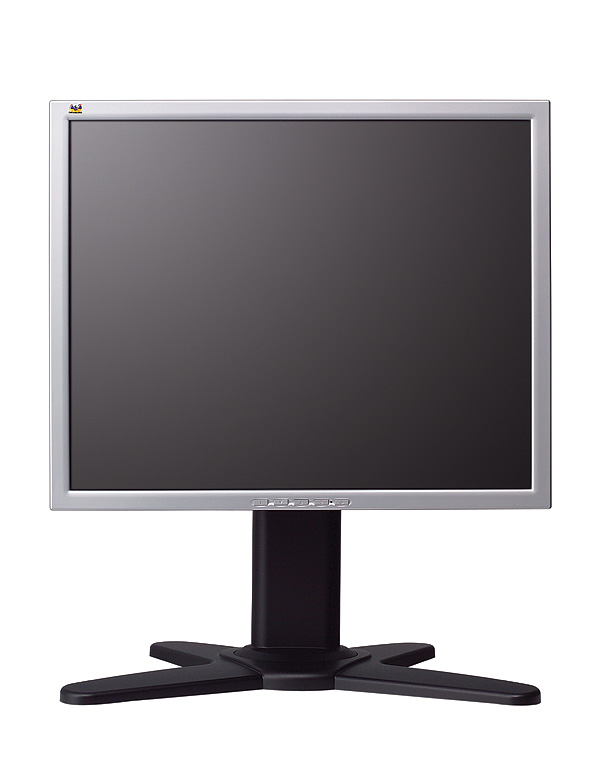

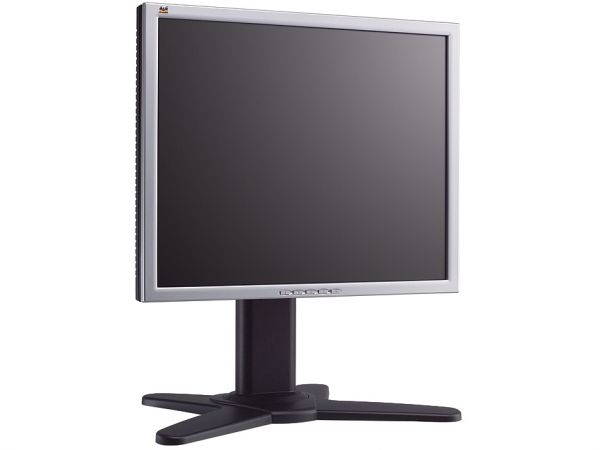

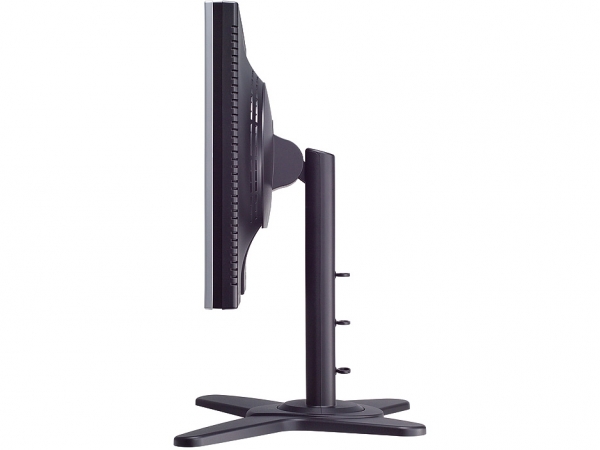

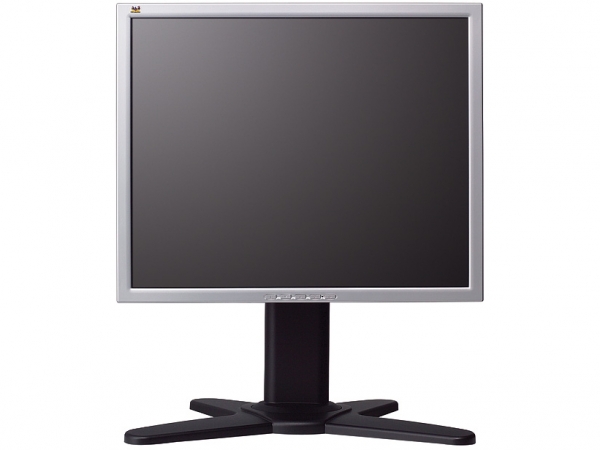

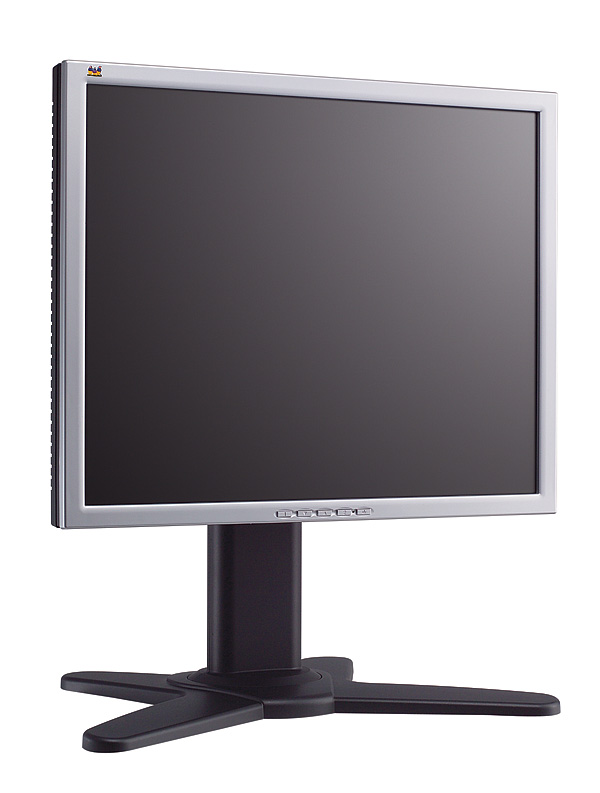

High performance, ergonomics and eye-catching looks go hand in hand with the VP930 LCD monitor. Enjoy crystal-clear digital images with an extremely high 1300:1 contrast ratio, 178° XtremeView™ wide viewing angles and fluid motion thanks to the fast response time. With its attractive
High performance, ergonomics and eye-catching looks go hand in hand with the VP930 LCD monitor. Enjoy crystal-clear digital images with an extremely high 1300:1 contrast ratio, 178° XtremeView™ wide viewing angles and fluid motion thanks to the fast response time. With its attractive
SPECIFICATIONS
- LCDTür: 48cm / 19" MVA colour TFT active matrix SXGA LCD
Kontrast Oranı: 1300:1 (typ.)
Görüntüleme Açıları: 178° horizontal, 178° vertical (at 10:1)
Parlaklık: 300cd/m² (typ.)
Ekran Alanı: 376mm (horizontal) x 301mm (vertical),
483mm diagonal
Optimum Çözünürlük: 1280 x 1024
Yanıt Süresi: 8ms (grey-to-grey), 20ms (off-on-off)
Panel Yüzeyi: Anti-glare
Piksel Aralığı: 0.294mm
Bant Genişliği: 135MHz
Renk Desteği: 16.7M (8bit) - UYUMPC: Compatible from VGA up to 1280 x 1024 non-interlaced (max. 75Hz)
Mac®: Power Mac™ up to 1280 x 1024 (max. 75Hz) - BOYUTLARG x Y X D mm: 412 x 356–491 x 289 (w/stand)
412 x 336 x 61 (w/o stand)
- YÖNETMELİKLERTCO'03, GS, Ergo, ISO 13406-2 (pixel failure class II), TUV-S/IRAM/UL-AR S Mark, UL, cUL, FCC-B (ICES), CB, CE, ICES-003B, NOM, ENERGY, Energy Start, GOSTR, Hygienic, SASO, KTL/MIC, BSMI, CCC, PSB, C-TICK, WEEE
- PAKET İÇERİĞİLCD display, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers/PerfectSuite software), portrait/pivot CD-ROM software
- KONEKTÖRLERAnalog: 2 x 15-pin mini D-sub (detachable cable)
Dijital: DVI-D (detachable cable)
Güç: 3-pin plug (CEE22) - Güç Gerilim: AC 100-240V, 50-60Hz (Auto-Switch), internal power supply
Tüketim : 38 watt (max.), <= 1 watt in suspend mode - KONTROLLERTemel: Soft power, menu [1] , down, up, select [2], main power
OSD: Auto image adjust, contrast, brightness, input select (D-sub 1, D-sub 2, DVI), colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock, memory recall - İŞLETİM KOŞULLARIIsı: 0° to 40°
Nem: 10% to 90% (non-condensing) - AğırlıkNet: 6.8kg (w/ stand);
4.2 kg (w/o stand) - Video GirişiFrekans: DVI-D (TMDS, 100 ohms)
Senk.: H/V separated (TTL), composite, sync on green
Analog: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Dijital: DVI-D (TMDS, 100 ohms) - GÜÇ YÖNETİMİMeets TCO'03, ENERGY and Energy Star standards
- Ergonomik ÖzelliklerEğilme: Down 5°, up 20°
Kendi Etrafında Dönme: 270° (135° left/right)
Yükseklik Ayarı: 0~135mm
Eğme: 0°~90°
