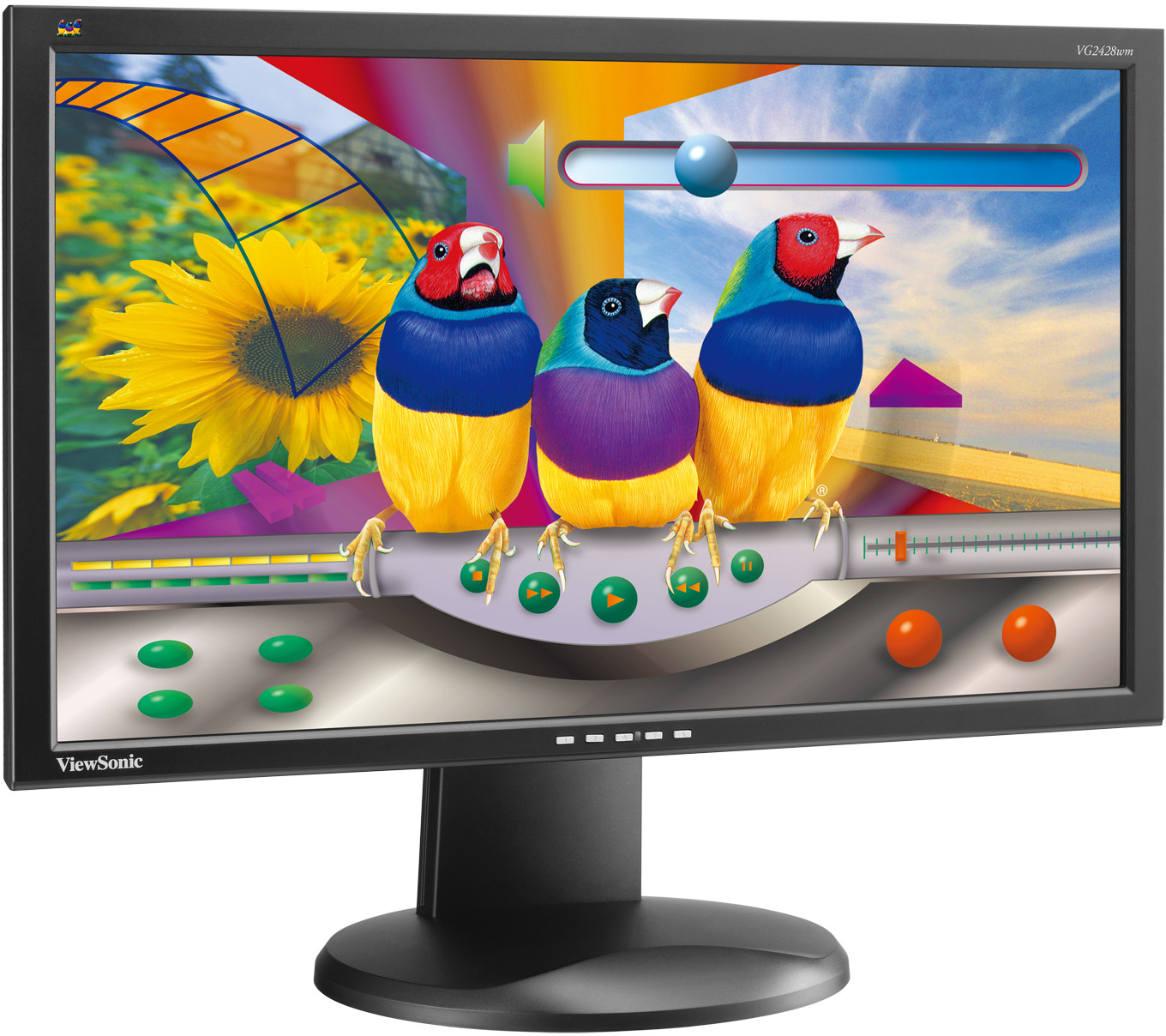

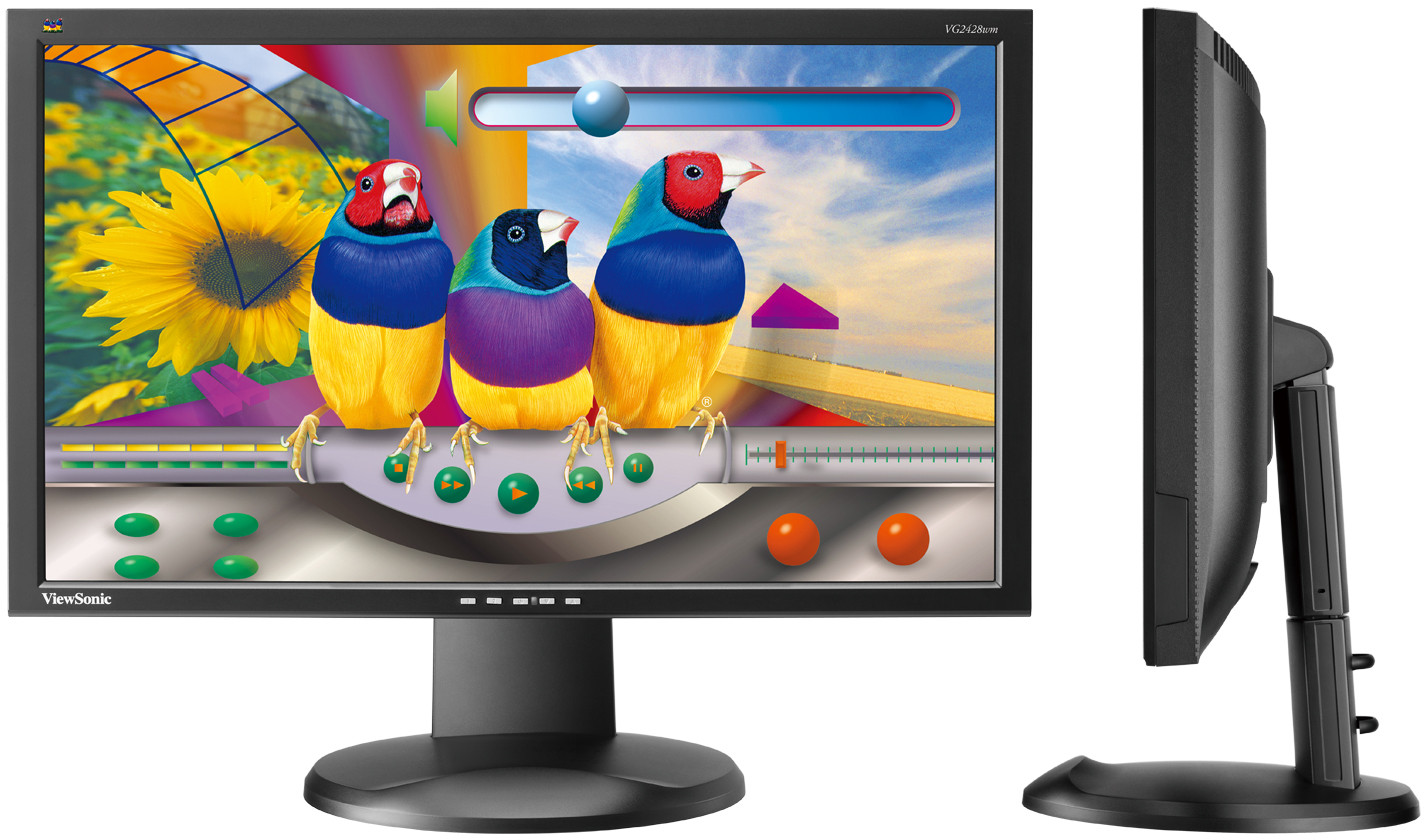

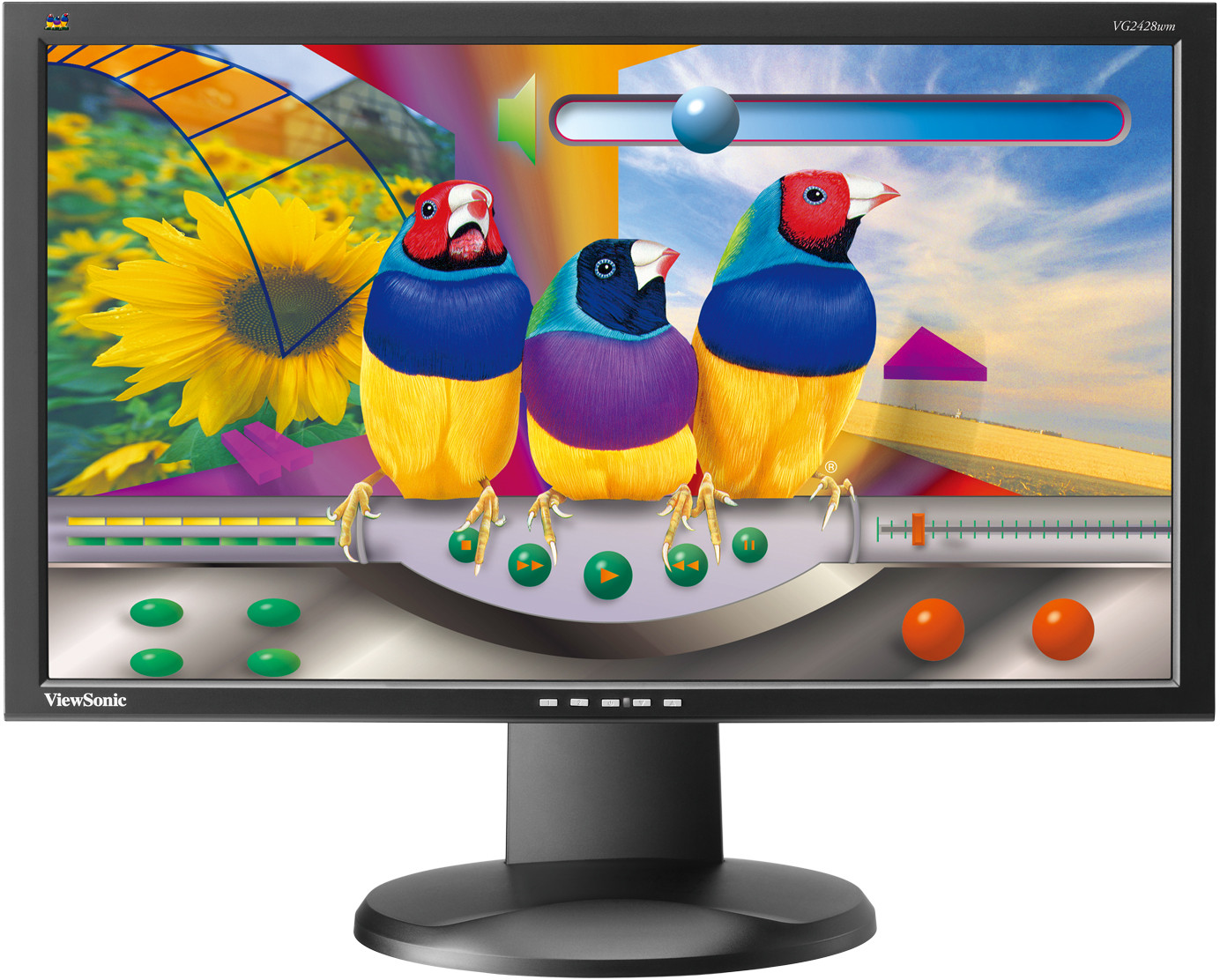

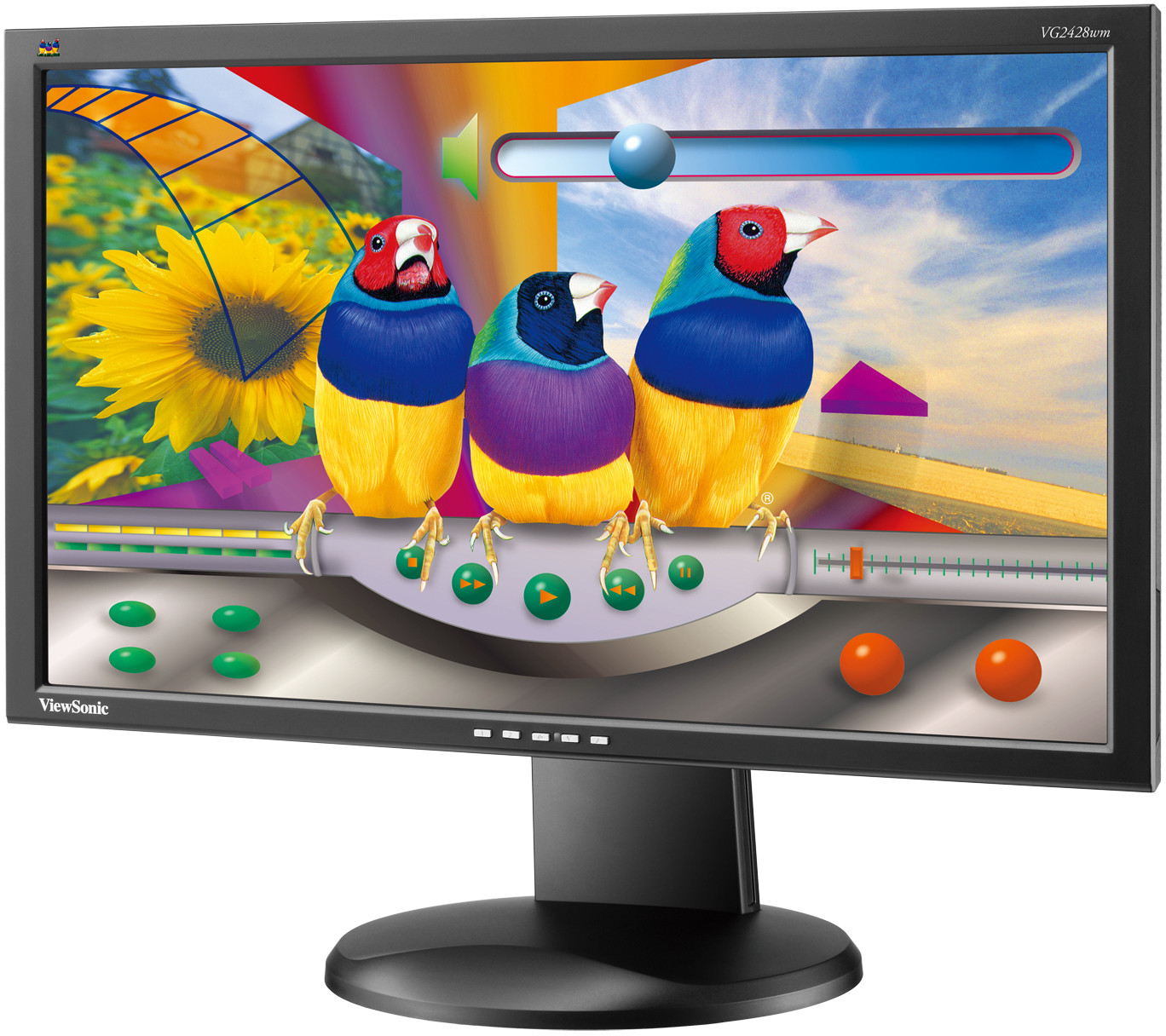

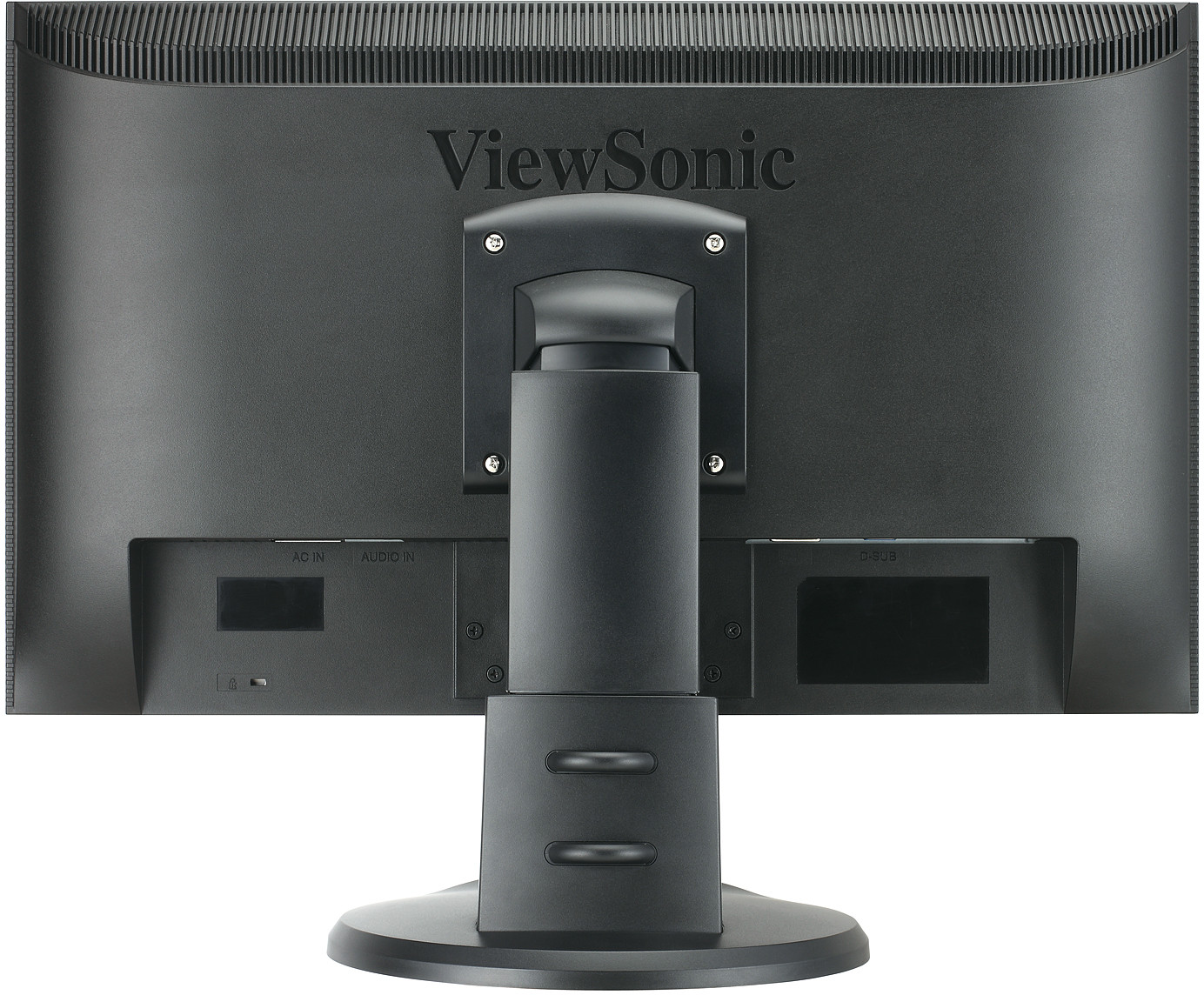

VG2428wm

24" (23.6"/60cm VIEWABLE) WIDESCREEN LCD WITH FULL HD RESOLUTION

Sales Enquiry

GALLERY

Big screen performance for your business

The 24”(23.6”/60cm vieawable) VG2428wm LCD is the big and wide, multimedia solution to your demanding business needs. Featuring Full HD 1920x1080 resolution and 100,000:1 dynamic contrast ratio, this high performance display is ideal for graphics professionals, high-def multimedia visuals and other digital content. The DVI-D connector ensures your high-def content stays high-def, while the USB ports expand your connectivity for greater convenience. The fully adjustable ergonomic base enhances your comfort. The slim bezel allows you to have a large screen on your desk and use minimal space. Demanding professionals will love the feature-packed, high-performance, widescreen VG2428wm.

SPECIFICATIONS

COLORS
Black
LCD
Kontrast Oranı: 1000:1(typical); 100,000:1 dynamic
Görüntüleme Açıları: 170° (H), 160° (V)
Ekran Alanı: 521mm (H) x 293mm (V)
Optimum Çözünürlük: 1920×1080
Yanıt Süresi: 5ms(typical)
Işık Kaynağı: 50,000 hrs(typical)
Panel Yüzeyi: Anti-Glare
Piksel Aralığı: 0.2715mm(H)×0.2715mm(V)
Renk Desteği: 16.7 M(6-bits + Hi FRC)
Boyut: 23.6" wide Color TFT Active Matrix LCD with 16:9 aspect ratio
Parlaklık: 300 cd/m² (typical)
UYUM
PC: VGA up to 1920×1080 non-interlaced
Mac®: Power Mac, up to 1920×1080

BOYUTLAR
Stand İle Birlikte Fiziksel: 564mmx442mmx250mm(22.2"x17.4"x9.8")
Stand Olmadan Fiziksel: 564mmx335mmx67mm(22.2"x13.2"x2.6")
YÖNETMELİKLER
CB, WEEE, ROHS, UL/cUL, FCC-B, IRAM, NOM, ENERGY STAR®
, EPEAT, NEMKO/ERGO,CE, Ukraine, GOST-R+Hygienic ,SASO, BSMI, PSB,
C-TICK, MIC, VCCI, CCC, TCO 5.0
PAKET İÇERİĞİ
DVI-D Cable, Power Cable, Audio cable, USB cable
Giriş
Senk.: H/V Separated
Dijital: DVI-D(TMDS, 100ohms)
Analog: RGB Analog (75 ohms, 0.7/1.0 Vp-p)
Frekans: Fh: 22-82kHz, Fv: 50-75Hz
KONEKTÖRLER
Analog: 15 pin mini D-sub×1
Dijital: DVI-D
USB: down stream x2 / up stream x1
Ses: 3.5 mm Audio in
Güç: Built-in power Adapter, 3-Pin plug
Güç
Gerilim: AC 100-240V(Universal); 50/60Hz(Switch)
Tüketim : 45(Typical)
Eko Mod: Optimize 31W (typ.) / conserve 26W (typ.)
Kayıt Modu (W) : ≦0.5W
KONTROLLER
Temel: Power, Mute,[1], Up[▲], Down[▼], [2]
OnView®: Auto image adjust, Contrast/Brightness, Audio adjust: Volume, mute,
Colour adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user colour [R, G, B]
Information, Manual image adjust: H/V position, Horizontal size,
fine tune, sharpness, dynamic contrast, aspect ratio, Eco mode,
Setup menu: Language select, resolution notice, OSD position, OSD
timeout, OSD background, memory recall
GÜÇ YÖNETİMİ
TCO 5.0, ENERGY STAR®
DUVAR MONTAJI
VESA® 100mmx100mm
Ergonomik Özellikler
Eğilme: 20˚~-5˚
Kendi Etrafında Dönme: 360˚(180 ˚left / 180 ˚right)
Yükseklik Ayarı: 0~135mm
Eğme: 0˚~90˚ clock wise
Ses
Hoparlörler: 2x2 watt
Ağırlık
Brüt: 9.6 kg(21.2 lb)
Net: 7 kg(15.4 lb)
İŞLETİM KOŞULLARI
Nem: 10-90%(Non condensed)
Isı: 32-104°F(0-40°C)
