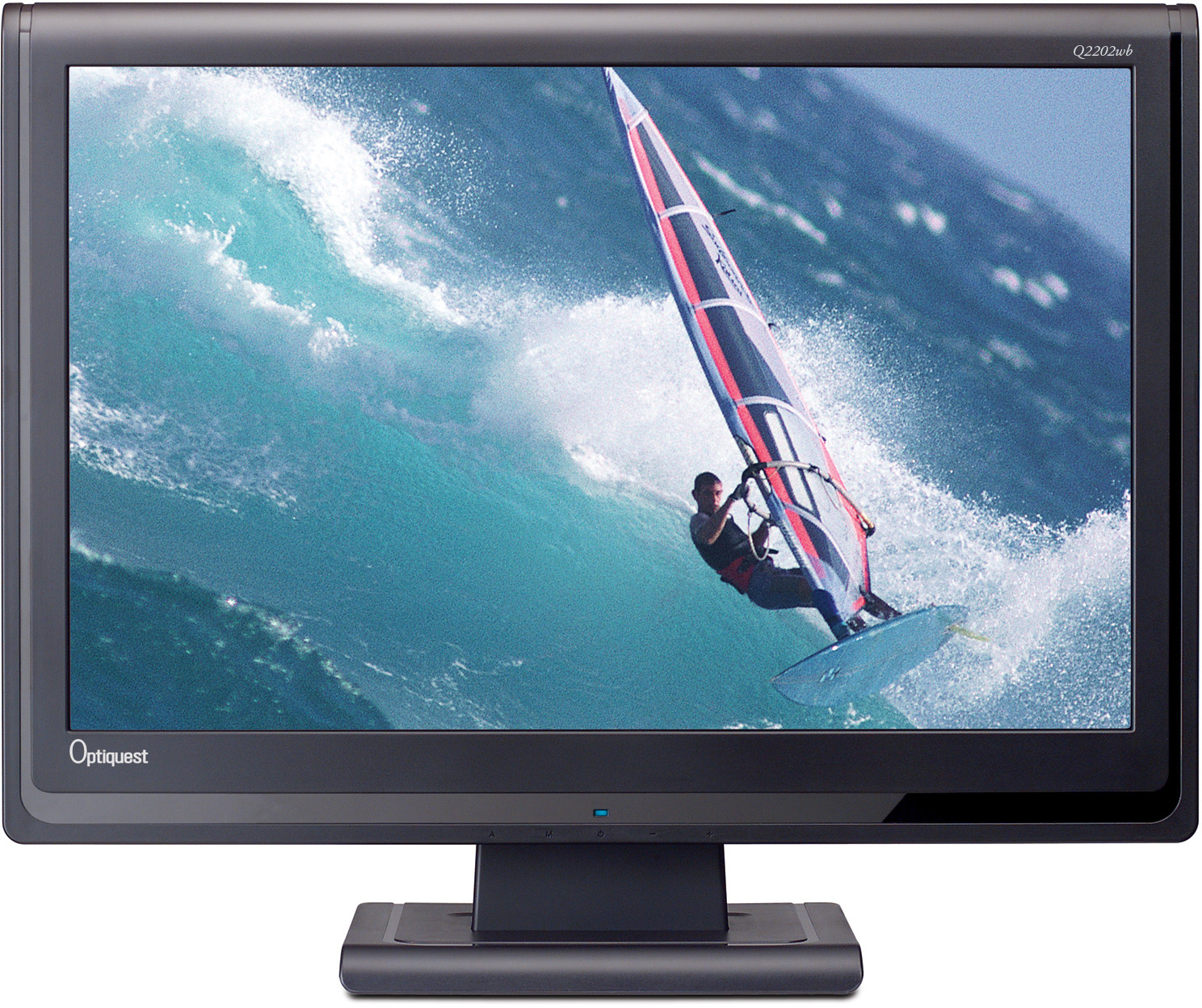

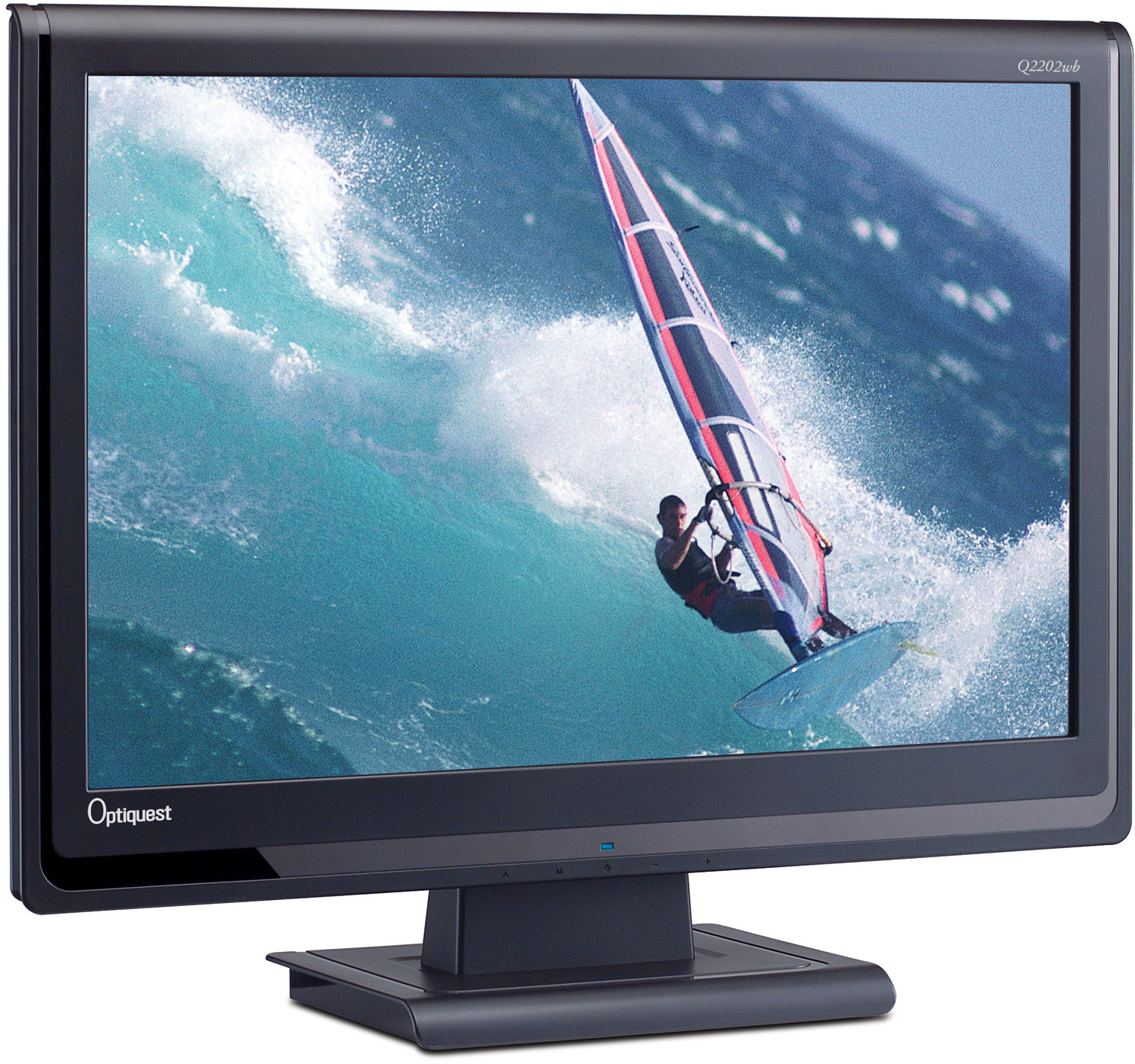

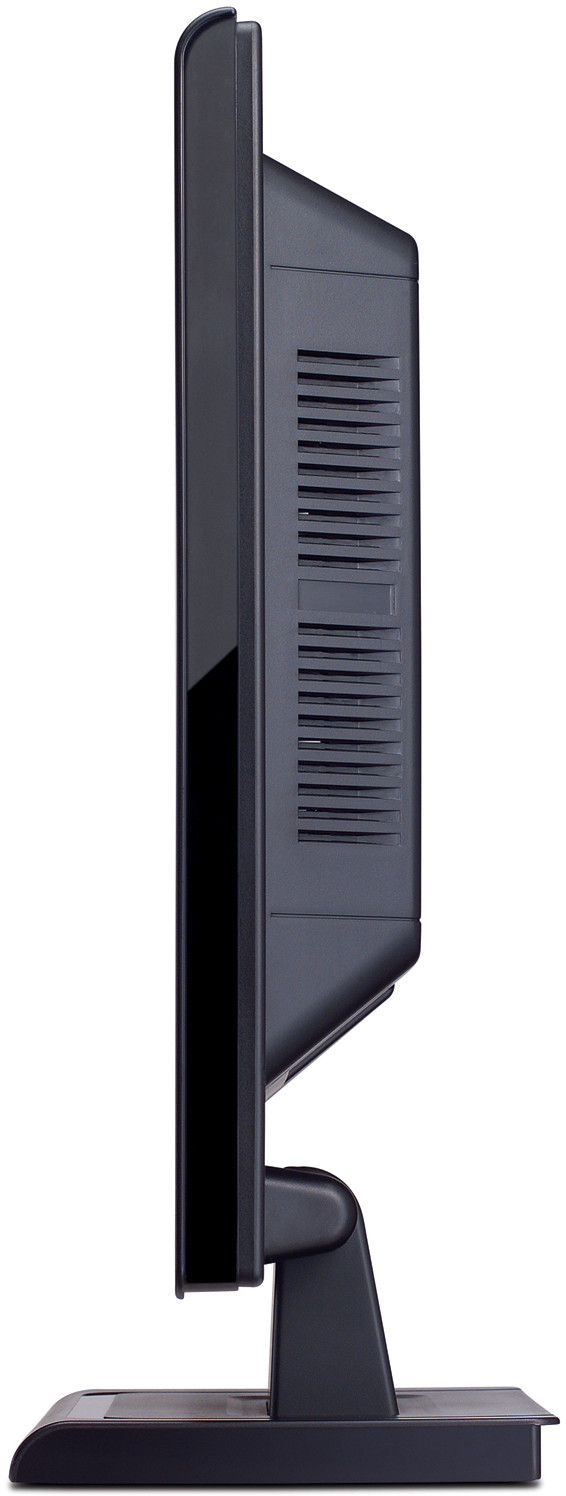

Q2202wb
56 cm / 22" (21.6" VIEWABLE) WIDESCREEN LCD WITH SUPER-FAST 5MS VIDEO RESPONSE
OVERVIEW
The Optiquest® Q2202wb 55 cm / 21.6" widescreen LCD is the big screen choice for users on a budget. You won’t sacrifice performance for price with this display. It combines high brightness and contrast ratio with 5ms video response for CRYSTAL-CLEAR, BLUR FREE VIDEO, TEXT AND GRAPHICS. The super-high 1680x1050 resolution reduces eye fatigue and ensures text and graphics are crisp. The widescreen lets you work in two applications or documents side-by-side, so you get more done in less time. The integrated power supply and VESA® wall-mount compliance reduce clutter and free up valuable desktop real estate. Furnish your desktop in style with the budget-friendly, stylish Q2202wb.Affordable widescreen performance.
SPECIFICATIONS
- COLORSBlack
- LCDTür: 56 cm / 22" (21.6" viewable) color TFT active matrix WSXGA LCD
Kontrast Oranı: 1000:1 (typ)
Görüntüleme Açıları: 170º horizontal, 160º vertical @ contrast ratio > 10:1
170° horizontal, 170° vertial @ contrast ratio 5:1
Parlaklık: 300 cd/m2 (typ)
Ekran Alanı: 46 cm/ 18.3" horizontal x 29 cm / 11.4" vertical; 55 cm / 21.6" diagonal
Optimum Çözünürlük: 1680x1050
Yanıt Süresi: 5ms (typ)
Işık Kaynağı: Long life, 50,000 hrs. (typ)
Panel Yüzeyi: Anti-glare - UYUMPC: VGA up to 1680x1050 (non-interlaced)
Mac®: G3/G4/G5 up to 1680X1050
- BOYUTLARStand İle Birlikte Fiziksel: 526mm x 433mm x 173mm (20.7" x 17.0" x 6.8")
Stand Olmadan Fiziksel: 526mm x 371mm x 75mm (20.7" x 14.6" x 3.0") - YÖNETMELİKLERUL, cUL, FCC-B, NOM, ENERGY STAR®, TUV-S, CE, ISO13406-2 Class II, WEEE, RoHS, GOST-R / Hygenic
- PAKET İÇERİĞİLCD display, power cable, video cable, User Guide
- GARANTİOne-year limited warrranty on parts, labor and backlight
- GERİ DÖNÜŞÜM/ATMAThe lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
- KONEKTÖRLERAnalog: 15-pin mini D-sub
Güç: 3-pin AC plug (CEE22) - Güç Gerilim: AC 100–240V (universal), 50–60Hz (auto switch)
Tüketim : 45W (typ) - KONTROLLERTemel: Power, 2, up, down, 1
OnView®: Auto image adjust, brightness, contrast, color adjust (sRGB, 9300K, 6500K, 5400K, user color), H. position, V. position, H. size, resolution notice, OSD position, OSD timeout, OSD background, fine tune, sharpness, language, input select, recall - İŞLETİM KOŞULLARIIsı: 32-104ºF (0-40ºC)
Nem: 20-80% (non-condensing) - AğırlıkStand İle Birlikte Net: 4.6 kg (10.1 lb. )
Stand Olmadan Net: 4.5 kg (9.8 lb. )
Stand İle Birlikte Brüt: 5.8 kg (12.8 lb. ) - Video GirişiFrekans: Fh: 30~80kHz, Fv: 55~75Hz
Senk.: H/V separated (TTL)
Analog: RGB analog (75 ohms, 0.7 Vp-p) - GÜÇ YÖNETİMİENERGY STAR® standards
- Ergonomik ÖzelliklerEğilme: –5º/+15º
