Your LCD-TV, your desktop monitor

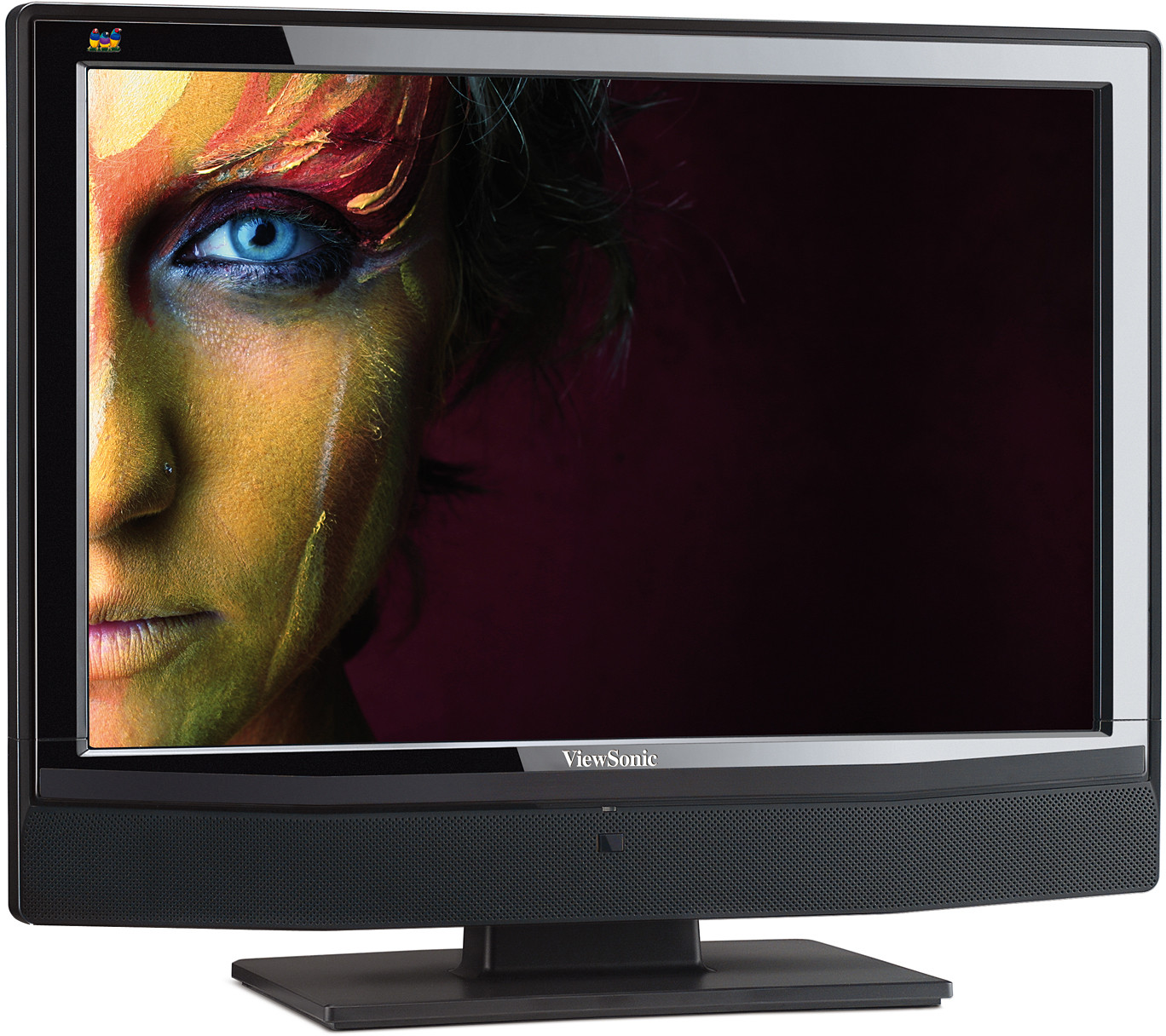

The ViewSonic NX1940w 19” HD ready widescreen is convincing asthe ideal all-in-one display. With a native 16:10 wide aspect ratio, it boasts a larger viewing area and allows for the displaying of movies in their native cinema format. Thanks to the built-in TV tuner and numerous analogue and digital inputs such as HDMI (with HDCP), SCART and PC-VGA, you can watch all your favourite TV channels or connect video sources such as DVD players, games consoles, set-topboxes or your PC system. Equipped with ClearPicture™ technology, the NX1940w astounds with crystal clear images and amazing life-likecolours. The integrated 4-watt audio system sees to a powerful sound experience. Choose the high-performance NX1940w to bring the high definition widescreen experience to any small room.
SPECIFICATIONS
- COLORSBlack
- LCDTür: 48cm / 19" TN colour TFT active matrix WXGA+ LCD
Kontrast Oranı: 800:1 (typ.)
Görüntüleme Açıları: 160° horizontal, 160° vertical (at 10:1)
Parlaklık: 300cd/m² (typ.)
Ekran Alanı: 41.0cm (horizontal) x 25.6cm (vertical), 48.3cm diagonal
Yanıt Süresi: 5ms (off-on-off) (typ.)
Görüntü Oranı: 16:10
Panel Yüzeyi: Anti-glare - UYUMPC: Compatible from VGA up to 1440 x 900 @ 60Hz preferred
Mac®: Power Mac™ up to 1440 x 900 @ 60Hz preferred
- BOYUTLARG x Y X D mm: 478 x 406 x 209 (with base)
620 x 523 x 160 (packaging) - YÖNETMELİKLERCE, CB, GOST, SASO, WEEE, RoHS
- PAKET İÇERİĞİLCD TV, power cables (Europe [Schuko]/UK), 15-pin VGA to component adapter cable, AV cable, 3.5mm PC audio to RCA R/L audio adapter cable, remote control, batteries, quick start guide, user guide (multilanguage)
- SesHoparlörler: 2 x 2 Watt
- KONEKTÖRLERDijital: 1 x HDMI (HDCP)
Ses Girişi : 1 x RCA Audio set L/R for S-video/composite1 x 3.5mm mini stereo jack for component/PC
S-Video: 1 x 4-pin mini DIN jack
Kulaklık: 1 x 3.5mm mini stereo jack
SCART: 1 x SCART² (CVBS, RGB, Audio)
Tuner: 1 x Coax RF (PAL/SECAM)
PC: 1 x 15-pin mini D-sub
Güç: 3-pin plug (CEE22)
Komponent Video: Via 15-pin mini D-sub to 3 x RCA component video adapter - Güç Gerilim: AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply
Tüketim : <65 watt (max.) - KONTROLLERTemel: Power, source, menu, channel up/down, volume up/down
OSD: Picture Menu (contrast, brightness, colour, sharpness, dynamic skin tone, colour temperature, user RGB, preset, phase, clock, auto adjust, info,reset), Audio Menu (volume, balance, bass, treble, AVL, loudness, preset, equalizer, reset), Function Menu (source OSD, language [Danish, English,Finnish, French, German, Italian, Norwegian, Russian, Spanish, Swedish], country, sleep timer, teletext language, reset), TV Setup Menu (autosearch, colour system, frequency, AFC, channel skip, channel name,channel select, reset) - İŞLETİM KOŞULLARIIsı: 32-104ºF (0-40ºC)
Nem: 10% - 85% (non-condensation) - AğırlıkNet: 5.8kg (with base) 5.1kg (without base)
Brüt: 8.1 kg - DUVAR MONTAJIVESA FDMI 100mm x 100mm (M4.0 x 10mm screws)
- TELETEXTYes (10 pages)
- Video GirişiPAL, SECAM, NTSC³, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
