OVERVIEW
ViewSonic’s new CDP6530 full HD commercial display with 1920x1080p, 500 nits (typ) panel with 20,000:1 dynamic contrast ratio. Additional features include versatile inputs – HDMI, DVI, VGA, S-video and composite, YPbPr (BNC) with built in 12Wx2 speakers and 12Wx2 speaker output connections. The CDP6530 can be used to make up to a 10x10 display video wall applications and automatic scheduler. RS232 daisy chain and DDC/CI is also provided for remote control. VGA and composite video output is also provided for video loop through applications.Advanced ClearPicture™ – Clearer, Crisper, Sharper Images
Advanced ClearPicture™ image processing eliminates noise, increasescontrast and detail and optimizes colour for rich, vibrant images.High-definition images look amazing and even standard television imagesare unbelievably smooth and sharp.Vivid Graphics, Clear Text
Ultra-high brightness of 500 nits (typ), contrast ratio of 20,000:1, and1920x1080 full HD optimum resolution provide vibrant video and crispdata, all while using up to 35% less power* than standard CCFL displays.Special Features
Expand Your Options with Plug-and-Play Connectivity
Versatile inputs include – HDMI, DVI, VGA, YPbPr, CVBS (BNC) S-video andcomposite video. RS232 daisy-chain capable."
SPECIFICATIONS
- COLORSBlack
- LCDTür: 65" (64.6" viewable) color TFT active matrix, wide LCD
Kontrast Oranı: 5000:1 (typ)
Görüntüleme Açıları: 178º horizontal, 178º vertical
Parlaklık: 500 cd/m2 (typ)
Ekran Alanı: 56.2" horizontal x 31.6" vertical; 64.6" diagonal
Optimum Çözünürlük: 1920x1080, 600mm dot pitch
Yanıt Süresi: 8ms
Işık Kaynağı: Long life, 50,000 hrs. (typ)
Görüntü Oranı: 16:9
Panel Yüzeyi: Anti-glare, hard coating (3H) - BOYUTLARFiziksel (GxYxD): 59.3" x 35.4" x 5.3" (W x H x D) (1500mm x 900mm x 136mm)
- YÖNETMELİKLERFCC, ICES003, UL, cUL, CE, CB, ENERGY STAR®, RoHS
- PAKET İÇERİĞİLCD display, power cable, remote control with batteries,
User Guide CD - SesAmplifikatör: 12-watt / 8 ohm

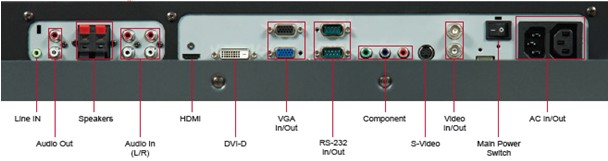

- GirişVideo Girişi: HDMI, DVI, component, VGA, S-video, CVBS (BNC)
Video Çıkışı: VGA, component, DVI (Loop through)
Control Input/Output: RS-232 - GİRİŞ SİNYALİTV/Video komp.: 480i, 480p, 720p, 1080i, 1080p
- KONEKTÖRLERDijital: HDMI, DVI, S-video YPbPr, CVBS
Güç: 3-pin plug
Analog: 15-pin mini D-sub (VGA) - Güç Gerilim: AC 100–240V (universal), 50–60Hz
Tüketim : 520W (typ) - KONTROLLERResim: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
Ön Panel: Power, Exit, +, –, Menu/Enter
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position
Audio: Volume, mute, audio source - MEVCUT OPSİYONEL AKSESUARLARStand (optional), Wall Mount (WMK-013),
Wall Mount with Locking Media Player Cradle (WMK-028) - DUVAR MONTAJIVESA 200mm x 400mm, 400mm x 400mm
- AğırlıkBrüt: 176.4 lb. (80.0 kg)
Net: 154.3 lb. (70.0 kg) - İŞLETİM KOŞULLARINem: 20–90% (non-condensing)
Temperature (landscape): 32–104ºF (0–40ºC)
Temperature (portrait): 41–95ºF (5–35ºC) - AUDIO OUTSpeakers: Internal 12-watt (x2)
- RECYCLE/DISPOSALThe lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws. - Çözünürlük640 x 480 at 60 Hz to 75 Hz
800 x 600 at 60 Hz, 60Hz to 75 Hz
1024 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 768 at 60 Hz, 60Hz to 75 Hz
1360 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 1024 at 60Hz
1600 x 1200 at 60 Hz
1920 x 1080 at 60Hz (recommended resolution)
NTSC, SECAM, 4.43 NTSC
Component: 480i,480p,720p,1080i,1080p
