OVERVIEW
ViewSonic’s new CDP4635 Full HD Commercialdisplay features a FHD 1920x1080panel with 4000:1contrast and Intel’s Open Pluggable Specification(OPS) for applications requiring an integrated mediaplayer. Additional features include versatile inputs –HDMI, DVI, VGA, S video and composite, YPbPr andbuilt in 10W x 2 speakers. The CDP4635 will supportup to a 5x5 display video wall with internal clock andscheduler. RS232 daisy chain and RJ45 are providedfor automated remote control.1. Full-HD (1080p)-, 9 ms-Panel für lebendige Videos und kristallklare Bilder2. Schmaler 16,3-mm-Rahmen3. Kompatibilität mit Intel OPS-Mediaplayer4. Videowände mit bis zu 5 x 5 Displays5. Daisy-Chain-fähig über RS-2326. VGA- und DVI-Ein- und -Ausgänge für flexible Anschlussmöglichkeiten und Steuerung7. Sperre der Fernbedienung und Panel-Bedienelemente8. Ein- und Abschaltplanung für 7-Tage-Perioden9. RJ45-Fernbedienungsanschluss mit Echtzeituhr und Ein/Aus-Zeitgeber10- Anwendungsbereiche:- Menütafeln in Schnellrestaurants- Öffentlicher Verkehr: Ankunfts-und Abfahrtszeiten- Digitale Außenwerbung- Hinweistafeln in Universitäten- Hotels und Sportlokale

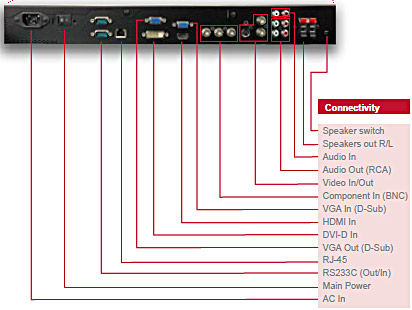

Anschlüsse
LautsprecherschalterLautsprecherausgang R/LAudioeingangAudioausgang (RCA)Videoein-/-ausgangComponent-Eingang (BNC)VGA-Eingang (D-Sub)HDMI-EingangDVI-D-EingangVGA-Ausgang(D-Sub)RJ-45RS233C (Ein-/Ausgang)NetzschalterWechselstromanschluss
SPECIFICATIONS
- COLORSBlack
- LCDTür: 46" color TFT active matrix, wide LCD
Kontrast Oranı: 4000:1 (typ)
Görüntüleme Açıları: 178º horizontal, 178º vertical
Parlaklık: 400 cd/m2 (typ)
Ekran Alanı: 40" horizontal x 22.5" vertical; 46" diagonal
Optimum Çözünürlük: 1920x1080, 530mm dot pitch
Yanıt Süresi: 8ms
Işık Kaynağı: 50,000 hrs. (typ)
Görüntü Oranı: 16:9
Panel Yüzeyi: Anti-glare, hard coating (3H) - BOYUTLARStand İle Birlikte Fiziksel: 43" x 26.8" x 13"
(1091.1mm x 681.7mm x 328.3mm)
Stand Olmadan Fiziksel: 43" x 25.4" x4.7"
(1091.1mm x 645.7mm x 120.1mm)
- YÖNETMELİKLERFCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
- PAKET İÇERİĞİLCD display, power cable, remote control with batteries, User Guide CD
- GirişVideo Girişi: HDMI, DVI, component, VGA, S-Video, composite
Video Çıkışı: VGA, component, DVI
Control Input/Output: RS-232/RJ45 - GİRİŞ SİNYALİTV/Video komp.: 480i, 480p, 720p, 1080i, 1080p
- KONEKTÖRLERDijital: HDMI, DVI
Güç: 3-pin plug
Analog: 9-pin mini D-sub (VGA) - Güç Gerilim: AC 100–240V (universal), 50–60Hz
Tüketim : 220W (typ) - KONTROLLERResim: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
Ön Panel: Power, Exit, +, –, Menu/Enter
OSD: Languages, OSD H. position, OSD V. position, OSD timer
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: VGA, DVI, HDMI, YPbPr
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position
Audio: Volume, mute, audio source - AğırlıkNet Standla: 58.1 lb. (26.5 kg)
Net Standsız: 57.3 lb. (22.6 kg)
Gross With Stand: 68.3 lb. (31 kg) - İŞLETİM KOŞULLARINem: 20–80% (non-condensing)
Temperature (landscape): 41–104ºF (5–40ºC)
Temperature (portrait): 41–95ºF (5–35ºC) - AUDIO OUTSpeakers: 2 x 10w
- RECYCLE/DISPOSALThe lamp in this product contains mercury. Please dispose of in
accordance with local, state or federal laws.
