OVERVIEW
The ViewSonic® CDP4237-L commercial displayfeatures Full HD 1920x1080p IPS panel technology,fast 120Hz response, and 50,000:1 dynamic contrastratio. Slim ID design, combined with 27.6mm bezel widthmakes the CDP4237-L an ideal large screen solutionfor your digital signage application. Additional featuresinclude versatile inputs – HDMI, DVI, VGA, YPbPr andbuilt-in media player utilizing USB storage. Other keyfeatures include up to 5x5 tiling for video walls andVGA and DVI loop through support.1 - 1080p 12ms LED panel for vibrant images using up to 35% lesspower* than standard CCFL displays.
2 - 28mm slim bezel with 5x5 display video wall capability.
3 - Built-in Media Player / USB storage.
4 - Versatile inputs include – HDMI, DVI, VGA, DP (Display Port),YPbPr, and CVBS.
5 - Designed for 24/7 operation with 3-year limited warranty.
6 - 120Hz (MEMC) 450 nits brightness with 50,000:1 DCR.
7 - RS-232 daisy-chain capable.
8 - Remote and panel control lock out.
9 - Installation options include stand or VESA® wall mount.
10 - TAA Compliant
11 - Applications
- Retail Advertising - DOOH
- Transportation - Arrival/Departure
- Hospitality / Sports Bars
- Educational Signage
- Video Walls
Resolutions Supported
640 x 480 at 60 Hz to 75 Hz800 x 600 at 60 Hz, 60 Hz to 75 Hz
1024 x 768 at 60 Hz, 60 Hz to 75 Hz
1280 x 960 at 60 Hz, 60 Hz to 75 Hz
1366 x 768 at 60 Hz
1280 x 1024 at 60 Hz
1680 x 1050 at 60 Hz
1920 x 1080 at 60 Hz
(recommended resolution)
NTSC, PAL, SECAM, 4.43 NTSC, PAL 60
Component: 480i, 480p, 720p, 1080i, 1080p
SPECIFICATIONS
- COLORSBlack
- LCDTür: 42" color TFT active matrix, wide LED
Kontrast Oranı: 1300:1 (typ)
Görüntüleme Açıları: 178º horizontal, 178º vertical
Parlaklık: 450 cd/m2 (typ)
Ekran Alanı: 36.6" horizontal x 20.6" vertical; 42" diagonal
Optimum Çözünürlük: 1920x1080, 0.485mm dot pitch
Yanıt Süresi: 12ms
Görüntü Oranı: 16:9
Panel Yüzeyi: Anti-glare, hard coating (3H) - BOYUTLARFiziksel (GxYxD): 39" x 23" x 1.5"
(991.7mm x 584.3mm x 37.5mm)
- YÖNETMELİKLERFCC, ICES003, UL, cUL, CE, CB, RoHS, PSB, C-tick, BSMI, GOST-R
- PAKET İÇERİĞİLCD display, power cable, remote control with batteries, User Guide CD
- SesAmplifikatör: 10-watt / 8 ohm x2
- GirişVideo Girişi: HDMI, DVI, component, VGA, DP (Display Port)
Video Çıkışı: VGA, component, DVI (Loop through)
Control Input/Output: RS-232/RJ45 - GİRİŞ SİNYALİTV/Video komp.: 480i, 480p, 720p, 1080i, 1080p

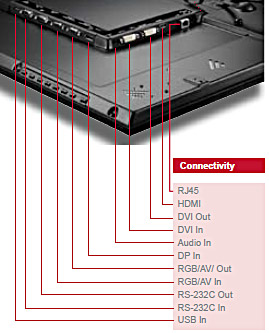

- KONEKTÖRLERDijital: HDMI, DVI, DP, RGB, A/V, Component
Güç: 3-pin plug
Analog: 9-pin mini D-sub (VGA) - Güç Gerilim: AC 100–240V (universal), 50–60Hz
Tüketim : 115W (typ) - KONTROLLERResim: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
Ön Panel: Power, Exit, +, –, Menu/Enter
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: VGA, DVI, HDMI, YPbPr, DP
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position
Audio: Volume, mute, audio source - MEVCUT OPSİYONEL AKSESUARLARStand (STND-019), Wall Mount (WMK-013), Wall Mount with Locking Media Player Cradle (WMK-028), Speaker (SPK-012)
- DUVAR MONTAJIVESA 400mm x 400mm
- AğırlıkBrüt: 34.8 lb. (15.8 kg)
Net: 27.8 lb. (12.6 kg) - İŞLETİM KOŞULLARINem: 10–80% (non-condensing)
Temperature (landscape): 32–104ºF (0–40ºC)
Temperature (portrait): 41–95ºF (5–35ºC) - RECYCLE/DISPOSALPlease dispose of in accordance with local, state, or federal laws.
