OVERVIEW

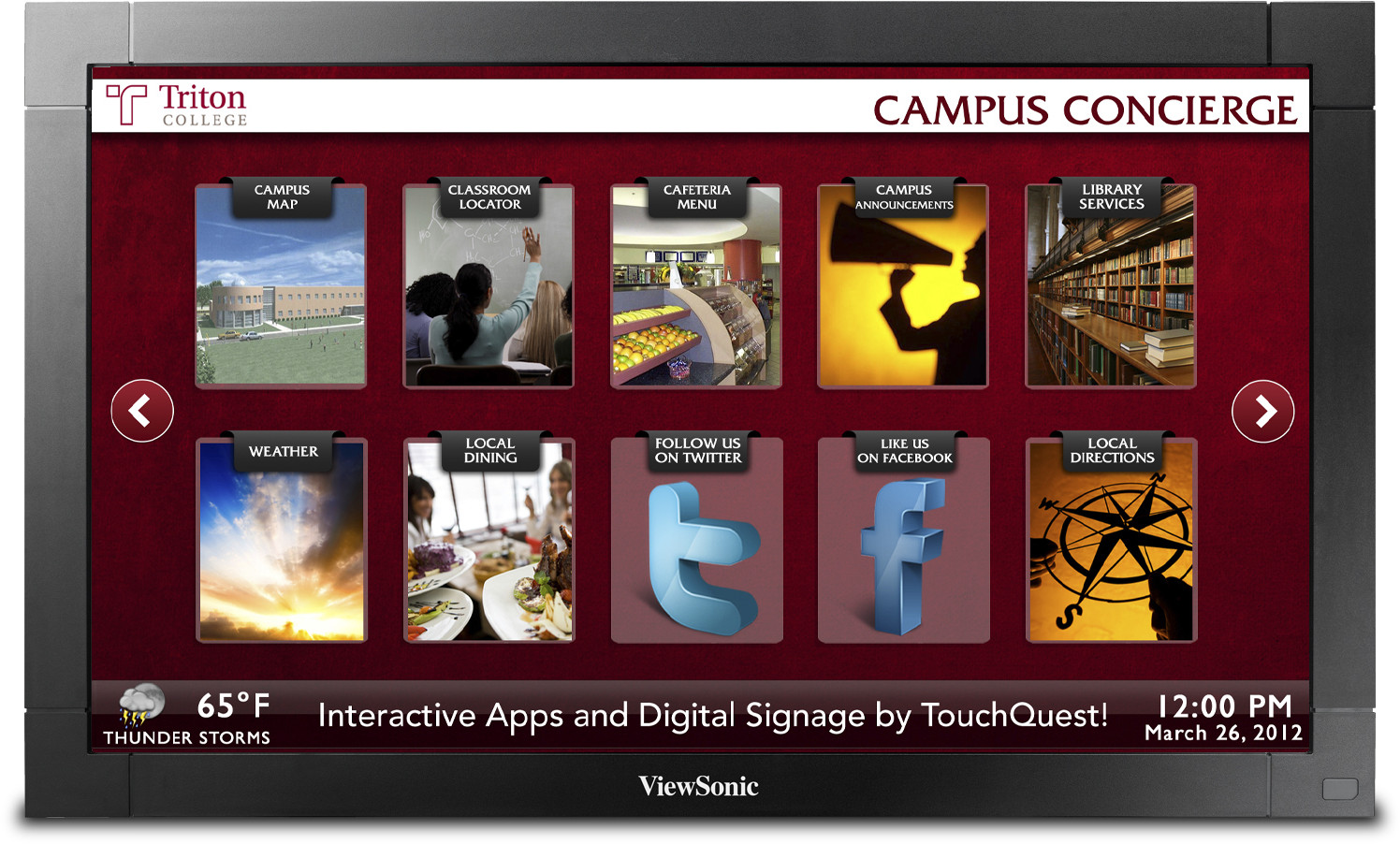

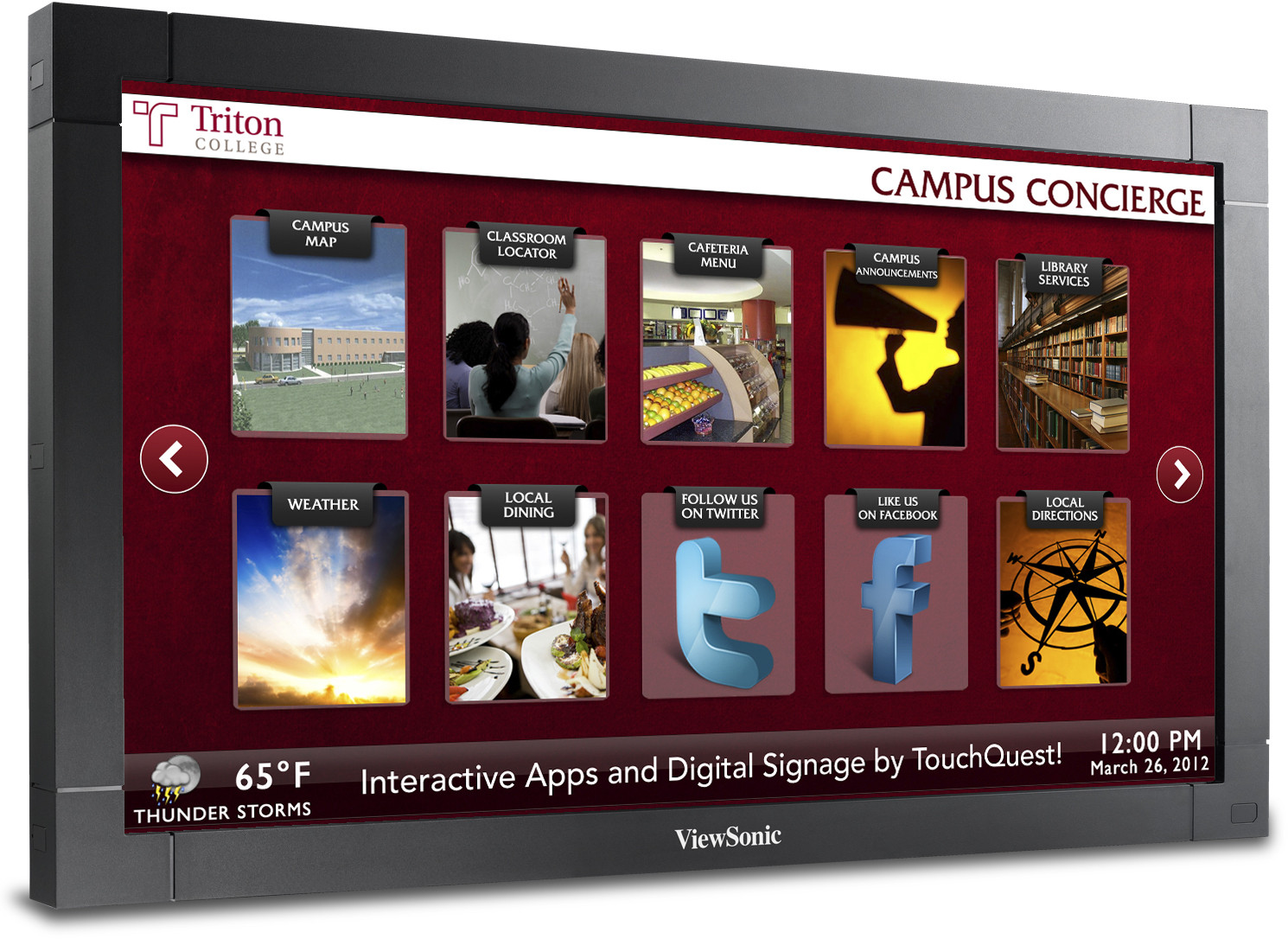

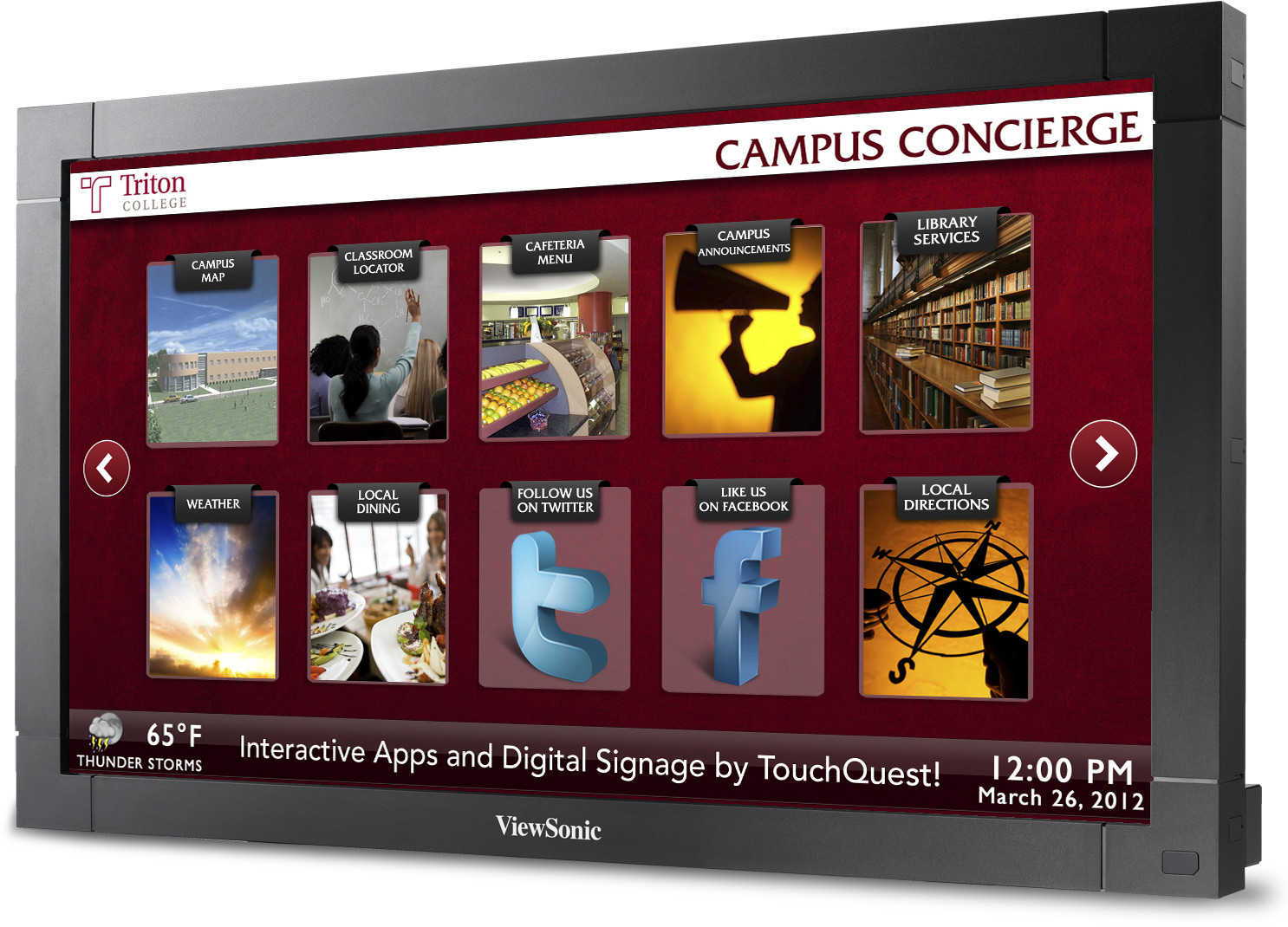

The ViewSonic® CDP4235-T Full HD Touch Commercial Display features a 1920x1080p panel with a 4000:1 contrast ratio and Intel’s Open Pluggable Specification (OPS) for applications requiring an integrated media player. Additional features include versatile inputs – HDMI, DVI, VGA, S-Video and composite, YPbPr and built-in 10W x2 speakers. The CDP4235-T will support up to a 5x5 display video wall with internal clock and scheduler. RS-232 daisy chain capable and RJ-45 are provided for remote control.4 Point Optical Touch for Clearer, Sharper Images
Optical sensors allow for very light touch, making it perfect for high usageenvironments. Surface overlays are not necessary, which helps to create acrystal clear image.Vivid Graphics, Clear Text
Ultra-high brightness of 450 nits (typ), contrast ratio of 4,000:1,and 1920x1080 full HD optimum resolution provide vibrant videoand crisp data.Applications:
Expand Your Options with Plug-and-Play Connectivity
Versatile inputs include – HDMI, DVI, VGA, YPbPr, CVBS (BNC) S-videoand composite video. RS-232 daisy-chain capable
SPECIFICATIONS
- LCDTür: 42" color TFT active matrix, wide LCD
Kontrast Oranı: 4000:1 (typ)
Görüntüleme Açıları: 178º horizontal, 178º vertical
Parlaklık: 450 cd/m2(typ)
Ekran Alanı: 36.6" horizontal x 20.6" vertical; 42" diagonal
Optimum Çözünürlük: 1920x1080, 435mm dot pitch
Yanıt Süresi: 8ms
Işık Kaynağı: Long life, 50,000 hrs. (typ)
Görüntü Oranı: 16:9
Panel Yüzeyi: Anti-glare, hard coating (3H) - BOYUTLARStand İle Birlikte Fiziksel: 39" x 25.4" x 11.2" / 991.6 x 621 x 328.8mm
Stand Olmadan Fiziksel: 39" x 25.5" x1.5" / 991.6 x 115.5 x 25.5mm
Kutu İle Birlikte: 44.8" x 29.3" x12" / 1139 x 743 x 305.2 mm - YÖNETMELİKLERFCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
- PAKET İÇERİĞİLCD display, power cable, remote control with batteries, User Guide CD

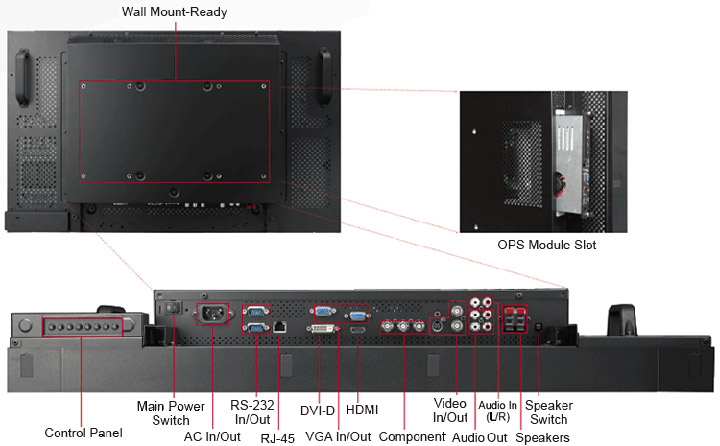

- GirişVideo Girişi: HDMI, DVI, component, VGA, S-Video, composite
Video Çıkışı: VGA, component, DVI
Control Input/Output: RS-232/RJ45 - GİRİŞ SİNYALİTV/Video komp.: 480i, 480p, 720p, 1080i, 1080p

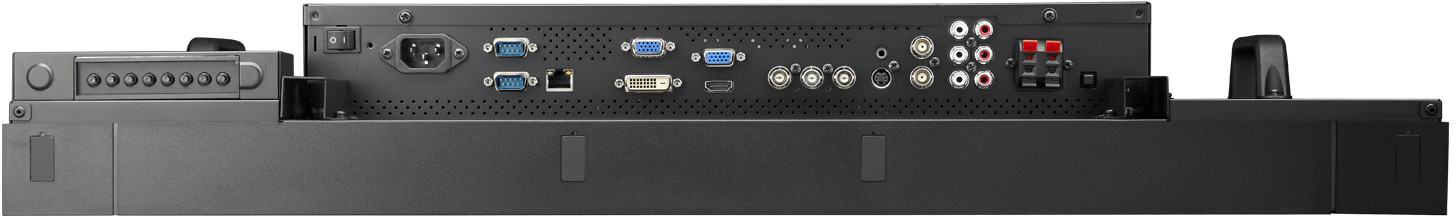

- KONEKTÖRLERDijital: HDMI, DVI
Güç: 3-pin plug
Analog: 9-pin mini D-sub (VGA) - Güç Gerilim: AC 100–240V (universal), 50–60Hz
Tüketim : 210W (typ) - KONTROLLERResim: Picture mode, contrast, brightness, color temperature, temperature adjust, sharpness
Ön Panel: Power, Exit, +, –, Menu/Enter
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: VGA, DVI, HDMI, YPbPr
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position

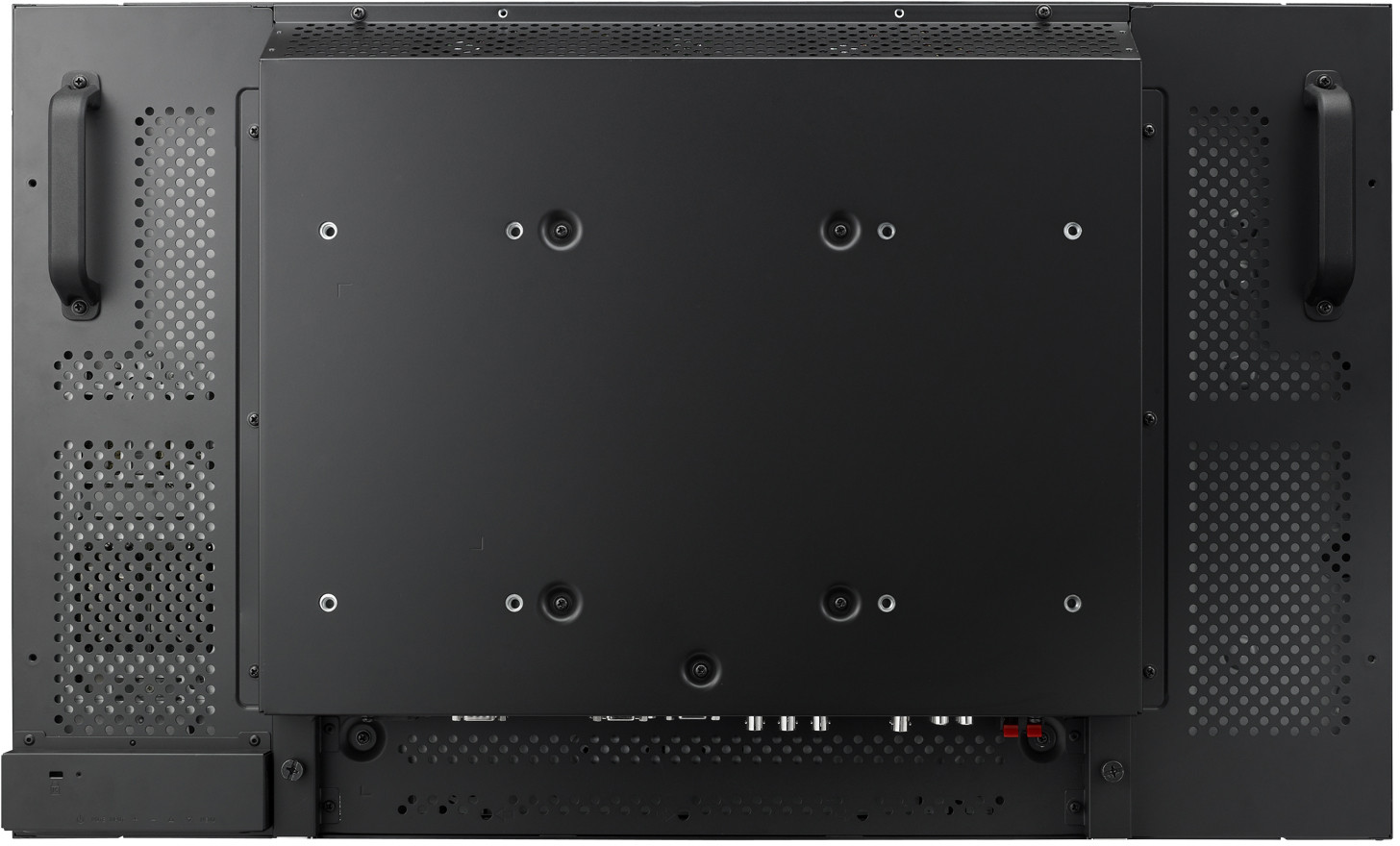

Audio: Volume, mute, audio source - DUVAR MONTAJIVESA® 400mm x 200mm, 200mm x 200mm
- AğırlıkBrüt: 61.7 lb. / 28 kg
Net: 50.7 lb. / 23 kg - İŞLETİM KOŞULLARINem: 10–80% (non-condensing)
Temperature (landscape): 32–104ºF (5–40ºC)
Temperature (portrait): 32–95ºF (5–35ºC) - AUDIO OUTSpeakers: Internal 10-watt (x2)
- RECYCLE/DISPOSALThe lamp in this product contains mercury. Please dispose of in
accordance with local, state or federal laws.
