Greener Environment, Better Work Performance

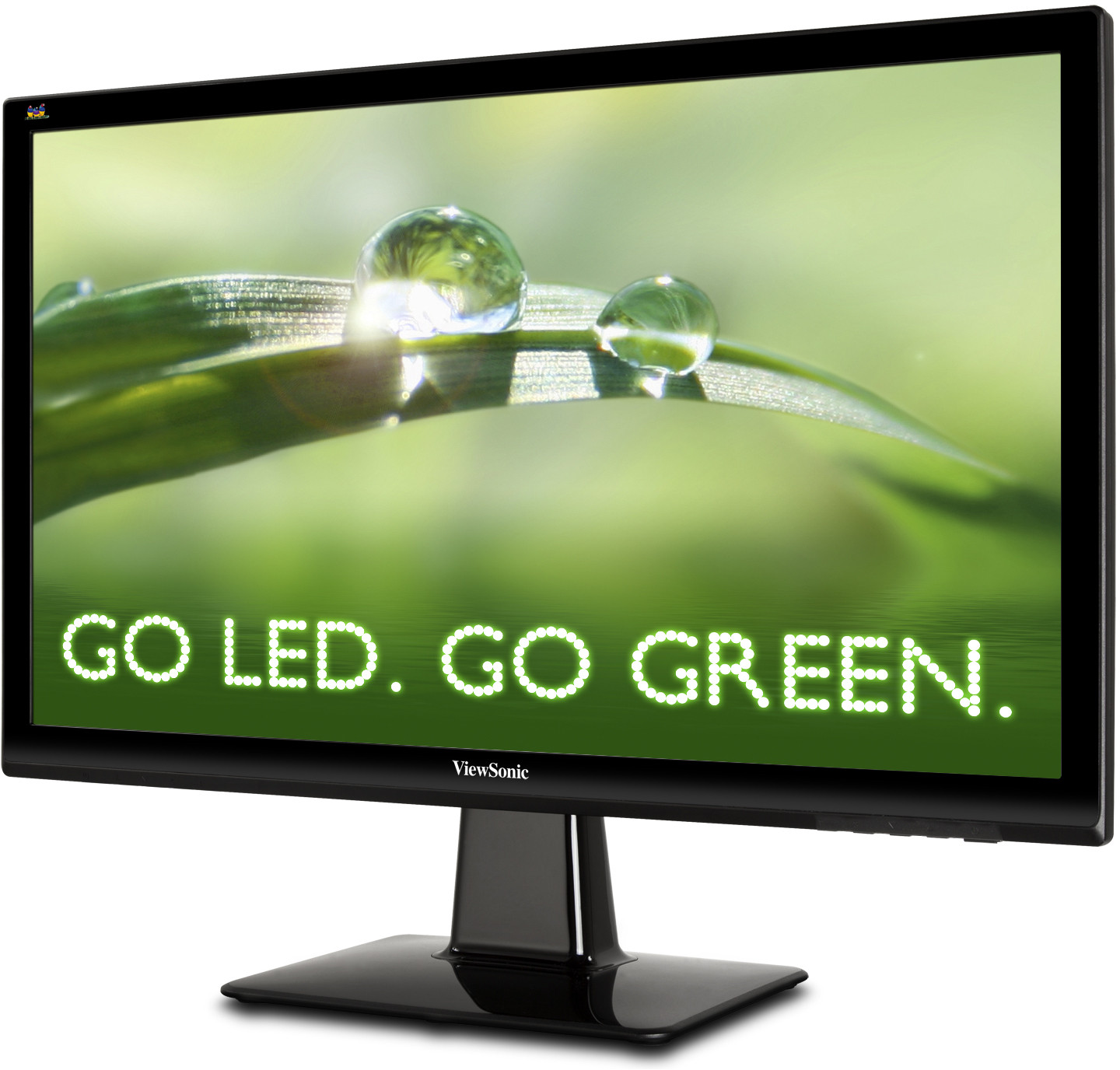

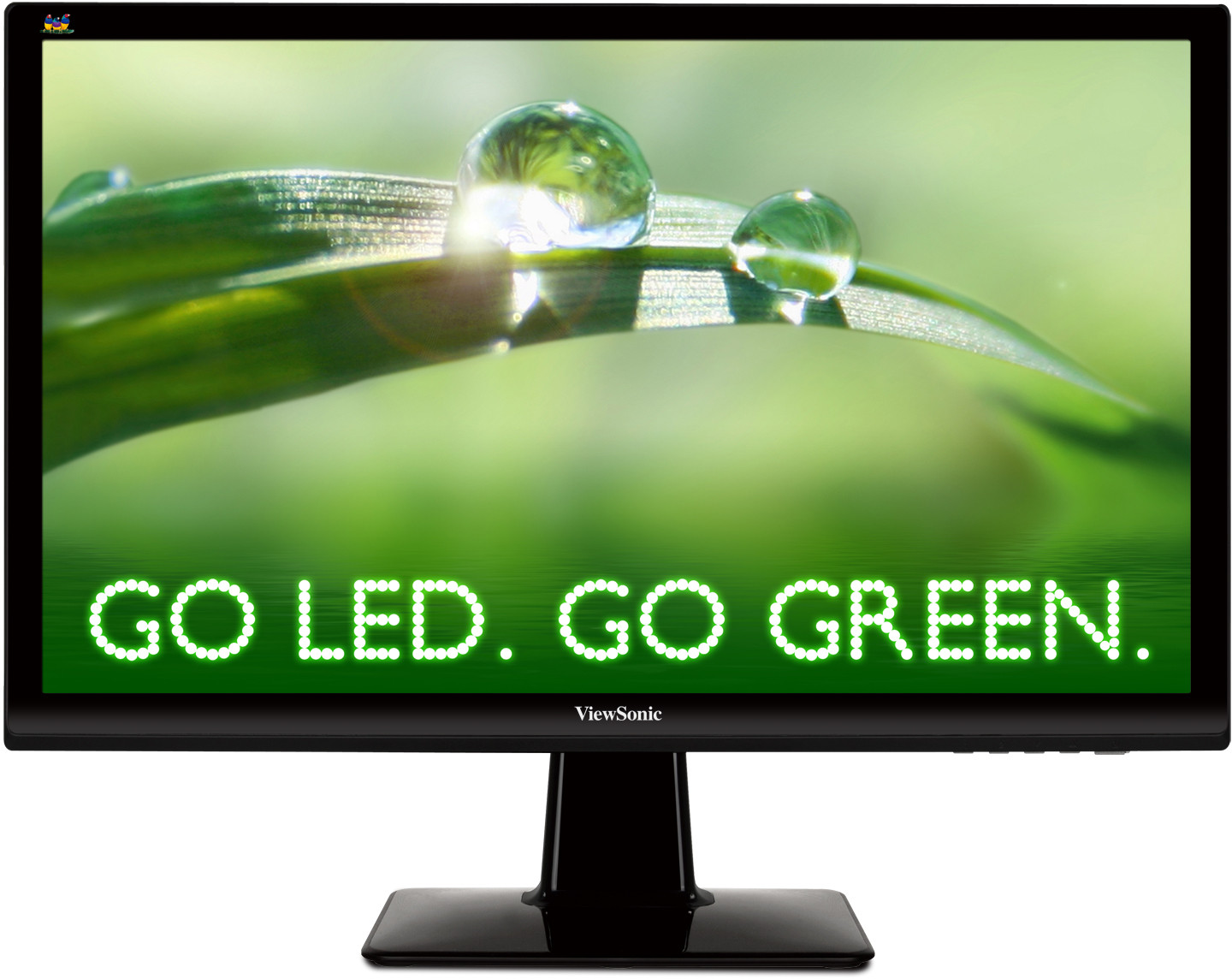

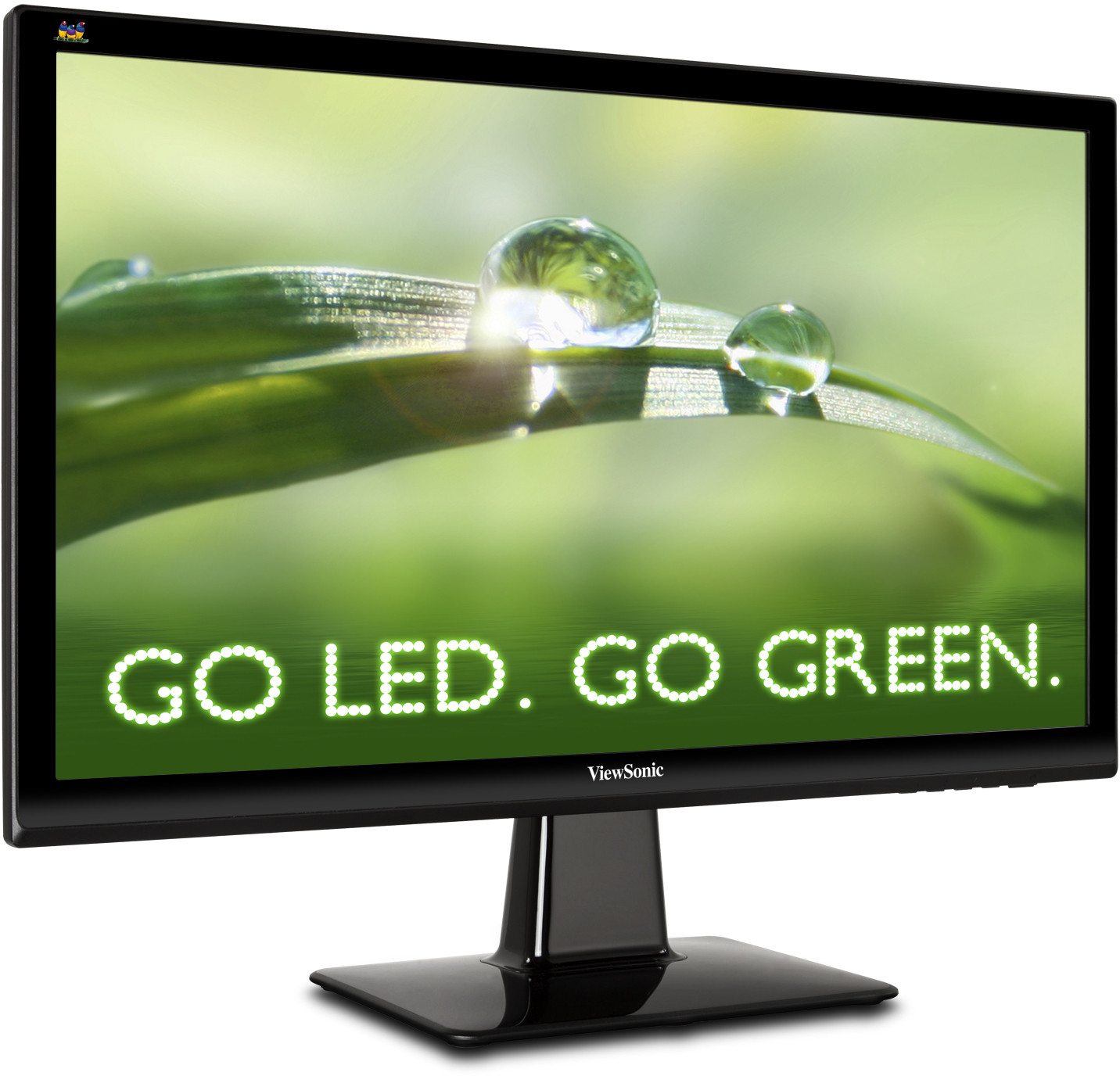

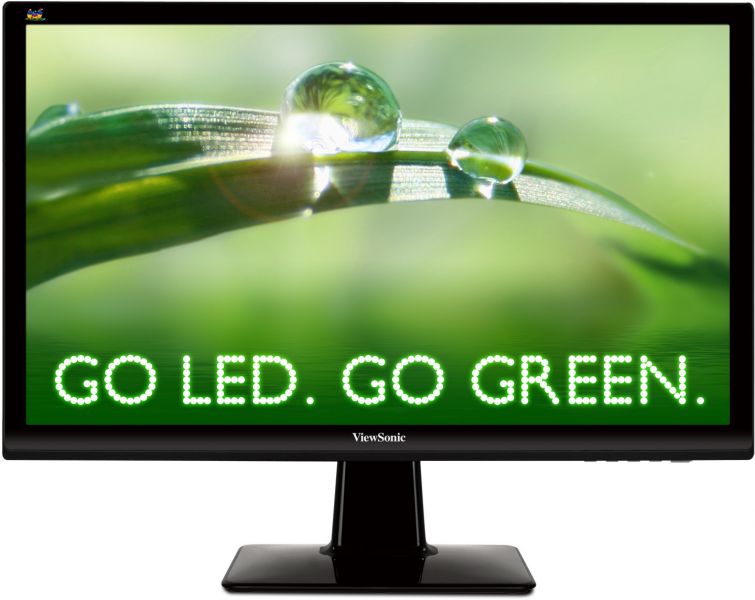

The VA2342-LED is an Energy Star® certified display with a1920 x 1080 Full HD 1080p resolution providing the perfectimage performance. Embedded dynamic contrast ratiotechnology not only enhances the dark and bright contrastof images but helps to produce a high 10,000,000:1dynamic contrast ratio to deliver vivid images.Built-in sRGB captures the most realistic aspects of contentfor consistent colour performing presentations, photographs,graphic design or printing. With an incorporated slim bezel,hidden button design and the patented VESA® wall mountcompliant, the VA2342-LED serves as the ideal display foryour office or home settings.SPECIFICATIONS
- LCDКОНТРАСТНОСТЬ: 1,000:1 (typ.)
Углы обзора: 170° horizontal / 160° vertical (typ.)
Обрасть отображения: 58cm (23”)
Оптимальное разрешение: 1920 x 1080
Время отклика (тип.): Typ. 5 ms
Поверхность панели: Anti-glare, hard-coating (3H)
Pixel Clock: 0.265 mm x 0.265 mm
Яркость: 250 cd / m² (typ.)
Коэффициент динамической контрастности: 10,000,000:1
Подсветка: White-light LED
Срок службы подсветки: 30,000 hours (min.) - СОВМЕСТИМОСТЬПК: VGA up to 1920 x 1080 @ 60Hz (preferred)
Mac®: Power Mac (up to 1920 x 1080) - РАЗМЕРЫФизические с подставкой: 548 x 415 x 164mm (21.57” x 16.33” x 6.45”)
Физические без подставки: 548 x 333 x 38mm (21.57” x 13.11” x 1.49”)
- ИНСТРУКЦИЯCE, CB, BSMI, SASO, C-tick, e-standby, KC, UL/cUL,
FCC-B (including ICES003), NOM, Mexico Energy,
GOSTR/Hygienic, UkrSEPRO, TCO 5.2, Erp, CCC,
China, Energy, Energy Star, EPEAT Silver, WEEE,
RoHS, SVHC list - ВХОДСинхронизация: Separate Sync
Цифровой: DVI-D (TMDS, 100 ohms)
Аналоговый: RGB analogue (75 Ω, 0.7 / 1.0 Vp-p)
Частота: Fh = 24 ~ 83 kHz ; Fv = 50 ~ 76 Hz - СОЕДИНЕНИЕЦифровой: DVI x 1
Video: Analogue: 15-pin mini D-sub x 1
АУДИО: Internal Power Adapter 3-pin Plug (CEE22) x 1 - ПитаниеНапряжение : AC 100 - 240V (universal); 50 / 60 Hz
Потребление: 20W (typ.); Optimise: 19W (typ.); Off/Standby <= 0.5W - Крепление100mm x 100mm
- ЭргономикаНаклон: 15° ~ -5°
- ВесНетто с подставкой: 2.55 Kg (5.62 lbs)
Нетто без подставки: 2.25 Kg (4.96 lbs) - УСЛОВИЯ ЭКСПЛУАТАЦИИВлажность: 20% to 90% (non-condensing)
Температура: 32° F to 104° F (0° C to 40° C)
