OVERVIEW

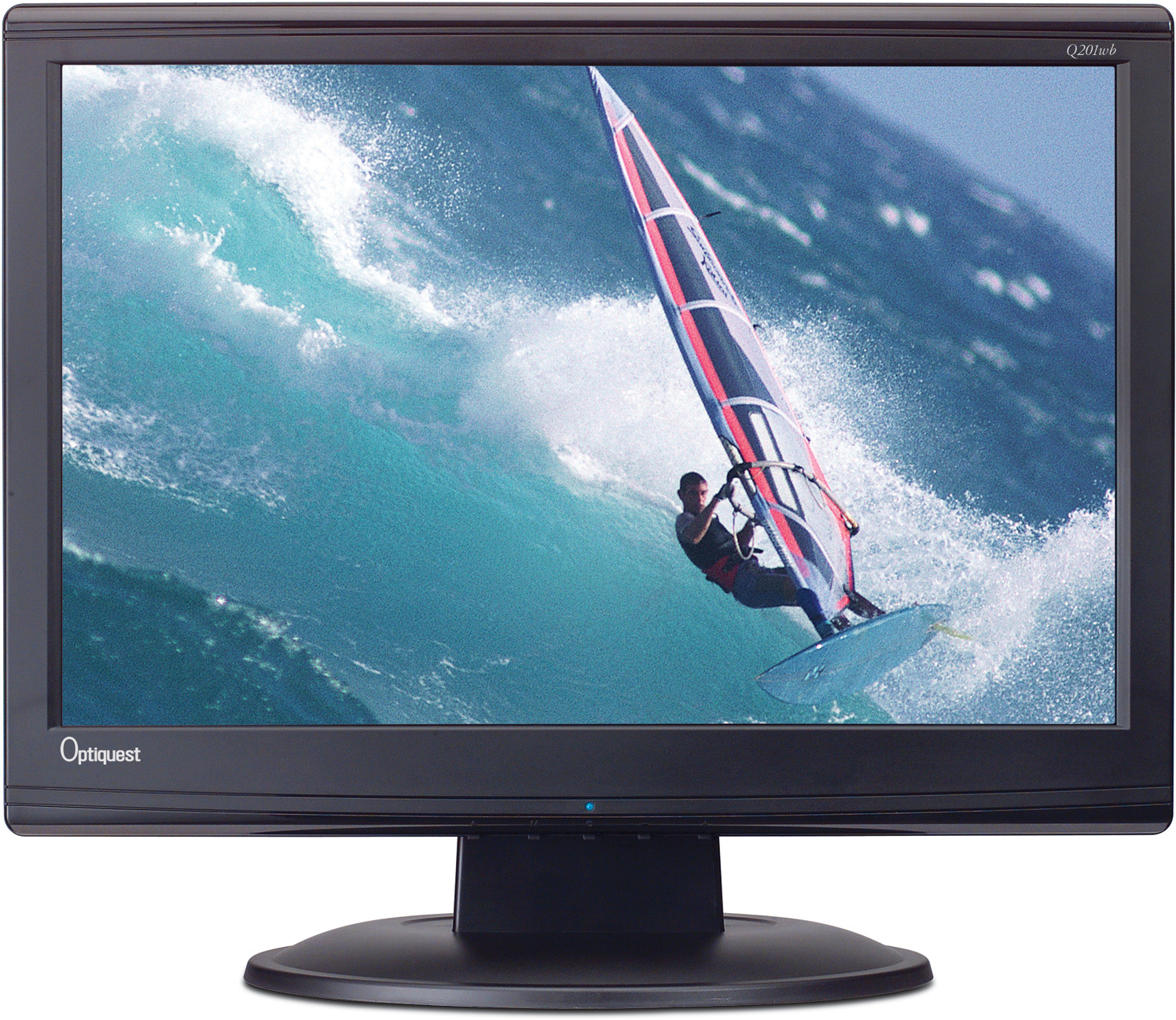

The Optiquest® Q201wb 51 cm / 20" widescreen LCD is the big screen choice for users on a budget. You won’t sacrifice performance for price with this display. It combines high brightness and contrast ratio with SUPER-FAST 5MS VIDEO RESPONSE for crystal-clear, blur free video, text and graphics. The super-high 1680x1050 resolution reduces eye fatigue and ensures text and graphics are crisp. The widescreen that lets you work in two applications or documents side-by-side, enhancing your productivity. The integrated power supply and VESA® wall-mount compliance reduce clutter and free up valuable desktop real estate. Furnish your desktop in style with the budget-friendly, budget-friendly, feature-rich Q201wb.Affordable widescreen performance
SPECIFICATIONS
- COLORSBlack
- LCDТип: 51 cm / 20" color TFT active matrix WSXGA LCD
КОНТРАСТНОСТЬ: 1000:1 (typ)
Углы обзора: 170º horizontal, 160º vertical @ contrast ratio ≥10:1
170° horizontal, 170° vertical @ contrast ratio ≥5:1
Яркость: 300 cd/m2 (typ)
Обрасть отображения: 43 cm/ 17.1" (horizontal), 27 cm / 10.6" (vertical) ; 51 cm / 20.1" diagonal
Оптимальное разрешение: 1680x1050
Время отклика (тип.): 5ms (typ)
Ресурс лампы: Long life, 40,000 hrs. (typ)
Поверхность панели: Anti-glare
Шаг пиксела: 0.258mm(H) X 0.258mm(V) - СОВМЕСТИМОСТЬПК: VGA up to 1680x1050 non-interlaced
Mac®: G3/G4/G5 up to 1680x1050
- РАЗМЕРЫФизические с подставкой: 486mm x 409mm x 204mm (19.1" x 16.1" x 8.0")
Физические без подставки: 486mm x 345mm x 79mm (19.1" x 13.6" x 3.1") - ИНСТРУКЦИЯUL, cUL, FCC-B, NOM, ENERGY STAR , TUV-S CE, ISO13406-2 Class II, WEEE, RoHS, GOST-R / Hygenic
- ГАРАНТИЯOne-year limited warrranty on parts, labor and backlight
- ПЕРЕРАБОТКАThe lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
- СОЕДИНЕНИЕАналоговый: 15-pin mini D-sub
Питание: 3-pin AC plug (CEE22) - ПитаниеНапряжение : AC 100–240V (universal), 50–60Hz (auto switch)
Потребление: 45W (typ)
ENERGY STAR standards - СРЕДСТВА УПРАВЛЕНИЯОсновные: Power, 2, up, down, 1
OnView®: Auto image adjust, brightness, contrast, color adjust (sRGB, 9300K, 6500K, 5400K, user color), H. position, V. position, H. size, OSD position, OSD timeout, OSD background, fine tune, sharpness, language, input select, recall - УСЛОВИЯ ЭКСПЛУАТАЦИИТемпература: 32-104ºF (0-40ºC)
Влажность: 20-80% (non-condensing) - ВЕСNet With Stand: 4.7 kg (10.3 lb).
- Видео входыЧастота: Fh: 30-80kHz; 55-75Hz
Синх.: H/V Separate (TTL)
Аналоговый: RGB analog (75 ohms, 0.7 Vp-p) - КреплениеMeet VESA ( 75mm X 75mm ) Standards
- ЭргономикаНаклон: -5°/+15°
