Short distance - big presentation

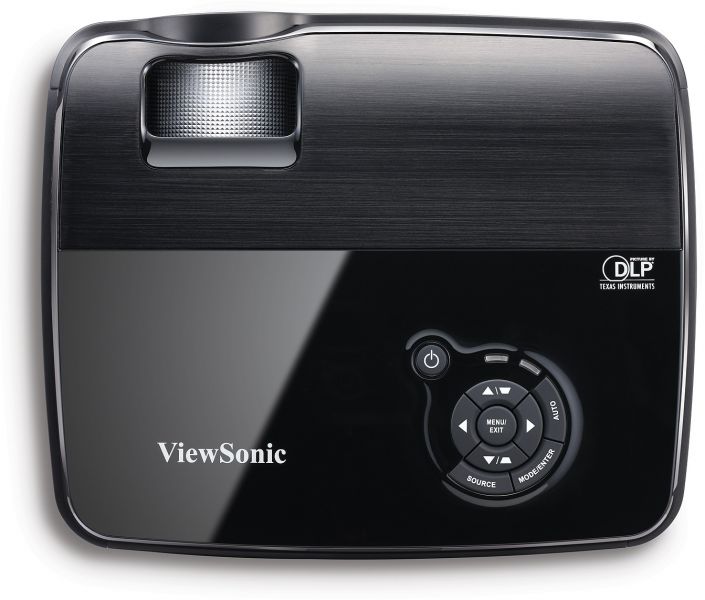

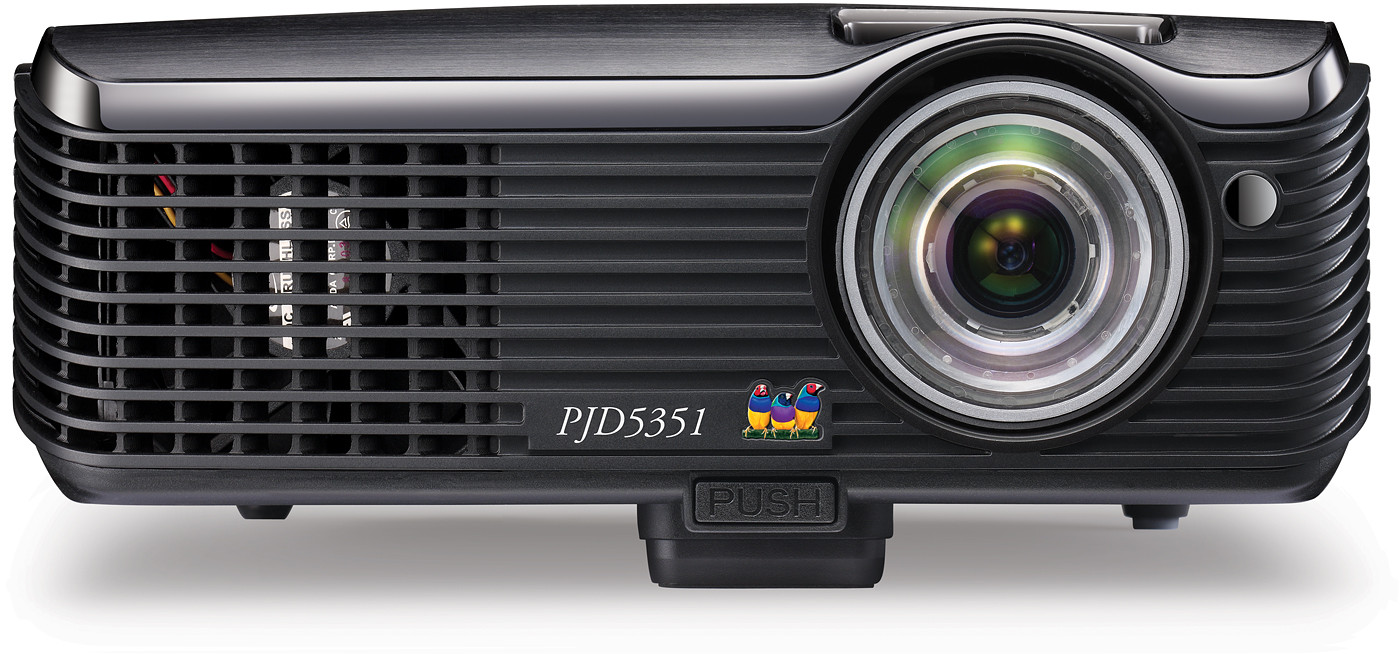

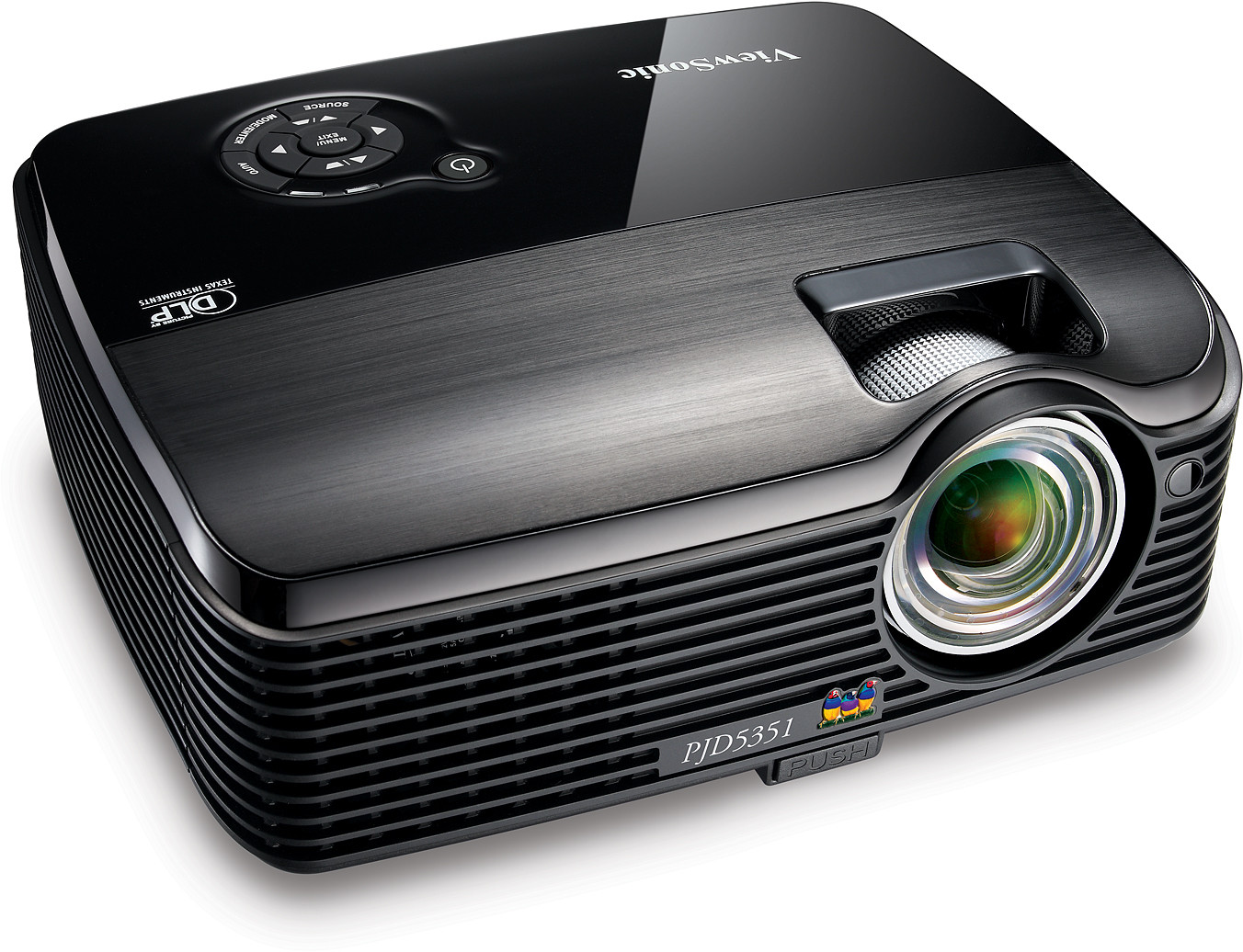

The powerful PJD5351 sets the stage for a new generation of versatile projectors equipped with BrilliantColor™ technology and an extreme short-throw ratio – producing a 152cm / 60" image at a distance of only 1.1m away. With its short-throw lens, the PJD5351 saves space by allowing you to place it at the front of your table and still display large, crisp images. Weighing in at just 2.5kg with 2500 ANSI lumens and a 2400:1 contrast ratio (with DCR), it's easy to give multimedia lessons in the classroom or dynamic presentations in the boardroom. Multiple preset presentation modes, an increased 40 degree digital vertical keystone correction and digital zoom ensure the best possible image regardless of location. With up to 4000 hours of lamp life*, low-cost replacement lamps, filter-less design and a non-degrading DLP® light engine, the PJD5351 has one of the lowest total cost of ownership ratios in the industry.
SPECIFICATIONS
- COLORSBlack
- СОВМЕСТИМОСТЬПК: VGA to SXGA
Mac®: Up to 1280×1024 (may require Mac Adapter) - РАЗМЕРЫФизические (ШхВхГ): 264 × 96.4 × 225 (mm) / 10.4 × 3.8 × 8.86 (inch)
Упаковка (ШхВхГ): 380 × 324 × 191 (mm) / 14.9 × 12.8 × 7.5 (inch)
- ИНСТРУКЦИЯCB, ROHS, WEEE, UL/cUL, FCC-B, ICES-003, IRAM (Argentina), NOMPSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC
- СОДЕРЖИМОЕ УПАКОВКИViewSonic projector, power cable, VGA cable, remote control with batteries, lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide), soft case
- ГАРАНТИЯ3-year limited warranty on parts, 1-year limited warranty on lamp
- АУДИОДинамики: 5W×1
- ВХОДНОЙ СИГНАЛЧастота: Fh: 30-100 KHz, Fv: 50-87 Hz
Компьютер и Видео: NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SD 480i and 576i (24fps, 25fps and 30fps), ED 480p and 576p (24fps, 25fps and 30fps), HD 720p, 1080i (24fps, 25pfs and 30fps) - СОЕДИНЕНИЕS-Video вход: 1 × 4-pin mini-DIN
Контроль: 1×RS-232 (8 Pin Mini-Din)
RGB (вход/выход): 2 × 15-pin mini D-sub / 1 × 15-pin mini D-sub
Аудио (вход/выход): 1 × 3.5mm mini jack / 1 × 3.5mm mini jack
Компонентный: 2 × 15-in mini -D-Sub (sharer with RGB)
Composite Input: 1 × RCA jack - ПитаниеНапряжение: 90~240VAC (Auto Switching), 50/60Hz (universal)
Потребление: 242W (Typical) / <5W (Stand-by mode) - СРЕДСТВА УПРАВЛЕНИЯOSD: Display: Screen color, aspect ratio, keystone, position, phase, H. size, digital zoom
Picture: Preset mode: brightest, standard (Video) ,daylight, ViewMatch (PC), cinema, user 1/user 2, brightness, contrast, color, tint, sharpness, BrilliantColorTM, color temp., save settings)
Source: Quick auto search
System setting (Basic): Language , projector position, auto power off, blank timer, panel key lock, timer controller, splash screen
System setting (Advanced): Quick cooling, high altitude mode, DCR, active VGA out, audio settings, menu settings, closed caption, lamp settings, security setting, reset all settings
Information: Current system status (source, preset mode, resolution, color system, equivalent lamp hour)
Keypad: Standby/On, input, menu - УСЛОВИЯ ЭКСПЛУАТАЦИИТемпература: 0ºC-40ºC (32ºF-104ºF)
Влажность: 10% - 90% (non-condensing)
Высота: 0~1,800m (6000ft), operational up to 3,048m (10000ft) - ВЕСНетто: 2.5 kg (5.5lb)
- ДИСПЛЕЙКОНТРАСТНОСТЬ: 2400:1 (with DCR)
Display size: 1.0 m - 4.6 m (40"-180")
Яркость (макс): 4:3 (native) & 16:9
Проекционное расстояние: 0.75 - 3.5m
Отношение расстояниея к размеру изображения: 0.9:1
Ресурс лампы (норм/эко-режим): 2500 Lumens
Цветовой охват: 85 % NTSC 1931 CIE
Ресурс лампы (норм/эко-режим): 3000 / 4000 hours*
Трапецеидальные искажения: Vertical digital keystone correction: +/- 40 degrees
Lamp: 189 watt
Объектив: Fixed len / Digital zoom / Manual focus
Разрешение: XGA 1024x768 (Native) / SXGA 1280×1024 (compressed)
Тип: 1.4 cm / 0.55"Digital Micromirror Device (DLP™) - УРОВЕНЬ ГРОМКОСТИНормальный: 30dB
Эко-режим: 26dB - ЯзыкEnglish, French , German, Italian, Spanish, Russian, Traditional Chinese, Simplified Chinese, Japanese, Korean, Swedish, Dutch, Turkish, Czech, Portuguese, Thai, Polish, Finnish
