Large enjoyment in HD quality

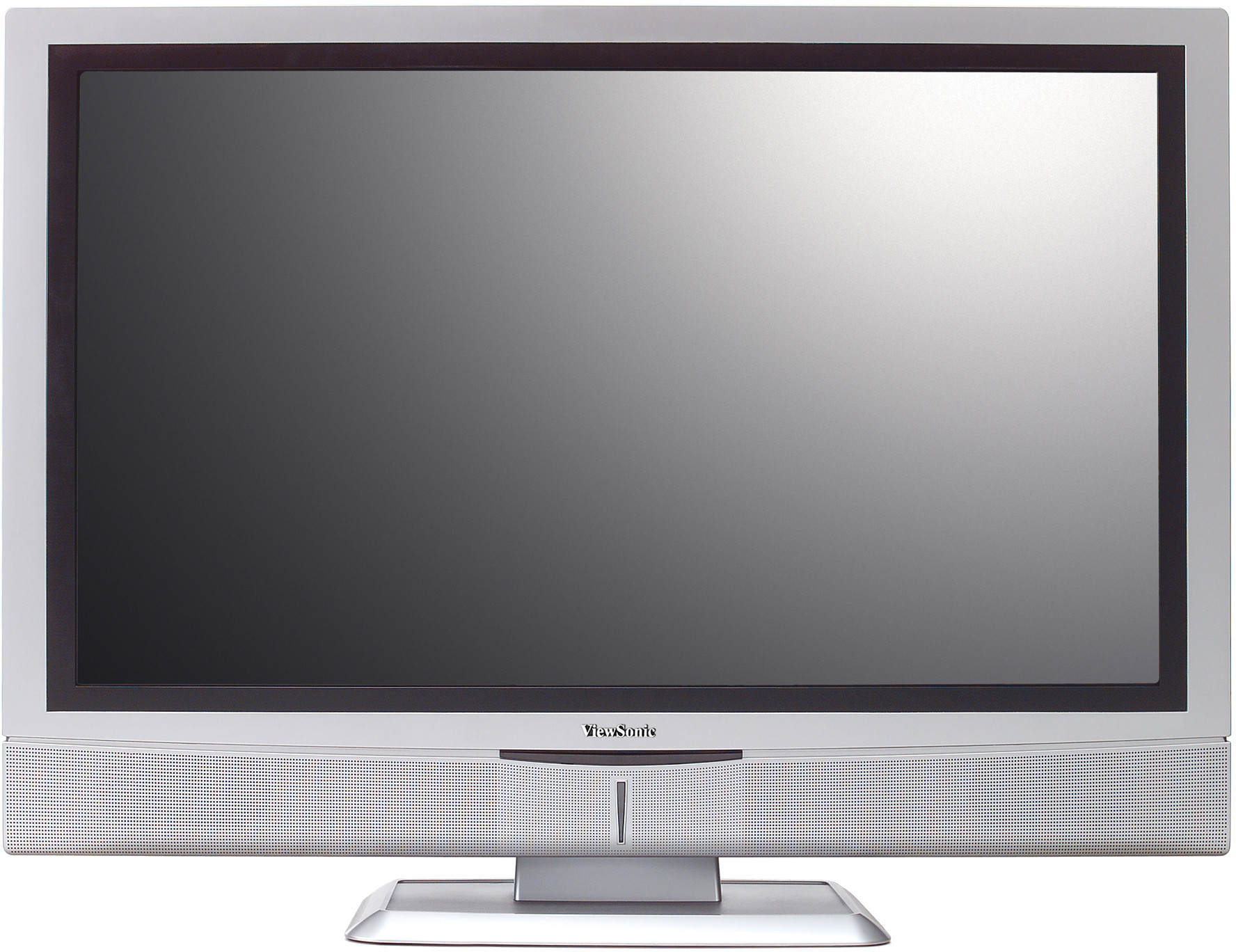

ViewSonic’s HD ready N3246w 32” widescreen LCD TV brings brilliant, life-like colours for superb family entertainment to your home. A built-in digital tuner (DVB-T) provides extra flexibility plus crisp digital video and life-like audio quality. Intelligent image optimising technology and high-definition 1366 x 768 resolution guarantee smooth, blur-free HD motion video. Higher contrast ratios and excellent brightness levels let you see brighter and richer graphics. Numerous inputs such as HDMI (HDCP), dual SCART, dual composite, S-video, component and even a PC-VGA connector give you full connectivity and the freedom of future-proof compatibility. Two powerful 10-watt stereo speakers driven by the innovative SRS WOW virtual surround sound system bring your viewing experience to another level. N3246w – enjoy stunning picture quality and unparalleled versatility for years to come.
SPECIFICATIONS
- LCDТип: 32” VA extreme colour TFT active matrix, wide XGA 1366 x 768
КОНТРАСТНОСТЬ: 1200:1 (typ.)
Углы обзора: 176° horizontal, 176° vertical (at 20:1)
Яркость: 550cd/m² (typ.)
Обрасть отображения: 70.9cm (horizontal) x 39.9cm (vertical), 81.3cm diagonal
Время отклика (тип.): 8ms (grey-to-grey)
Соотношение сторон: 16:9 native
Поверхность панели: Anti-glare 3H - СОВМЕСТИМОСТЬПК: Compatible from 640 x 480 up to 1360 x 768, 1360 x 768 @ 60Hz preferred
Mac®: Power Mac™ up to 832 x 624 - РАЗМЕРЫW x H x D mm: 810 x 605 x 237 (with base)
810 x 556 x 116 (without base)
984 x 707 x 252 (packaging)
- ИНСТРУКЦИЯCE, CB, SASO, GOST, WEEE, RoHS
- СОДЕРЖИМОЕ УПАКОВКИLCD TV, 1.8m power cables (Europe [Schuko]/UK), AV cable, SCART cable, remote control, batteries, quick start guide, user guide (multi-language)
- АУДИОДинамики: 2 x 10 watts SRS WOW (virtual surround-sound)
- СОЕДИНЕНИЕАудио выход: 1 x L/R RCA set
Аудио вход: 1 x L/R RCA set (for composite1/component)
1 x L/R RCA set (for composite2/S-video)
1 x 3.5mm mini stereo jack (for PC)
Headphone: 1 x 3.5mm mini stereo jack
SCART: 2 x SCART (SCART 1 [RGB In, CVBS In/Out, Audio In/Out], SCART 2 [S-video In, CVBS In, Audio In])
Tuner (Analogue): 1 x Coax RF (PAL/SECAM)
Tuner (Digital): 1 x Coax (DVB-T)
Digital Video: 1 x HDMI (HDCP)
Component Video: 1 x RCA set (YPbPr/YCbCr)
PC-RGB: 1 x 15-pin mini D-sub
PC Card Slot: 1 x for digital pay card and service - ПитаниеНапряжение : AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply
Потребление: 180 watt (max.) - СРЕДСТВА УПРАВЛЕНИЯОсновные: Power, source, menu, channel up/down, volume up/down
OSD: Picture Menu (present, contrast, brightness, colour, sharpness, tint, reset), Sound Menu (balance, treble, bass, SRS WOW, reset), PIP Menu (dual mode, PIP position, PIP source, audio source select), Setup Menu (OSD language, OSD timeout, OSD background, sleep timer, blue screen, teletext language), power lock, OSD lock - УСЛОВИЯ ЭКСПЛУАТАЦИИТемпература: 0°C to 35°C
Влажность: 20% to 90% (non condensation) - ВЕСНетто: 15.5kg (with base)
Гросс: 18.0kg - КреплениеVESA FDMI 200mm x 200mm
- Видео входыPAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i), DVB-T
- TELETEXT/MHEG5Yes (100 pages)/Yes
