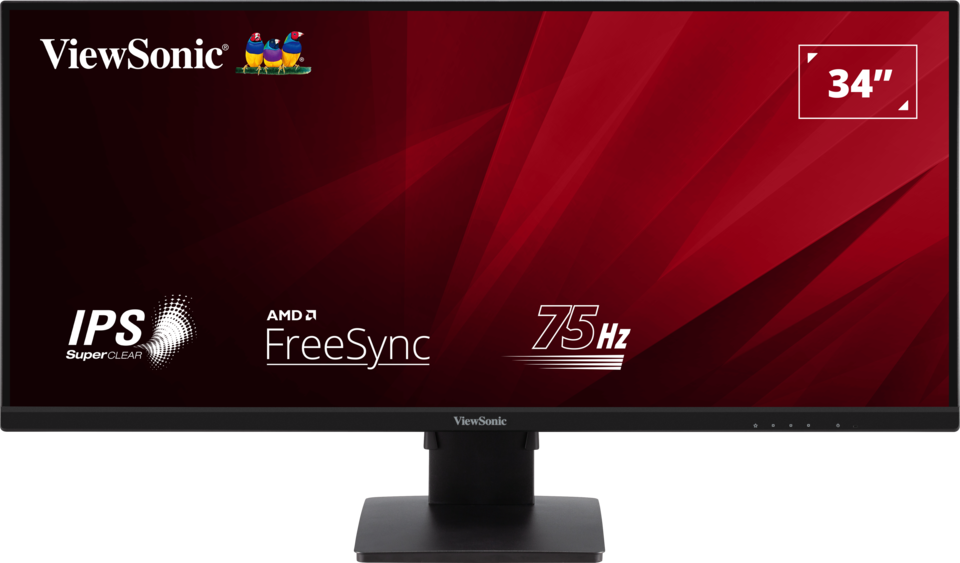

ViewSonic VA3456-mhdj 34" Monitor WQHD IPS - Datasheet

Key Features

Rezoluție WQHD 3440 x 1440
Panou SuperClear® IPS
Raport de aspect 21:9
AMD FreeSyncTM
Ramă fără margini pe 3 laturi

Product Description

ViewSonic® VA3456-mhdj este un monitor de 34 inchi cu rezoluție WQHD 3440 x 1440, raport de aspect 21:9 și panou SuperClear® IPS. Rezoluția este de 2,4 ori mai mare decât standard Full HD și cu tehnologia SuperClear® IPS, acest monitor oferă aceeași calitate a imaginii, indiferent dacă priviți ecranul de sus, de dedesubt, din față sau din lateral. Un raport de aspect de 21:9 și ramele pe 3 părți fără margini oferă un spațiu suplimentar al ecranului, astfel încât utilizatorii să poată afișa mai mult conținut, să comute între aplicații mai rapid, vizualizați documentele unul lângă altul simultan. În plus, acest monitor este proiectat cu un suport pivotant și reglabil pe înălțime.

Visit Us

www.viewsonic.com

DISPLAY

Display Size (in.):	34
Viewable Area (in.):	34.1
Panel Type:	IPS Technology
Resolution:	3440 x 1440
Resolution Type:	UWQHD (UltraWide QHD)
Static Contrast Ratio:	1,000:1 (typ)
Dynamic Contrast Ratio:	50M:1
High Dynamic Range:	HDR10 (HDR400 ready)
Light Source:	LED
Brightness:	420 cd/m² (typ)
Colors:	1.07B
Color Space Support:	10 bit (8 bit + FRC)
Aspect Ratio:	2024-05-06
Response Time (Typical GTG):	4ms
Viewing Angles:	178º horizontal, 178º vertical
Backlight Life (Hours):	30000 Hrs (Min)
Curvature:	Flat
Refresh Rate (Hz):	75
Variable Refresh Rate Technology:	FreeSync
Low Blue Light:	Software solution
Flicker-Free:	Yes
Color Gamut:	NTSC: 72% size (Typ) sRGB: 104% size (Typ)
Pixel Size:	0.233 mm (H) x 0.233 mm (V)
Surface Treatment:	Anti-Glare, Hard Coating (3H)

COMPATIBILITY

PC Resolution (max): 3440x1440

Mac® Resolution (max): 3440x1440

PC Operating System: Windows 10/11 certified; macOS tested

Mac® Resolution (min): 3440x1440
CONNECTOR

3.5mm Audio Out: 1

HDMI 2.0 (with HDCP 2.2): 2

DisplayPort: 1

Power in: 3-pin Socket (IEC C14 / CEE22)
AUDIO

Internal Speakers: 3Watts x2
POWER

Eco Mode (Conserve): 24W

Eco Mode (optimized): 27W

Consumption (typical): 30W

Consumption (max): 52W

Voltage: AC 100-240V

Stand-by: 0.5W

Power Supply: Internal Power Supply
ADDITIONAL HARDWARE

Kensington Lock Slot: 1

Cable Organization: Yes
CONTROLS

Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)

On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
OPERATING CONDITIONS

Temperature: 32°F to 104°F (0°C to 40°C)

Humidity (non-condensing): 20% to 90%
WALL MOUNT

VESA Compatible: 100 x 100 mm
INPUT SIGNAL

Frequency Horizontal: HDMI (v2.0): 15 ~ 120KHz, DisplayPort (v1.4): 24 ~ 120KHz

Frequency Vertical: HDMI (v2.0): 24 ~ 76Hz, DisplayPort (v1.4): 48 ~ 76Hz
VIDEO INPUT

Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4)
ERGONOMICS

Height Adjust (mm): 100

Swivel: 360º

Tilt (Forward/Back): -4º / 20º
WEIGHT (IMPERIAL)

Net (lbs): 20.3

Net Without Stand (lbs): 15

Gross (lbs): 25.6
WEIGHT (METRIC)

Net (kg): 9.2

Net Without Stand (kg): 6.8

Gross (kg): 11.6
DIMENSIONS (IMPERIAL) (WXHXD)

Packaging (in.): 35.4 x 18.1 x 9.1

Physical (in.): 32.2 x 16.27~20.21 x 7.9

Physical Without Stand (in.): 32.2 x 14.4 x 2.3
DIMENSIONS (METRIC) (WXHXD)

Packaging (mm): 900 x 460 x 230

Physical (mm): 817 x 413.31~513.31 x 201

Physical Without Stand (mm): 817 x 367 x 59

GENERAL

Regulations:	cTUVus, FCC-B, ICES003, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, BIS
PACKAGE CONTENTS:	VA3456-MHDJ x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.0; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal:	Please dispose of in accordance with local, state or federal laws.
Warranty:	*Warranty offered may differ from market to market

PC Resolution (max):	3440x1440
Mac® Resolution (max):	3440x1440
PC Operating System:	Windows 10/11 certified; macOS tested
Mac® Resolution (min):	3440x1440

3.5mm Audio Out:	1
HDMI 2.0 (with HDCP 2.2):	2
DisplayPort:	1
Power in:	3-pin Socket (IEC C14 / CEE22)

Eco Mode (Conserve):	24W
Eco Mode (optimized):	27W
Consumption (typical):	30W
Consumption (max):	52W
Voltage:	AC 100-240V
Stand-by:	0.5W
Power Supply:	Internal Power Supply

Physical Controls:	Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display:	Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Temperature:	32°F to 104°F (0°C to 40°C)
Humidity (non-condensing):	20% to 90%

Frequency Horizontal:	HDMI (v2.0): 15 ~ 120KHz, DisplayPort (v1.4): 24 ~ 120KHz
Frequency Vertical:	HDMI (v2.0): 24 ~ 76Hz, DisplayPort (v1.4): 48 ~ 76Hz

Height Adjust (mm):	100
Swivel:	360º
Tilt (Forward/Back):	-4º / 20º

Packaging (in.):	35.4 x 18.1 x 9.1
Physical (in.):	32.2 x 16.27~20.21 x 7.9
Physical Without Stand (in.):	32.2 x 14.4 x 2.3

Packaging (mm):	900 x 460 x 230
Physical (mm):	817 x 413.31~513.31 x 201
Physical Without Stand (mm):	817 x 367 x 59

Kensington Lock Slot:	1
Cable Organization:	Yes

Net (lbs):	20.3
Net Without Stand (lbs):	15
Gross (lbs):	25.6

Net (kg):	9.2
Net Without Stand (kg):	6.8
Gross (kg):	11.6
