LCD Display
TD1630-3
Key Features
- Rezoluție HD
- Ecran tactil PCAP cu 10 puncte de atingere
- Intrări HDMI și VGA
- Difuzoare duble integrate
- Ecran rezistent la zgârieturi
Product Description

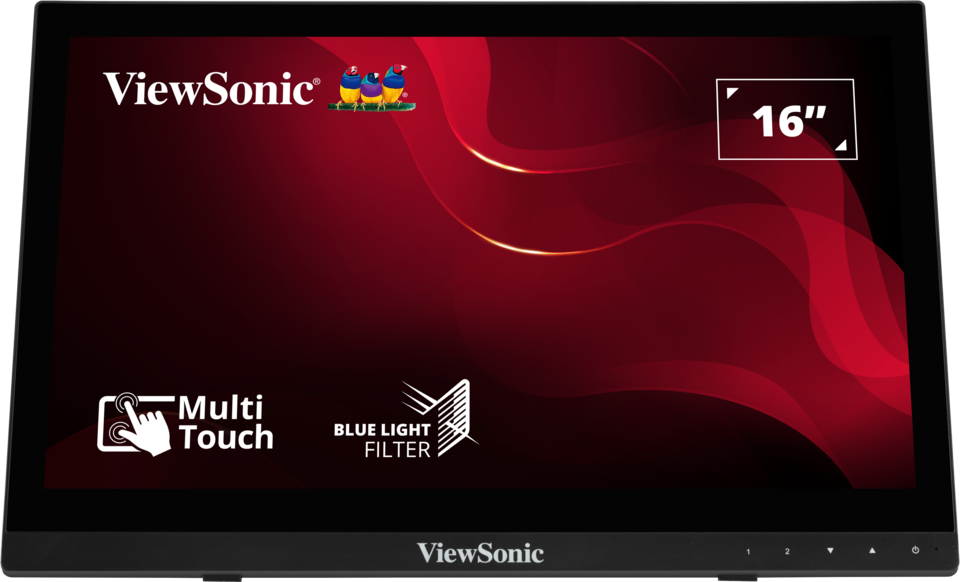

ViewSonic TD1630-3 este un ecran de 16" (15,6" vizibil) cu funcționalitate multi-touch în 10 puncte. Cu un design ergonomic avansat, TD1630-3 poate fi înclinat sau așezat în poziție plană pentru a oferi utilizatorilor confort maxim. Versatilitatea ecranului tactil a display-ului oferă o flexibilitate perfectă pentru mediul de retail sau de afaceri, în timp ce intrările VGA și HDMI asigură o conectivitate amplă. Compatibilitatea cu o gamă largă de sisteme de operare, inclusiv cu versiunile Windows 10/11 și Linux*, împreună cu difuzoarele duble integrate, fac acest ecran tactil să ofere o experiență precisă, ideală pentru interactivitate în mediul de retail sau de afaceri.
*Suportă Windows 7/8/10/11, Linux Kernel 4.X/3.X
Ecran tactil capacitiv proiectat în 10 puncte
*Suportă Windows 7/8/10/11, Linux Kernel 4.X/3.X
Ecran tactil capacitiv proiectat în 10 puncte
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 16 Viewable Area (in.): 15.6 Panel Type: TN Technology Resolution: 1366 x 768 Resolution Type: WXGA (Wide XGA) Static Contrast Ratio: 500:1 (typ) Dynamic Contrast Ratio: 10M:1 Light Source: LED Brightness: 190 cd/m² (typ) Colors: 262K Color Space Support: 6 bit true Aspect Ratio: 16:9 Response Time (Typical Tr+Tf): 12ms Viewing Angles: 90º horizontal, 60º vertical Backlight Life (Hours): 15000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Blue Light Filter: Yes Color Gamut: NTSC: 45% size (Typ)
sRGB: 67% size (Typ)Pixel Size: 0.252 mm (H) x 0.252 mm (V) Touch Screen: Projected Capacitive, 10-point multi-touch Surface Treatment: Glossy, Hard Coating (7H) Cover Glass Thickness: 0.83mm -
COMPATIBILITY
PC Resolution (max): 1366x768 Mac® Resolution (max): 1366x768 PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested Mac® Resolution (min): 1366x768 -
CONNECTOR
VGA: 1 USB 2.0 Type B: 1 3.5mm Audio In: 1 HDMI 1.4: 1 Power in: DC Socket (Center Positive) -
AUDIO
Internal Speakers: 1Watts x2 -
POWER
Eco Mode (Conserve): 4.3W Eco Mode (optimized): 4.9W Consumption (typical): 5.5W Consumption (max): 6W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: External Power Adaptor -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 -
CONTROLS
Physical Controls: 1, 2, Up, Down, Power On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 75 x 75 mm -
INPUT SIGNAL
Frequency Horizontal: 30 ~ 61KHz Frequency Vertical: 56 ~ 75Hz -
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4) Analog Sync: Separate - RGB Analog -
ERGONOMICS
Tilt (Forward/Back): 15º / 50º -
WEIGHT (IMPERIAL)
Net (lbs): 2.9 Net Without Stand (lbs): 2.9 Gross (lbs): 5.5 -
WEIGHT (METRIC)
Net (kg): 1.3 Net Without Stand (kg): 1.3 Gross (kg): 2.5 -

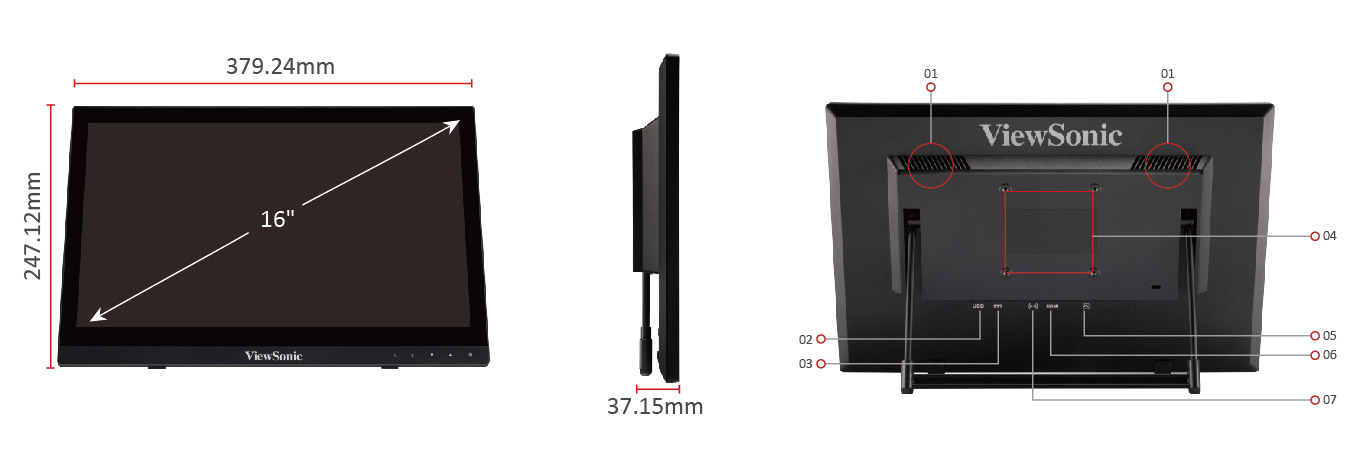

DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 17.8 x 15.3 x 3.4 Physical (in.): 14.9 x 9.7 x 1.5 Physical Without Stand (in.): 14.9 x 9.7 x 1.5 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 453 x 389 x 86 Physical (mm): 379 x 247 x 37 Physical Without Stand (mm): 379 x 247 x 37 -
GENERAL
Regulations: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS PACKAGE CONTENTS: TD1630-3 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market
