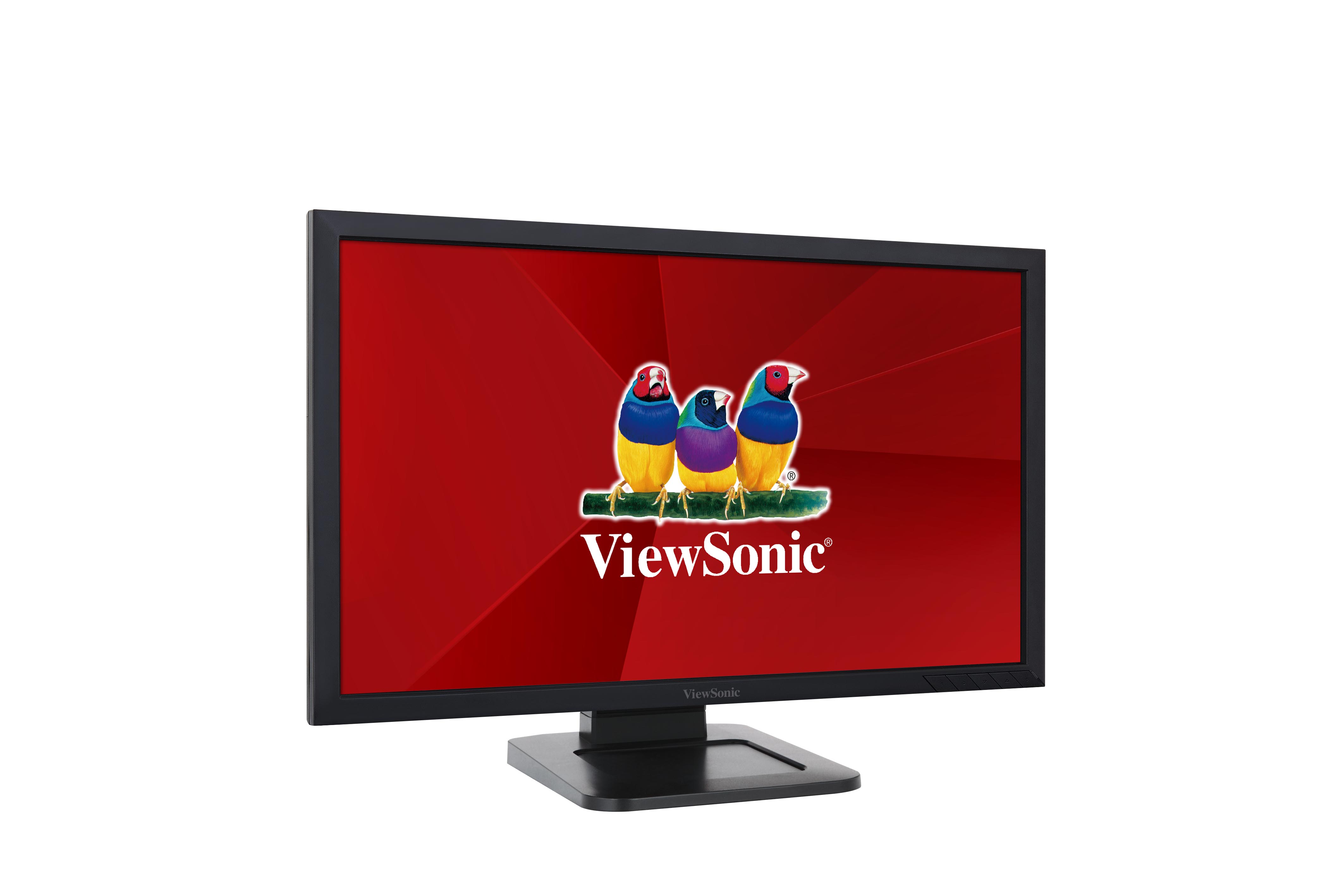

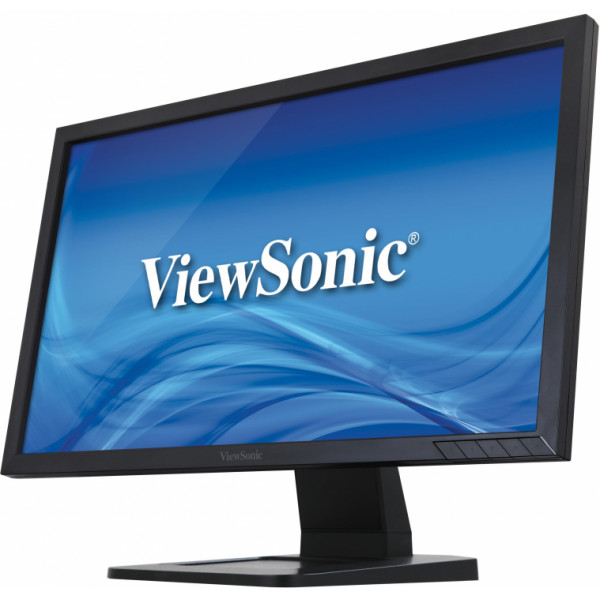

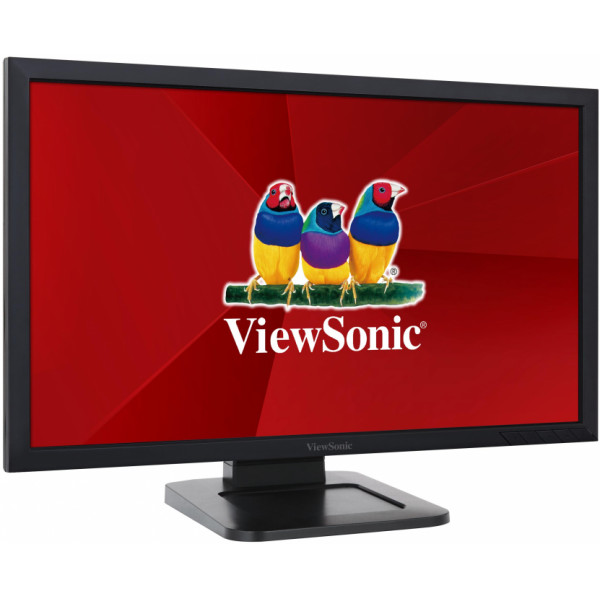

TD2421
24" 2-point Touch Screen Monitor
- SuperClear® technology
- Full HD 1080p resolution
- Supports Windows® 7/8/10
- HDMI, VGA and DVI inputs
- Dual integrated speakers
OVERVIEW
Great for public kiosks, POS displays, and other retail and commercial applications, the TD2421 dual-point optical touch monitor lets users execute two-finger pinches, taps, and swipes for fast and intuitive navigation. With Full HD 1920x1080 resolution, 3000:1 static contrast ratio, and SuperClear MVA technology, the TD2421 delivers stunning brightness and contrast with amazing screen performance at nearly any viewing angle. Flexible connectivity options include HDMI, VGA, DVI, and USB ports, and a VESA-mountable design offers additional convenience for use as a wall-mounted display. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience.

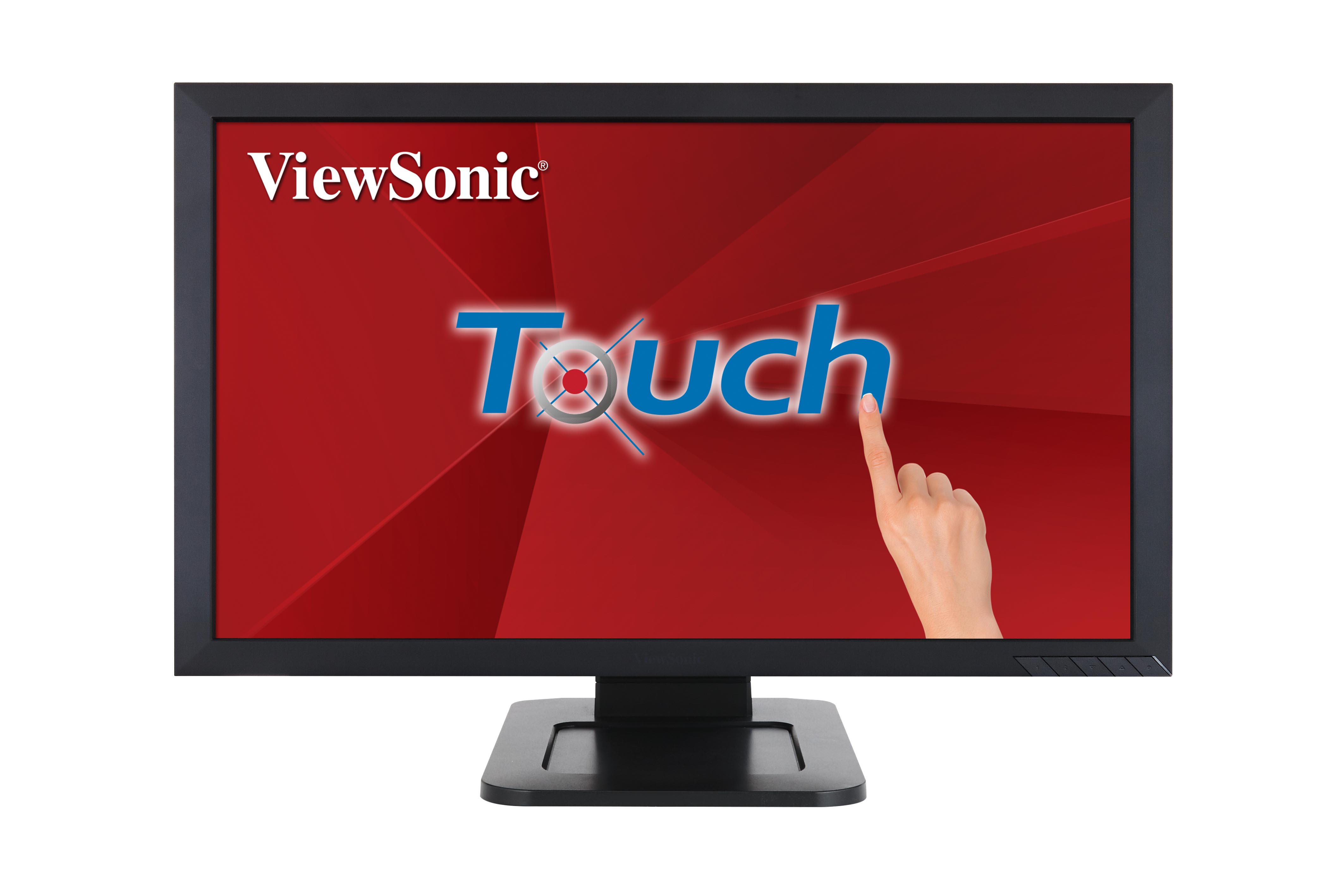

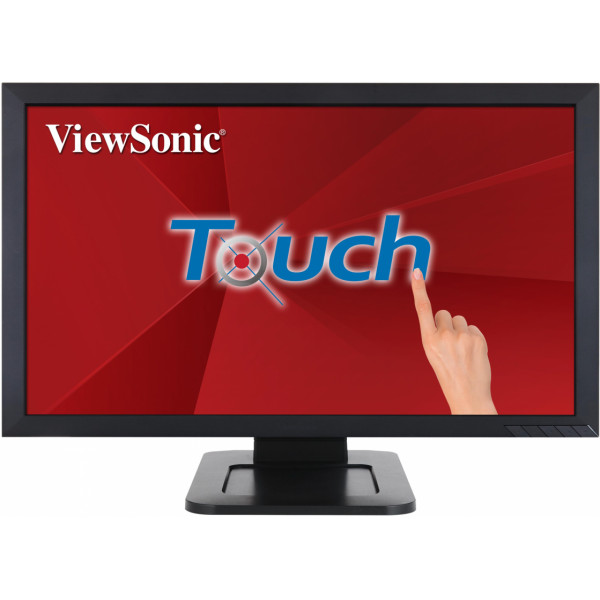

Dual-Point Optical Touch
Touch screens with dual-point optical touch can recognize two points of simultaneous contact, allowing two-finger gestures such as zoom in/out, rotations, and two-finger taps. Optical touch does not require a conductive object for touch recognition, so it is extremely useful in gloved environments such as hospitals and dental offices, or for use with interactive styluses.
*Optical touch technology uses infrared cameras and light to detect touches on the panel. Any form of touch, whether finger, stylus, gloved touch, etc. can be used to input commands on the screen with great accuracy. In addition, optical touch displays tend to be more durable. However, direct sun light, halogen lamp or IR transmitters may cause light interference and touch malfunction.
SuperClear MVA Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
Full HD 1080p Resolution
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether while working, gaming, or enjoying the latest in multimedia entertainment.
Durable, Scratch-resistant Screen
This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as commercial setting, or other public environments where the touch display can be used as a kiosk.
Windows Compatibility
Compatibility with Windows operating systems, including Windows 7, 8 and 10.

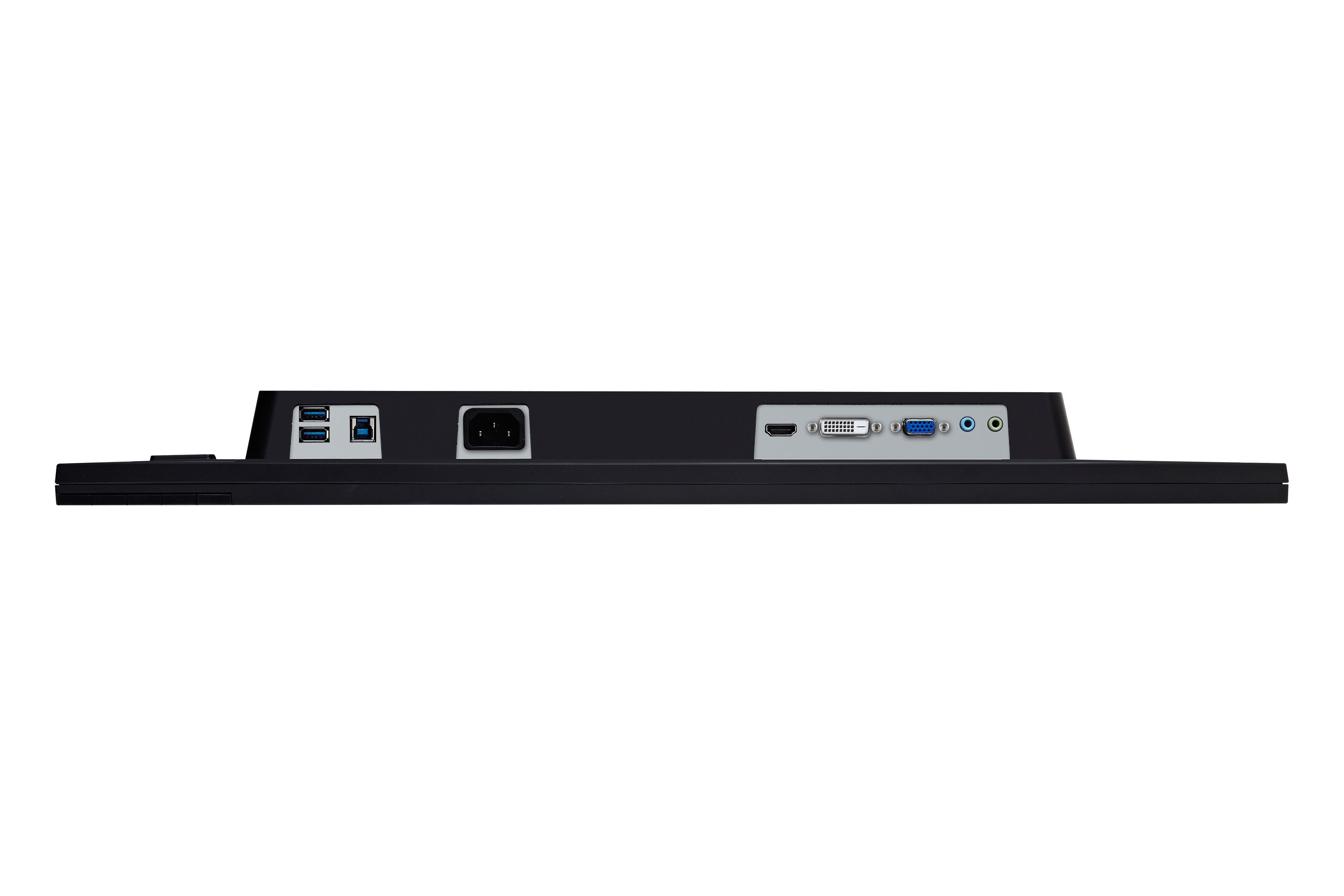

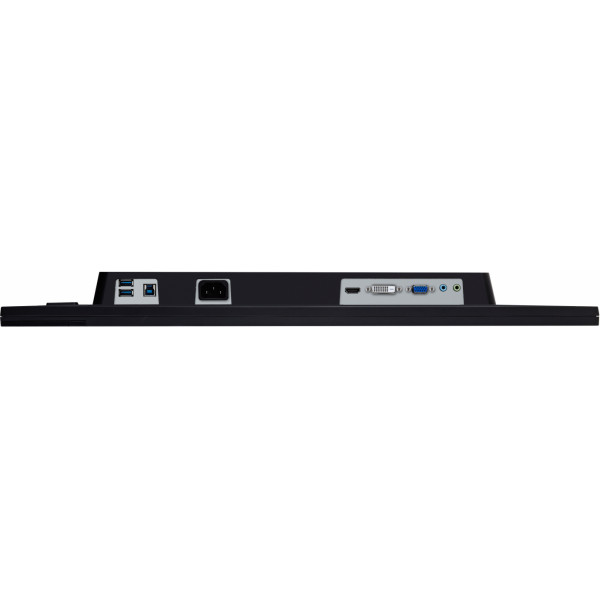

Versatile Connectivity
HDMI, USB2.0, DVI and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Dual Integrated Stereo Speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

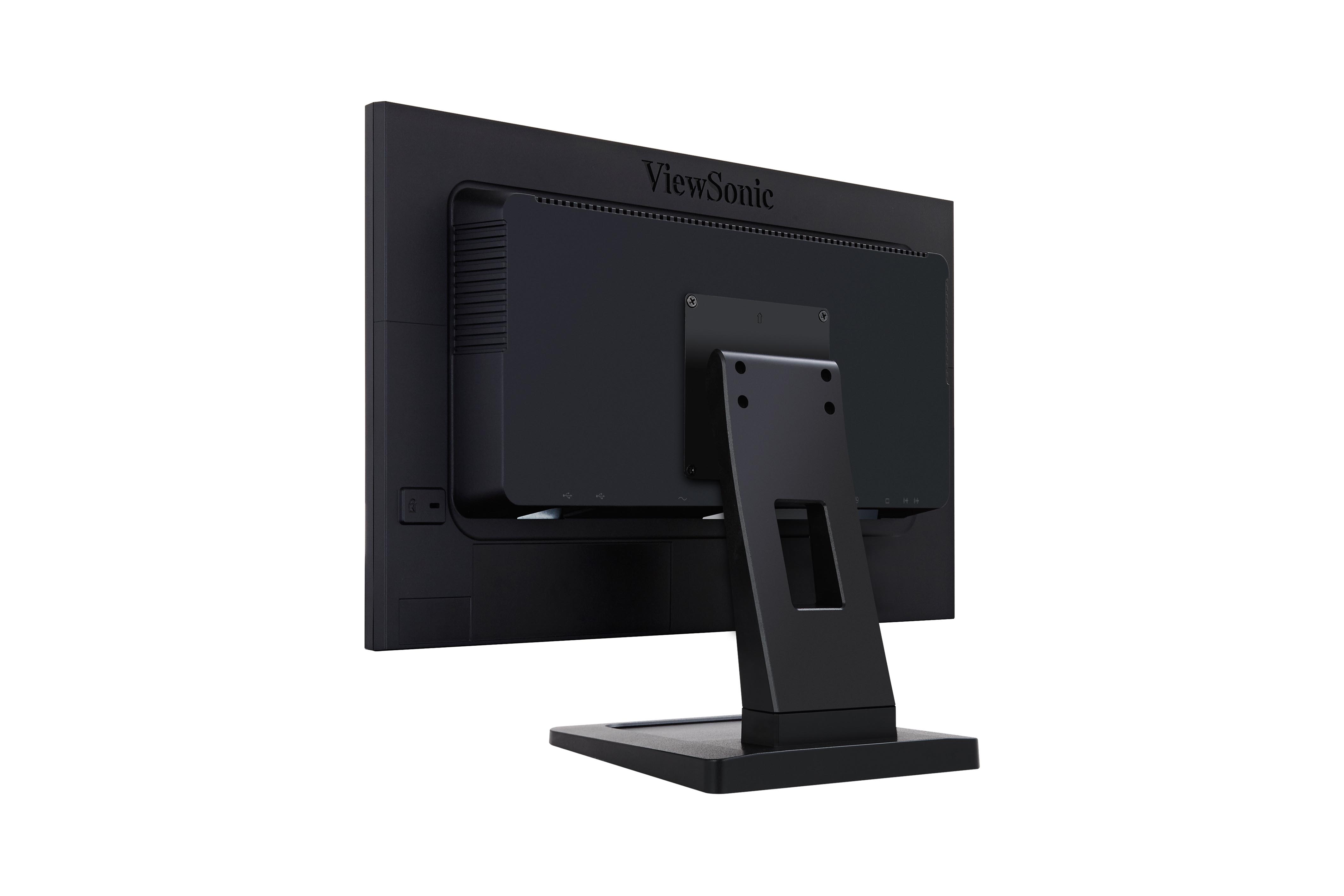

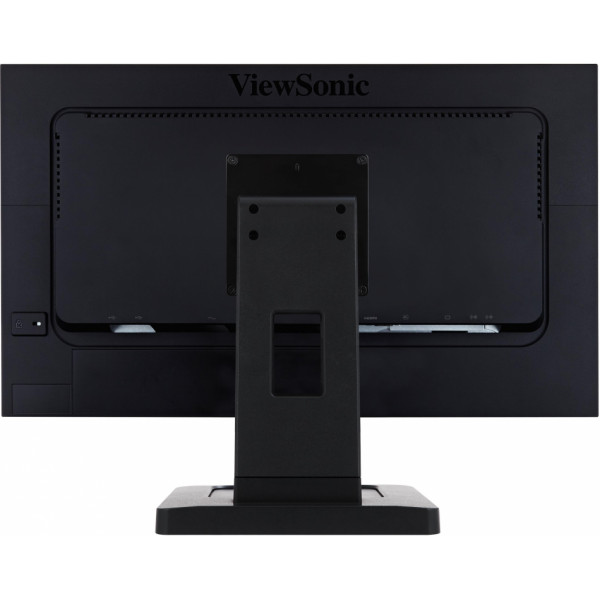

VESA-Compatible Mount
Mount the monitor as you see fit using its convenient VESA-compatible mount design.
SPECIFICATIONS
- DISPLAYType: 24”W (23.6” Viewable) VA Type LED
Display Area: 521.28mm x 293.22mm
Resolution: Full HD 1920 x 1080
Brightness: 200 cd/m² with touch module
Contrast Ratio: 3000:1 (Typ)
Dynamic Contrast Ratio: 50,000,000:1
Viewing Angles: 178 degrees / 178 degrees
Response Time: GTG (AVG): 5ms - COMPATIBILITYPC: Dual-touch for Windows 7/8/10
Single touch for Windows XP
Windows Vista/2000 and earlier versions do not support touch
Mac®: Display: Power Mac tested
Touch function: iOS does not support touch - CONNECTORDigital: DVI x1
HDMI x 1
Analog: VGA x 1
Audio In: Audio in x 1
- SPEAKERSSPEAKERS: 2W x 2
- USBUp Stream x 1
Down Stream x 2 - POWERPower: Internal Power Board 3-pin plug (CEE22) x1
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 16.5W
Optimize: 13.5W

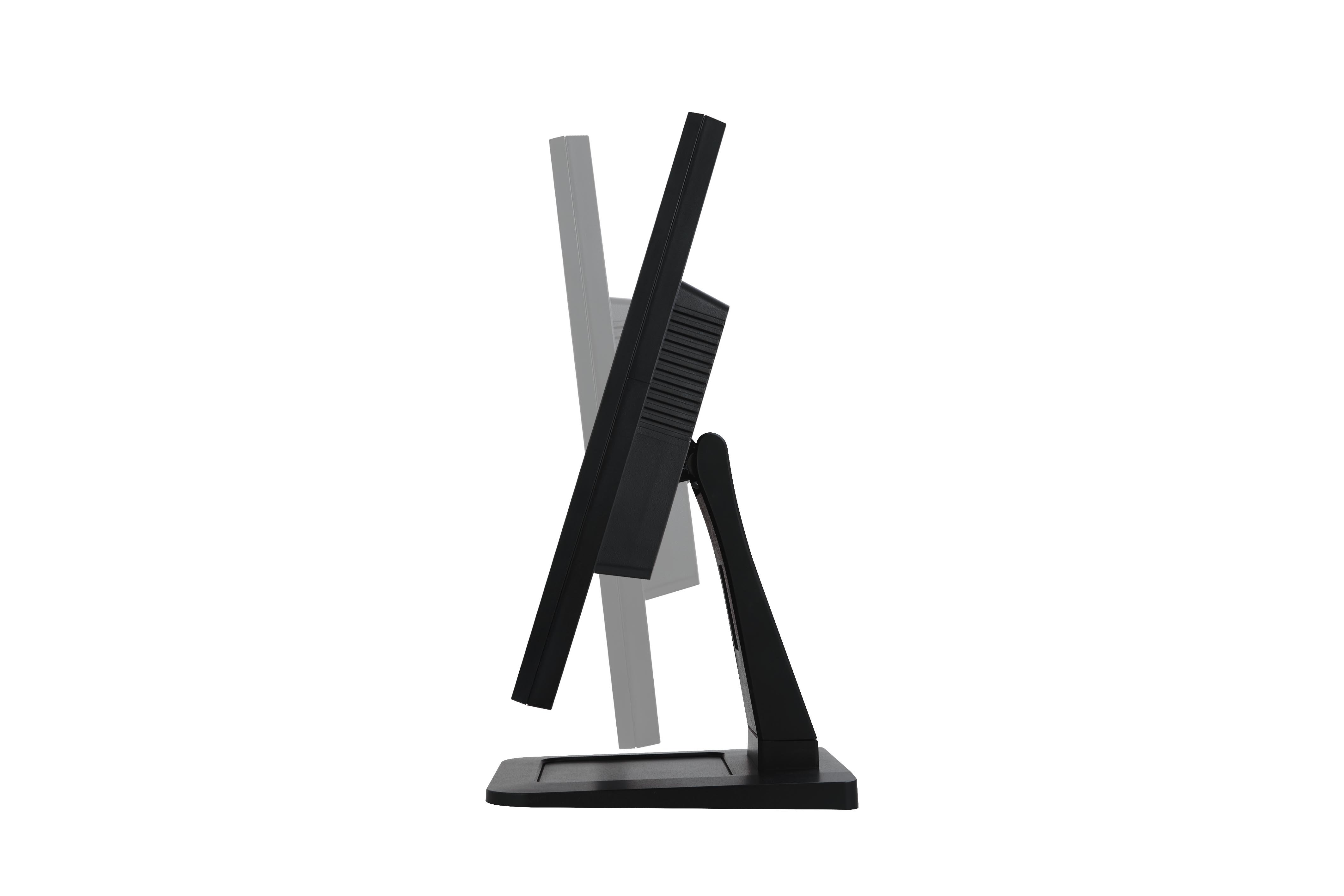

Conserve: 11.5W - ERGONOMICSTilt:22 ~ -6 degrees
- SPECIAL FEATURESKENSINGTON MicroSaver Security Compatible, 12 OSD Languages, Eco mode

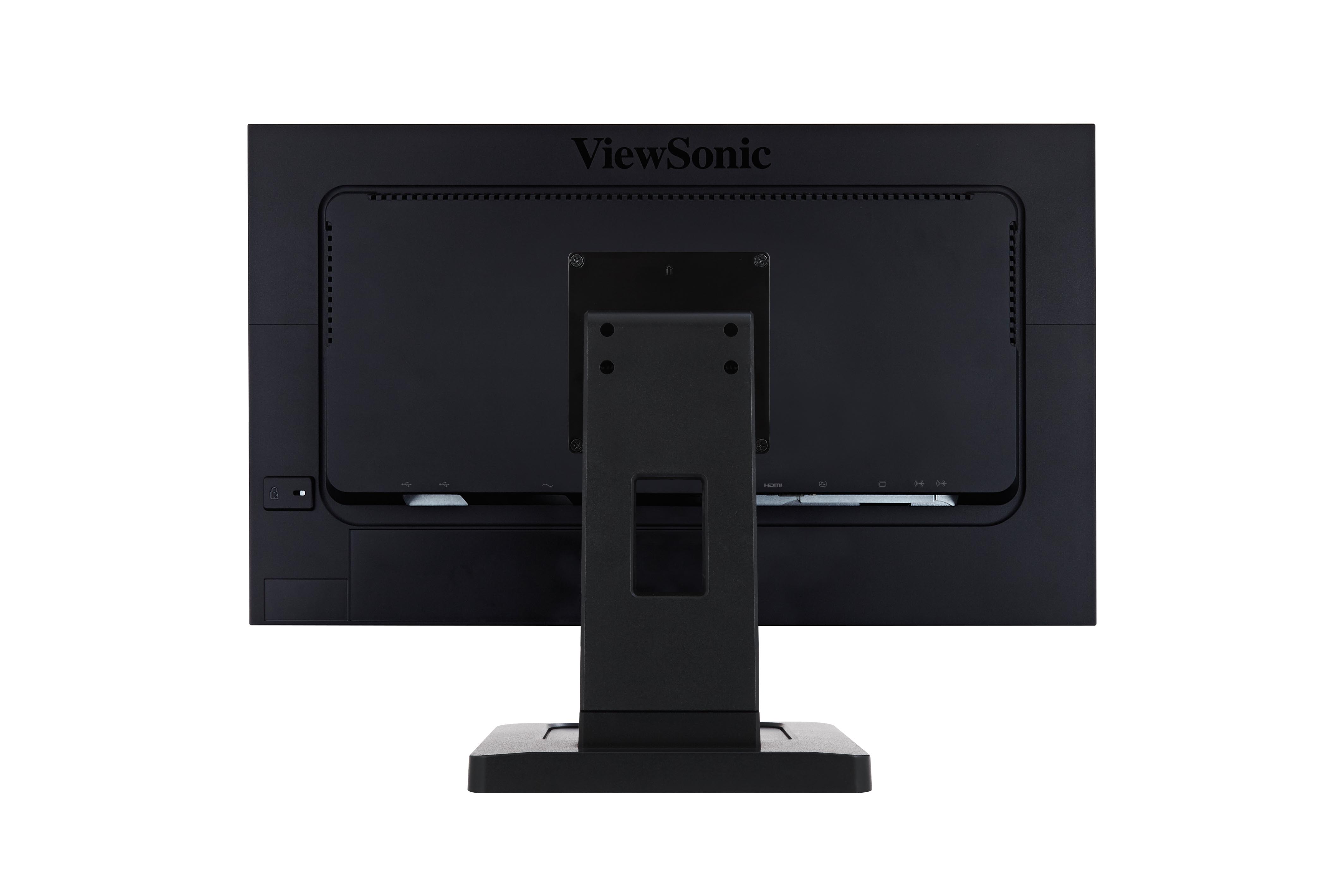

- WALL MOUNTVESA®: 100mm x 100mm
- OPERATING CONDITIONSTemperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 90% (no condensation) - DIMENSIONS (W x H x D) (mm)Physical with stand (mm): 571.08mm (W) x 392.2mm (H) x 240mm (D)
Physical without stand (mm): 571.08mm (W) x 339.8mm (H) x 57.71mm (D)
Packaging (mm): 640mm (W) x 460mm (H) x 200mm (D) - WEIGHTNet with stand (kg): 5.16kg
Net without stand (kg): 4.32kg
Gross (kg): 7.29kg - REGULATIONScULus, FCC-B, ICES003, Energy Star, CEC, MX-CoC, Mexico Energy, REACH, WEEE, VCCI, PSE, BIS
- PACKAGE CONTENTSLCD Display
Power Cable (1.5m)
VGA Cable (1.5m)
DVI Cable (1.5m)
USB2.0 Upstream Cable (1.5m)
Audio Cable (1.5m)
Quick Start Guide
*Actual content may differ from market to market
