Top multimedia performance with an invisible speaker design

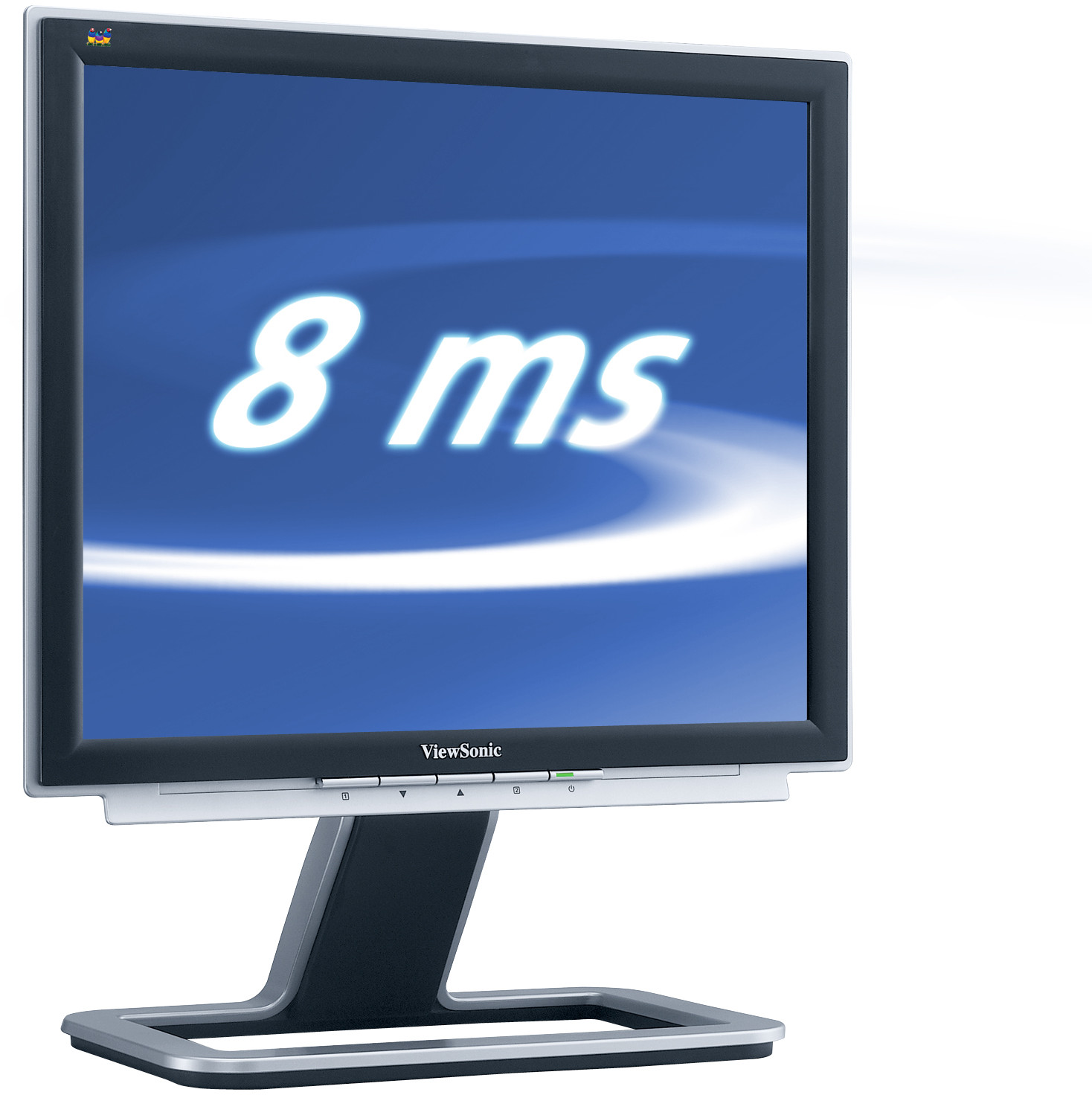

Pure, clean lines and maximum performance. That’s the concept behind the ViewSonic VX712. This 17” LCD oozes with ELEGANT SIMPLICITY to look marvellous in any home or office environment. Wide viewing angles and HIGH BRIGHTNESS AND CONTRAST ensure EXCELLENT IMAGE QUALITY, with a fast 8ms response time guaranteeing smooth, fluid motion to even the fastest films and games. The integrated speakers can be heard – but not seen – and analogue and digital inputs provide for good connectivity for multiple uses. It’s not just a multimedia LCD. It’s a ViewSonic.
SPECIFICATIONS
- LCDType: 43cm / 17" TN colour TFT active matrix SXGA LCD
Contrast Ratio: 500:1 (typ.)
Viewing Angles: 140° horizontal, 130° vertical (at 10:1)
160° horizontal, 160° vertical (at 5:1)
Display Area: 33,8cm horizontal x 27.0cm vertical, 43.2cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 8ms (off-on-off) (typ.)
Panel Surface: 300cd/m²
Pixel Pitch: 0.264mm
Colour Support: 16.2M colours (6-bit+2-bit FRC)
Pixel Clock: 135MHz
Brightness: 300cd/m² - COMPATIBILITYPC: VGA up to 1280 x 1024 non-interlaced (max. 75Hz)
Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (max. 75Hz) - DIMENSIONSW x H x D mm: 388 x 438 x 176 (with stand)
388 x 332 x 61 (without stand)
- REGULATIONSTCO’99, NEMKO/GS2, NEMKO/ERGO3, CE, CB, UL, cUL, FCC-B, ENERGY, NOM,
ISO13406-2 (pixel failure class II), GOST-R, VCCI, BSMI, CCC, (PSB), (C-TICK),
Argentina-S, Green Mark - PACKAGE CONTENTSLCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start
Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) - WARRANTYPlease see: www.viewsoniceurope.com/UK/Support/warranty.htm
- INPUTSync: H/V separate (TTL), composite, sync on green
Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
Digital: DVI-D (TMDS, 100 ohm)
Frequency: Fh: 24 – 82kHz, Fv: 50 – 85Hz - CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable)
Audio (input/output): 3.5mm stereo audio line-in
Power: 3-pin (CEE22) - POWERVoltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumption: 35 watt (typ.), <1 watt in power save mode - CONTROLSBasic: Power on/off, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), colour adjust
(sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency,
pixel clock, model number, serial number, website), manual image adjust (H/V
position, H size, fine tune, sharpness), setup menu (language, resolution notice,
OSD position, OSD timeout, OSD background), OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 0°C to 40°C
Humidity: 20% to 90% (non-condensation) - WEIGHTNet: 5.0kg (with stand), 3.5kg (without stand)
- POWER MANAGEMENTLCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start
Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) - SECURITYKensington® security port
- VESA MOUNT COMPLIANTVESA FPMPMI 100mm x 100mm
- ERGONOMICSTilt: Down 5°, Up 20°
- AUDIOSpeakers: 2 x 1 watt
