OVERVIEW

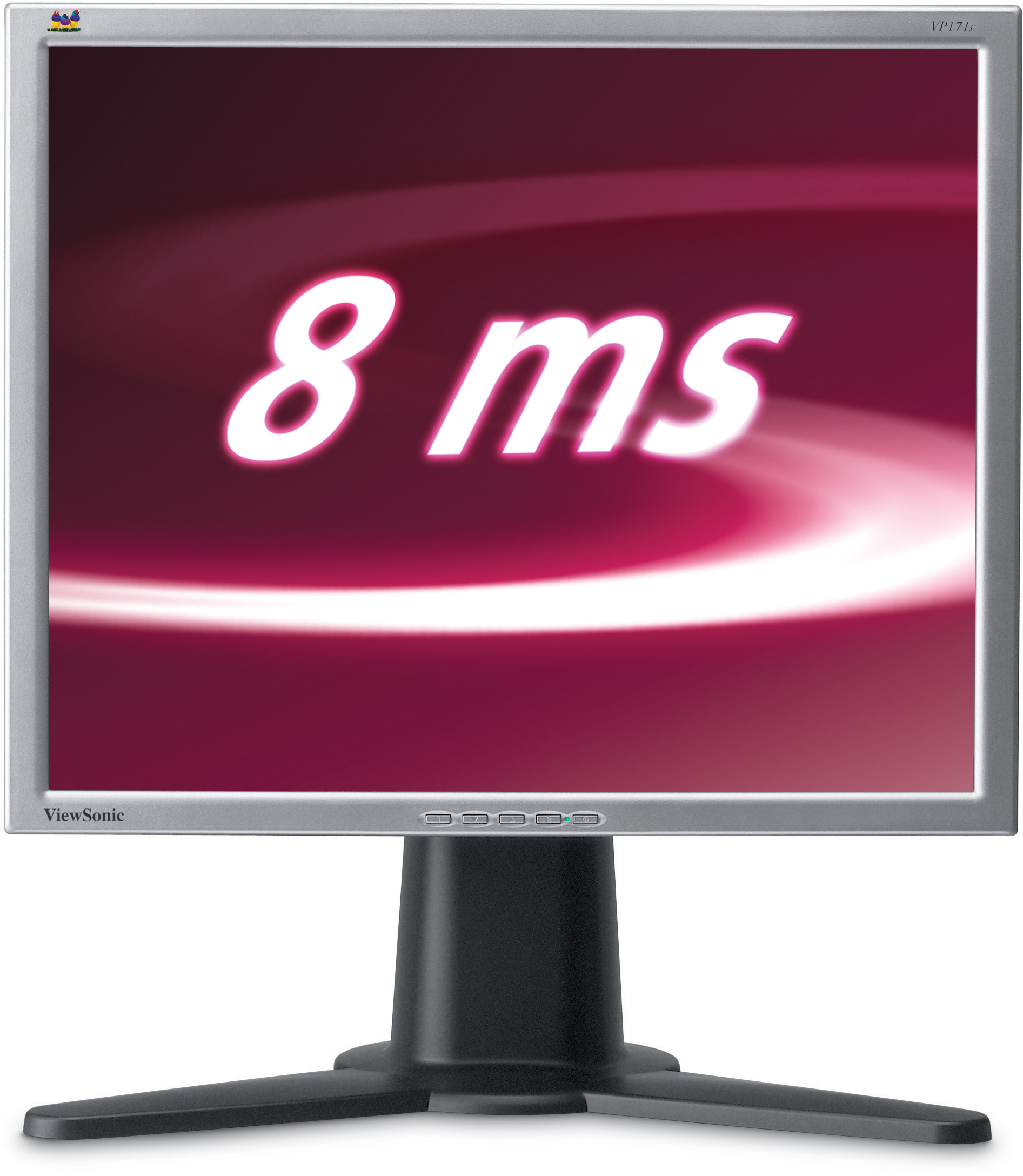

Whether you’re a graphics professional, corporate executive, or power gamer, the VP171b (black) and VP171s (metallic-on-black) LCD monitors will enhance your productivity and enjoyment. Their THINEDGE ULTRA-SLIM BEZEL DESIGN enables multiple-display configurations in immaculate digital high-definition clarity for powerful multi-tasking and mixed-media data analysis. XtremeView™ wide viewing angles and Metallic-on-black ClearMotiv™ 8ms broadcast-quality video response ensure intense visual performance. Class-leading features include comprehensive HEIGHT, PIVOT, TILT AND SWIVEL adjustments as well as multiple digital/analogue inputs.SPECIFICATIONS
- LCDType: 43cm / 17" colour TFT active matrix SXGA LCD
Contrast Ratio: 500:1 (typ)
Viewing Angles: 140° horizontal, 130° vertical (at 10:1)
160° horizontal, 160° vertical (at 5:1)
Glass Surface: Anti-glare
Display Area: 33,8cm (horizontal) X 26,9cm (vertical); 43,2cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 8ms (typ)
Colour Support: 16.2M colours (6-bit+2-bit FRC)
Brightness: 300 cd/m2 (typ) - COMPATIBILITYMac®: Power MacTM G3/G4 up to 1280 x 1024
PC: Compatible from VGA up to 1280 x 1024 non-interlaced - DIMENSIONSPhysical (WxHxD): 392mm x 350mm x 238mm (w/ stand)
371mm x 309mm x 65mm (w/o stand)
- REGULATIONSTCO'03/TCO'992, TÜV/GS, TÜV/Ergo, ISO 13406-2 (class 2), TÜV S, UL, cUL, FCC-B, CB, CE, NOM, NEMKO, SEMKO, DEMKO, FIMKO,
GOST-R, Hygienic, SASO, PCBC, VCCI, BSMI, CCC, PSB, C-TICK - CONNECTORAnalogue: 15-pin mini D-sub
Digital: Digital DVI-D
Power: 3-pin plug - POWERVoltage: AC 100-240V (universal), 50-60Hz
Consumption: 3W (typ); ≤ 2 watt in power save mode - CONTROLSBasic: Power, 1, down, up, 2
OnView®: Auto image adjust, contrast, brightness, input select, colour adjust (9300K, 6500K, 5400K, 5000K, user colour), information (mode, model number, serial number), manual image adjust (H. size, H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background, touch tone), memory recall - OPERATING CONDITIONSTemperature: 0-40°C
Humidity: 10-90% (non-condensing) - WEIGHTNet: 6.5 kg (w/ stand); 4.2 kg (w/o stand)
- VIDEO INPUTFrequency: Fh: 30~82kHz, fv: 50~85Hz
Sync: H/V separated (TTL), composite sync-on-green
Analogue: Two RGB Analogue (75 ohms, 0.7/1.0 Vp-p)
Digital: DVI-D (TMDS, 100 ohms) - POWER MANAGEMENTMeets TCO and Energy Star® standards
