Planet-friendly. Picture perfect.

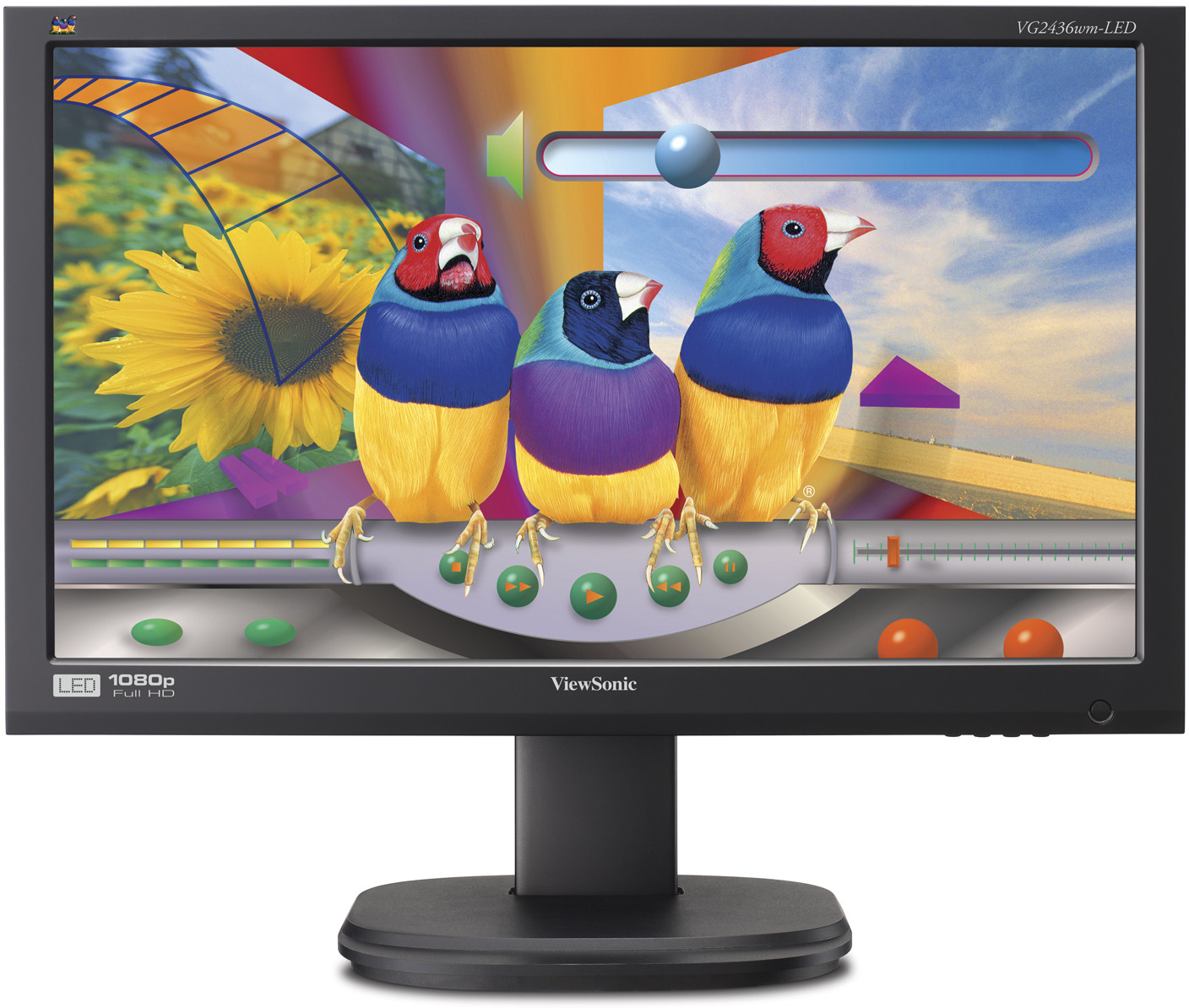

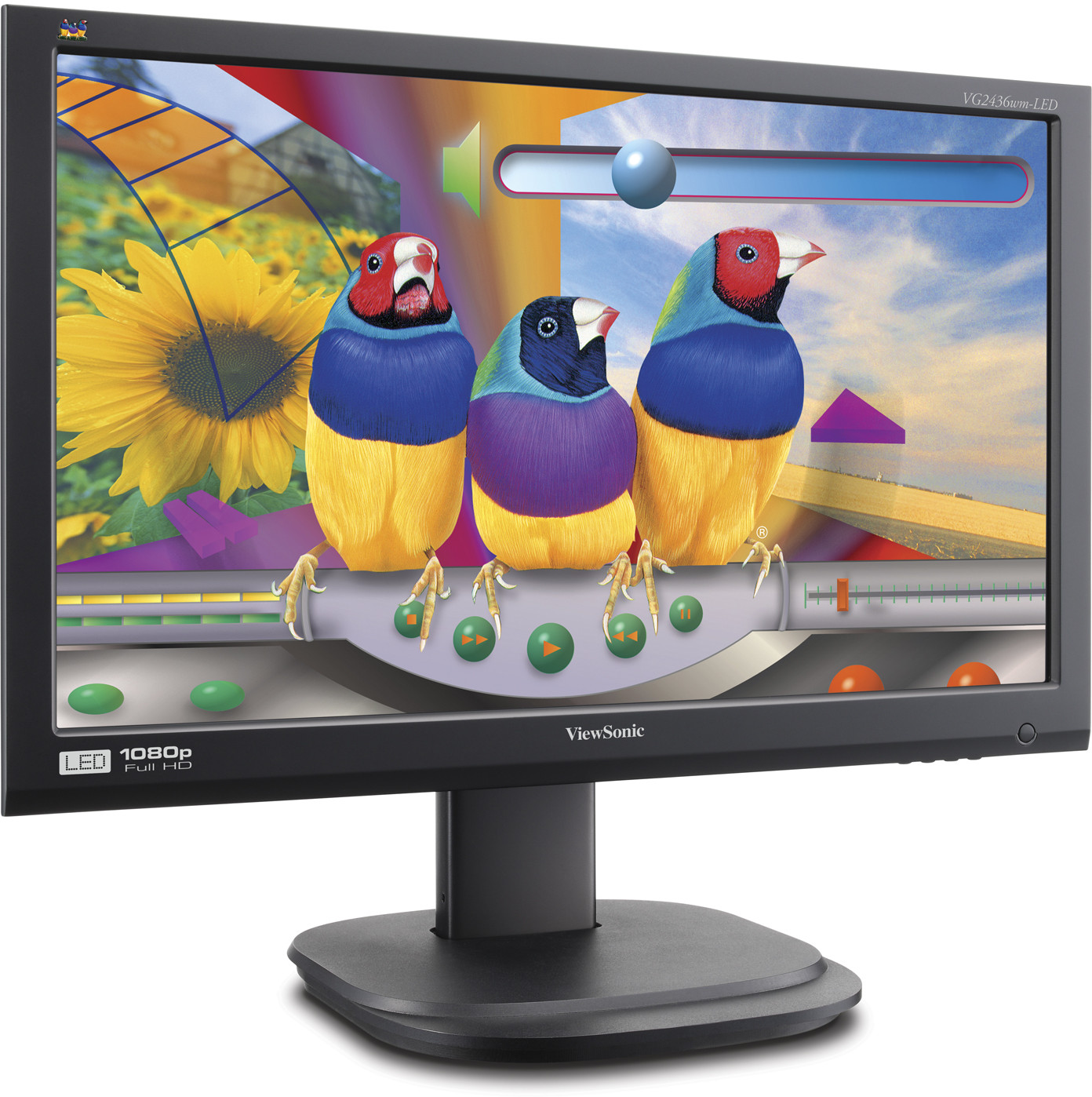

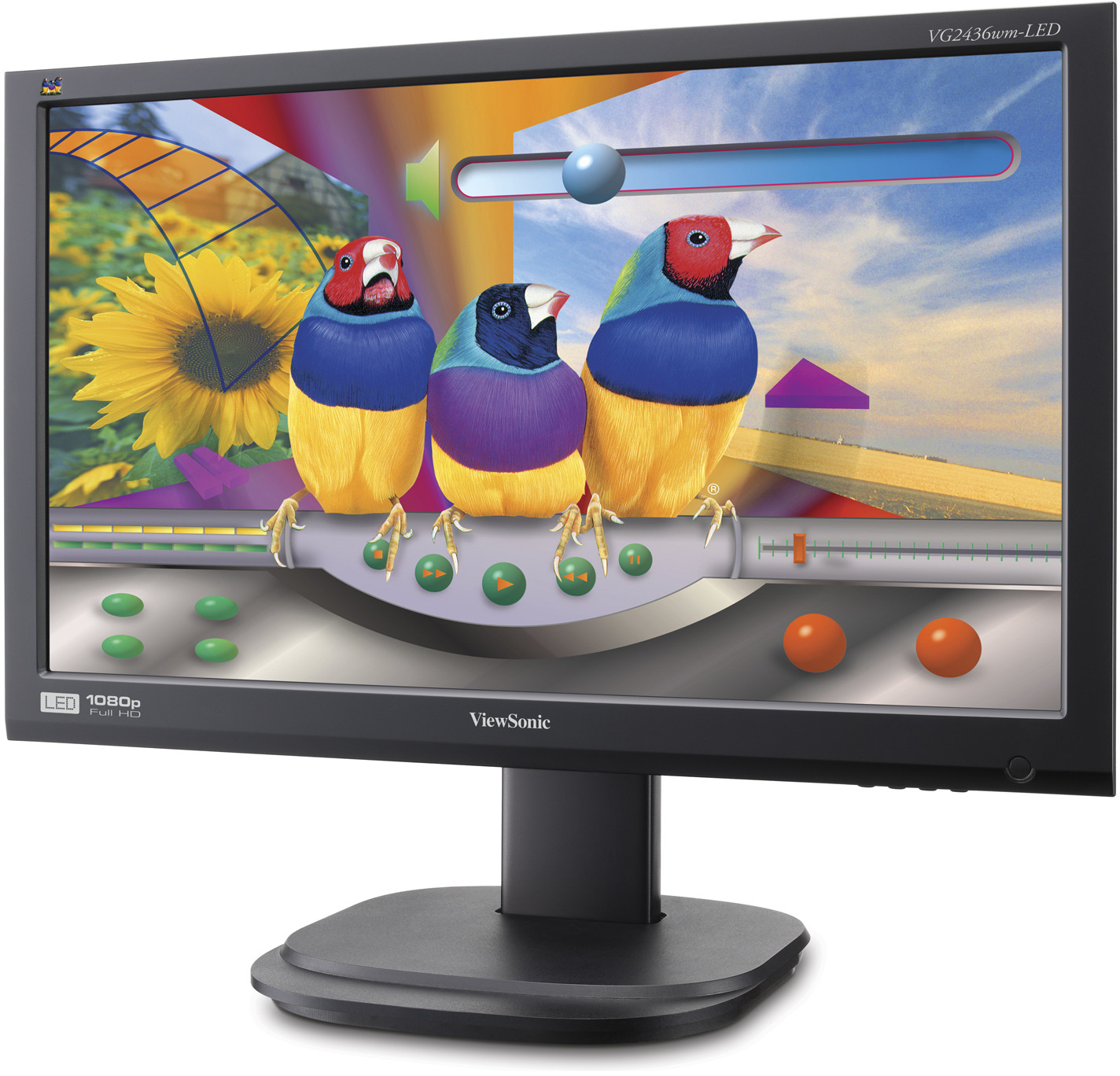

The VG2436wm-LED is one of two new members of ViewSonic’s new VG36-LED family. Its 24" (23.6" viewable) display with a native 1920x1080 resolution is big enough to replace dual-monitor setups. What makes it even more appealing is the LED backlight for up to 50% energy savings. Monitor is also fully ergonomic with 90º pivot, height adjust, swivel and tilt. The slim bezel design coupled with hidden stereo speakers make VG2436wm-LED a space saver. You can put it on your desk or mount on your wall or on any VESA® compliant monitor stand. With Viewsonic’s strongest pixel performance guarantee and 3-year warranty, you will have peace of mind in your investment.
REVIEWS


SPECIFICATIONS
- LCDContrast Ratio: 1000:1
Viewing Angles: 170° (H), 160° (V)
Optimum Resolution: 1920×1080
Response Time: 5ms (typical)
Light Source: 30,000 Hours (Typ.)
Panel Surface: Anti-Glare, Hard coating (3H)
Pixel Pitch: 0.2715 mm x 0.2715 mm
Size: 60cm/23.6”wide Colour TFT Active Matrix LCD aspect ratio
Brightness: 300 cd/㎡ (typical)
Dynamic Contrast Ratio: 20,000,000:1 - COMPATIBILITYPC: VGA up to 1920x1080 Non Interlaced
Mac®: 1920x1080 Non Interlaced - DIMENSIONSPhysical (WxHxD): 566.25mm (W) x 433.7 mm (H) x 238.8mm (D)
- REGULATIONSUL, CUL, FCC-B (ICES), CB, CE, CES-003B, ISO13406-2, TUV/GS,ERGO, TUV-S, NOM, GOST-R, ENERGY STAR
HYGIENIC (20 copies), CCC, BSMI, PSB, C-TICK, MIC(KCC), SASO, WEEE, RoHS, SASO, Ukraine ,TCO5.0 - INPUTSync: H/V separated (TTL), composite sync-on-green
Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

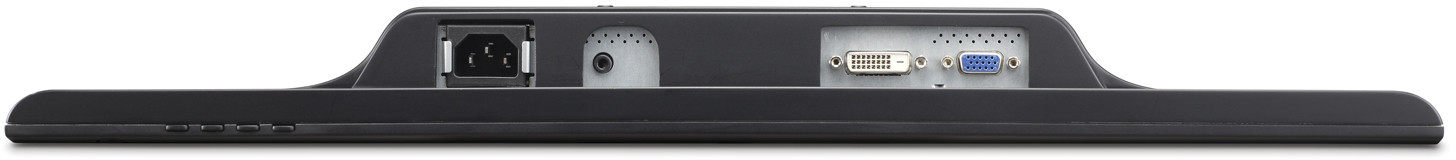

Frequency: 24–83kHz / 50–75Hz - CONNECTORAnalogue: 1×15 pin mini D-sub
Digital: DVI
Power: 3-pin plug (CEE22)
Audio: 1 x 3.5mm - POWERVoltage: AC 100-240V (Universal); 50/60Hz
Consumption: 28 W (typical)
Save Mode (W): ≦0.1W - CONTROLSBasic: [1], [2], power button, Down[▼], Up[▲]
OnView®: Auto Image Adjust, Contrast/Brightness, Input Select, D-SUB, DVI, Colour Adjust, sRGB,
9300K, 7500K, 6500K, 5000K, User Colour [R, G, B],
Information Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness,
Dynamic Contrast, Aspect ratio, Setup Menu, Language, Resolution Notice,
OSD Position, OSD Timeout, OSD Background, OSD Pivot, Auto power off, Memory

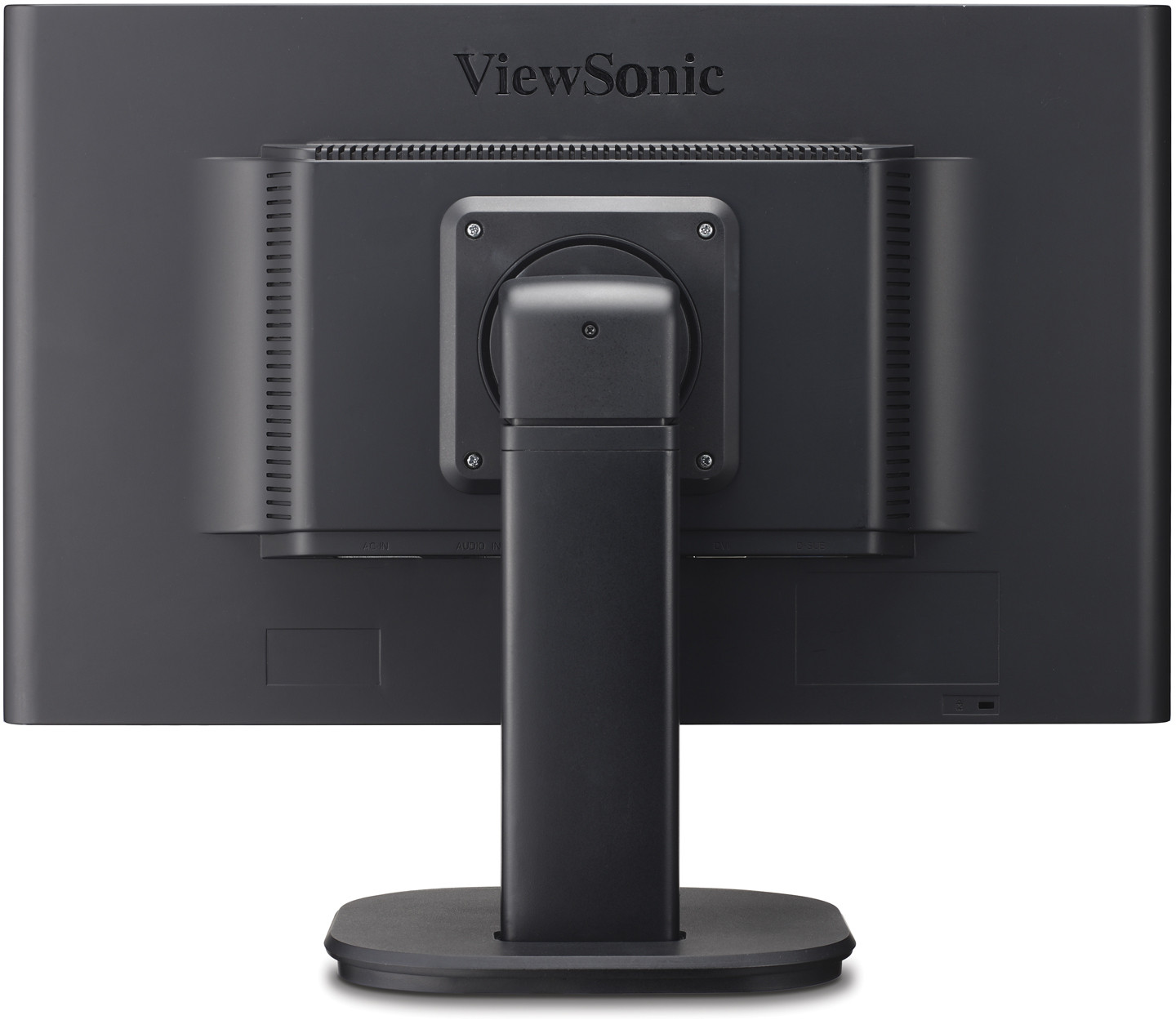

Recall - VESA® MOUNT100mm × 100mm

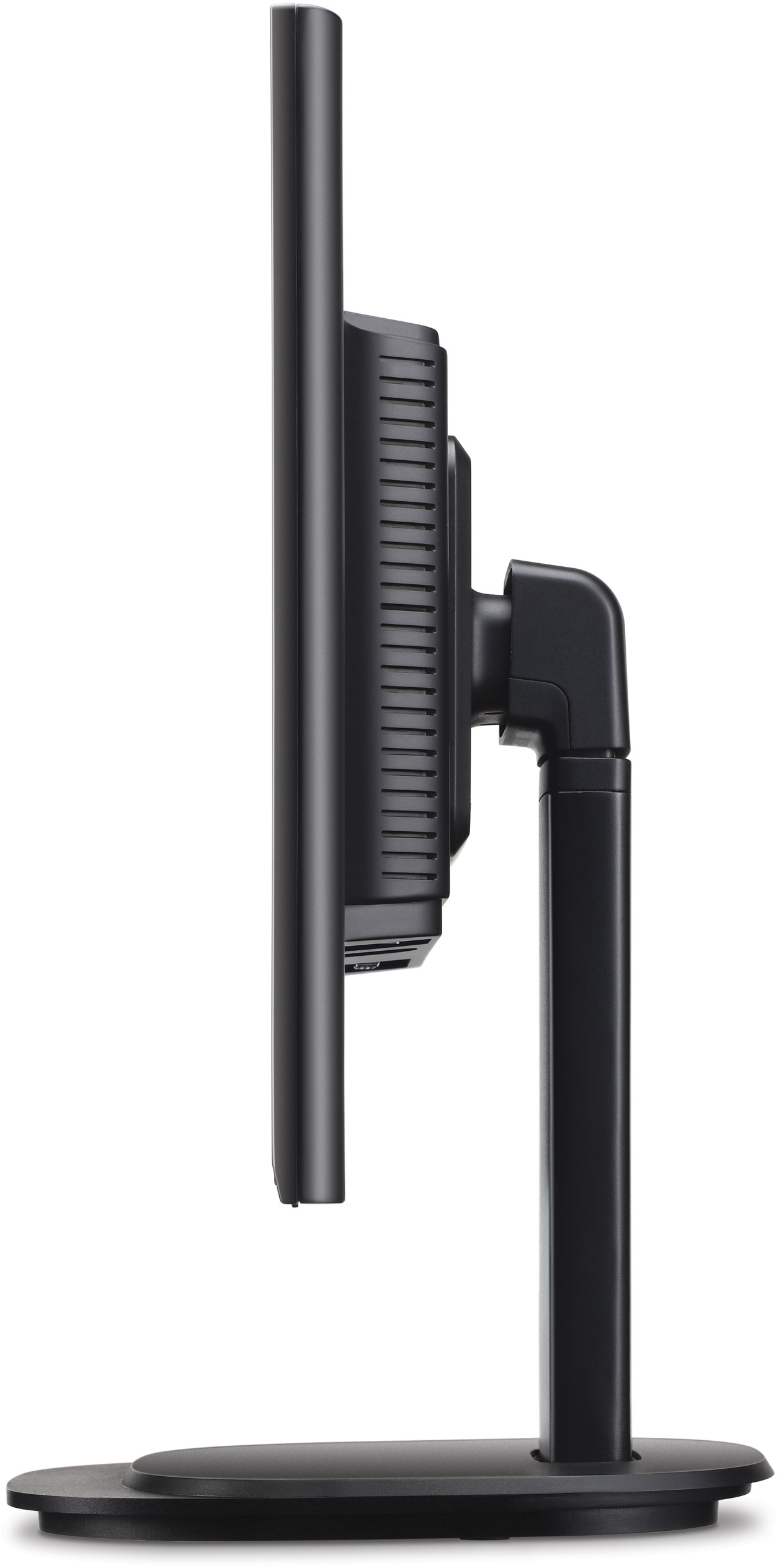

- ERGONOMICSTilt: 20 ~ -5 degrees
Swivel: 360 degrees
Height Adjustment: 0 ~ 135 mm
Rotation: 90 degrees - WEIGHTNet: 5.4 Kg (11.9lbs)
- OPERATING CONDITIONSHumidity: 20 - 90 (%)
Temperature: 0 - 40 (°C) / 32 - 104 (°F)
